51DR10MDHBB

: 51DR10MDHBB

Article downlight
Product name Lunis 41 Flat
Lamp LED
Rated luminous flux 1580lm
Luminous efficacy 126lm/W
Colour temperature 4000/6500K
Colour rendering CRI > 80
Rated input power 12.5W
Service life 30000h (L70/B50) at AT = 25°C
Protection rating IP20
Weight 0.5kg

Lunis 41 Flat, downlight, optical cover: cover, of PC, light emission: direct distribution, LED rated luminous flux: 1.580lm, light colour: 840/865, mains connection: 230V, AC, 50/60Hz, housing, round, of aluminium, coated, traffic white (RAL 9016), diameter: 170mm, protection rating (complete): IP20, protection rating (on room side): IP44, insulation class (complete): insulation class II (safety insulation), certification: CE, permissible ambient temperature for indoor applications: -20..+40°C, packaging unit: 1 piece

Downloads

Key data

Product type downlight
Product name Lunis 41 Flat
Order No. 51DR10MDHBB

Lighting technology

Cover cover
Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 1580lm
Luminous efficacy 126lm/W
Colour temperature 4000/6500K
Colour rendering index CRI > 80
Light colour 840/865
Rated input power 12.5W
Supplement luminous flux adjustable on luminaire in two steps at 4000K/6200K (800/1600lm)

Operating device

Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Protection rating (on room side) IP44
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+40°C
Certification, designation CE

Material, Colour

housing aluminium, coated, traffic white (RAL 9016), round
Cover cover of PC

Mounting

Mounting method, mounting location recessed, in the ceiling

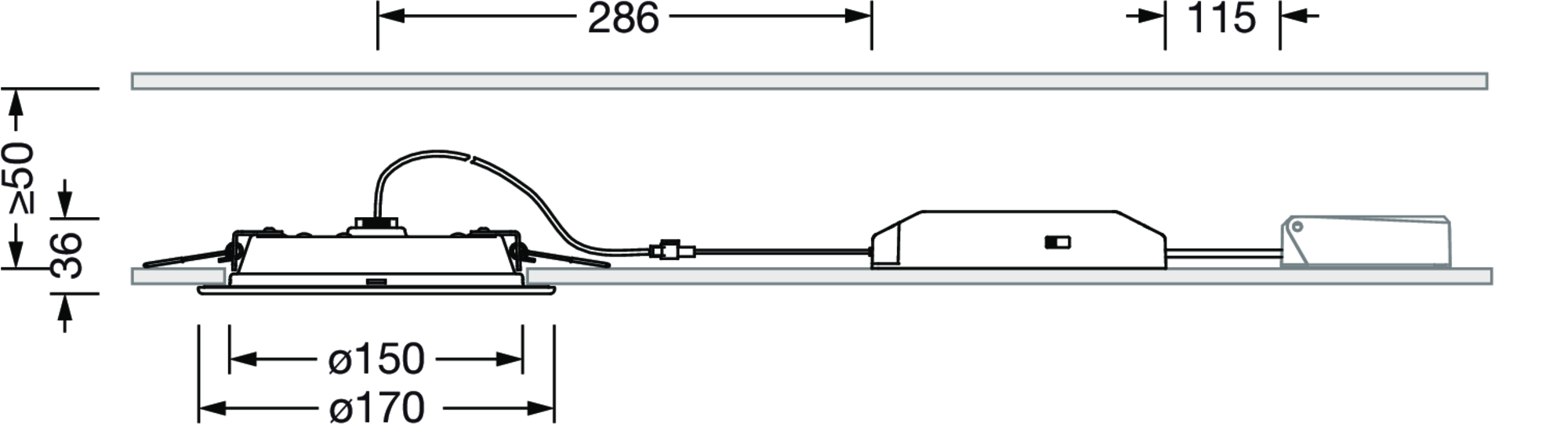

Ø of ceiling cut-out 150mm
Arrangement single arrangement

Electrical connection

Nominal voltage 230V, 50/60Hz, AC

Dimensions, Weight

Diameter 170mm
Height 19mm
Weight 0.5kg

Service life

Rated service life 30000h (L70/B50) at AT = 25°C

Product type
downlight

Product name
Lunis 41 Flat

Order No.
51DR10MDHBB

Cover
cover

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
1580lm

Luminous efficacy
126lm/W

Colour temperature
4000/6500K

Colour rendering index
CRI > 80

Light colour
840/865

Rated input power
12.5W

Supplement
luminous flux adjustable on luminaire in two steps at 4000K/6200K (800/1600lm)

Control
ON/OFF Multilumen

Protection rating
IP20

Protection rating (on room side)
IP44

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+40°C

Certification, designation
CE

housing
aluminium, coated, traffic white (RAL 9016), round

Cover
cover of PC

Mounting method, mounting location
recessed, in the ceiling

Ø of ceiling cut-out
150mm

Arrangement
single arrangement

Nominal voltage
230V, 50/60Hz, AC

Diameter
170mm

Height
19mm

Weight
0.5kg

Rated service life
30000h (L70/B50) at AT = 25°C

Lunis 41
LED, cover, PC, direct distribution, single arrangement, recessed, in the ceiling, ø= 170mm

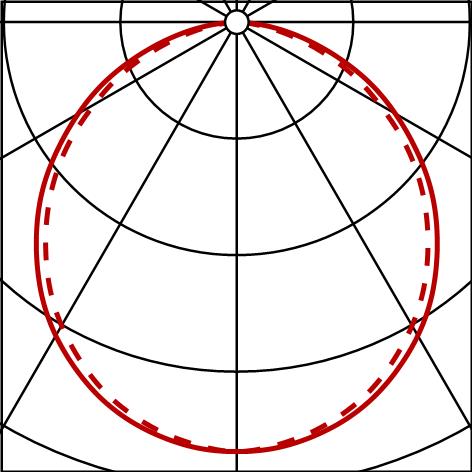

: LED 4000K / CRI >= 80, factory setting: colour temperature 4000K
: 51DR10MDHBB

Lunis 41

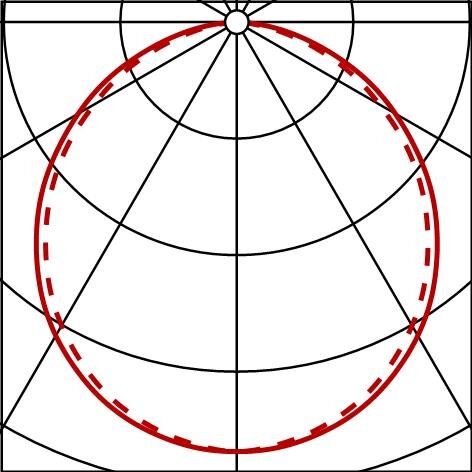

: LED 6500K / CRI >= 80, individual setting: colour temperature 6500K
: 51DR10MDHBB
