51FB107L440K005

: 51FB107L440K005

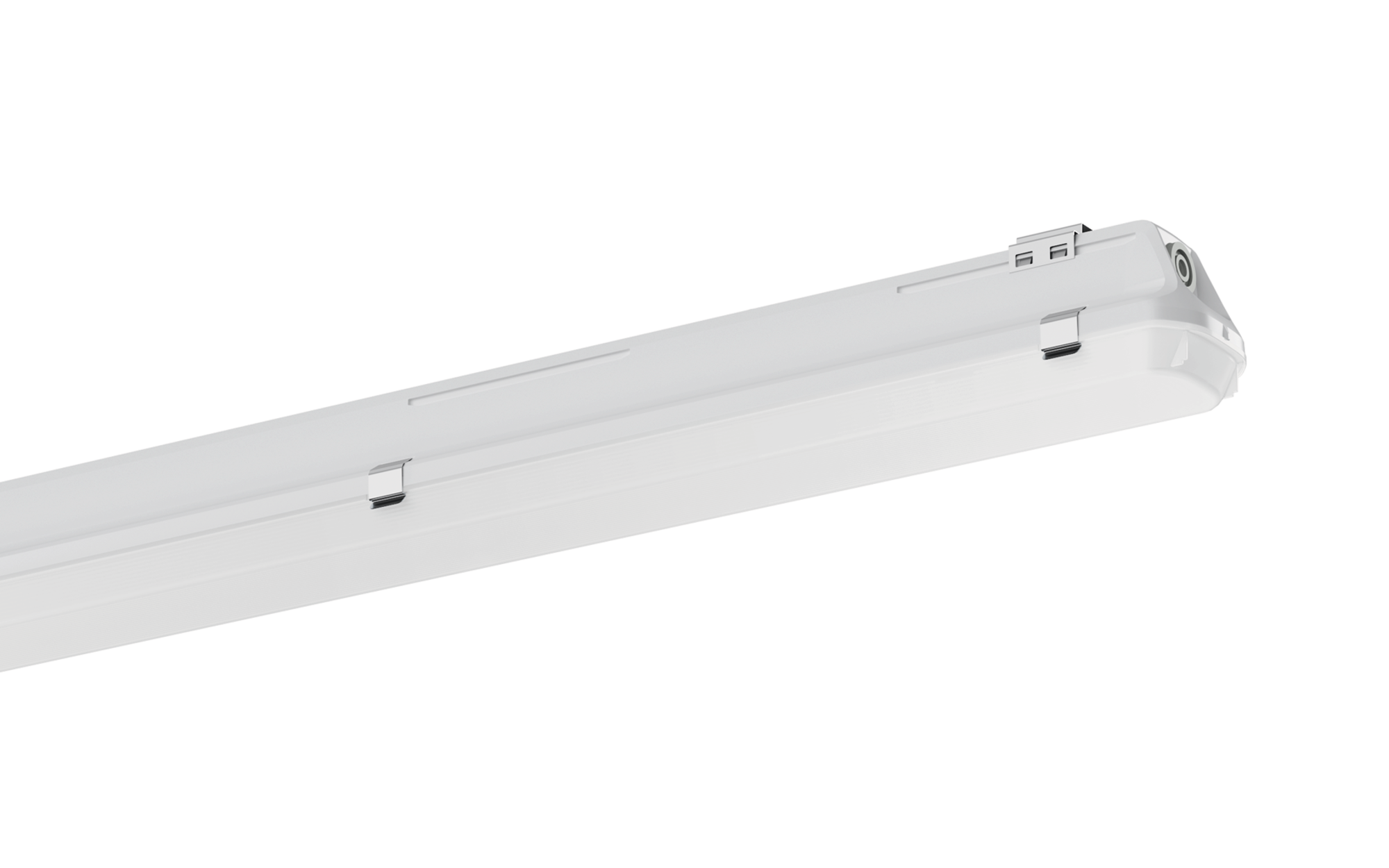

Article damp-proof luminaire
Product name Monsun 21
Lamp LED
Rated luminous flux 4350lm
Luminous efficacy 176lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 24.7W
Service life 75000h (L80) at AT = 25°C
Protection rating IP66
Impact resistance IK04
Weight 2.2kg

Monsun 21, damp-proof luminaire, chain hanger, primary optical cover: enclosure, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, installation type: vertical mounting, horizontal mounting, surface-mounted, suspended mounting, LED, rated luminous flux: 4.350lm, luminous efficacy: 176lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF, with terminal, 5-pole, max. 2.5mm², through-wiring: 5x 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 24.7W, housing, of glass-fibre reinforced polyester, uncoated, bright grey, incl. chain hanger, robust housing variations for interior and semi-exterior applications, length: 1.299mm, width: 90mm, height: 88mm, clip for enclosure, of stainless steel (V2A), ceiling mounting element, of stainless steel (V2A), chain hanger, of stainless steel (V2A), protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, protection symbol: D, impact resistance: IK04, permissible operating ambient temperature: -35..+45°C, standard: EN 50419, EN 60598-2-1, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, LABS conformity tested according to VDMA 24364:2018-05, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, packaging unit: 1 piece

Downloads

Key data

Product type damp-proof luminaire
Product name Monsun 21
Order No. 51FB107L440K005

Lighting technology

Cover enclosure
Beam angle wide distribution
Symmetry symmetric

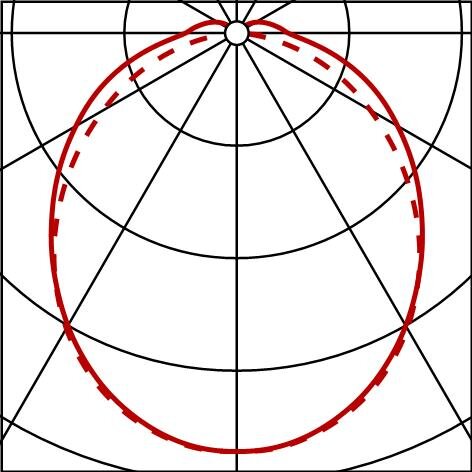

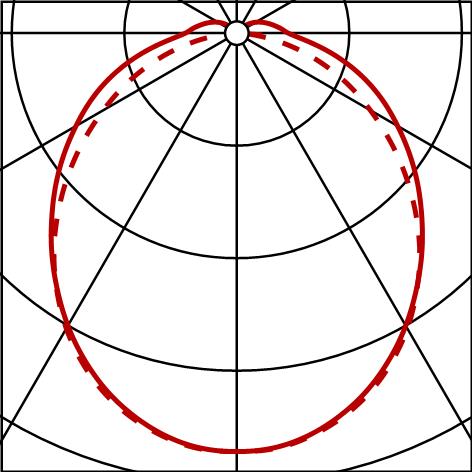

Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 4350lm
Luminous efficacy 176lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 24.7W
Supplement internal wiring halogen-free, without flicker

Operating device

Control ON/OFF

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK04
Protection symbol D
Temperature range (operation) -35..+45°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, LABS conformity tested according to VDMA 24364:2018-05, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity
Standard EN 50419, EN 60598-2-1
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

housing glass-fibre reinforced polyester, uncoated, bright grey, incl. chain hanger
clip for enclosure stainless steel (V2A)
Quantity 10 piece
ceiling mounting element stainless steel (V2A), ceiling mounting included
Quantity 2 piece
chain hanger stainless steel (V2A)
Quantity 2 piece
Cover enclosure of PMMA

Mounting

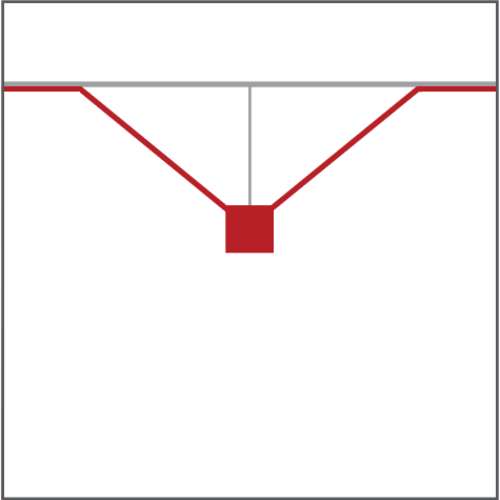

Mounting method, mounting location suspended mounting, surface-mounted, horizontal mounting, vertical mounting, to the ceiling, to the wall, to the Licross mounting rail
Arrangement single/continuous arrangement
Supplement luminaire includes fixing accessories for ceiling surface mounting; for other types of installation: please order mounting accessories separately

Electrical connection

Connection terminal, 5-pole, max. 2.5mm²
Nominal voltage 220..240V, 50/60Hz, AC
Through-wiring 5x 2.5mm²

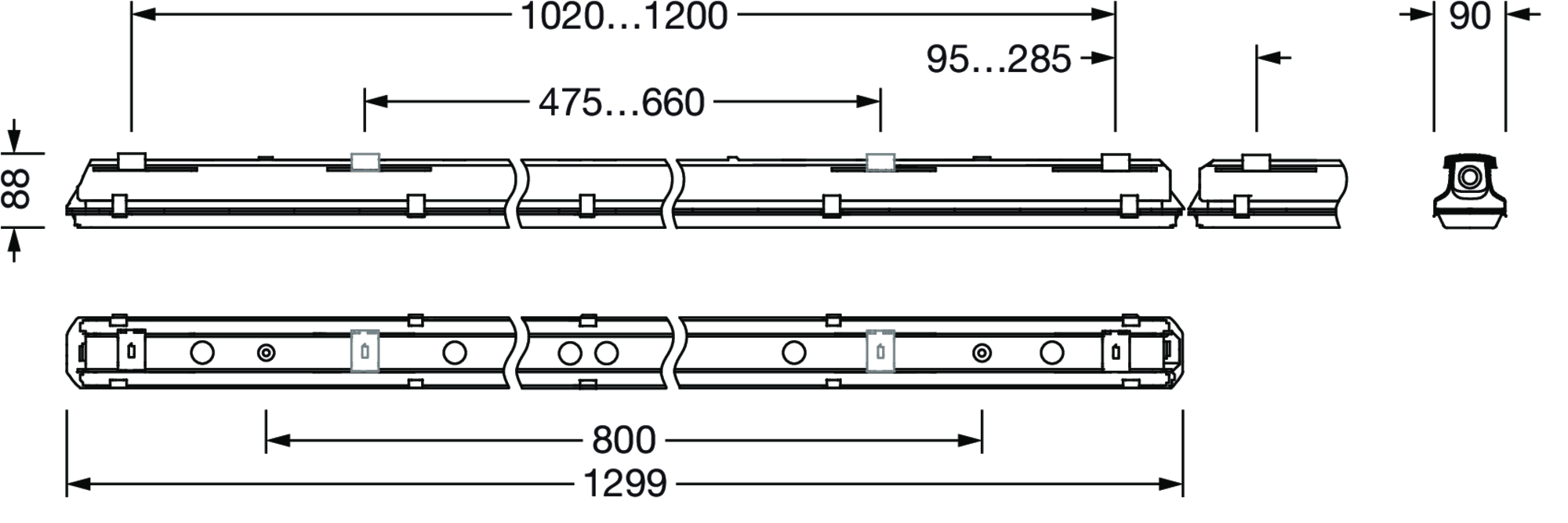

Dimensions, Weight

Length 1299mm
Width 90mm
Height 88mm
Weight 2.2kg

Service life

Rated service life 75000h (L80) at AT = 25°C

Product type
damp-proof luminaire

Product name
Monsun 21

Order No.
51FB107L440K005

Cover
enclosure

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
4350lm

Luminous efficacy
176lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
24.7W

Supplement
internal wiring halogen-free, without flicker

Control
ON/OFF

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK04

Protection symbol
D

Temperature range (operation)
-35..+45°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, LABS conformity tested according to VDMA 24364:2018-05, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity

Standard
EN 50419, EN 60598-2-1

Certification, designation
CE, ENEC, VDE, UKCA

housing
glass-fibre reinforced polyester, uncoated, bright grey, incl. chain hanger

clip for enclosure
stainless steel (V2A)

Quantity
10 piece

ceiling mounting element
stainless steel (V2A), ceiling mounting included

Quantity
2 piece

chain hanger
stainless steel (V2A)

Quantity
2 piece

Cover
enclosure of PMMA

Mounting method, mounting location
suspended mounting, surface-mounted, horizontal mounting, vertical mounting, to the ceiling, to the wall, to the Licross mounting rail

Arrangement
single/continuous arrangement

Supplement
luminaire includes fixing accessories for ceiling surface mounting; for other types of installation: please order mounting accessories separately

Connection
terminal, 5-pole, max. 2.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Through-wiring
5x 2.5mm²

Length
1299mm

Width
90mm

Height
88mm

Weight
2.2kg

Rated service life
75000h (L80) at AT = 25°C

Monsun 21
LED, with through-wiring 5x 2.5mm², enclosure, below, vertical mounting, horizontal mounting, surface-mounted, suspended mounting, L= 1299mm
: LED 4000K / CRI >= 80
: 51FB107L440K005
