51FB207P467C3G

: 51FB207P467C3G

Article damp-proof luminaire

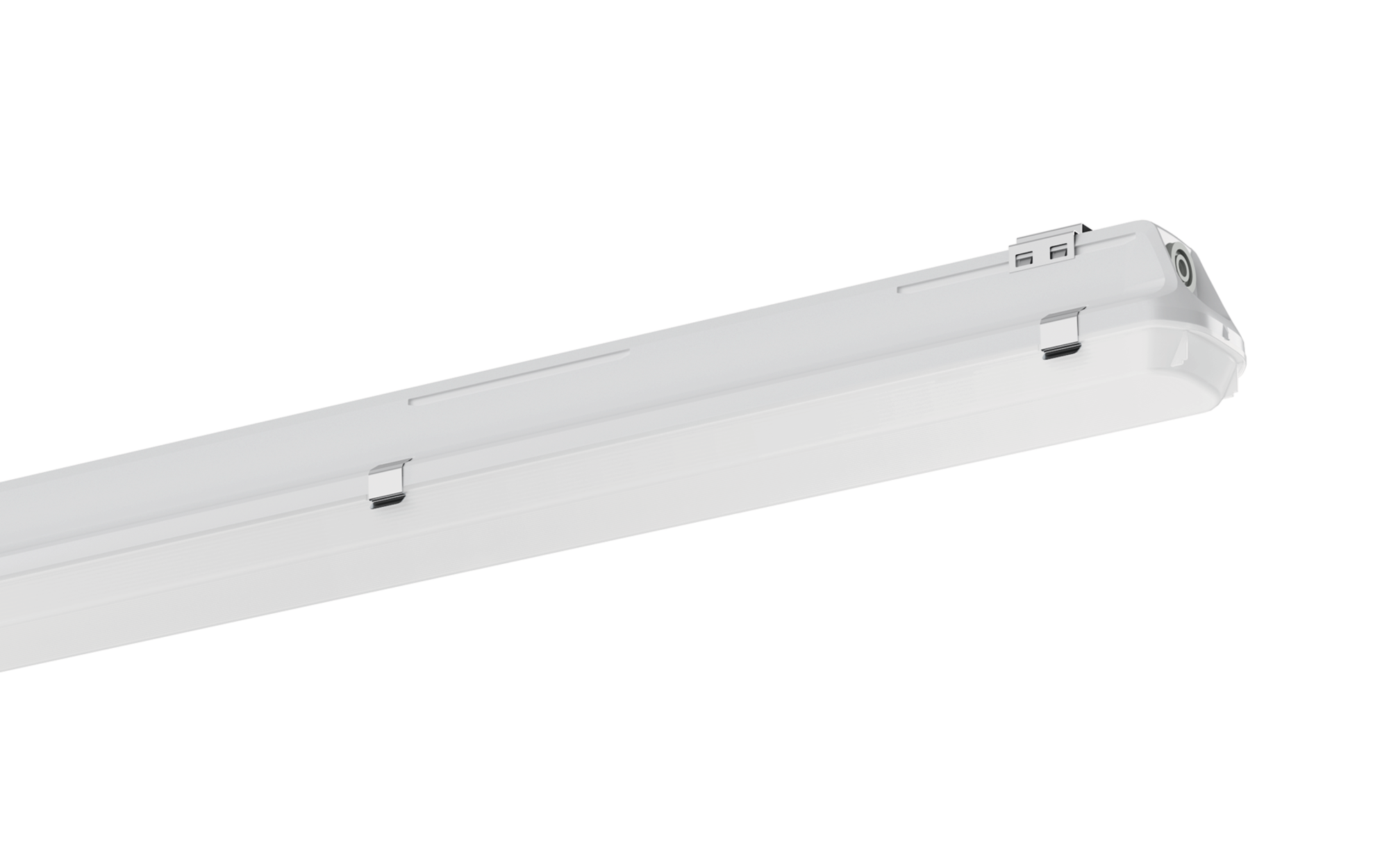

Product name Monsun 21 emergency
Lamp LED
Rated luminous flux 5460lm
Luminous efficacy 144lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 37.9W
Service life 75000h (L80) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 3.3kg

Monsun 21 emergency, damp-proof luminaire, chain hanger, primary optical cover: enclosure, of PC, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, horizontal mounting, vertical mounting, LED, rated luminous flux: 5.460lm, luminous efficacy: 144lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF, with terminal, 5-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 37.9W, control gear: single battery element, battery: LiFePO4, 9Ah, housing, of glass-fibre reinforced polyester, uncoated, bright grey, incl. chain hanger, robust housing variations for interior and semi-exterior applications, length: 1.590mm, width: 90mm, height: 88mm, clip for enclosure, of stainless steel (V2A), ceiling mounting element, of stainless steel (V2A), chain hanger, of stainless steel (V2A), protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: +5..+35°C, standard: EN 50419, EN 60598-2-1, EN 60598-2-22, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, LABS conformity tested according to VDMA 24364:2018-05, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, packaging unit: 1 piece

Downloads

Key data

Product type damp-proof luminaire
Product name Monsun 21 emergency
Order No. 51FB207P467C3G

Component 1

Lighting technology
Cover enclosure

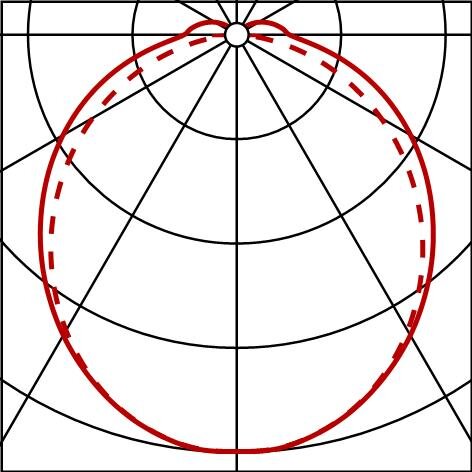

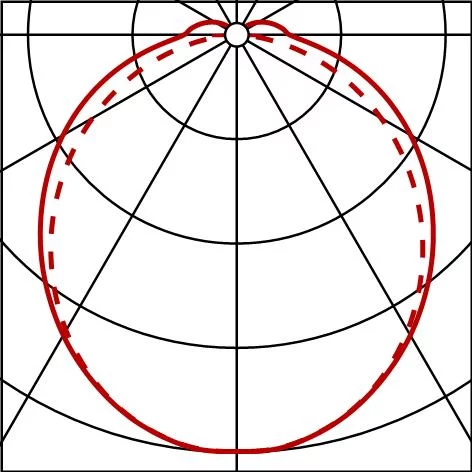

Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution

Lamps
Lamps with LED
Rated luminous flux 5460lm
Luminous efficacy 144lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 37.9W
Supplement suitable for emergency light operating devices according to EN 60598-2-22, internal wiring halogen-free, without flicker

Operating device
Control ON/OFF

Component 2

Lamps
Supplement with self-test function, LED status display: green = system ok; red = failure

Operating device
Control gear single battery element
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK08
Protection symbol D
Temperature range (operation) +5..+35°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, LABS conformity tested according to VDMA 24364:2018-05, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity
Standard EN 50419, EN 60598-2-1, EN 60598-2-22
Certification, designation CE, UKCA

Material, Colour

housing glass-fibre reinforced polyester, uncoated, bright grey, incl. chain hanger
clip for enclosure stainless steel (V2A)
Quantity 10 piece
ceiling mounting element stainless steel (V2A), ceiling mounting included
Quantity 2 piece
chain hanger stainless steel (V2A)
Quantity 2 piece
Cover enclosure of PC

Mounting

Mounting method, mounting location suspended mounting, surface-mounted, horizontal mounting, vertical mounting, to the ceiling, to the wall, to the Licross mounting rail
Arrangement single/continuous arrangement
Supplement luminaire includes fixing accessories for ceiling surface mounting; for other types of installation: please order mounting accessories separately

Electrical connection

Connection terminal, 5-pole, max. 2.5mm²
Nominal voltage 220..240V, 50/60Hz, AC

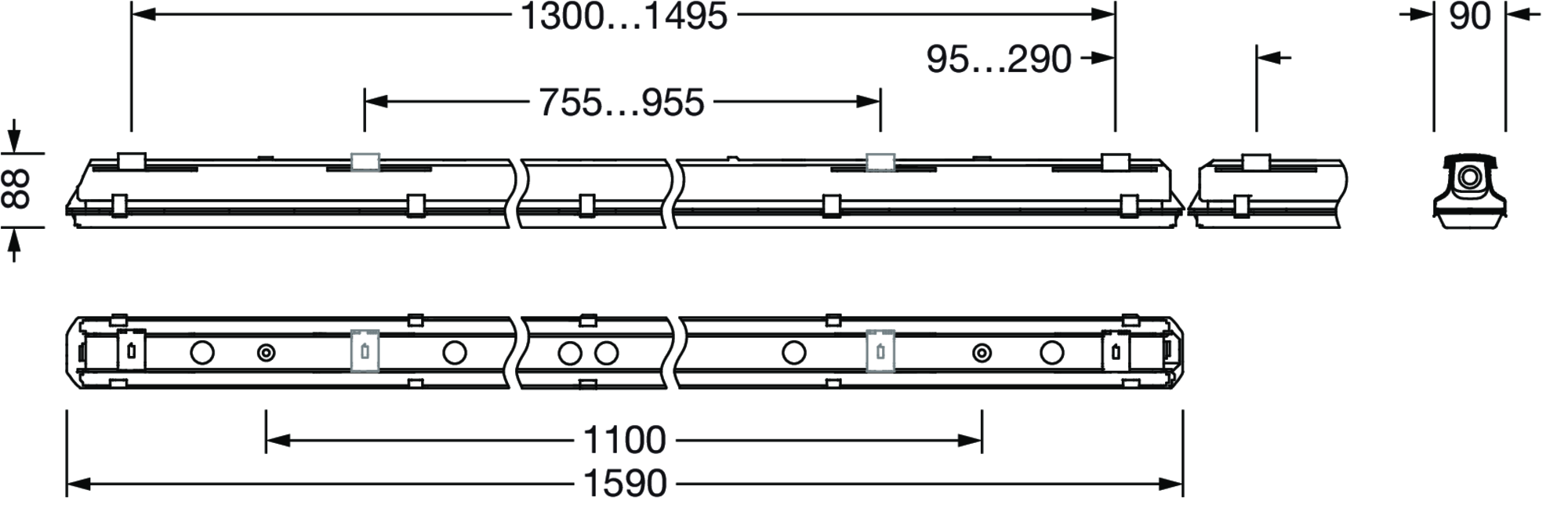

Dimensions, Weight

Length 1590mm
Width 90mm
Height 88mm
Weight 3.3kg

Service life

Rated service life 75000h (L80) at AT = 25°C

Product type
damp-proof luminaire

Product name
Monsun 21 emergency

Order No.
51FB207P467C3G

Lighting technology

Cover
enclosure

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

Lamps

Lamps
with LED

Rated luminous flux
5460lm

Luminous efficacy
144lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
37.9W

Supplement
suitable for emergency light operating devices according to EN 60598-2-22, internal wiring halogen-free, without flicker

Operating device

Control
ON/OFF

Lamps

Supplement
with self-test function, LED status display: green = system ok; red = failure

Operating device

Control gear
single battery element

Battery
LiFePO4

Nominal operating time
3h

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK08

Protection symbol
D

Temperature range (operation)
+5..+35°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, LABS conformity tested according to VDMA 24364:2018-05, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity

Standard
EN 50419, EN 60598-2-1, EN 60598-2-22

Certification, designation
CE, UKCA

housing
glass-fibre reinforced polyester, uncoated, bright grey, incl. chain hanger

clip for enclosure
stainless steel (V2A)

Quantity
10 piece

ceiling mounting element
stainless steel (V2A), ceiling mounting included

Quantity
2 piece

chain hanger
stainless steel (V2A)

Quantity
2 piece

Cover
enclosure of PC

Mounting method, mounting location
suspended mounting, surface-mounted, horizontal mounting, vertical mounting, to the ceiling, to the wall, to the Licross mounting rail

Arrangement
single/continuous arrangement

Supplement
luminaire includes fixing accessories for ceiling surface mounting; for other types of installation: please order mounting accessories separately

Connection
terminal, 5-pole, max. 2.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Length
1590mm

Width
90mm

Height
88mm

Weight
3.3kg

Rated service life
75000h (L80) at AT = 25°C

Monsun 21 emergency
LED, single battery element, enclosure, below, suspended mounting, surface-mounted, horizontal mounting, vertical mounting, L= 1590mm
: LED 4000K / CRI >= 80, factory setting AC mode: AC-mode
: 51FB207P467C3G

Monsun 21 emergency
: LED 4000K / CRI >= 80, emergency light operation rated luminous flux: emergency light operation: 3 h
: 51FB207P467C3G
