51FE107P680R

: 51FE107P680R

Article damp-proof luminaire
Product name Monsun 11Xtreme HO
Lamp LED
Rated luminous flux 7900lm
Luminous efficacy 183lm/W
Colour temperature 6500K
Colour rendering CRI > 80
Rated input power 43.2W
Service life 70000h (L90) at AT = ta max
Protection rating IP66
Impact resistance IK04
Weight 2.5kg

Monsun 11Xtreme HO, damp-proof luminaire, chain hanger, primary optical cover: enclosure, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, horizontal mounting, vertical mounting, LED, rated luminous flux: 7.900lm, luminous efficacy: 183lm/W, light colour: 865, colour temperature: 6500K, control gear: ON/OFF, with terminal, 3-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 43.2W, luminaire housing, of glass-fibre reinforced polyester, uncoated, bright grey, incl. chain hanger, robust housing variations for interior and semi-exterior applications, length: 1.590mm, width: 90mm, height: 88mm, clip for enclosure, of stainless steel (V2A), ceiling mounting element, of stainless steel (V2A), chain hanger, of stainless steel (V2A), protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, protection symbol: D, impact resistance: IK04, permissible operating ambient temperature: -35..+55°C, standard: EN 50419, EN 60598-2-1, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Downloads

Key data

Product type damp-proof luminaire
Product name Monsun 11Xtreme HO
Order No. 51FE107P680R

Lighting technology

Cover enclosure
Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 7900lm
Luminous efficacy 183lm/W
Colour temperature 6500K
Colour rendering index CRI > 80
Light colour 865
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 43.2W
Supplement internal wiring halogen-free, without flicker, For thermal reasons, this luminaire is not approved for optional through-wiring

Operating device

Control ON/OFF

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK04
Protection symbol D
Temperature range (operation) -35..+55°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, LABS conformity tested according to VDMA 24364:2018-05, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity
Standard EN 50419, EN 60598-2-1
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

luminaire housing glass-fibre reinforced polyester, uncoated, bright grey, incl. chain hanger
clip for enclosure stainless steel (V2A)
Quantity 10 piece
ceiling mounting element stainless steel (V2A), ceiling mounting included
Quantity 2 piece
chain hanger stainless steel (V2A)
Quantity 2 piece
Cover enclosure of PMMA

Mounting

Mounting method, mounting location suspended mounting, surface-mounted, horizontal mounting, vertical mounting, to the ceiling, to the wall, to the Licross mounting rail
Mounting height max. 4.5m
Arrangement single/continuous arrangement
Supplement luminaire includes fixing accessories for ceiling surface mounting; for other types of installation: please order mounting accessories separately

Electrical connection

Connection terminal, 3-pole, max. 2.5mm²
Nominal voltage 220..240V, 50/60Hz, AC

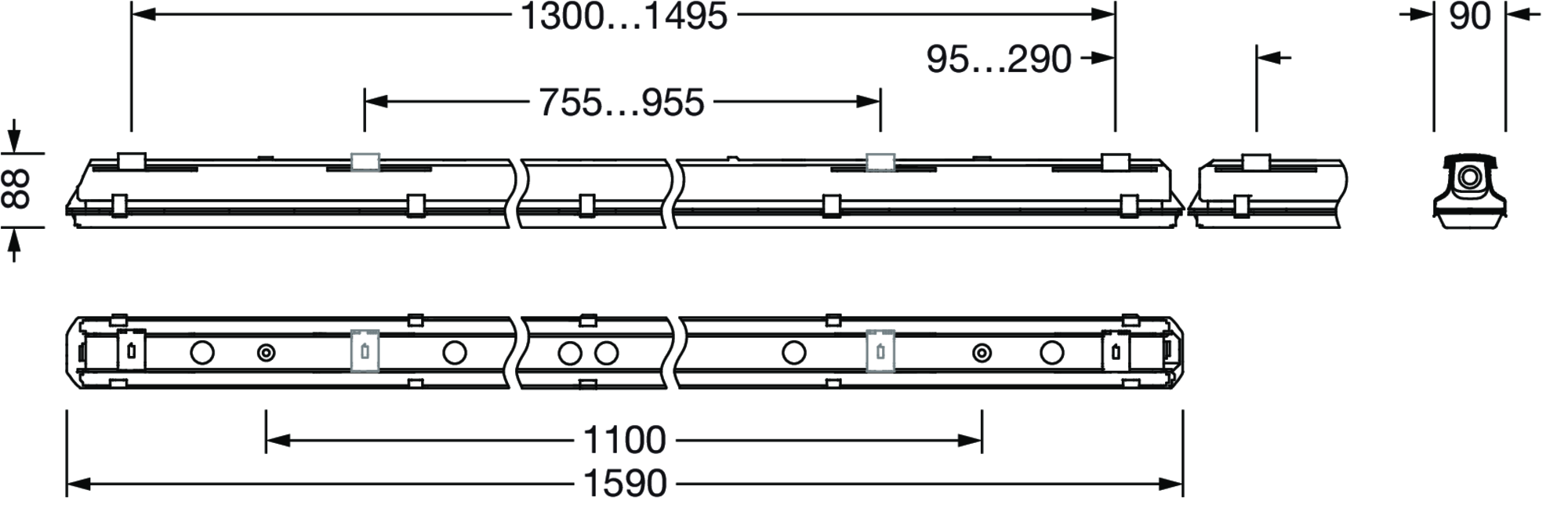

Dimensions, Weight

Length 1590mm
Width 90mm
Height 88mm
Weight 2.5kg

Service life

Rated service life 70000h (L90) at AT = ta max

Product type
damp-proof luminaire

Product name
Monsun 11Xtreme HO

Order No.
51FE107P680R

Cover
enclosure

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
7900lm

Luminous efficacy
183lm/W

Colour temperature
6500K

Colour rendering index
CRI > 80

Light colour
865

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
43.2W

Supplement
internal wiring halogen-free, without flicker, For thermal reasons, this luminaire is not approved for optional through-wiring

Control
ON/OFF

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK04

Protection symbol
D

Temperature range (operation)
-35..+55°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, LABS conformity tested according to VDMA 24364:2018-05, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity

Standard
EN 50419, EN 60598-2-1

Certification, designation
CE, ENEC, VDE, UKCA

luminaire housing
glass-fibre reinforced polyester, uncoated, bright grey, incl. chain hanger

clip for enclosure
stainless steel (V2A)

Quantity
10 piece

ceiling mounting element
stainless steel (V2A), ceiling mounting included

Quantity
2 piece

chain hanger
stainless steel (V2A)

Quantity
2 piece

Cover
enclosure of PMMA

Mounting method, mounting location
suspended mounting, surface-mounted, horizontal mounting, vertical mounting, to the ceiling, to the wall, to the Licross mounting rail

Mounting height
max. 4.5m

Arrangement
single/continuous arrangement

Supplement
luminaire includes fixing accessories for ceiling surface mounting; for other types of installation: please order mounting accessories separately

Connection
terminal, 3-pole, max. 2.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Length
1590mm

Width
90mm

Height
88mm

Weight
2.5kg

Rated service life
70000h (L90) at AT = ta max

Monsun 11Xtreme
LED, enclosure, below, suspended mounting, surface-mounted, horizontal mounting, vertical mounting, L= 1590mm
: LED 6500K / CRI >= 80
: 51FE107P680R
