51FP10DP468L2

: 51FP10DP468L2

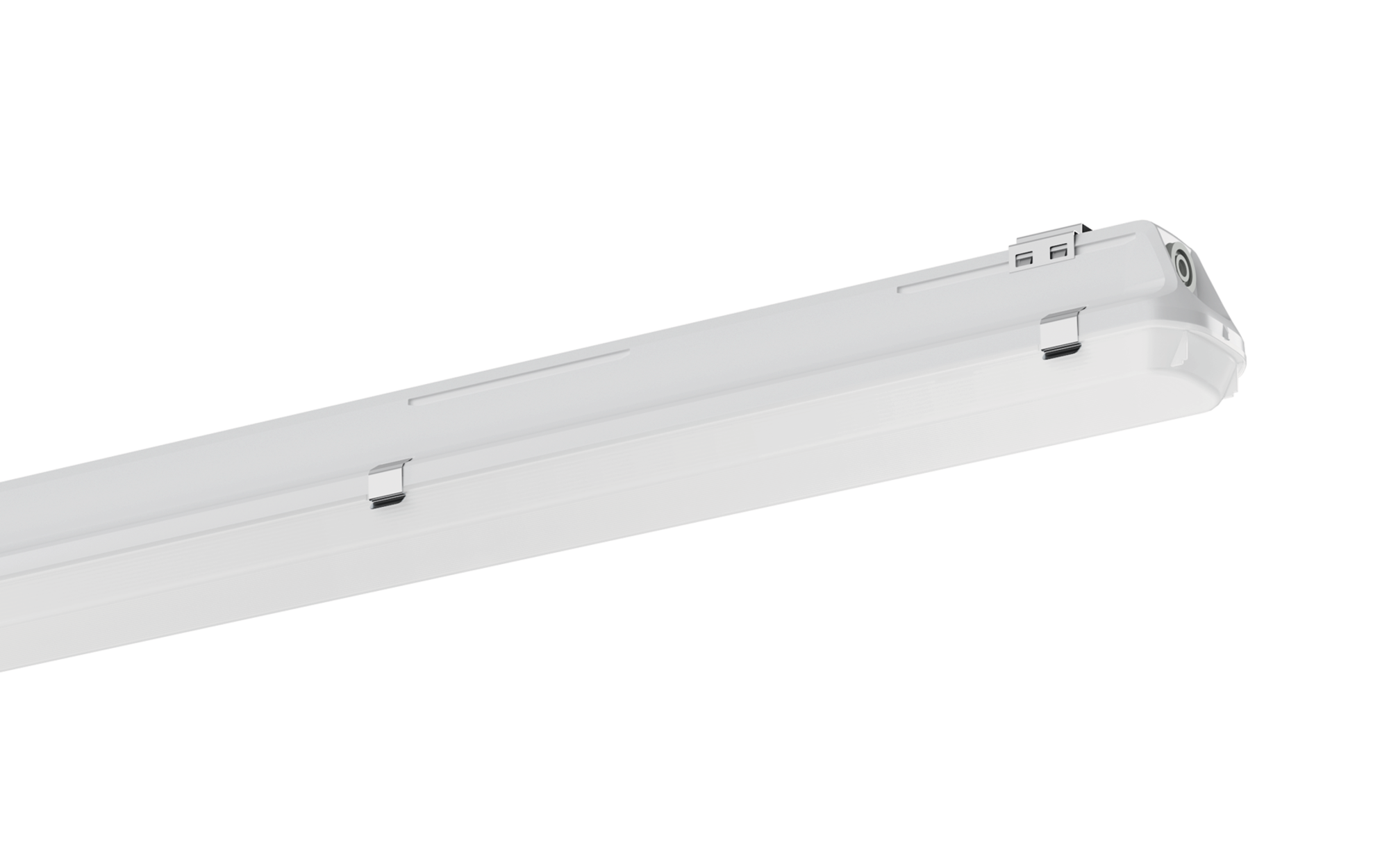

Article damp-proof luminaire
Product name Monsun 11 emergency
Lamp LED
Rated luminous flux 6050lm
Luminous efficacy 192lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 31.5W
Service life 100000h (L90) at AT = ta max, 100000h (L95) at AT = 25°C
Protection rating IP66
Impact resistance IK04
Weight 2.5kg

Monsun 11 emergency, damp-proof luminaire, chain hanger, primary optical cover: enclosure, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, horizontal mounting, vertical mounting, LED, rated luminous flux: 6.050lm, luminous efficacy: 192lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with terminal, 5-pole, max. 2.5mm², mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 31.5W, luminaire housing, of glass-fibre reinforced polyester, uncoated, bright grey, incl. chain hanger, robust housing variations for interior and semi-exterior applications, length: 1.590mm, width: 90mm, height: 88mm, clip for enclosure, of stainless steel (V2A), ceiling mounting element, of stainless steel (V2A), chain hanger, of stainless steel (V2A), protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D, impact resistance: IK04, permissible operating ambient temperature: -25..+35°C, standard: EN 50419, EN 60598-2-1, EN 60598-2-22, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data), corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, LABS conformity tested according to VDMA 24364:2018-05, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, packaging unit: 1 piece

Downloads

Key data

Product type damp-proof luminaire
Product name Monsun 11 emergency
Order No. 51FP10DP468L2

Lighting technology

Cover enclosure
Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 6050lm
Luminous efficacy 192lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 31.5W
Supplement for group or central battery, without changeover relay, suitable for emergency light operating devices according to EN 60598-2-22, internal wiring halogen-free, luminous flux reduced to approx. 15% with DC operation, without flicker

Operating device

Control DALI 2

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK04
Protection symbol D
Temperature range (operation) -25..+35°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, LABS conformity tested according to VDMA 24364:2018-05, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity
Standard EN 50419, EN 60598-2-1, EN 60598-2-22, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)
Certification, designation CE, UKCA

Material, Colour

luminaire housing glass-fibre reinforced polyester, uncoated, bright grey, incl. chain hanger
clip for enclosure stainless steel (V2A)
Quantity 10 piece
ceiling mounting element stainless steel (V2A), ceiling mounting included
Quantity 2 piece
chain hanger stainless steel (V2A)
Quantity 2 piece
Cover enclosure of PMMA

Mounting

Mounting method, mounting location suspended mounting, surface-mounted, horizontal mounting, vertical mounting, to the ceiling, to the wall, to the Licross mounting rail
Arrangement single/continuous arrangement
Supplement luminaire includes fixing accessories for ceiling surface mounting; for other types of installation: please order mounting accessories separately

Electrical connection

Connection terminal, 5-pole, max. 2.5mm²
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

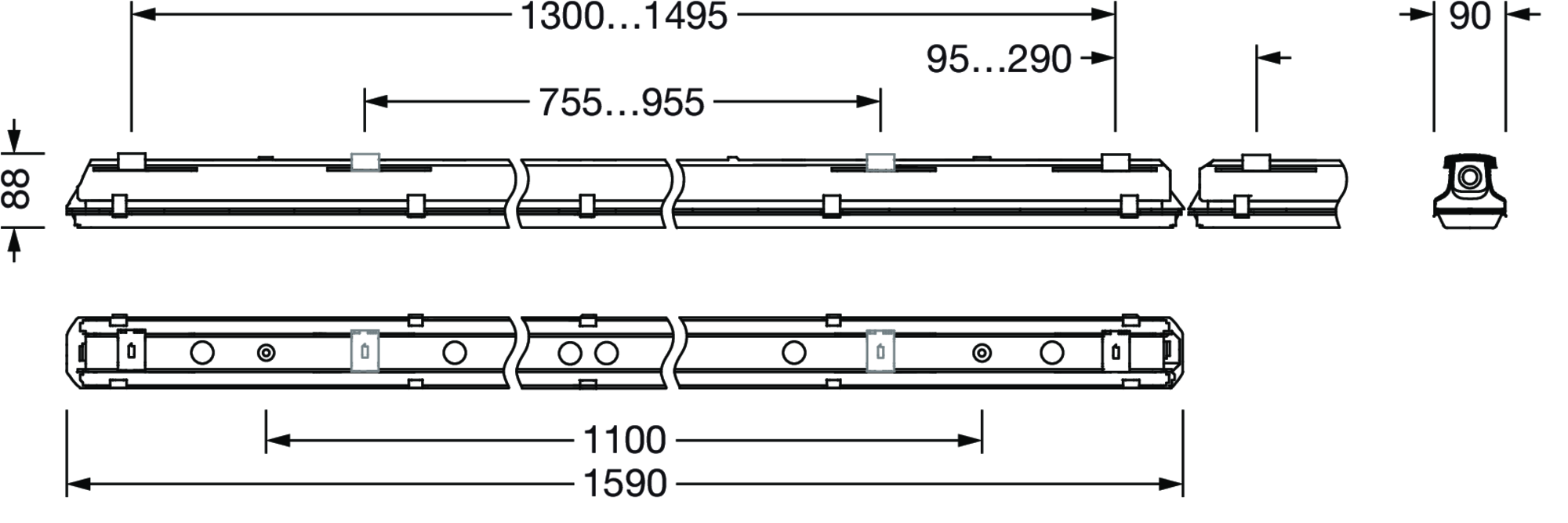

Dimensions, Weight

Length 1590mm
Width 90mm
Height 88mm
Weight 2.5kg

Service life

Rated service life 100000h (L95) at AT = 25°C, 100000h (L90) at AT = ta max

Product type
damp-proof luminaire

Product name
Monsun 11 emergency

Order No.
51FP10DP468L2

Cover
enclosure

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
6050lm

Luminous efficacy
192lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
31.5W

Supplement
for group or central battery, without changeover relay, suitable for emergency light operating devices according to EN 60598-2-22, internal wiring halogen-free, luminous flux reduced to approx. 15% with DC operation, without flicker

Control
DALI 2

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK04

Protection symbol
D

Temperature range (operation)
-25..+35°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, LABS conformity tested according to VDMA 24364:2018-05, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity

Standard
EN 50419, EN 60598-2-1, EN 60598-2-22, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)

Certification, designation
CE, UKCA

luminaire housing
glass-fibre reinforced polyester, uncoated, bright grey, incl. chain hanger

clip for enclosure
stainless steel (V2A)

Quantity
10 piece

ceiling mounting element
stainless steel (V2A), ceiling mounting included

Quantity
2 piece

chain hanger
stainless steel (V2A)

Quantity
2 piece

Cover
enclosure of PMMA

Mounting method, mounting location
suspended mounting, surface-mounted, horizontal mounting, vertical mounting, to the ceiling, to the wall, to the Licross mounting rail

Arrangement
single/continuous arrangement

Supplement
luminaire includes fixing accessories for ceiling surface mounting; for other types of installation: please order mounting accessories separately

Connection
terminal, 5-pole, max. 2.5mm²

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Length
1590mm

Width
90mm

Height
88mm

Weight
2.5kg

Rated service life
100000h (L95) at AT = 25°C, 100000h (L90) at AT = ta max

Monsun 11 emergency

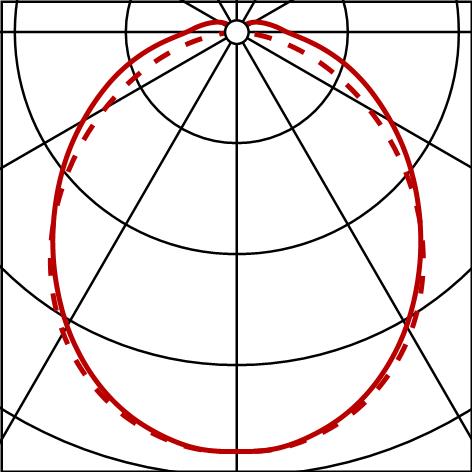

LED, enclosure, below, suspended mounting, surface-mounted, horizontal mounting, vertical mounting, L= 1590mm
: LED 4000K / CRI >= 80, factory setting AC mode: AC-mode
: 51FP10DP468L2

Monsun 11 emergency
: LED 4000K / CRI >= 80, emergency light operation rated luminous flux: DC mode (central or group accumulator) initial emergency light level
