Article clean room luminaire

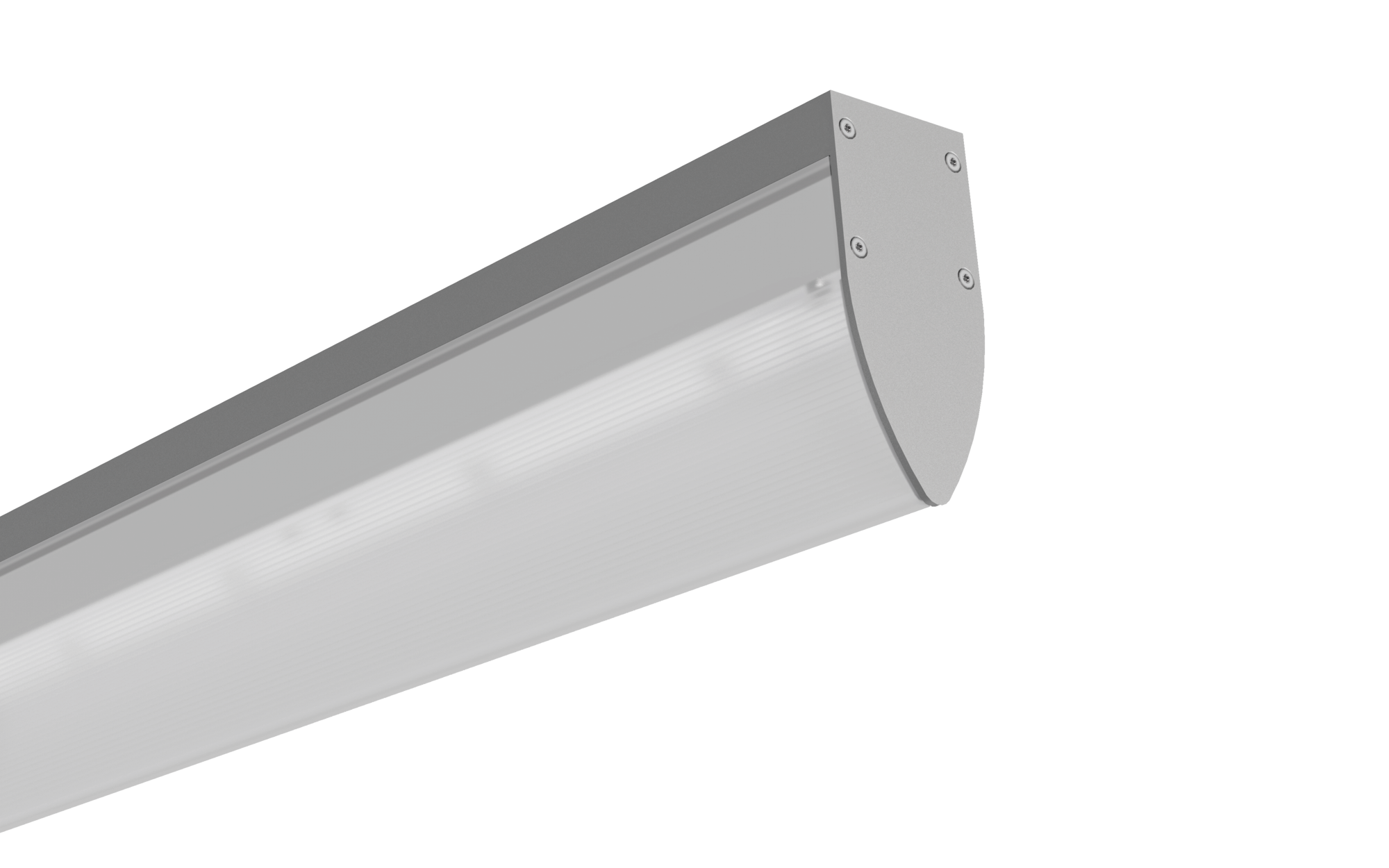

Product name Mira 21 TD
Lamp LED
Rated luminous flux 9160lm
Luminous efficacy 141lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 65W
Service life 75000h (L80/B10) at AT = 25°C
Protection rating IP43
Impact resistance ??
Weight 3.3kg

Mira 21 TD, clean room luminaire, primary light control with reflector, primary optical cover: cover, of PMMA, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 9.160lm, luminous efficacy: 141lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF, with terminal, 3-pole, max. 2.5mm², mains connection: 230V, AC, 50/60Hz, rated input power: 65W, luminaire housing, of sheet steel, coated, pure white (RAL 9010), length: 1.500mm, width: 55mm, height: 120mm, protection rating (complete): IP43, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, permissible operating ambient temperature: -5..+40°C, standard: EN 50419, packaging unit: 1 piece

Downloads

Key data

Product type clean room luminaire
Product name Mira 21 TD
Order No. 51FR527P494A

Lighting technology

Light control reflector
Cover cover, frosted
Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 9160lm
Luminous efficacy 141lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 65W

Operating device

Control gear ECG
Control ON/OFF

Certificates, Standards

Protection rating IP43
Insulation class insulation class I (protective earthing)
Temperature range (operation) -5..+40°C
Standard EN 50419
Certification, designation CE, UKCA

Material, Colour

luminaire housing sheet steel, coated, pure white (RAL 9010)
Cover cover of PMMA

Mounting

Mounting method, mounting location surface-mounted, to the ceiling
Arrangement single arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection terminal, 3-pole, max. 2.5mm²
Nominal voltage 230V, 230..240V, 50/60Hz, AC

Dimensions, Weight

Length 1500mm
Width 55mm
Height 120mm
Weight 3.3kg

Service life

Rated service life 75000h (L80/B10) at AT = 25°C

Product type
clean room luminaire

Product name
Mira 21 TD

Order No.
51FR527P494A

Light control
reflector

Cover
cover, frosted

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
9160lm

Luminous efficacy
141lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
65W

Control gear
ECG

Control
ON/OFF

Protection rating
IP43

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
-5..+40°C

Standard
EN 50419

Certification, designation
CE, UKCA

luminaire housing
sheet steel, coated, pure white (RAL 9010)

Cover
cover of PMMA

Mounting method, mounting location
surface-mounted, to the ceiling

Arrangement
single arrangement

Supplement
only suitable for use in indoor areas

Connection
terminal, 3-pole, max. 2.5mm²

Nominal voltage
230V, 230..240V, 50/60Hz, AC

Length
1500mm

Width
55mm

Height
120mm

Weight
3.3kg

Rated service life
75000h (L80/B10) at AT = 25°C

Mira21TDCRL
LED,9160lm840,ECG,PMMA,dir
