51LJ127N430A

Order No.: 51LJ127N430A
Remember articleRemember article

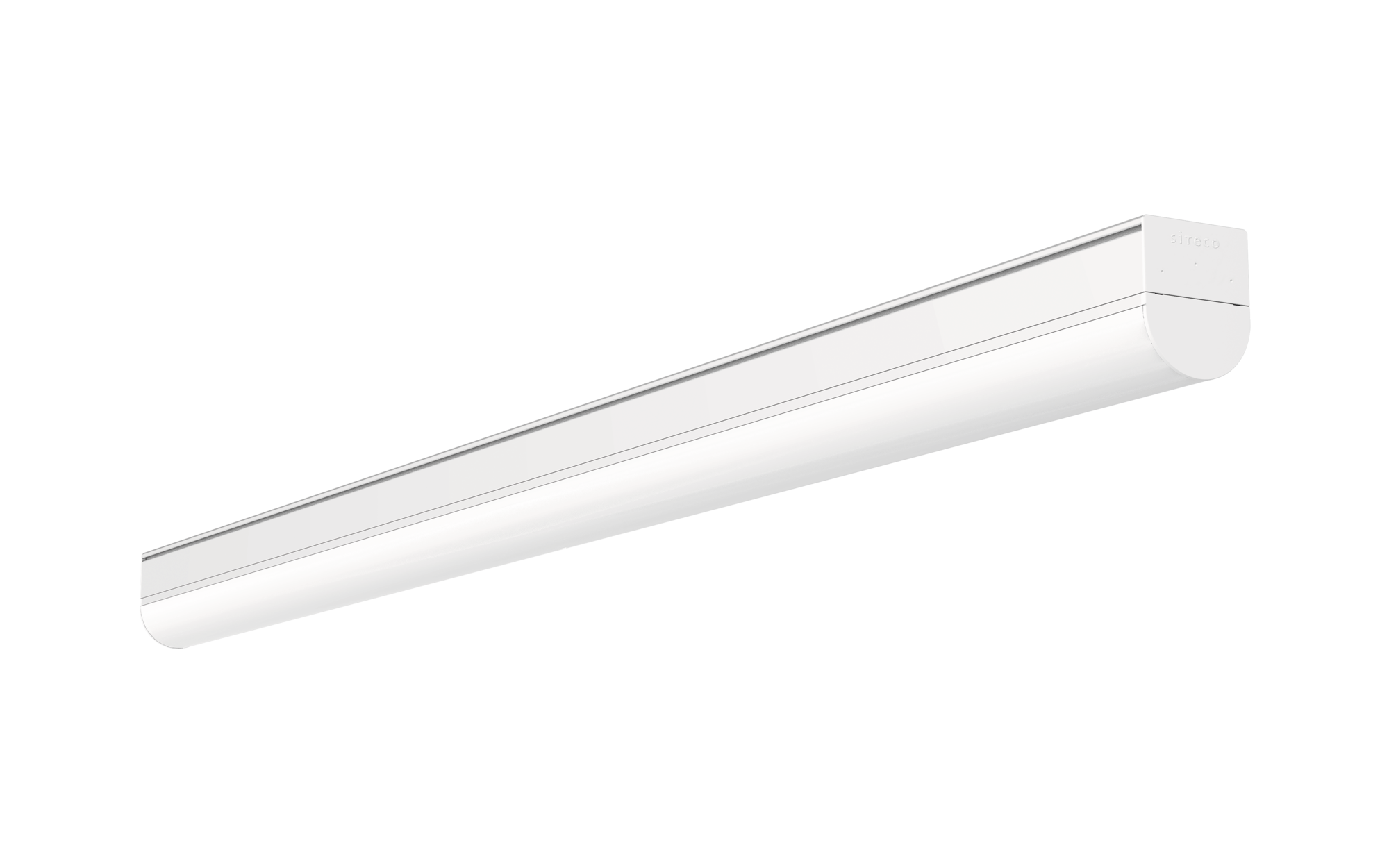

Article diffuser luminaire
Product name Ecopack 31
Lamp LED
Rated luminous flux 3000lm
Luminous efficacy 140lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 21W
Service life 50000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 1.5kg

Ecopack 31, diffuser luminaire, primary optical cover: cover, of PC, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 3.000lm, luminous efficacy: 140lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 21W, housing, of aluminium, traffic white (RAL 9016), length: 1.450mm, width: 56mm, height: 68mm, end cap, of PC, white, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, permissible operating ambient temperature: -20..+40°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type diffuser luminaire
Product name Ecopack 31
Order No. 51LJ127N430A

Lighting technology

Cover cover, frosted
Beam angle extremely wide distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 28
UGR viewing direction along lateral luminaire axis ≤ 28

Lamps

Lamps with LED
Rated luminous flux 3000lm
Luminous efficacy 140lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 4 SDCM (initial)
Rated input power 21W

Operating device

Control gear ECG
Control ON/OFF

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Temperature range (operation) -20..+40°C
Certification, designation CE

Material, Colour

housing aluminium, traffic white (RAL 9016)
end cap PC, white
Cover cover of PC

Mounting

Mounting method, mounting location surface-mounted, to the ceiling, to the wall
Arrangement single arrangement

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 50/60Hz, AC

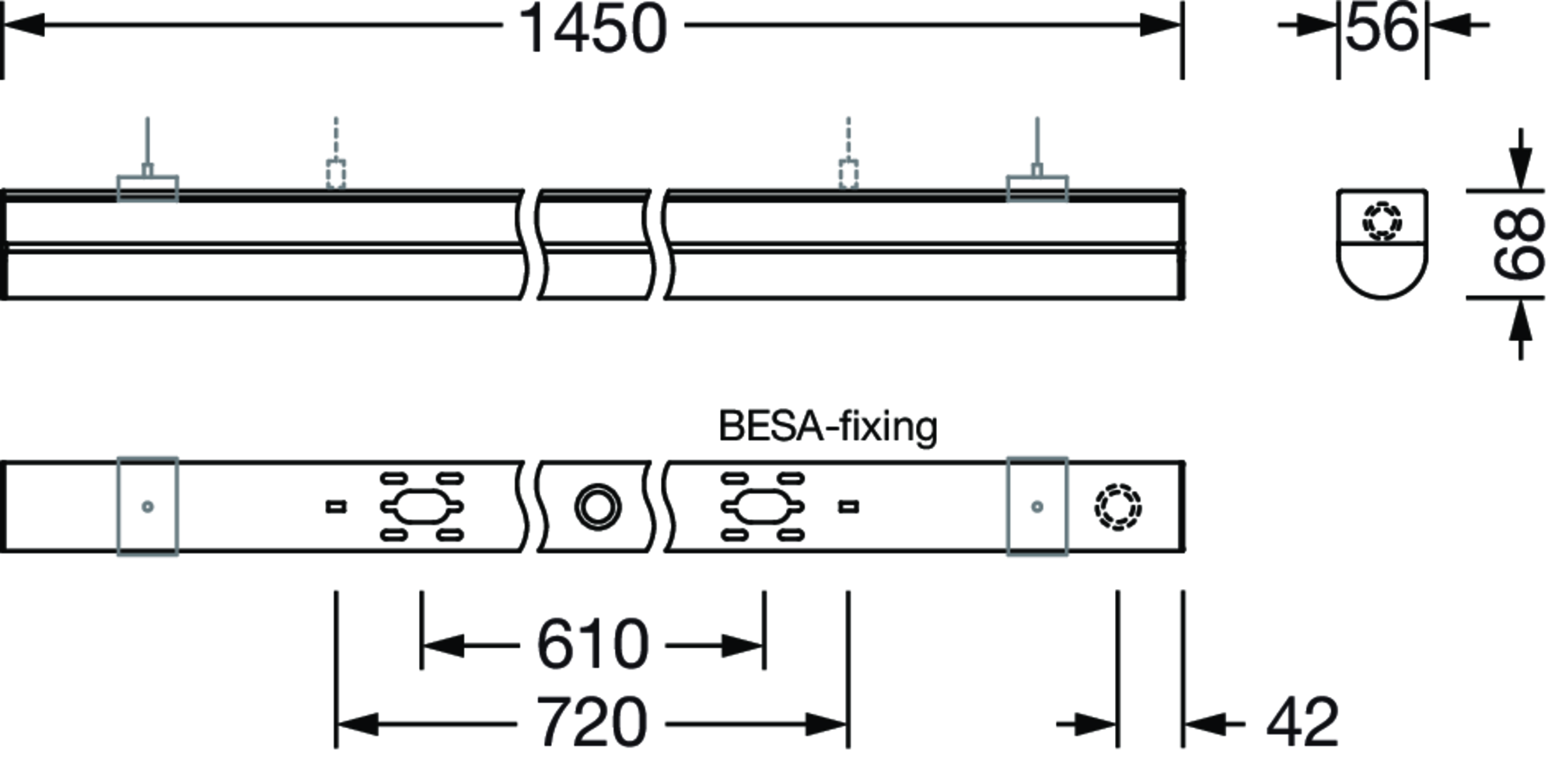

Dimensions, Weight

Length 1450mm
Width 56mm
Height 68mm
Weight 1.5kg

Service life

Rated service life 50000h (L80) at AT = 25°C

Product type
diffuser luminaire

Product name
Ecopack 31

Order No.
51LJ127N430A

Cover
cover, frosted

Beam angle
extremely wide distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 28

UGR viewing direction along lateral luminaire axis
≤ 28

Lamps
with LED

Rated luminous flux
3000lm

Luminous efficacy
140lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 4 SDCM (initial)

Rated input power
21W

Control gear
ECG

Control
ON/OFF

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Temperature range (operation)
-20..+40°C

Certification, designation
CE

housing
aluminium, traffic white (RAL 9016)

end cap
PC, white

Cover
cover of PC

Mounting method, mounting location
surface-mounted, to the ceiling, to the wall

Arrangement
single arrangement

Connection
terminal, 3-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
1450mm

Width
56mm

Height
68mm

Weight
1.5kg

Rated service life
50000h (L80) at AT = 25°C
