51LJ127N430A3G

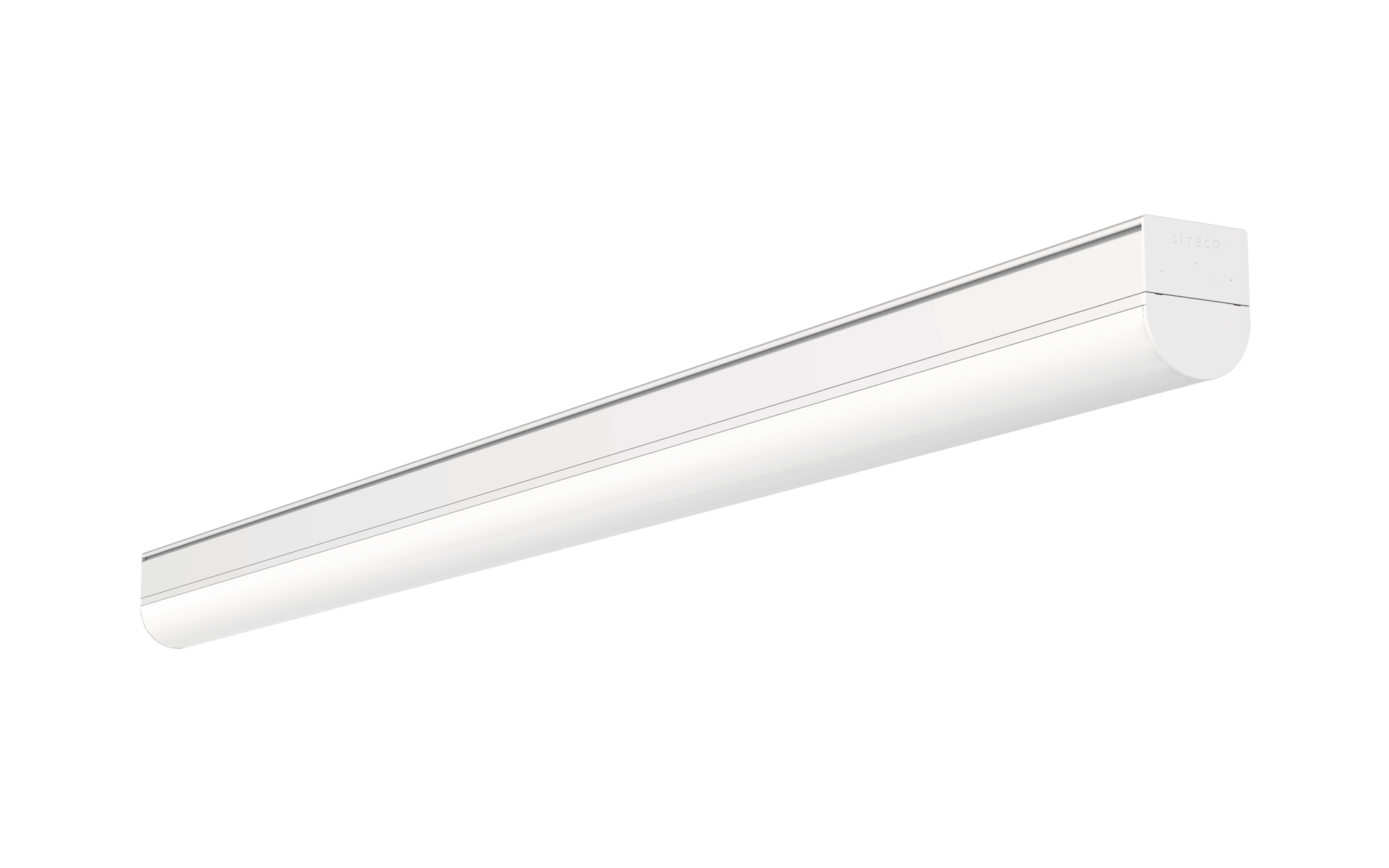

Article diffuser luminaire
Product name Ecopack 31
Lamp LED
Rated luminous flux 3000lm
Luminous efficacy 133lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 23W
Service life 50000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 1.8kg

Ecopack 31, diffuser luminaire, primary optical cover: cover, of PC, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 3.000lm, luminous efficacy: 133lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF, with terminal, 4-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 23W, converter,control gear: single battery element, battery: LiFePO4, 3Ah, housing, of aluminium, traffic white (RAL 9016), length: 1.460mm, width: 56mm, height: 68mm, end cap, of PC, white, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, permissible operating ambient temperature: 0..+40°C, standard: EN 60598-2-22, packaging unit: 1 piece

show moreshow less

Downloads

Technical product information

Data for applications

Tender text (TXT)

Product details

Key data

Product type diffuser luminaire
Product name Ecopack 31
Order No. 51LJ127N430A3G

Component 1

Lighting technology
Cover cover, frosted
Beam angle extremely wide distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 28
UGR viewing direction along lateral luminaire axis ≤ 28

Lamps
Lamps with LED
Rated luminous flux 3000lm
Luminous efficacy 133lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 4 SDCM (initial)
Rated input power 23W
Supplement for emergency light function

Operating device
Control ON/OFF

Component 2

Lamps
Supplement 2-rod battery, with manual self-test function, with test push-button and status LED according to EN 60598-2-22

Operating device
Control gear single battery element
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Temperature range (operation) 0..+40°C
Standard EN 60598-2-22
Certification, designation CE

Material, Colour

housing aluminium, traffic white (RAL 9016)
end cap PC, white
Cover cover of PC

Mounting

Mounting method, mounting location surface-mounted, to the ceiling, to the wall
Arrangement single arrangement

Electrical connection

Connection terminal, 4-pole
Nominal voltage 220..240V, 50/60Hz, AC

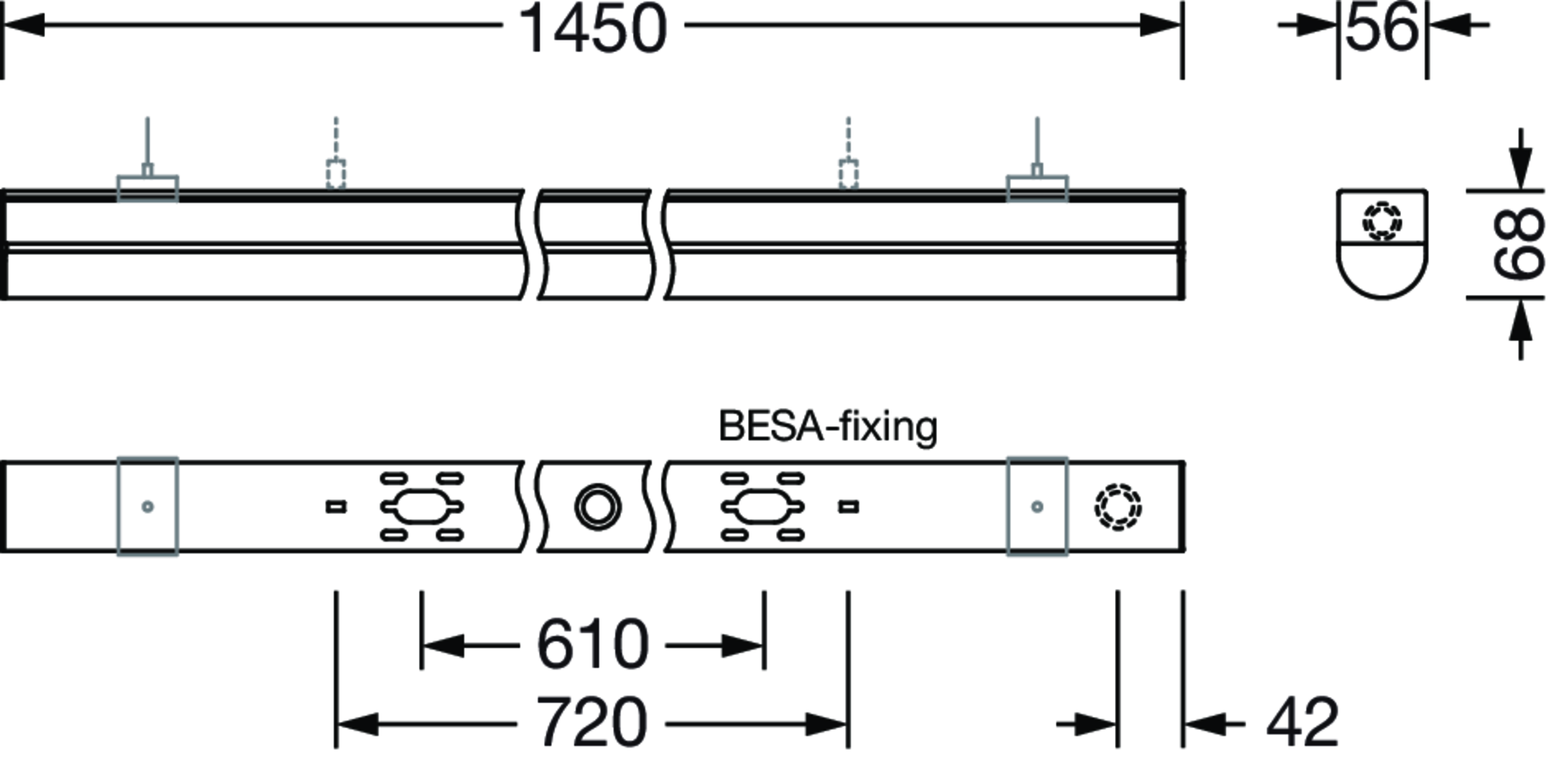

Dimensions, Weight

Length 1460mm
Width 56mm
Height 68mm
Weight 1.8kg

Service life

Rated service life 50000h (L80) at AT = 25°C

Key data

Product type
diffuser luminaire

Product name
Ecopack 31

Order No.
51LJ127N430A3G

Component 1

Lighting technology

Cover
cover, frosted

Beam angle
extremely wide distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 28

UGR viewing direction along lateral luminaire axis
≤ 28

Lamps

Lamps
with LED

Rated luminous flux
3000lm

Luminous efficacy
133lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 4 SDCM (initial)

Rated input power
23W

Supplement
for emergency light function

Operating device

Control
ON/OFF

Component 2

Lamps

Supplement
2-rod battery, with manual self-test function, with test push-button and status LED according to EN 60598-2-22

Operating device

Control gear
single battery element

Battery
LiFePO4

Nominal operating time
3h

Certificates, Standards

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Temperature range (operation)
0..+40°C

Standard
EN 60598-2-22

Certification, designation
CE

Material, Colour

housing
aluminium, traffic white (RAL 9016)

end cap
PC, white

Cover
cover of PC

Mounting

Mounting method, mounting location
surface-mounted, to the ceiling, to the wall

Arrangement
single arrangement

Electrical connection

Connection
terminal, 4-pole

Nominal voltage
220..240V, 50/60Hz, AC

Dimensions, Weight

Length
1460mm

Width
56mm

Height
68mm

Weight
1.8kg

Service life

Rated service life
50000h (L80) at AT = 25°C
