Key data

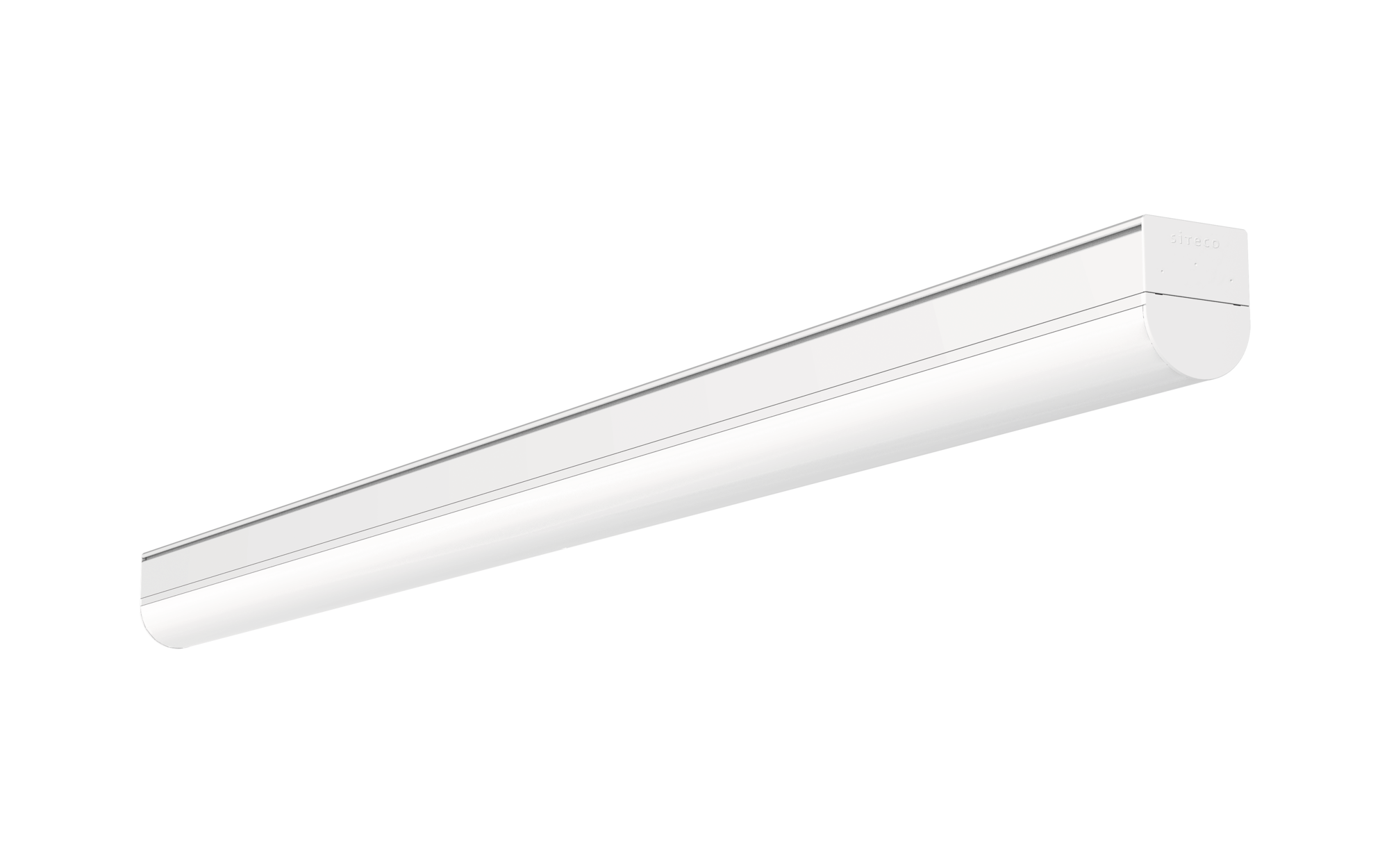

Product type diffuser luminaire
Product name Ecopack 31
Order No. 51LJ12MNM70A3G

Component 1

Lighting technology
Cover cover, frosted
Beam angle extremely wide distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 28
UGR viewing direction along lateral luminaire axis ≤ 28

Lamps
Lamps with LED
Rated luminous flux 7000lm
Luminous efficacy 140lm/W
Colour temperature 3000/4000/5000K
Colour rendering index CRI > 80
Light colour 830/840/850
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 4 SDCM (initial)
Rated input power 50W
Supplement for emergency light function, luminous flux adjustable on luminaire in four steps (3800/4800/5900/7000lm), connected load according to luminous flux setting (27/34/42/50W)

Operating device
Control ON/OFF Multilumen

Component 2

Lamps
Supplement 2-rod battery, with manual self-test function, with test push-button and status LED according to EN 60598-2-22

Operating device
Control gear single battery element
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK06
Temperature range (operation) 0..+40°C
Standard EN 60598-2-22
Certification, designation CE

Material, Colour

housing aluminium, traffic white (RAL 9016)
end cap PC, white
Cover cover of PC

Mounting

Mounting method, mounting location surface-mounted, to the ceiling, to the wall
Arrangement single arrangement

Electrical connection

Connection terminal, 4-pole
Nominal voltage 220..240V, 50/60Hz, AC

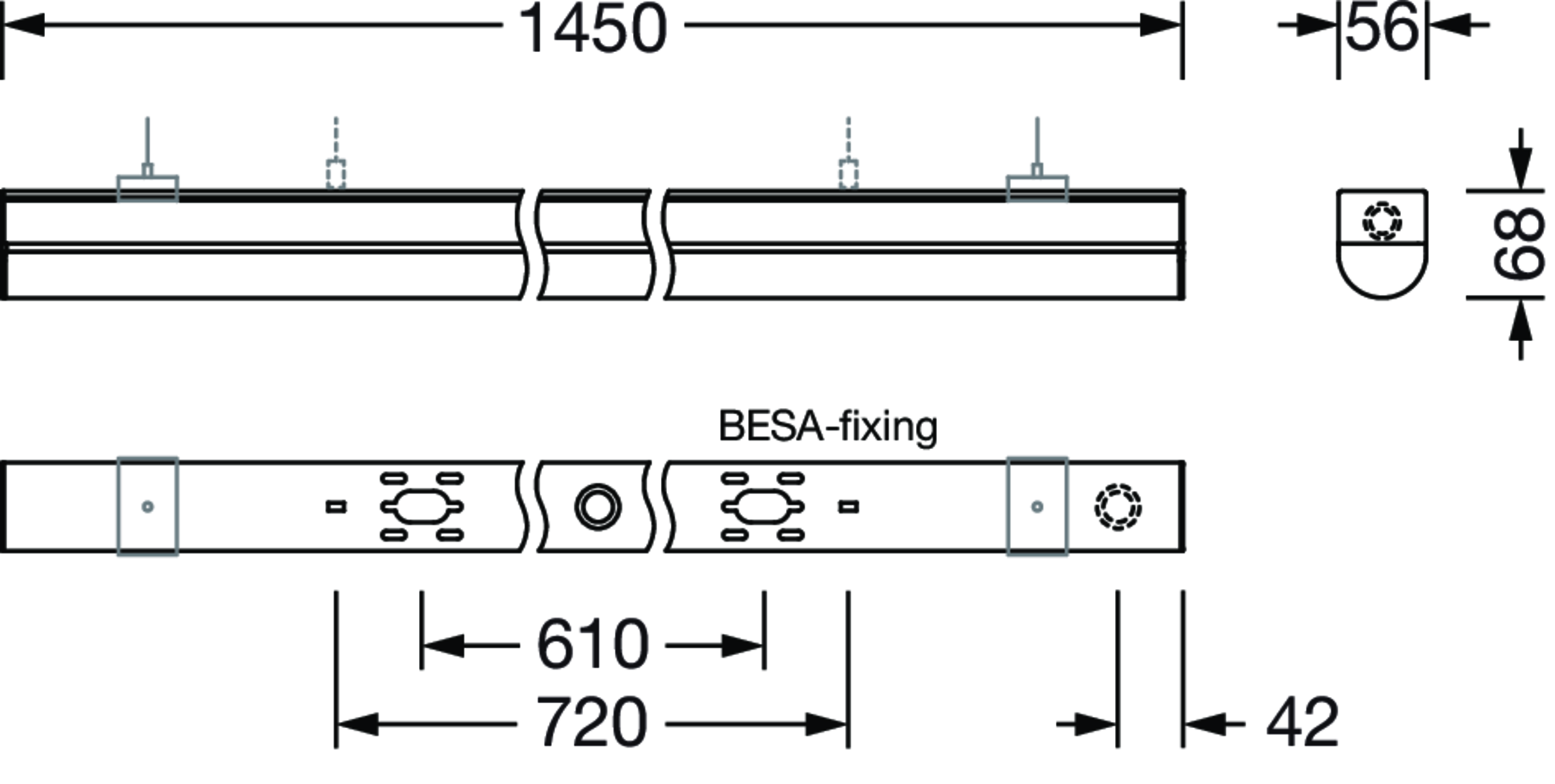

Dimensions, Weight

Length 1460mm
Width 56mm
Height 68mm
Weight 1.8kg

Service life

Rated service life 50000h (L80) at AT = 25°C
