51LN12MNM70A3G

Article wall and ceiling luminaire
Product name Siluette 21
Lamp LED
Rated luminous flux 7150lm
Luminous efficacy 142lm/W
Colour temperature 3000/4000/5000K
Colour rendering CRI > 80
Rated input power 51W
Service life 100000h (L80) at AT = 25°C
Protection rating IP44
Impact resistance IK04
Weight 3.9kg

Siluette 21, wall and ceiling luminaire, primary optical cover: enclosure, of PMMA, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 7.150lm, luminous efficacy: 142lm/W, light colour: 830/840/850, colour temperature: 3000/4000/5000K, control gear: ON/OFF Multilumen, with terminal, 4-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 51W, control gear: single battery element, housing, of aluminium, traffic white (RAL 9016), length: 1.485mm, width: 152mm, height: 52mm, end cap, of PC, traffic white (RAL 9016), protection rating (complete): IP44, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D, impact resistance: IK04, permissible operating ambient temperature: +5..+40°C, standard: EN 60598-2-22, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, packaging unit: 1 piece

show moreshow less

Downloads

Key data

Product type wall and ceiling luminaire
Product name Siluette 21
Order No. 51LN12MNM70A3G

Component 1

Lighting technology
Cover enclosure, frosted
Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution

Lamps
Lamps with LED
Rated luminous flux 7150lm
Luminous efficacy 142lm/W
Colour temperature 3000/4000/5000K
Colour rendering index CRI > 80
Light colour 830/840/850
Rated input power 51W
Supplement prepared for through-wiring, suitable for emergency light operating devices according to EN 60598-2-22, luminous flux adjustable on luminaire in four steps (3800/4800/5900/7000lm), connected load according to luminous flux setting (27/34/42/50W)

Operating device
Control ON/OFF Multilumen

Component 2

Operating device
Control gear single battery element
Nominal operating time 3h

Certificates, Standards

Protection rating IP44
Insulation class insulation class I (protective earthing)
Impact resistance IK04
Protection symbol D
Temperature range (operation) +5..+40°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity
Standard EN 60598-2-22
Certification, designation CE, UKCA

Material, Colour

housing aluminium, traffic white (RAL 9016)
end cap PC, traffic white (RAL 9016)
Quantity 2 piece
Cover enclosure of PMMA

Mounting

Mounting method, mounting location suspended mounting, surface-mounted, to wire, to the ceiling, to the wall
Arrangement single arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection terminal, 4-pole
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

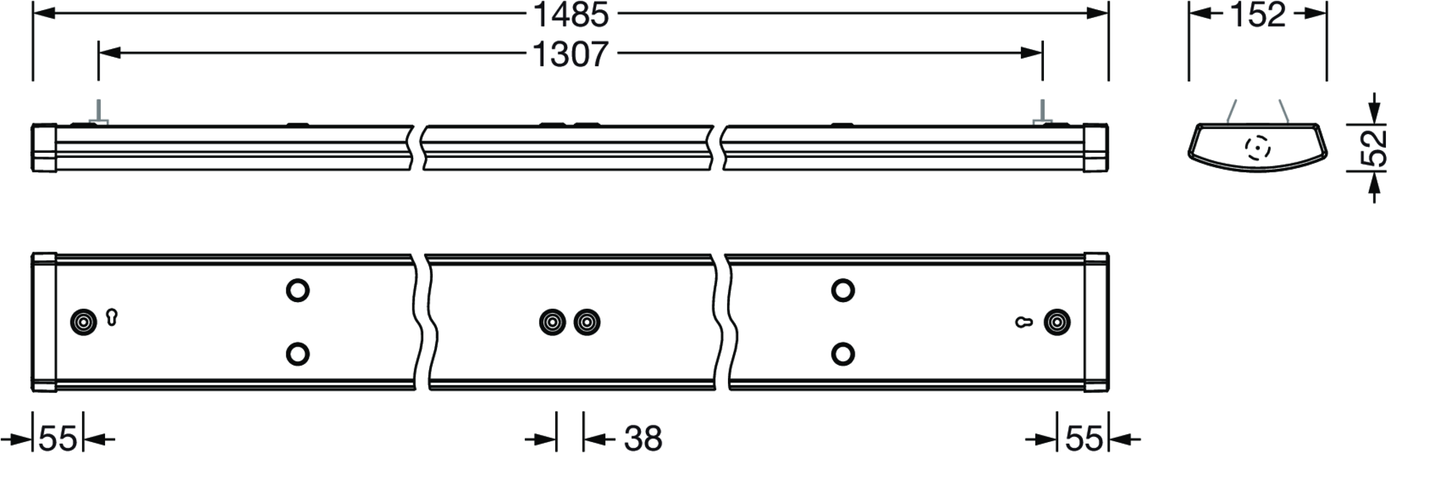

Dimensions, Weight

Length 1485mm
Width 152mm
Height 52mm
Weight 3.9kg

Service life

Rated service life 100000h (L80) at AT = 25°C

Key data

Product type
wall and ceiling luminaire

Product name
Siluette 21

Order No.
51LN12MNM70A3G

Component 1

Lighting technology

Cover
enclosure, frosted

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

Lamps

Lamps
with LED

Rated luminous flux
7150lm

Luminous efficacy
142lm/W

Colour temperature
3000/4000/5000K

Colour rendering index
CRI > 80

Light colour
830/840/850

Rated input power
51W

Supplement
prepared for through-wiring, suitable for emergency light operating devices according to EN 60598-2-22, luminous flux adjustable on luminaire in four steps (3800/4800/5900/7000lm), connected load according to luminous flux setting (27/34/42/50W)

Operating device

Control
ON/OFF Multilumen

Component 2

Operating device

Control gear
single battery element

Nominal operating time
3h

Certificates, Standards

Protection rating
IP44

Insulation class
insulation class I (protective earthing)

Impact resistance
IK04

Protection symbol
D

Temperature range (operation)
+5..+40°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity

Standard
EN 60598-2-22

Certification, designation
CE, UKCA

Material, Colour

housing
aluminium, traffic white (RAL 9016)

end cap
PC, traffic white (RAL 9016)

Quantity
2 piece

Cover
enclosure of PMMA

Mounting

Mounting method, mounting location
suspended mounting, surface-mounted, to wire, to the ceiling, to the wall

Arrangement
single arrangement

Supplement
only suitable for use in indoor areas

Electrical connection

Connection
terminal, 4-pole

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Dimensions, Weight

Length
1485mm

Width
152mm

Height
52mm

Weight
3.9kg

Service life

Rated service life
100000h (L80) at AT = 25°C
