51MA23D84LSA

: 51MA23D84LSA

Article office luminaire
Product name Silica 21 Rectangular Prismatic X
Lamp LED
Rated luminous flux 5810lm
Luminous efficacy 145lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 40.2W
Service life 75000h (L85) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 5.0kg

Silica 21 Rectangular Prismatic X, office luminaire, primary optical cover: prismatic diffuser, of PMMA, CAT 2 (L= 3000cd/m²), light emission: direct with ceiling illumination distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 5.810lm, luminous efficacy: 145lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 40.2W, luminaire housing, of sheet steel, metallic grey (RAL 9006), length: 1.500mm, width: 225mm, height: 35mm, equipment: Standard, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, impact resistance: IK03, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data), packaging unit: 1 piece

Downloads

Key data

Product type office luminaire
Product name Silica 21 Rectangular Prismatic X
Order No. 51MA23D84LSA

Lighting technology

Cover prismatic diffuser
Beam angle extremely wide distribution
Symmetry symmetric
Light emission direct with ceiling illumination
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 5810lm
Luminous efficacy 145lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 40.2W

Operating device

Control DALI 2

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK03
Temperature range (operation) 0..+35°C
Standard EN 50419, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing sheet steel, metallic grey (RAL 9006)
Cover prismatic diffuser of PMMA

Mounting

Mounting method, mounting location surface-mounted, to the ceiling
Arrangement single arrangement
Supplement ceiling mounting is only possible with a mounting box; please order separately according to luminaire length and housing colour

Electrical connection

Connection terminal, 3+2-pole, max. 2.5mm²
Nominal voltage 220..240V, 50/60Hz, AC

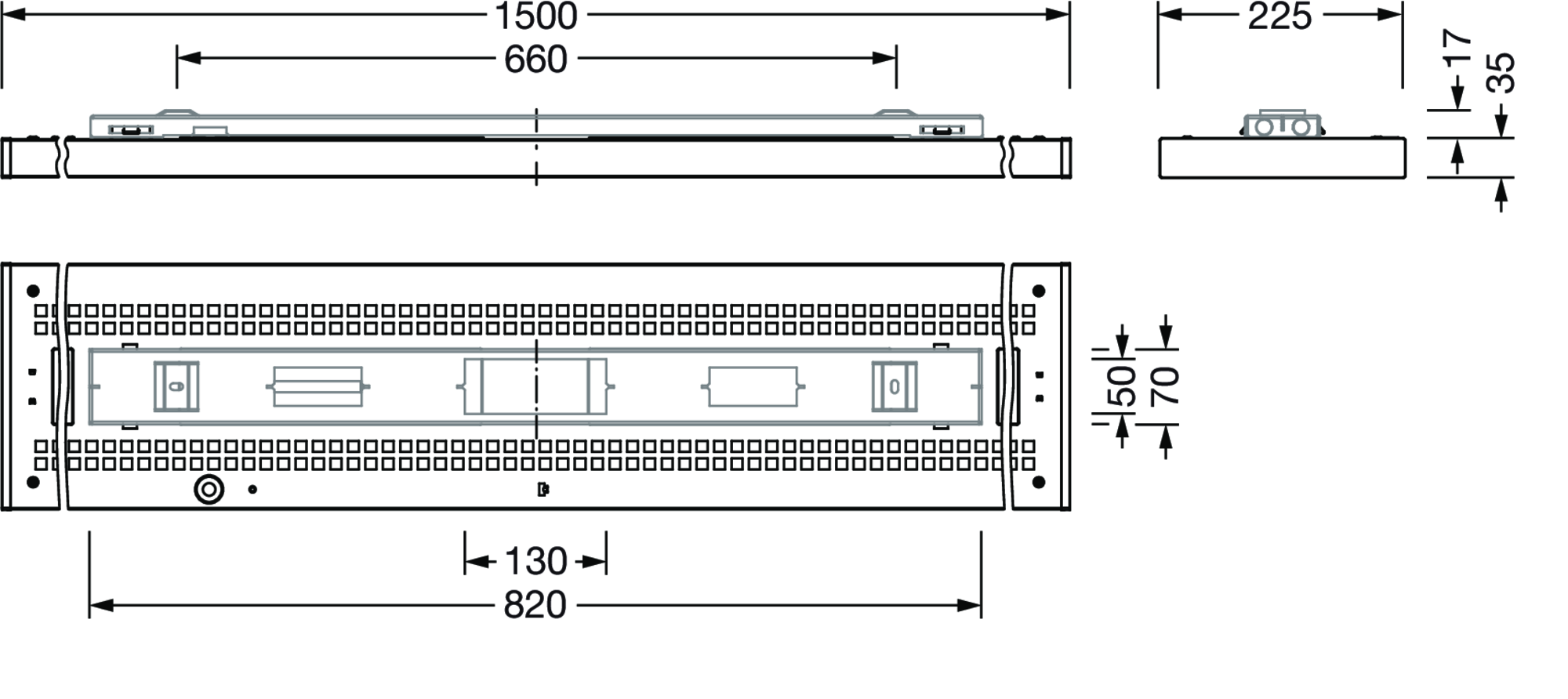

Dimensions, Weight

Length 1500mm
Width 225mm
Height 35mm
Weight 5.0kg

Service life

Rated service life 75000h (L85) at AT = 25°C

Product type
office luminaire

Product name
Silica 21 Rectangular Prismatic X

Order No.
51MA23D84LSA

Cover
prismatic diffuser

Beam angle
extremely wide distribution

Symmetry
symmetric

Light emission
direct with ceiling illumination

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
5810lm

Luminous efficacy
145lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
40.2W

Control
DALI 2

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Impact resistance
IK03

Temperature range (operation)
0..+35°C

Standard
EN 50419, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)

Certification, designation
CE, ENEC, VDE

luminaire housing
sheet steel, metallic grey (RAL 9006)

Cover
prismatic diffuser of PMMA

Mounting method, mounting location
surface-mounted, to the ceiling

Arrangement
single arrangement

Supplement
ceiling mounting is only possible with a mounting box; please order separately according to luminaire length and housing colour

Connection
terminal, 3+2-pole, max. 2.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Length
1500mm

Width
225mm

Height
35mm

Weight
5.0kg

Rated service life
75000h (L85) at AT = 25°C

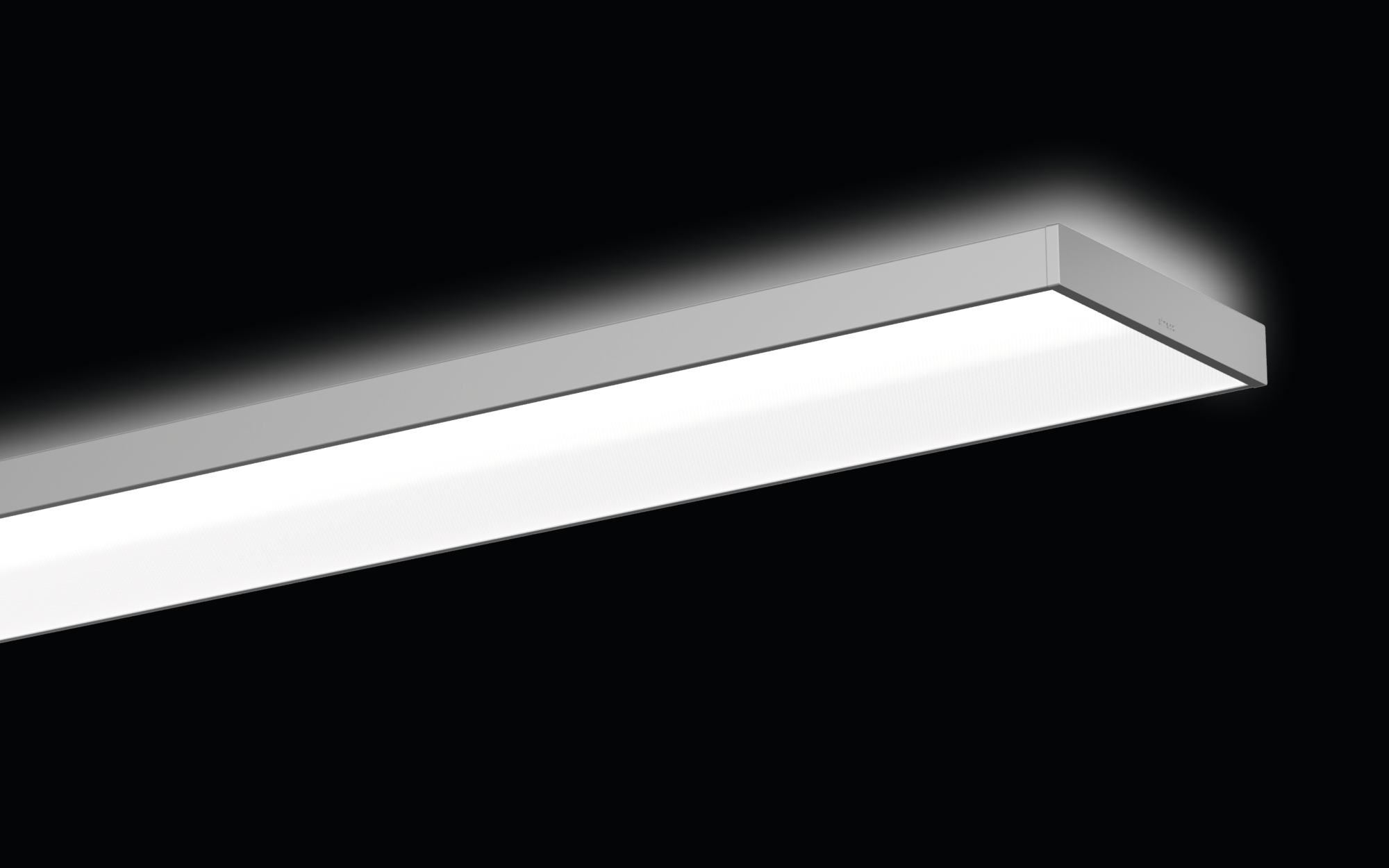

Silica 21 Rectangular Prismatic X
office luminaire, metallic grey (RAL 9006), DALI 2, 5810lm, 840, 1500x225mm, Connection: terminal

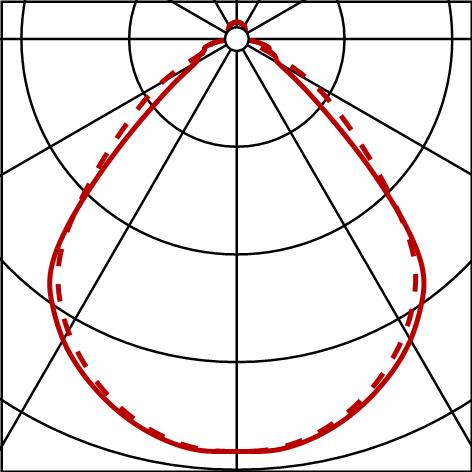

: LED 4000K / CRI >= 80
: 51MA23D84LSA
