51MA23M4DLWA

: 51MA23M4DLWA

Article office luminaire

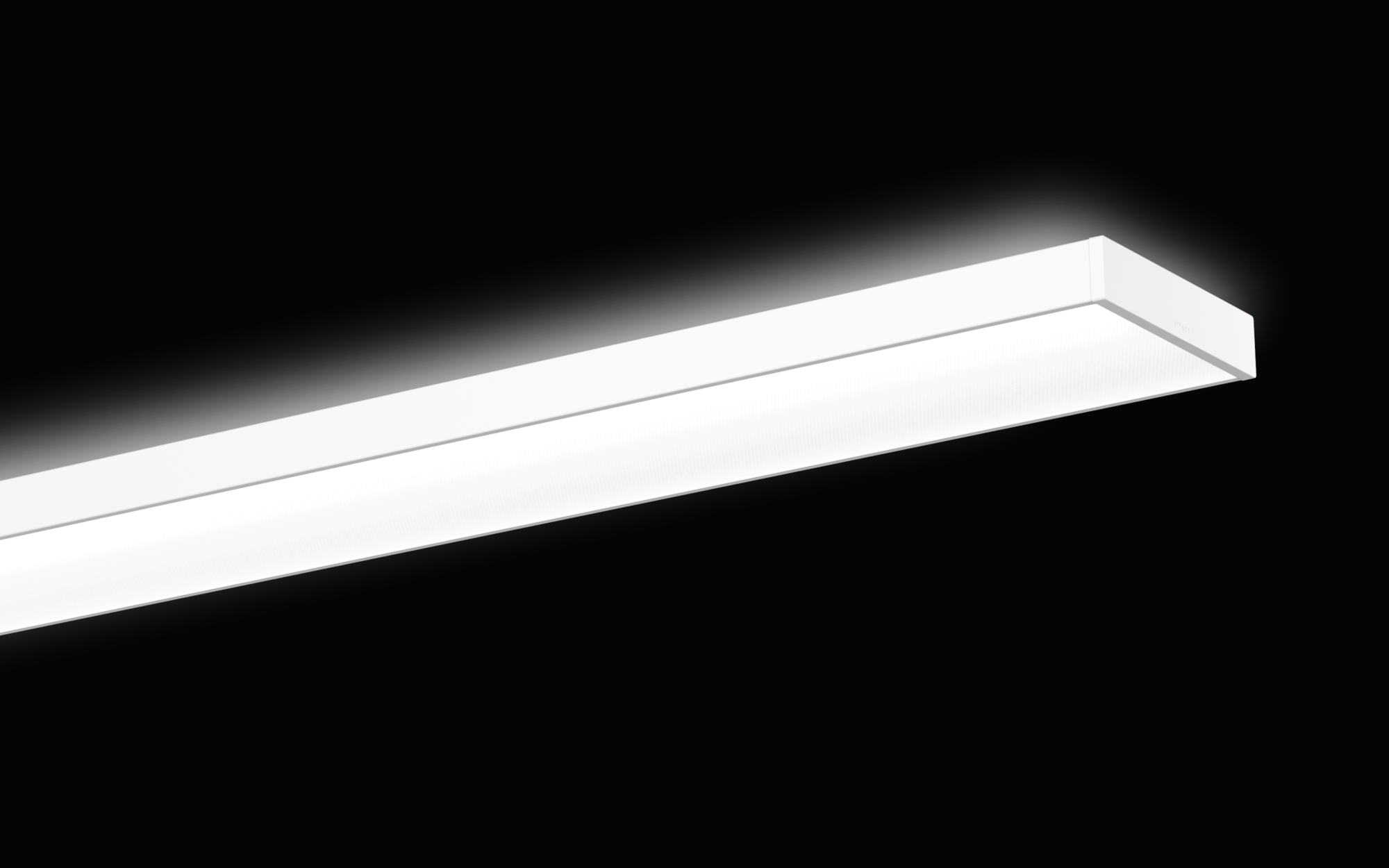

Product name Silica 21 Rectangular Prismatic X
Lamp LED
Rated luminous flux 3720lm
Luminous efficacy 137lm/W
Colour temperature 3000K
Colour rendering CRI > 90
Rated input power 27.2W
Service life 75000h (L85) at AT = 25°C
Protection rating IP40
Impact resistance IK03
Weight 3.4kg

Silica 21 Rectangular Prismatic X, office luminaire, primary optical cover: prismatic diffuser, of PMMA, CAT 2 (L= 3000cd/m²), light emission: direct with ceiling illumination distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 3.720lm, luminous efficacy: 137lm/W, light colour: 930, colour temperature: 3000K, control gear: ON/OFF Multilumen, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 27.2W, luminaire housing, of sheet steel, traffic white (RAL 9016), length: 1.200mm, width: 170mm, height: 53mm, equipment: Standard, protection rating (complete): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, impact resistance: IK03, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece

Downloads

Key data

Product type office luminaire
Product name Silica 21 Rectangular Prismatic X
Order No. 51MA23M4DLWA

Lighting technology

Cover prismatic diffuser

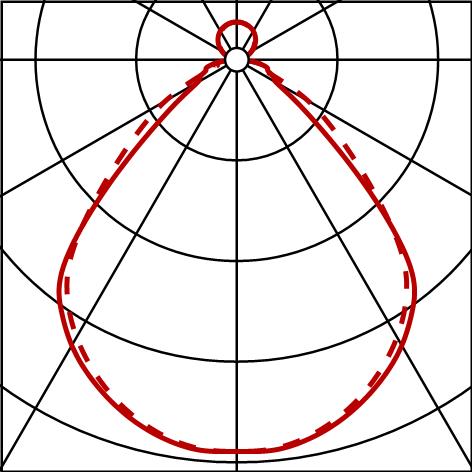

Beam angle extremely wide distribution
Symmetry symmetric
Light emission direct with ceiling illumination
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 3720lm
Luminous efficacy 137lm/W
Colour temperature 3000K
Colour rendering index CRI > 90
Light colour 930
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 27.2W

Operating device

Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP40
Insulation class insulation class I (protective earthing)
Impact resistance IK03
Temperature range (operation) 0..+35°C
Standard EN 50419
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing sheet steel, traffic white (RAL 9016)
Cover prismatic diffuser of PMMA

Mounting

Mounting method, mounting location surface-mounted, to the ceiling
Arrangement single arrangement
Supplement ceiling mounting is only possible with a mounting box; please order separately according to luminaire length and housing colour

Electrical connection

Connection terminal, 3+2-pole, max. 2.5mm²
Nominal voltage 220..240V, 50/60Hz, AC

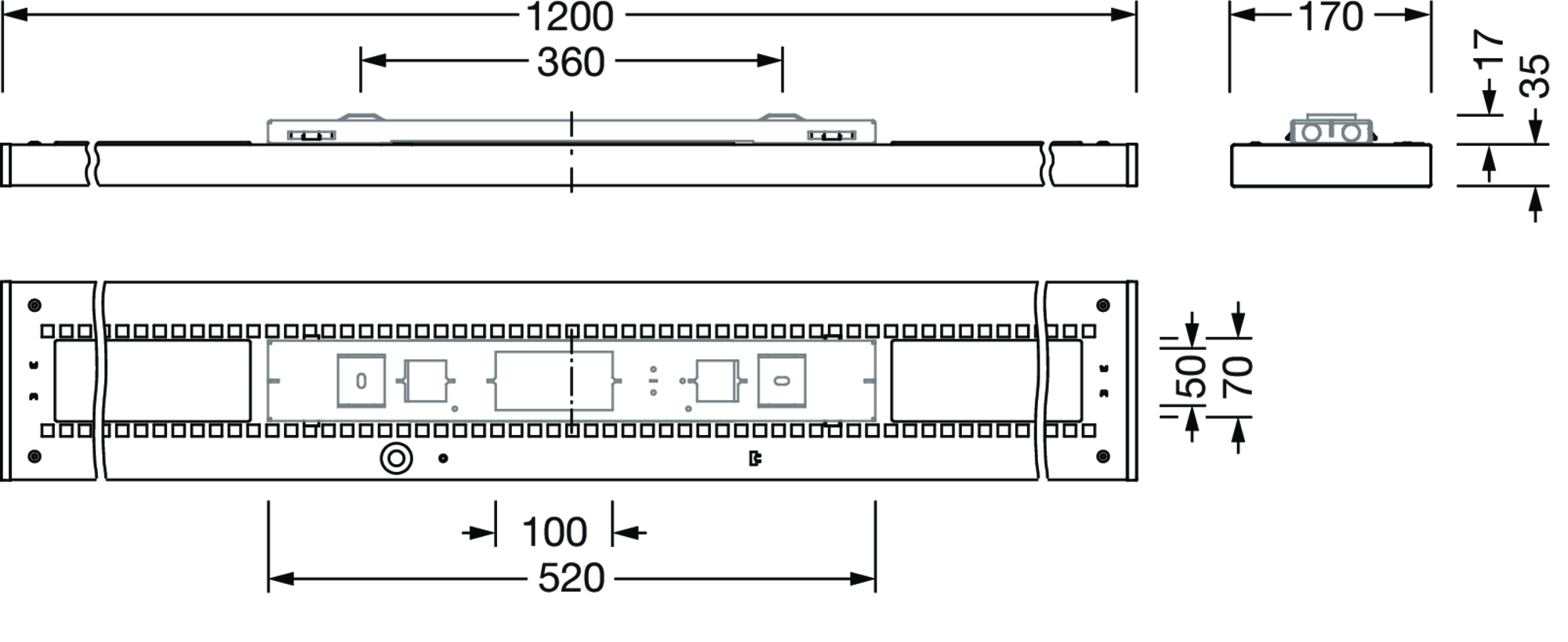

Dimensions, Weight

Length 1200mm
Width 170mm
Height 53mm
Weight 3.4kg

Service life

Rated service life 75000h (L85) at AT = 25°C

Product type
office luminaire

Product name
Silica 21 Rectangular Prismatic X

Order No.
51MA23M4DLWA

Cover
prismatic diffuser

Beam angle
extremely wide distribution

Symmetry
symmetric

Light emission
direct with ceiling illumination

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
3720lm

Luminous efficacy
137lm/W

Colour temperature
3000K

Colour rendering index
CRI > 90

Light colour
930

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
27.2W

Control
ON/OFF Multilumen

Protection rating
IP40

Insulation class
insulation class I (protective earthing)

Impact resistance
IK03

Temperature range (operation)
0..+35°C

Standard
EN 50419

Certification, designation
CE, ENEC, VDE

luminaire housing
sheet steel, traffic white (RAL 9016)

Cover
prismatic diffuser of PMMA

Mounting method, mounting location
surface-mounted, to the ceiling

Arrangement
single arrangement

Supplement
ceiling mounting is only possible with a mounting box; please order separately according to luminaire length and housing colour

Connection
terminal, 3+2-pole, max. 2.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Length
1200mm

Width
170mm

Height
53mm

Weight
3.4kg

Rated service life
75000h (L85) at AT = 25°C

Silica 21 Rectangular Prismatic X
office luminaire, traffic white (RAL 9016), ON/OFF Multilumen, 3720lm, 930, 1200x170mm, Connection: terminal
: LED 3000K / CRI >= 90
: 51MA23M4DLWA
