51MH12W72322

: 51MH12W72322

Article office luminaire
Product name Apollon 41
Lamp LED
Rated luminous flux 3550lm
Luminous efficacy 100lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 35W
Service life 50000h (L70/B50) at AT = 25°C
Protection rating IP20
Weight 2.0kg

Apollon 41, office luminaire, primary optical cover: prismatic diffuser, of PS, light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 3.550lm, luminous efficacy: 100lm/W, light colour: 830, colour temperature: 3000K, control gear: ON/OFF, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 35W, housing, of aluminium section, traffic white (RAL 9016), module: M600, length: 595mm, width: 595mm, height: 32mm, housing upper side, of sheet steel, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP40, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, permissible operating ambient temperature: -20..+40°C, packaging unit: 1 piece

Downloads

Key data

Product type office luminaire
Product name Apollon 41
Order No. 51MH12W72322

Lighting technology

Cover prismatic diffuser

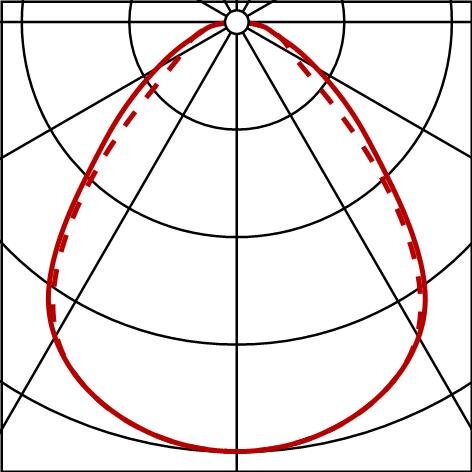

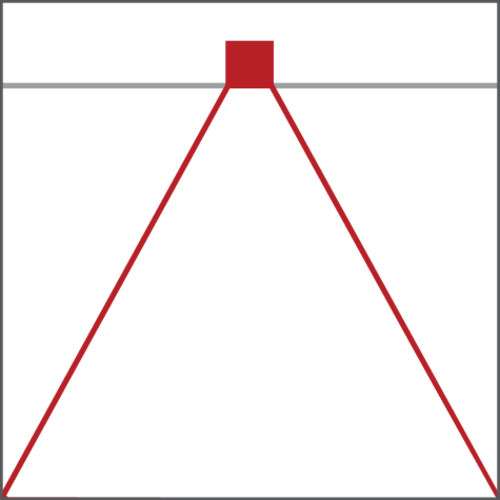

Beam angle wide distribution, 90°
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 3550lm
Luminous efficacy 100lm/W
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 4 SDCM (initial)
Rated input power 35W

Operating device

Control gear ECG
Control ON/OFF

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP40
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+40°C
Certification, designation CE, ENEC

Material, Colour

housing aluminium section, traffic white (RAL 9016)
housing upper side sheet steel
Cover prismatic diffuser of PS

Mounting

Mounting method, mounting location lay-in mounting, in the ceiling
Arrangement single arrangement

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 50/60Hz, AC

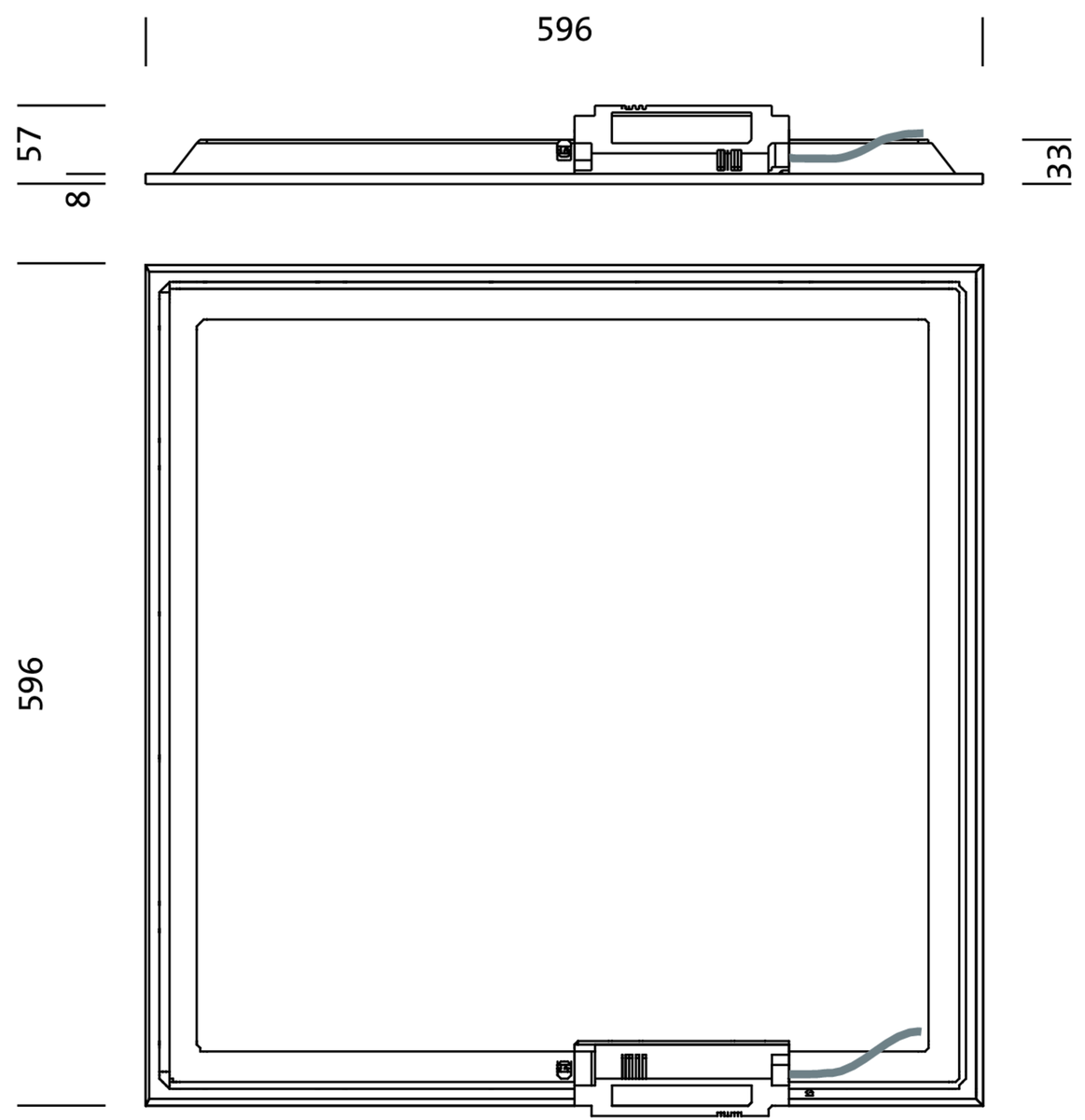

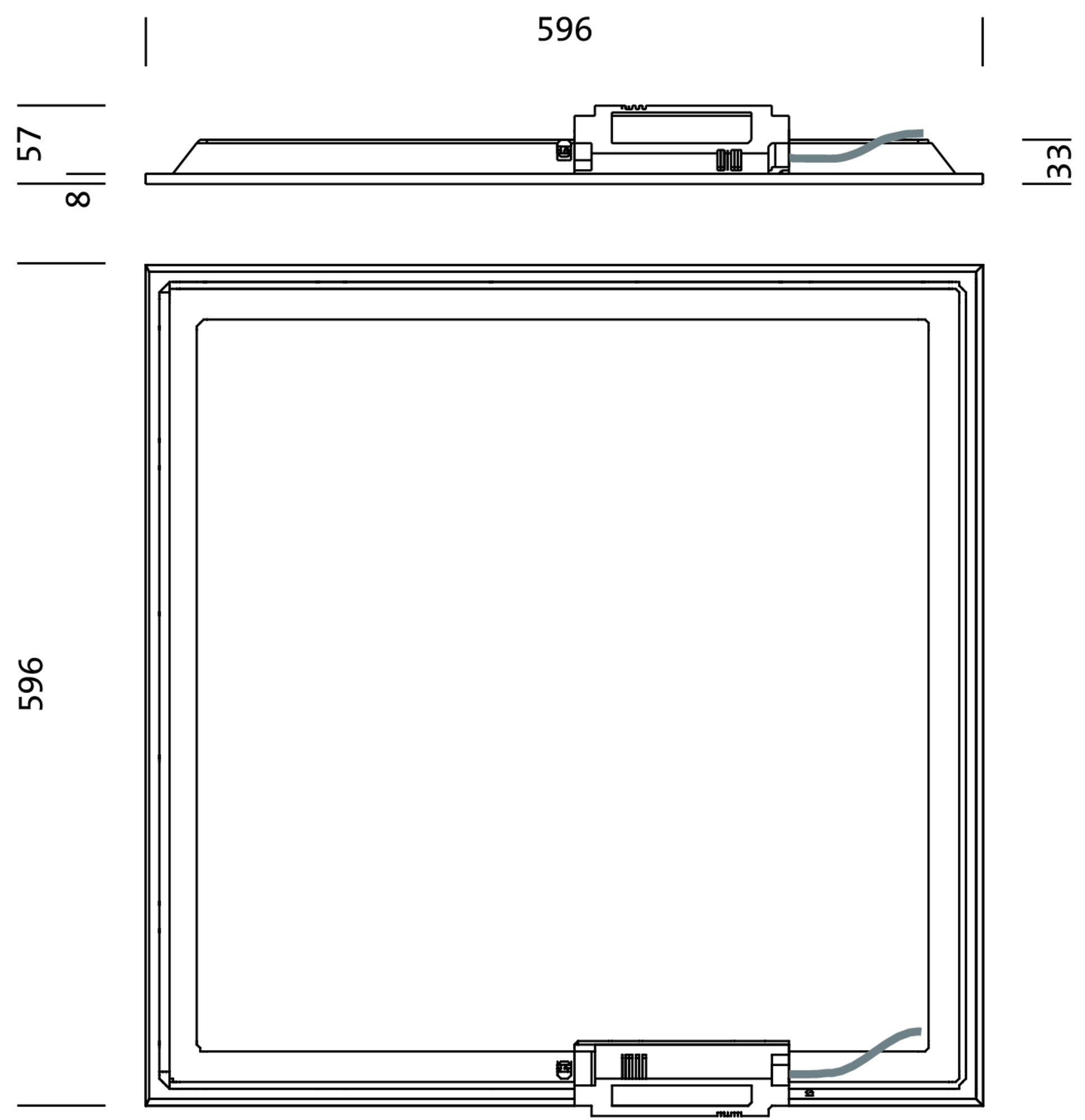

Dimensions, Weight

Length 595mm
Width 595mm
Height 32mm
Weight 2.0kg

Service life

Rated service life 50000h (L70/B50) at AT = 25°C

Product type
office luminaire

Product name
Apollon 41

Order No.
51MH12W72322

Cover
prismatic diffuser

Beam angle
wide distribution, 90°

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
3550lm

Luminous efficacy
100lm/W

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 4 SDCM (initial)

Rated input power
35W

Control gear
ECG

Control
ON/OFF

Protection rating
IP20

Protection rating (lamp compartment, on room side)
IP40

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+40°C

Certification, designation
CE, ENEC

housing
aluminium section, traffic white (RAL 9016)

housing upper side
sheet steel

Cover
prismatic diffuser of PS

Mounting method, mounting location
lay-in mounting, in the ceiling

Arrangement
single arrangement

Connection
terminal, 3-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
595mm

Width
595mm

Height
32mm

Weight
2.0kg

Rated service life
50000h (L70/B50) at AT = 25°C

Apollon 41
office luminaire, traffic white (RAL 9016), ON/OFF, 3550lm, 830, 595x595mm, for M600, Connection: terminal
: LED 3000K / CRI >= 80
: 51MH12W72322
