51MH12W724223

: 51MH12W724223

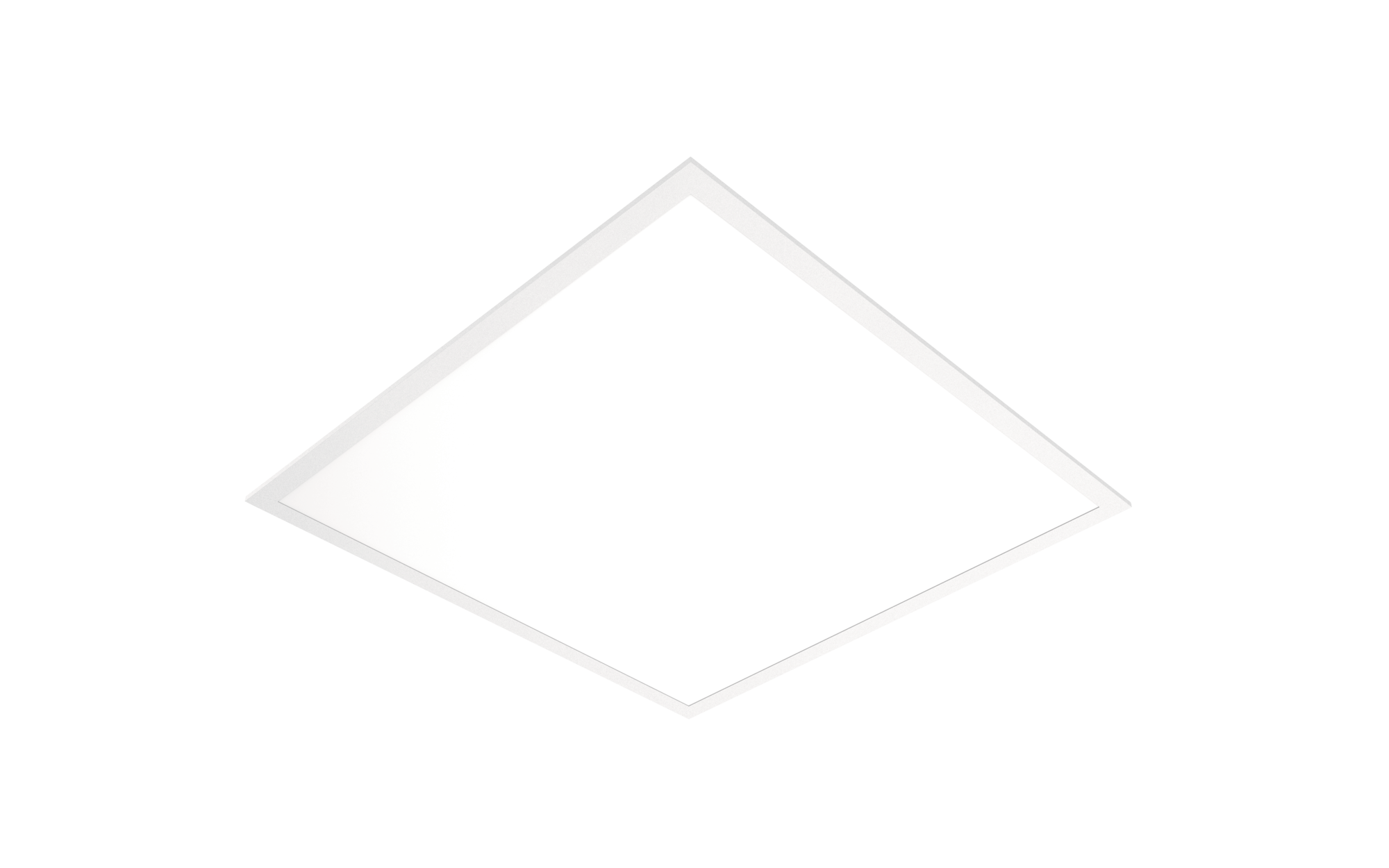

Article office luminaire
Product name Apollon 41
Lamp LED
Rated luminous flux 3700lm
Luminous efficacy 105lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 35W
Service life 50000h (L70/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 2.0kg

Apollon 41, office luminaire, primary optical cover: prismatic diffuser, of PS, light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 3.700lm, luminous efficacy: 105lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 35W, battery: LiFePO4, 1,5Ah, housing, of aluminium section, traffic white (RAL 9016), module: M600, length: 595mm, width: 595mm, height: 32mm, housing upper side, of sheet steel, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP40, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, impact resistance: IK03, permissible operating ambient temperature: -20..+40°C, packaging unit: 1 piece

Downloads

Key data

Product type office luminaire
Product name Apollon 41
Order No. 51MH12W724223

Component 1

Lighting technology
Cover prismatic diffuser

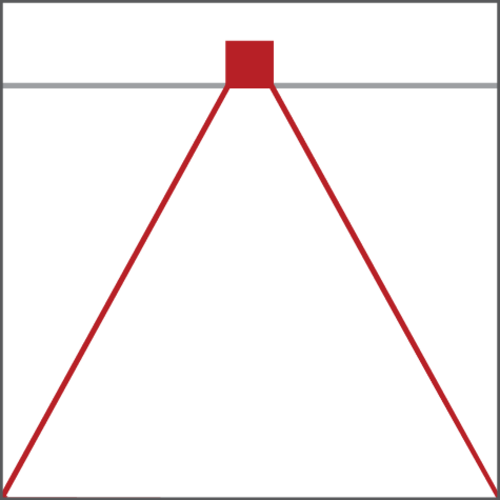

Beam angle wide distribution, 90°
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps
Lamps with LED
Rated luminous flux 3700lm
Luminous efficacy 105lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 4 SDCM (initial)
Rated input power 35W

Operating device
Control ON/OFF

Component 2

Operating device
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP40
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -20..+40°C
Certification, designation CE, ENEC

Material, Colour

housing aluminium section, traffic white (RAL 9016)
housing upper side sheet steel
Cover prismatic diffuser of PS

Mounting

Mounting method, mounting location lay-in mounting, in the ceiling
Arrangement single arrangement

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 50/60Hz, AC

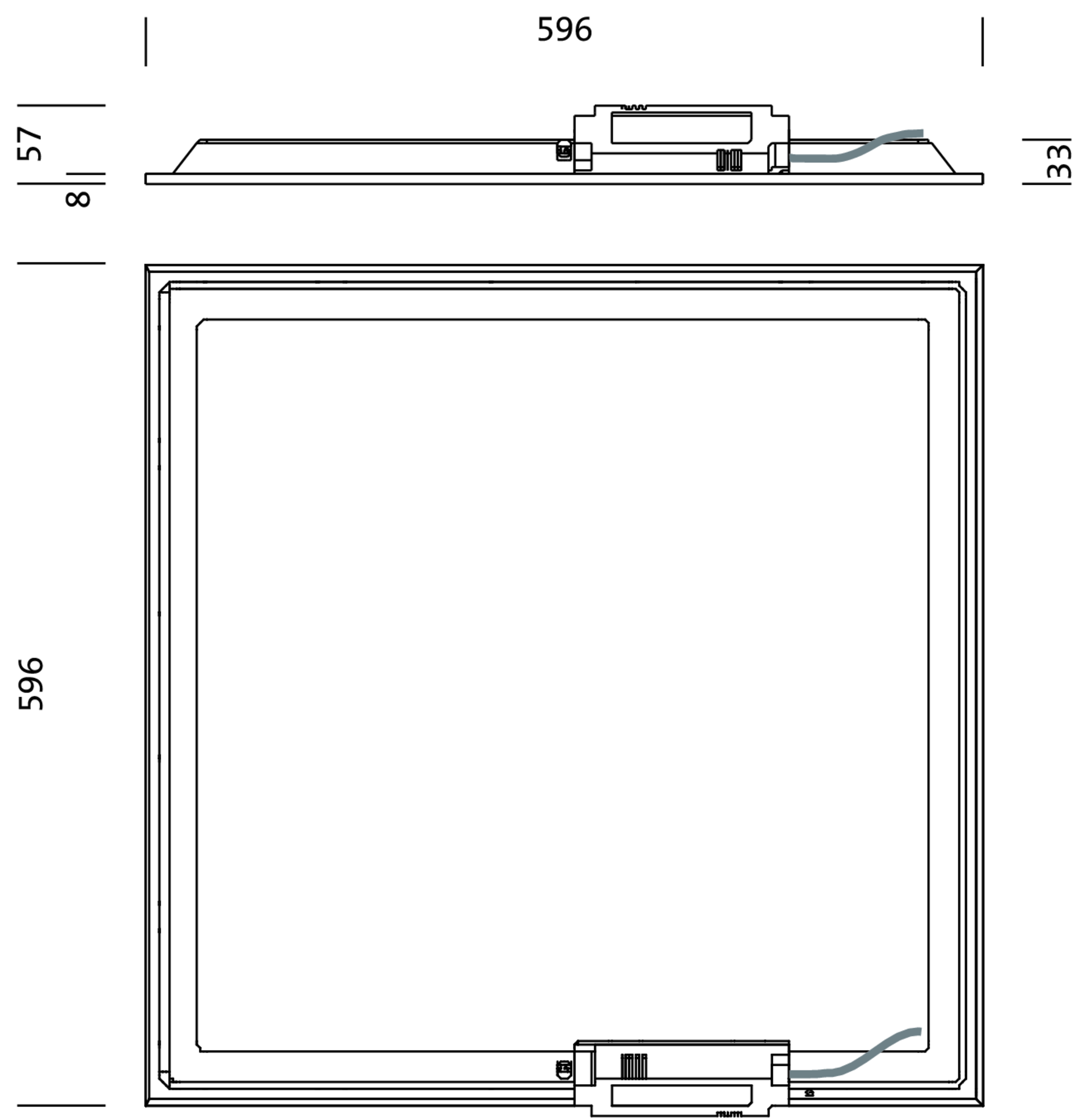

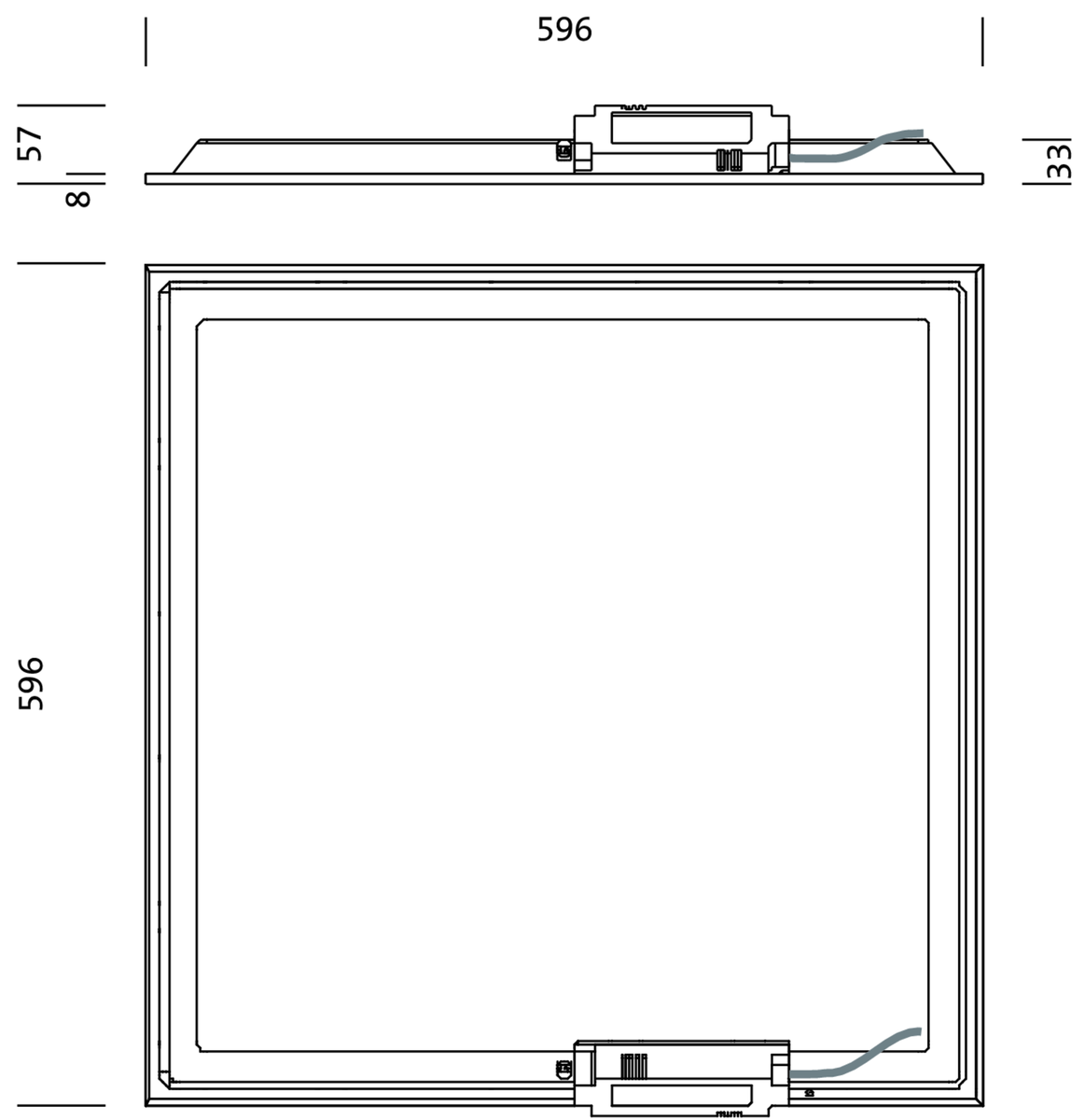

Dimensions, Weight

Length 595mm
Width 595mm
Height 32mm
Weight 2.0kg

Service life

Rated service life 50000h (L70/B50) at AT = 25°C

Product type
office luminaire

Product name
Apollon 41

Order No.
51MH12W724223

Lighting technology

Cover
prismatic diffuser

Beam angle
wide distribution, 90°

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps

Lamps
with LED

Rated luminous flux
3700lm

Luminous efficacy
105lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 4 SDCM (initial)

Rated input power
35W

Operating device

Control
ON/OFF

Operating device

Battery
LiFePO4

Nominal operating time
3h

Protection rating
IP20

Protection rating (lamp compartment, on room side)
IP40

Insulation class
insulation class II (safety insulation)

Impact resistance
IK03

Temperature range (operation)
-20..+40°C

Certification, designation
CE, ENEC

housing
aluminium section, traffic white (RAL 9016)

housing upper side
sheet steel

Cover
prismatic diffuser of PS

Mounting method, mounting location
lay-in mounting, in the ceiling

Arrangement
single arrangement

Connection
terminal, 3-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
595mm

Width
595mm

Height
32mm

Weight
2.0kg

Rated service life
50000h (L70/B50) at AT = 25°C
