51MH12WM2M43

: 51MH12WM2M43

Article office luminaire
Product name Apollon 41
Lamp LED
Rated luminous flux 4375lm
Luminous efficacy 125lm/W
Colour temperature 3000/4000K
Colour rendering CRI > 80
Rated input power 35W
Service life 50000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 1.9kg

Apollon 41, office luminaire, primary light control with lens, primary optical cover: prismatic diffuser, of PMMA, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 4.375lm, luminous efficacy: 125lm/W, light colour: 830/840, colour temperature: 3000/4000K, control gear: ON/OFF Multilumen, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 35W, suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22, housing, of aluminium, powder-coated, traffic white (RAL 9016), module: M600, length: 595mm, width: 595mm, height: 60mm, housing upper side, of sheet steel, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP40, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, impact resistance: IK03, permissible operating ambient temperature: -25..+40°C, packaging unit: 1 piece

Downloads

Key data

Product type office luminaire
Product name Apollon 41
Order No. 51MH12WM2M43

Component 1

Lighting technology
Light control lens
Cover prismatic diffuser
Beam angle wide distribution, 90°
Symmetry symmetric

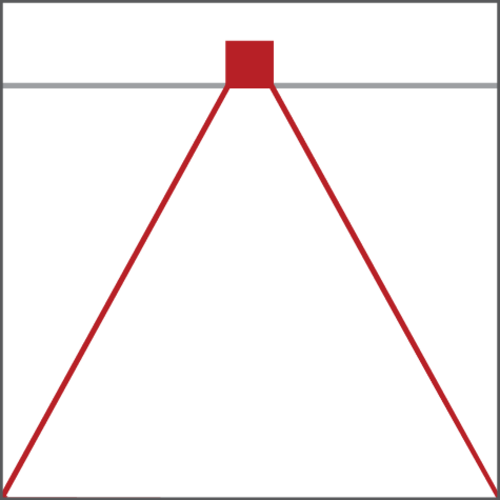

Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps
Lamps with LED
Rated luminous flux 4375lm
Luminous efficacy 125lm/W
Colour temperature 3000/4000K
Colour rendering index CRI > 80
Light colour 830/840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 35W
Supplement with through-wiring, luminous flux adjustable on luminaire in four steps at 4000K (2395/3059/3705/4375lm), luminous flux adjustable on luminaire in four steps at 3000K (2276/2906/3520/4256lm), connected load according to luminous flux setting (18/23/28.5/35W)

Operating device
Control ON/OFF Multilumen

Component 2

Operating device
Switching method suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP40
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -25..+40°C
Certification, designation CE, ENEC

Material, Colour

housing aluminium, powder-coated, traffic white (RAL 9016)
housing upper side sheet steel
Cover prismatic diffuser of PMMA

Mounting

Mounting method, mounting location lay-in mounting, in the ceiling
Arrangement single arrangement
Supplement please order the required mounting accessories for ceiling recessing separately

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

Length 595mm
Width 595mm
Height 60mm
Weight 1.9kg

Service life

Rated service life 50000h (L80) at AT = 25°C

Product type
office luminaire

Product name
Apollon 41

Order No.
51MH12WM2M43

Lighting technology

Light control
lens

Cover
prismatic diffuser

Beam angle
wide distribution, 90°

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps

Lamps
with LED

Rated luminous flux
4375lm

Luminous efficacy
125lm/W

Colour temperature
3000/4000K

Colour rendering index
CRI > 80

Light colour
830/840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
35W

Supplement
with through-wiring, luminous flux adjustable on luminaire in four steps at 4000K (2395/3059/3705/4375lm), luminous flux adjustable on luminaire in four steps at 3000K (2276/2906/3520/4256lm), connected load according to luminous flux setting (18/23/28.5/35W)

Operating device

Control
ON/OFF Multilumen

Operating device

Switching method
suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22

Protection rating
IP20

Protection rating (lamp compartment, on room side)
IP40

Insulation class
insulation class II (safety insulation)

Impact resistance
IK03

Temperature range (operation)
-25..+40°C

Certification, designation
CE, ENEC

housing
aluminium, powder-coated, traffic white (RAL 9016)

housing upper side
sheet steel

Cover
prismatic diffuser of PMMA

Mounting method, mounting location
lay-in mounting, in the ceiling

Arrangement
single arrangement

Supplement
please order the required mounting accessories for ceiling recessing separately

Connection
terminal, 3-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
595mm

Width
595mm

Height
60mm

Weight
1.9kg

Rated service life
50000h (L80) at AT = 25°C

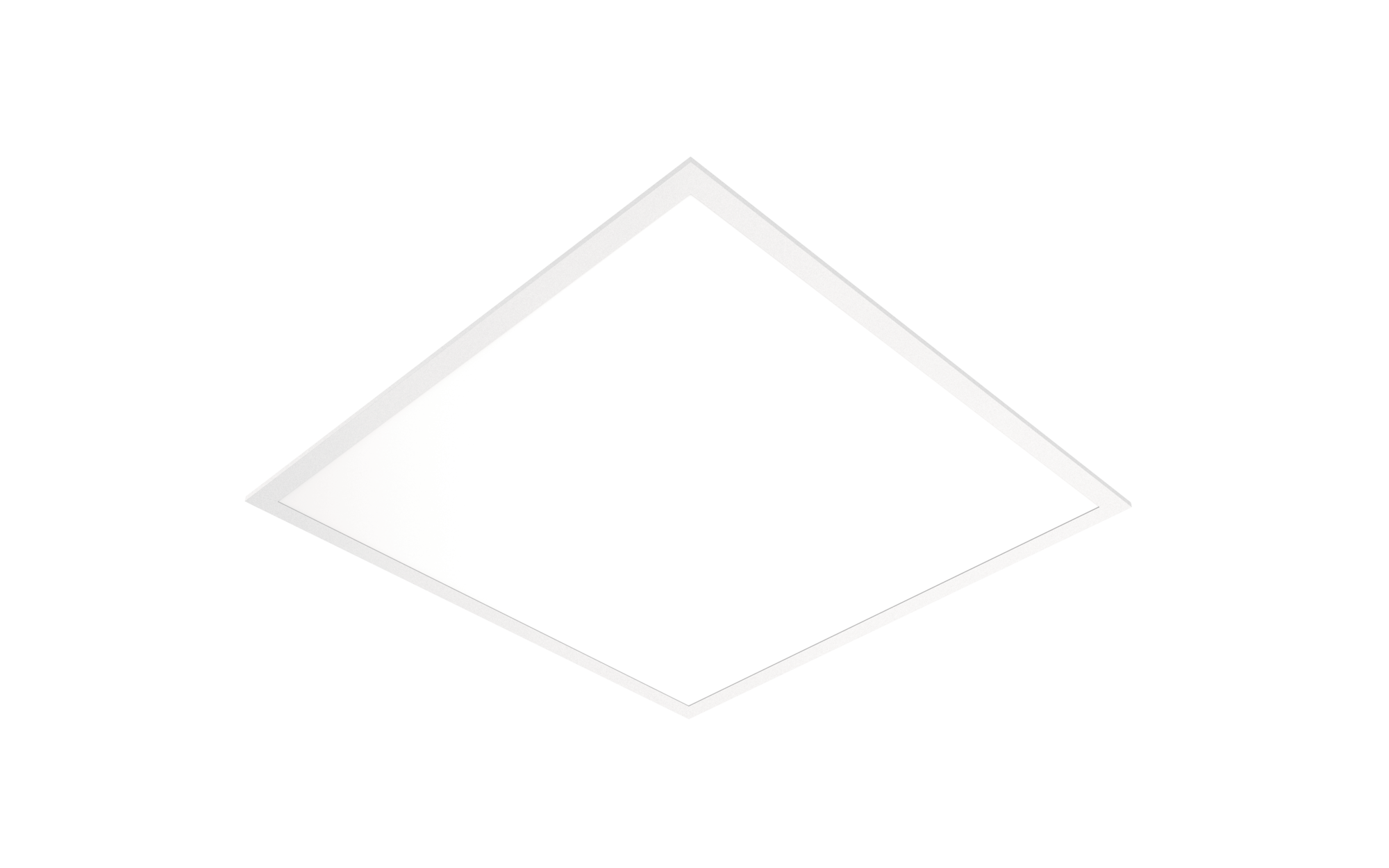

Apollon 41
office luminaire, traffic white (RAL 9016), ON/OFF Multilumen, 4375lm, 830/840, 595x595mm, for M600, Connection: terminal

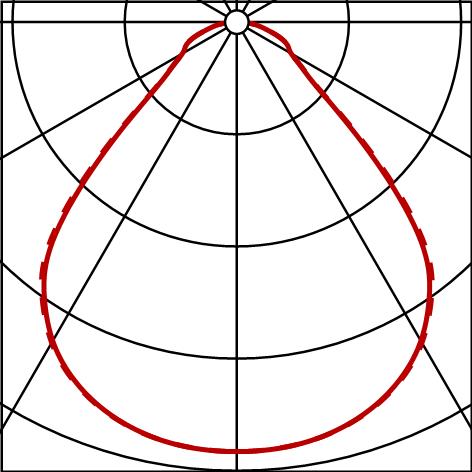

: LED 4000K / CRI >= 80, factory setting
: 51MH12WM2M43

Apollon 41

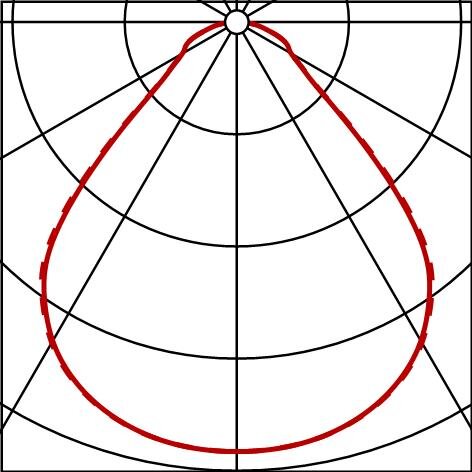

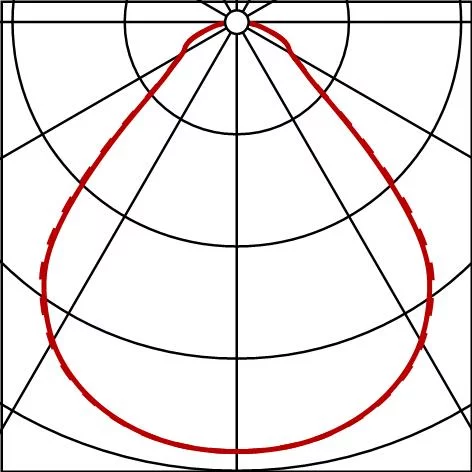

: LED 3000K / CRI >= 80, individual setting
: 51MH12WM2M43
