51MP11W72442

Order No.: 51MP11W72442
Remember articleRemember article

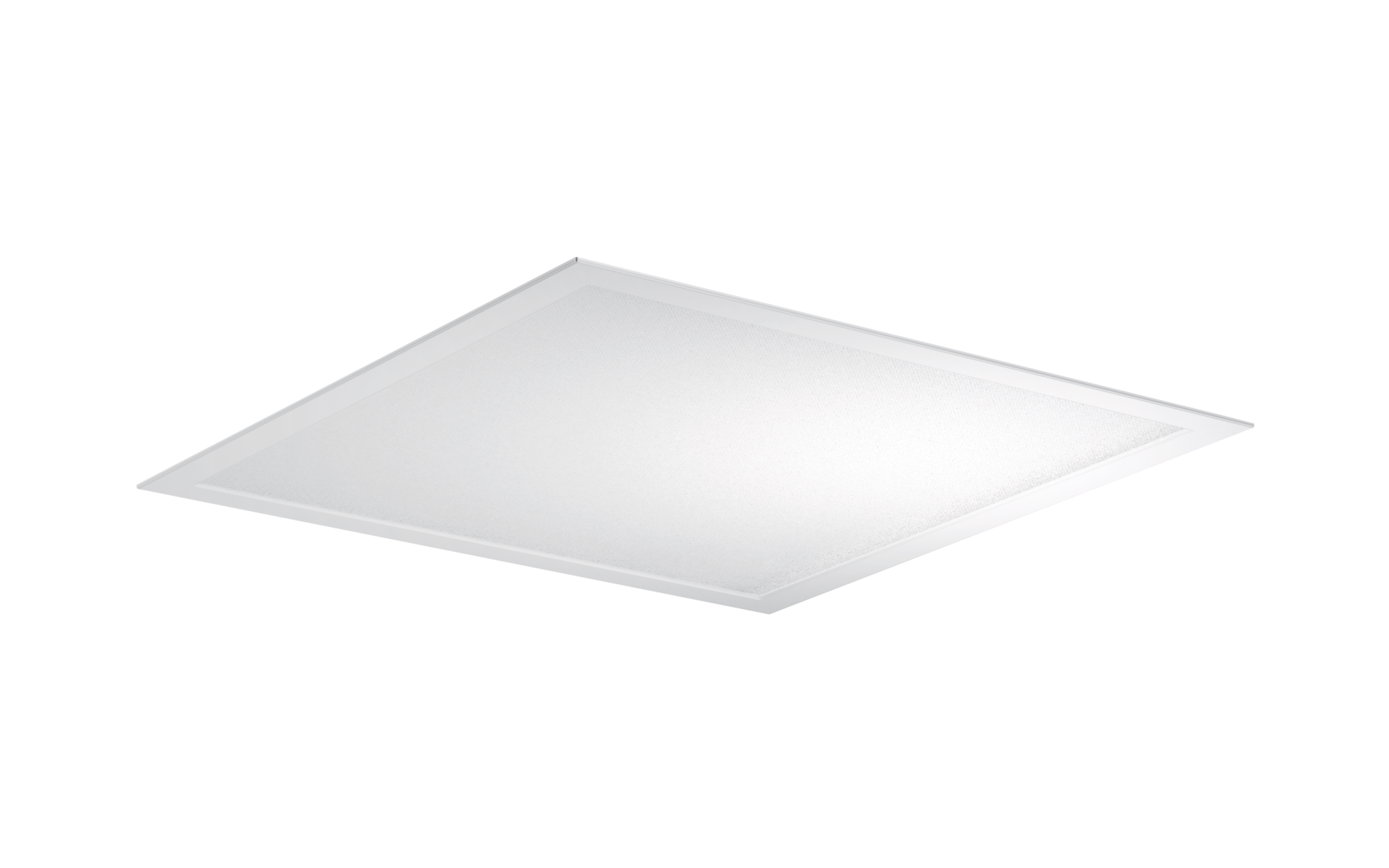

Article office luminaire
Product name Apollon 31 square
Lamp LED
Rated luminous flux 4000lm
Luminous efficacy 145lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 28W
Service life 50000h (L85) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 1.9kg

Apollon 31 square, office luminaire, primary optical cover: micro prismatic cover, of PMMA, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, recessed, LED, rated luminous flux: 4.000lm, luminous efficacy: 145lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 28W, suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22, housing, of aluminium, powder-coated, traffic white (RAL 9016), module: M625, length: 620mm, width: 620mm, height: 62mm, housing upper side, of sheet steel, coated, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP40, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, impact resistance: IK03, permissible operating ambient temperature: -20..+40°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type office luminaire
Product name Apollon 31 square
Order No. 51MP11W72442

Component 1

Lighting technology
Cover micro prismatic cover
Beam angle wide distribution, 90°
Symmetry symmetric

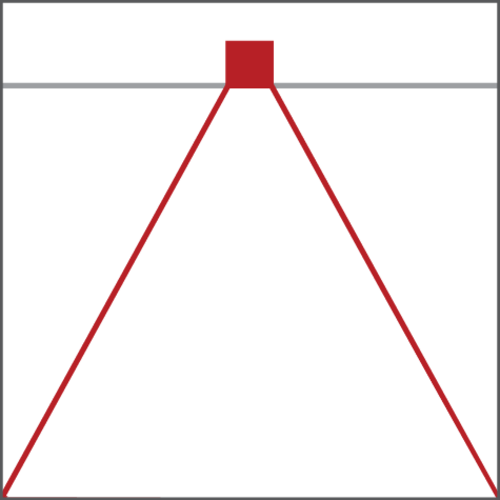

Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps
Lamps with LED
Rated luminous flux 4000lm
Luminous efficacy 145lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 28W
Supplement with through-wiring, internal wiring halogen-free

Operating device
Control ON/OFF

Component 2

Operating device
Switching method suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP40
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -20..+40°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
Certification, designation CE, ENEC

Material, Colour

housing aluminium, powder-coated, traffic white (RAL 9016)
housing upper side sheet steel, coated
Cover micro prismatic cover of PMMA

Mounting

Mounting method, mounting location recessed, lay-in mounting, in the ceiling
Arrangement single arrangement
Supplement please order the required mounting accessories for ceiling recessing separately

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 50/60Hz, AC

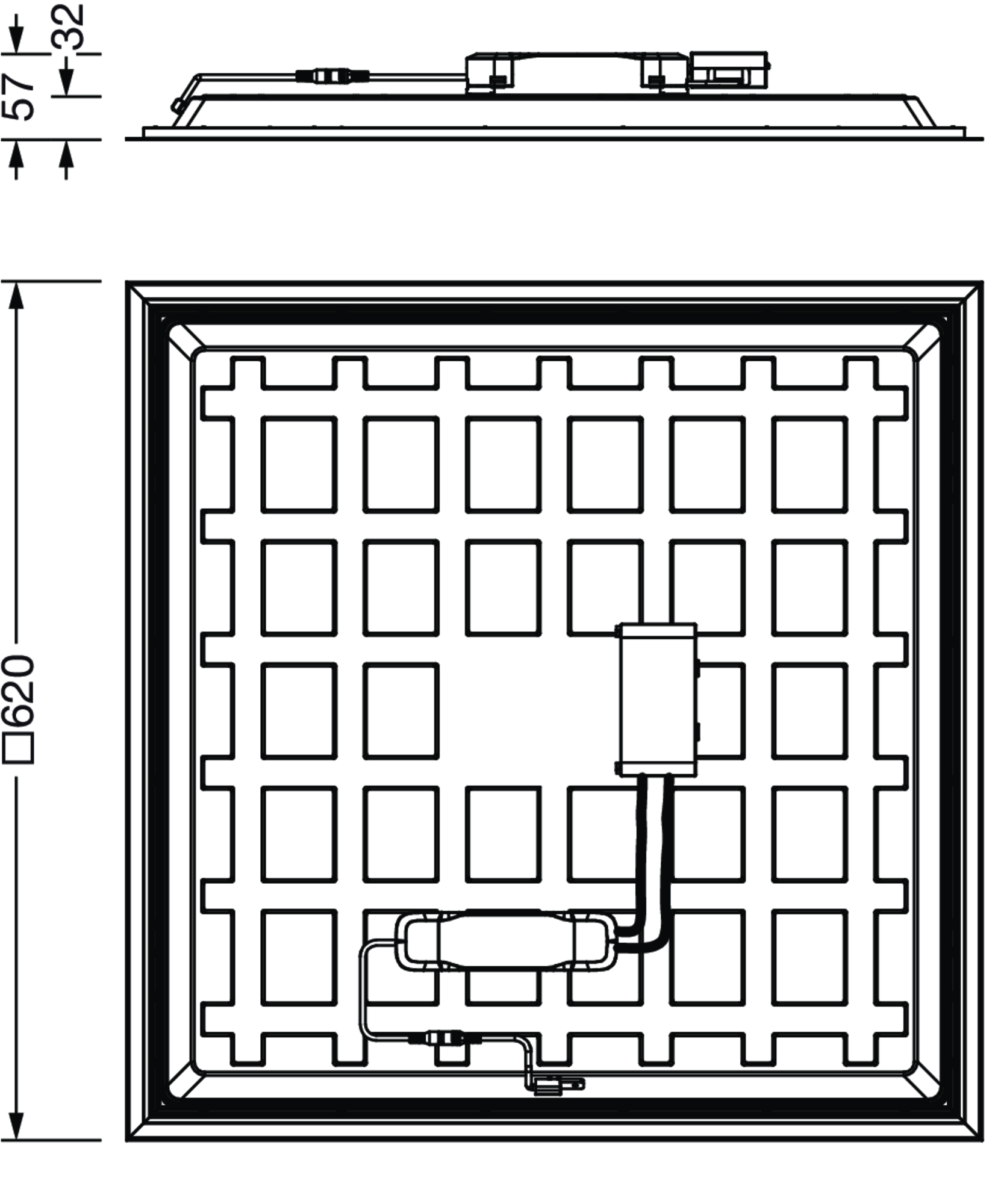

Dimensions, Weight

Length 620mm
Width 620mm
Height 62mm
Weight 1.9kg

Service life

Rated service life 50000h (L85) at AT = 25°C

Product type
office luminaire

Product name
Apollon 31 square

Order No.
51MP11W72442

Lighting technology

Cover
micro prismatic cover

Beam angle
wide distribution, 90°

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps

Lamps
with LED

Rated luminous flux
4000lm

Luminous efficacy
145lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
28W

Supplement
with through-wiring, internal wiring halogen-free

Operating device

Control
ON/OFF

Operating device

Switching method
suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22

Protection rating
IP20

Protection rating (lamp compartment, on room side)
IP40

Insulation class
insulation class II (safety insulation)

Impact resistance
IK03

Temperature range (operation)
-20..+40°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Certification, designation
CE, ENEC

housing
aluminium, powder-coated, traffic white (RAL 9016)

housing upper side
sheet steel, coated

Cover
micro prismatic cover of PMMA

Mounting method, mounting location
recessed, lay-in mounting, in the ceiling

Arrangement
single arrangement

Supplement
please order the required mounting accessories for ceiling recessing separately

Connection
terminal, 3-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
620mm

Width
620mm

Height
62mm

Weight
1.9kg

Rated service life
50000h (L85) at AT = 25°C

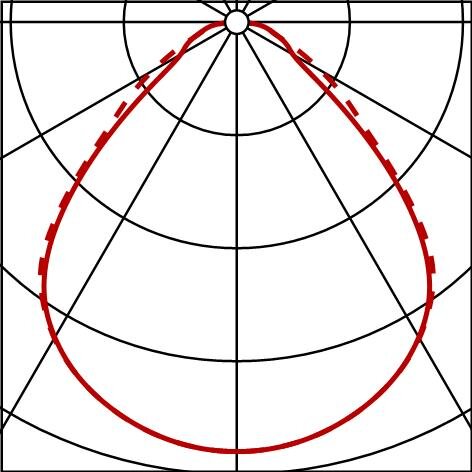

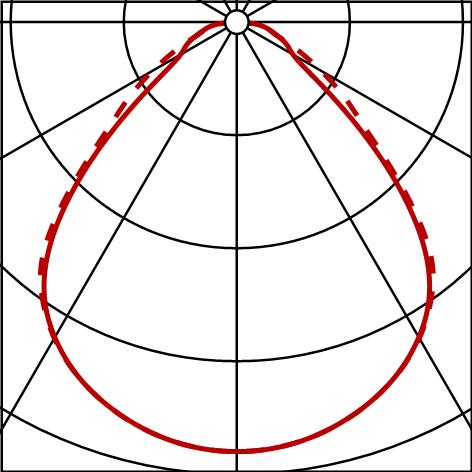

Photometric report / planning data

Apollon 31 square
office luminaire, traffic white (RAL 9016), ON/OFF, 4000lm, 840, 620x620mm, for M625 and for cut ceiling aperture, Connection: terminal
Lamps: LED 4000K / CRI >= 80
Order No.: 51MP11W72442

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
