51MQ11W72313

: 51MQ11W72313

Article office luminaire

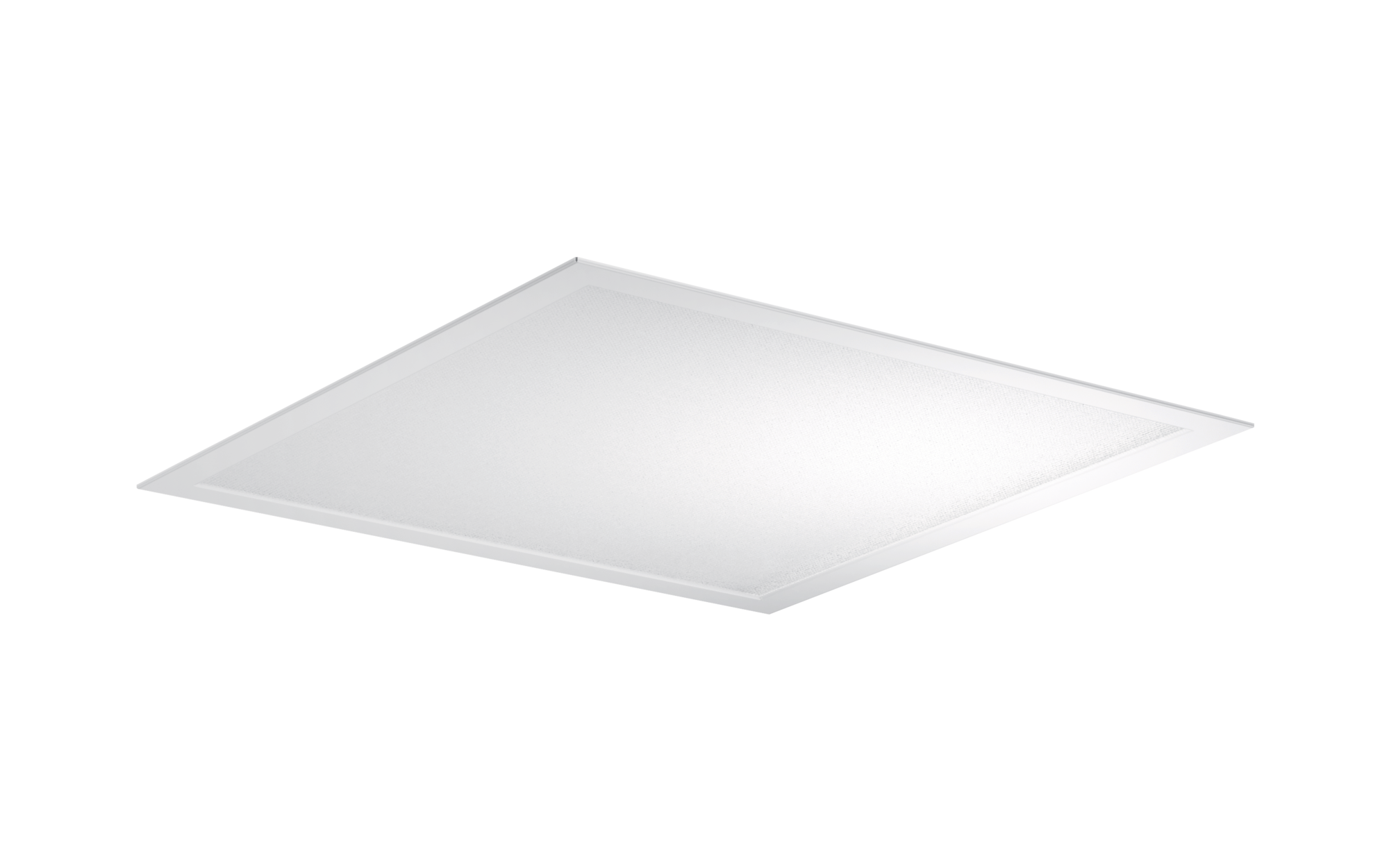

Product name Apollon 21 square
Lamp LED
Rated luminous flux 4000lm
Luminous efficacy 121lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 33W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Weight 2.5kg

Apollon 21 square, office luminaire, primary optical cover: micro prismatic cover, of PMMA, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 4.000lm, luminous efficacy: 121lm/W, light colour: 830, colour temperature: 3000K, control gear: ON/OFF, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 33W, housing, of aluminium, traffic white (RAL 9016), module: M625, length: 620mm, width: 620mm, height: 40mm, housing upper side, of sheet steel, galvanised, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP50, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, permissible operating ambient temperature: -20..+40°C, packaging unit: 1 piece

Downloads

Key data

Product type office luminaire
Product name Apollon 21 square
Order No. 51MQ11W72313

Lighting technology

Cover micro prismatic cover

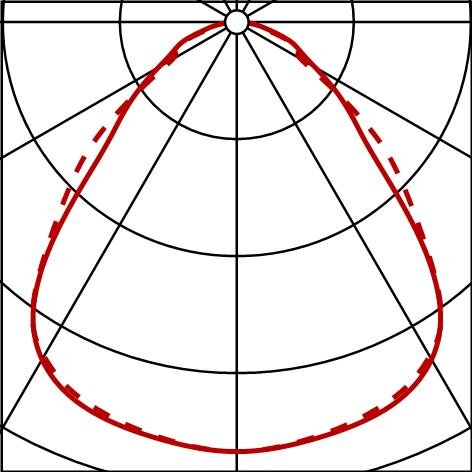

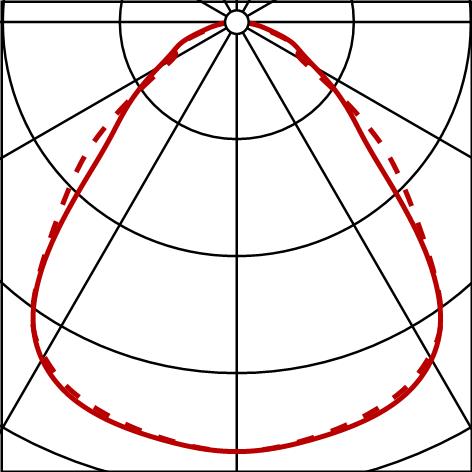

Beam angle wide distribution, 90°
Symmetry symmetric

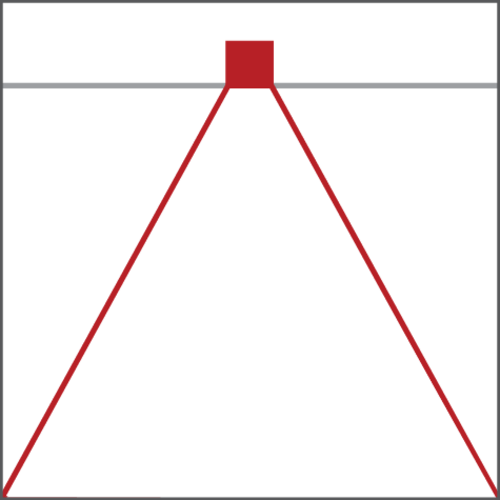

Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 4000lm
Luminous efficacy 121lm/W
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 33W

Operating device

Control gear ECG
Control ON/OFF

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP50
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+40°C
Certification, designation CE, ENEC

Material, Colour

housing aluminium, traffic white (RAL 9016)
housing upper side sheet steel, galvanised
Cover micro prismatic cover of PMMA

Mounting

Mounting method, mounting location lay-in mounting, in the ceiling
Arrangement single arrangement

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

Length 620mm
Width 620mm
Height 40mm
Weight 2.5kg

Service life

Rated service life 50000h (L85/B50) at AT = 25°C

Product type
office luminaire

Product name
Apollon 21 square

Order No.
51MQ11W72313

Cover
micro prismatic cover

Beam angle
wide distribution, 90°

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
4000lm

Luminous efficacy
121lm/W

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
33W

Control gear
ECG

Control
ON/OFF

Protection rating
IP20

Protection rating (lamp compartment, on room side)
IP50

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+40°C

Certification, designation
CE, ENEC

housing
aluminium, traffic white (RAL 9016)

housing upper side
sheet steel, galvanised

Cover
micro prismatic cover of PMMA

Mounting method, mounting location
lay-in mounting, in the ceiling

Arrangement
single arrangement

Connection
terminal, 3-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
620mm

Width
620mm

Height
40mm

Weight
2.5kg

Rated service life
50000h (L85/B50) at AT = 25°C

Apollon 21 square
office luminaire, traffic white (RAL 9016), ON/OFF, 4000lm, 830, 620x620mm, for M625, Connection: terminal
: LED 3000K / CRI >= 80
: 51MQ11W72313
