51MR36ND0421B

: 51MR36ND0421B

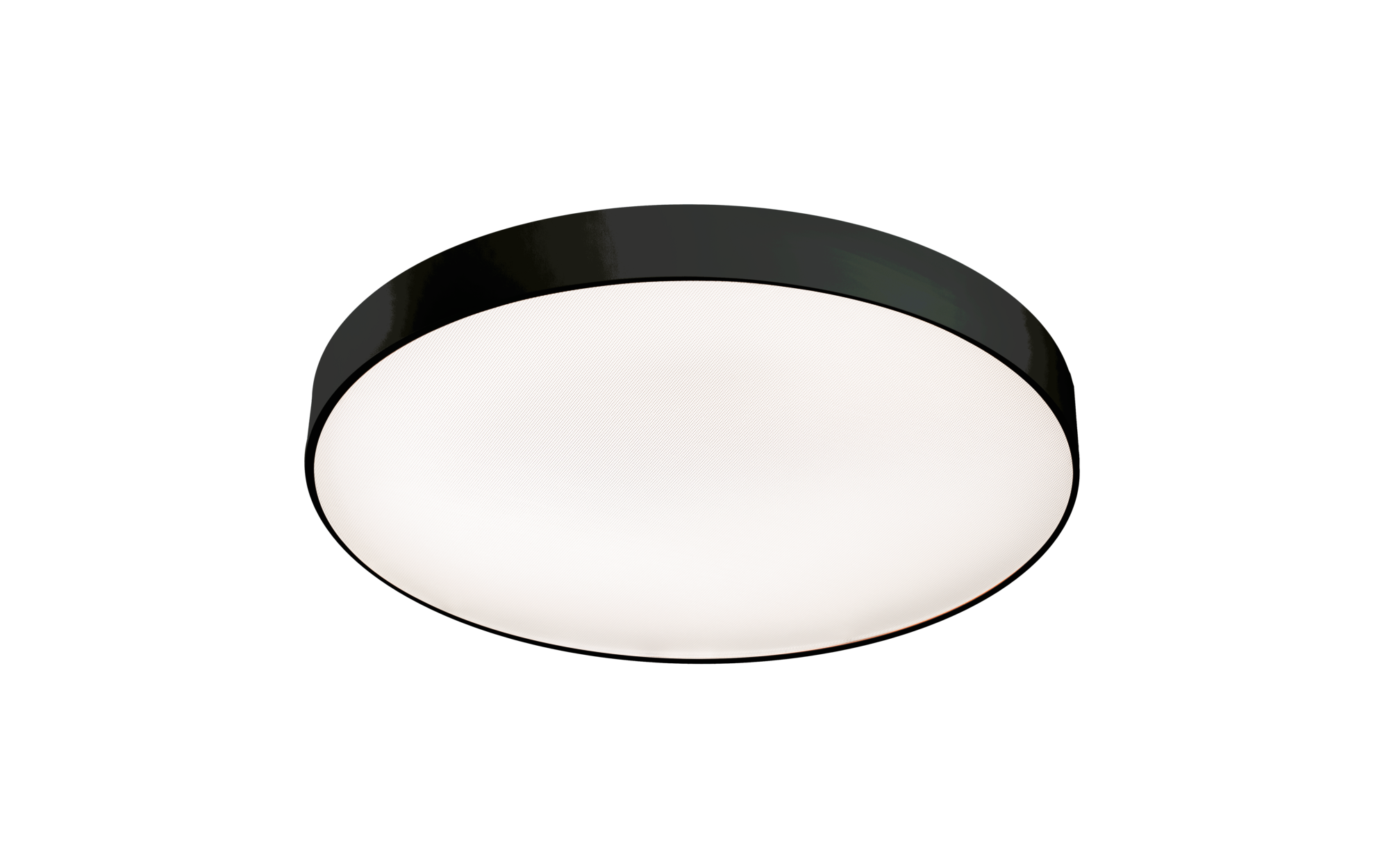

Article wall and ceiling luminaire
Product name Round 21 M
Lamp LED
Rated luminous flux 7470lm
Luminous efficacy 137lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 54.6W
Service life 50000h (L80/B20) at AT = 25°C
Protection rating IP40
Impact resistance IK04
Weight 5.8kg

Round 21 M, wall and ceiling luminaire, primary optical cover: micro prismatic cover, of PMMA, transparent, CAT 2 (L= 3000cd/m²), light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: surface-mounted, suspended mounting, LED, rated luminous flux: 7.470lm, luminous efficacy: 137lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with terminal, 5-pole, mains connection: 230V, AC, 50/60Hz, rated input power: 54.6W, housing, of aluminium, coated, black, diameter: 600mm, height: 62mm, protection rating (complete): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK04, permissible operating ambient temperature: -10..+35°C, packaging unit: 1 piece

Downloads

Key data

Product type wall and ceiling luminaire
Product name Round 21 M
Order No. 51MR36ND0421B

Lighting technology

Cover micro prismatic cover, transparent
Beam angle 85°
Symmetry symmetric
Light emission direct/indirect distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 7470lm
Luminous efficacy 137lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 54.6W

Operating device

Control DALI 2

Certificates, Standards

Protection rating IP40
Insulation class insulation class I (protective earthing)
Impact resistance IK04
Temperature range (operation) -10..+35°C
Certification, designation CE

Material, Colour

housing aluminium, coated, black
Cover micro prismatic cover of PMMA

Mounting

Mounting method, mounting location suspended mounting, surface-mounted, to the ceiling, to the wall
Arrangement single arrangement

Electrical connection

Connection terminal, 5-pole
Nominal voltage 230V, 50/60Hz, AC

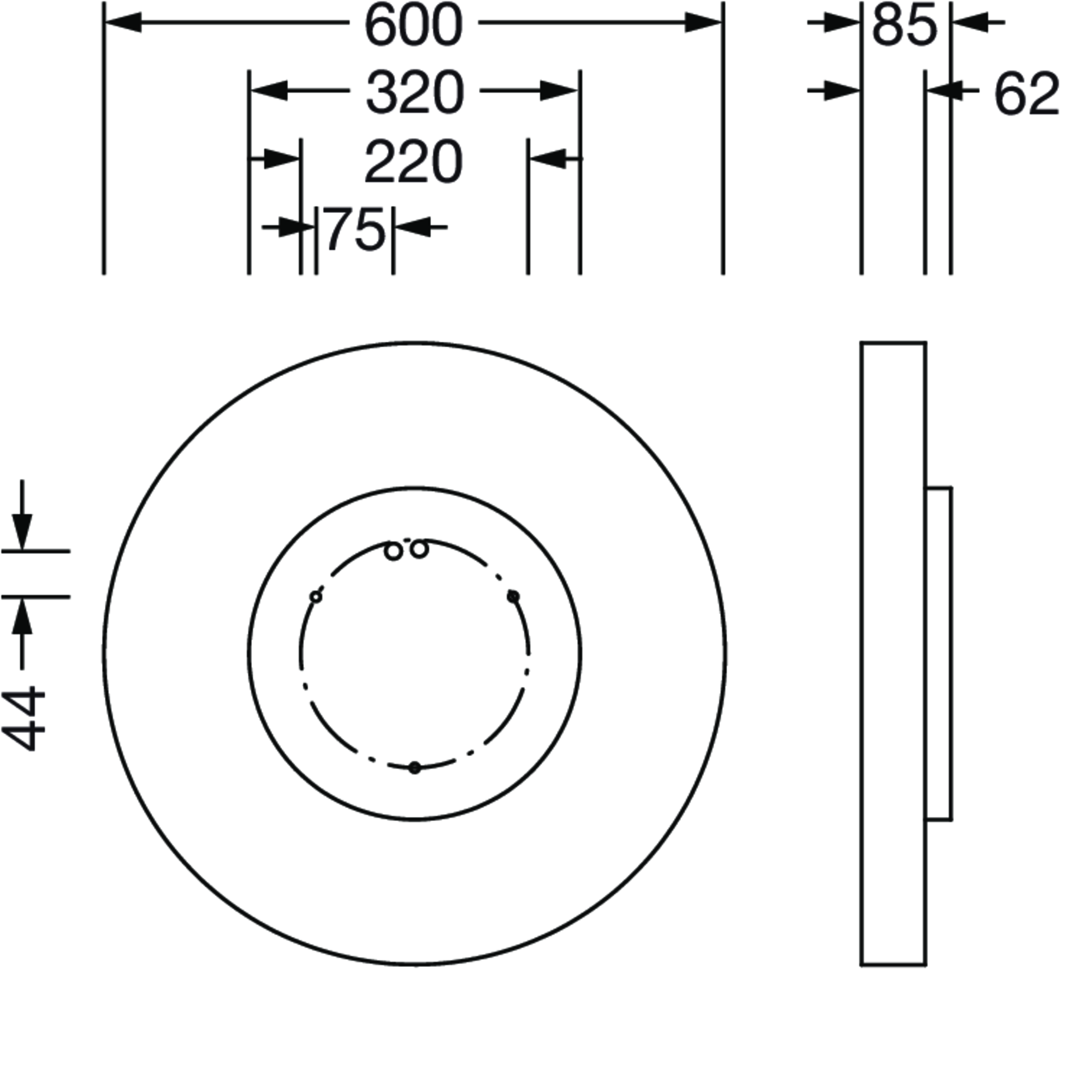

Dimensions, Weight

Diameter 600mm
Height 62mm
Weight 5.8kg

Service life

Rated service life 50000h (L80/B20) at AT = 25°C

Product type
wall and ceiling luminaire

Product name
Round 21 M

Order No.
51MR36ND0421B

Cover
micro prismatic cover, transparent

Beam angle
85°

Symmetry
symmetric

Light emission
direct/indirect distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
7470lm

Luminous efficacy
137lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
54.6W

Control
DALI 2

Protection rating
IP40

Insulation class
insulation class I (protective earthing)

Impact resistance
IK04

Temperature range (operation)
-10..+35°C

Certification, designation
CE

housing
aluminium, coated, black

Cover
micro prismatic cover of PMMA

Mounting method, mounting location
suspended mounting, surface-mounted, to the ceiling, to the wall

Arrangement
single arrangement

Connection
terminal, 5-pole

Nominal voltage
230V, 50/60Hz, AC

Diameter
600mm

Height
62mm

Weight
5.8kg

Rated service life
50000h (L80/B20) at AT = 25°C

Round21M
Prism,dir/ind,7470lm840,DA2,bk
: LED 4000K / CRI >= 80
: 51MR36ND0421B
