51MX11DC3AWB

: 51MX11DC3AWB

Article office luminaire
Product name Silica 21 Shadow L
Lamp LED
Rated luminous flux 10800lm
Luminous efficacy 156lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 69.3W
Service life 50000h (L85) at AT = 25°C, 70000h (L80) at AT = 25°C
Protection rating IP20
Weight 6.0kg

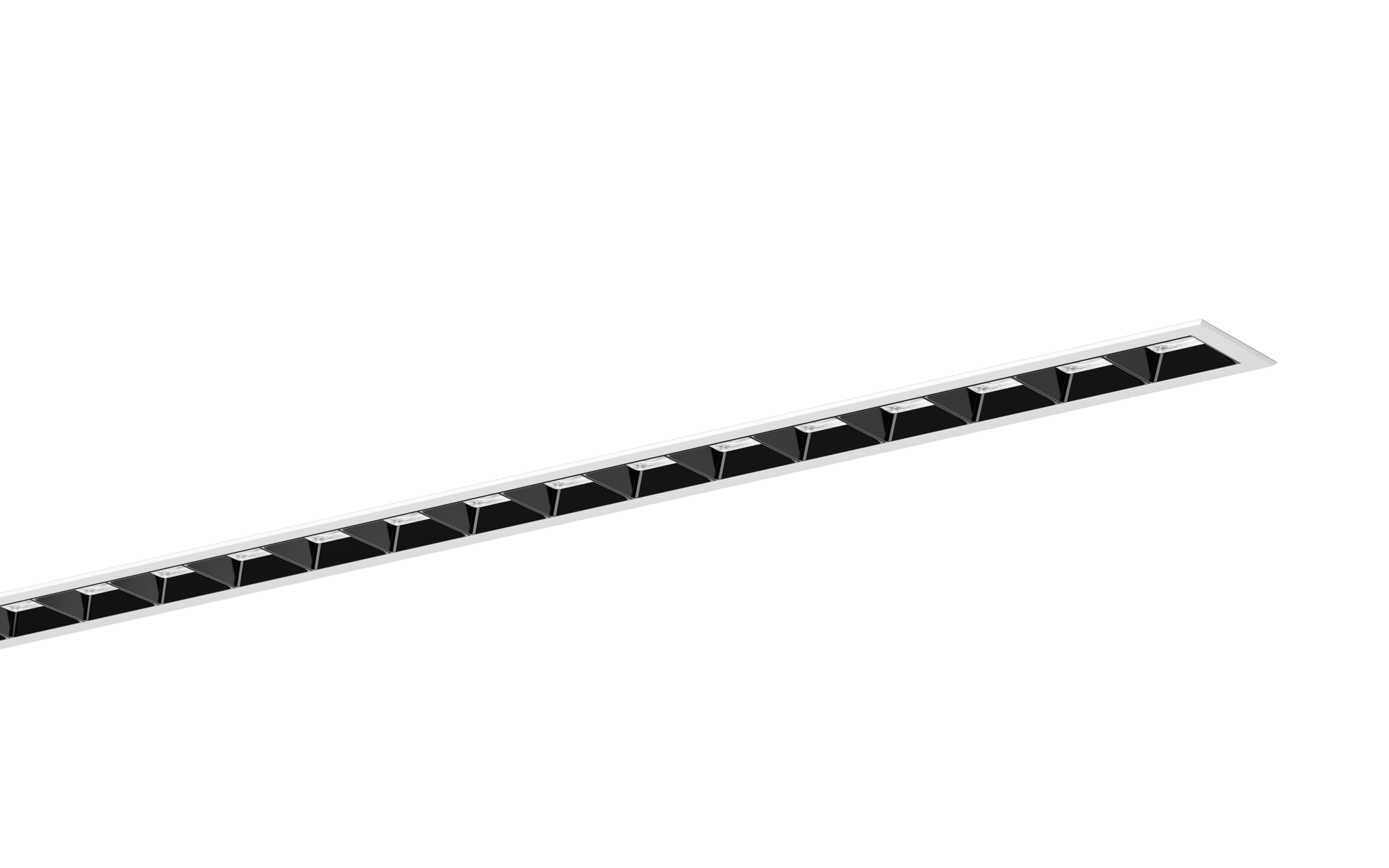

Silica 21 Shadow L, office luminaire, primary light control with darklight reflector, of PMMA, black, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: recessed, LED, rated luminous flux: 10.800lm, luminous efficacy: 156lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI 2, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, luminaire housing, of aluminium, traffic white (RAL 9016), length: 3.028mm, width: 79mm, height: 53mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data), packaging unit: 1 piece

Downloads

Key data

Product type office luminaire
Product name Silica 21 Shadow L
Order No. 51MX11DC3AWB

Lighting technology

Light control darklight reflector of PMMA, black

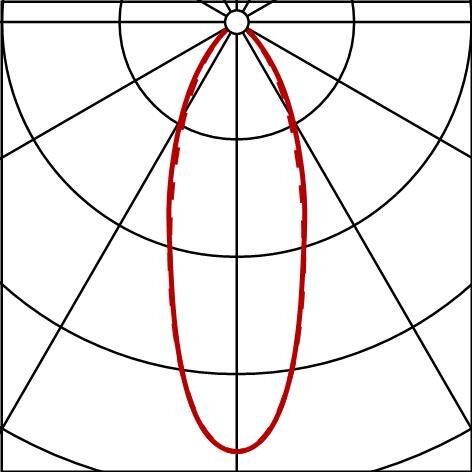

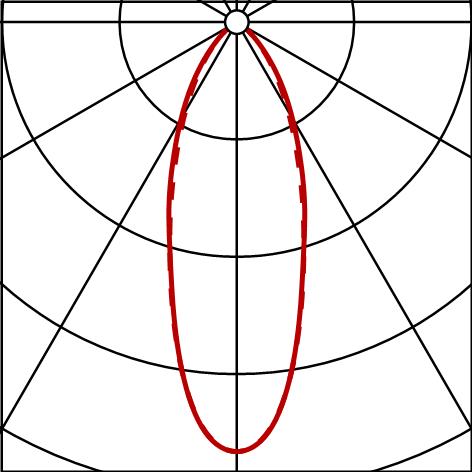

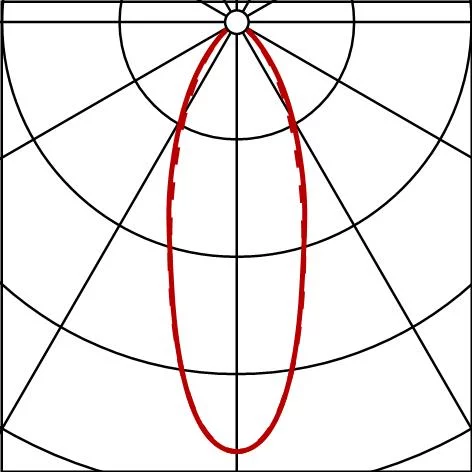

Beam angle narrow distribution
Symmetry symmetric

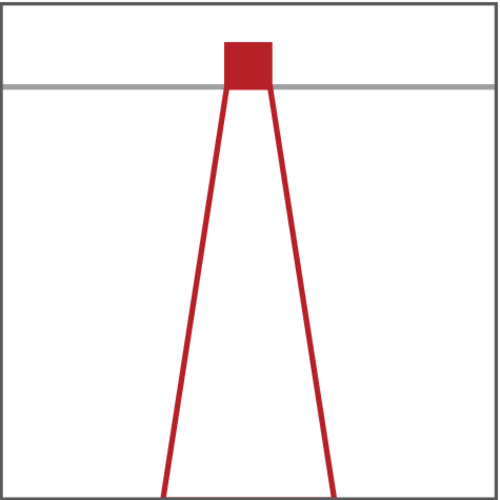

Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 10800lm
Luminous efficacy 156lm/W
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 69.3W

Operating device

Control DALI 2

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+35°C
Standard EN 50419, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing aluminium, traffic white (RAL 9016)

Mounting

Mounting method, mounting location recessed, in the ceiling
Arrangement single arrangement

Electrical connection

Connection terminal, 3+2-pole, max. 2.5mm²
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

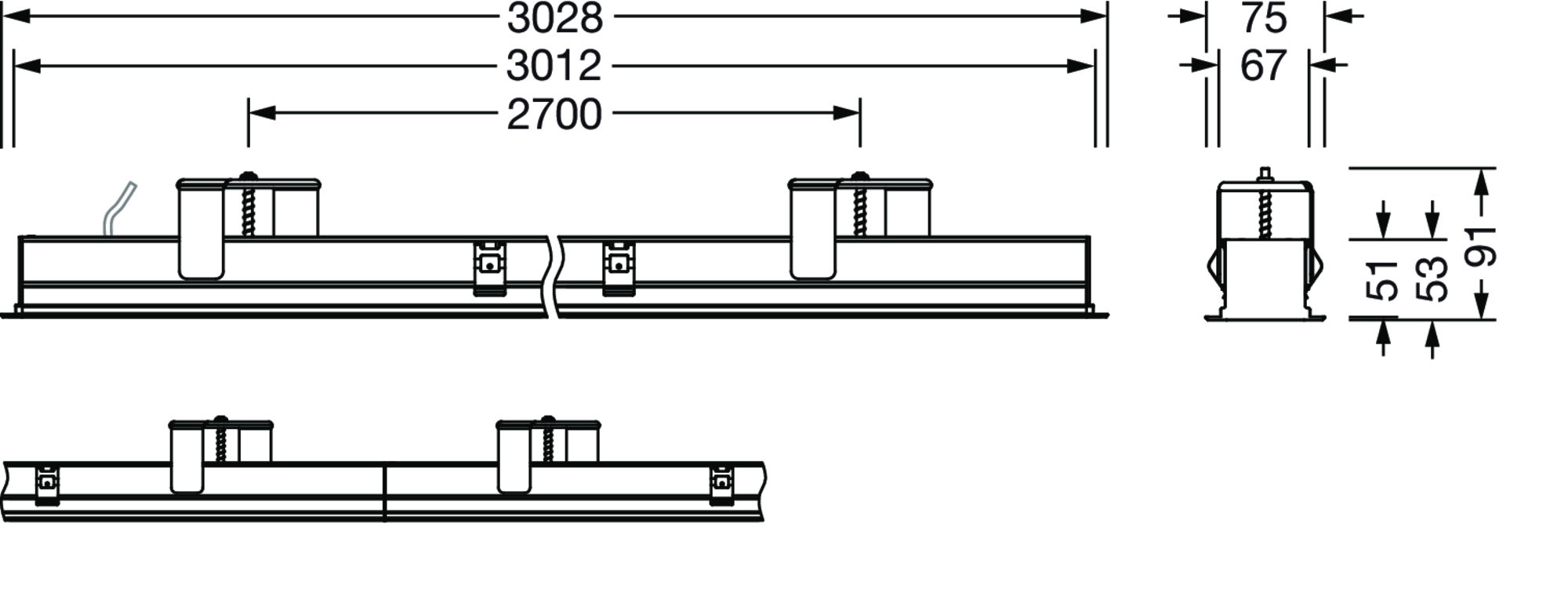

Length 3028mm
Width 79mm
Height 53mm
Weight 6.0kg

Service life

Rated service life 50000h (L85) at AT = 25°C, 70000h (L80) at AT = 25°C

Product type
office luminaire

Product name
Silica 21 Shadow L

Order No.
51MX11DC3AWB

Light control
darklight reflector of PMMA, black

Beam angle
narrow distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
10800lm

Luminous efficacy
156lm/W

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
69.3W

Control
DALI 2

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+35°C

Standard
EN 50419, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)

Certification, designation
CE, ENEC, VDE

luminaire housing
aluminium, traffic white (RAL 9016)

Mounting method, mounting location
recessed, in the ceiling

Arrangement
single arrangement

Connection
terminal, 3+2-pole, max. 2.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Length
3028mm

Width
79mm

Height
53mm

Weight
6.0kg

Rated service life
50000h (L85) at AT = 25°C, 70000h (L80) at AT = 25°C

Silica 21 Shadow L
office luminaire, traffic white (RAL 9016), DALI 2, 10800lm, 830, 3028x79mm, for cut ceiling aperture, Connection: terminal
: LED 3000K / CRI >= 80
