51MX24DC3AWB

: 51MX24DC3AWB

Article office luminaire
Product name Silica 21 Shadow L
Lamp LED
Rated luminous flux 10800lm
Luminous efficacy 137lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 79W
Service life 50000h (L85) at AT = 25°C, 70000h (L80) at AT = 25°C
Protection rating IP20
Weight 5.5kg

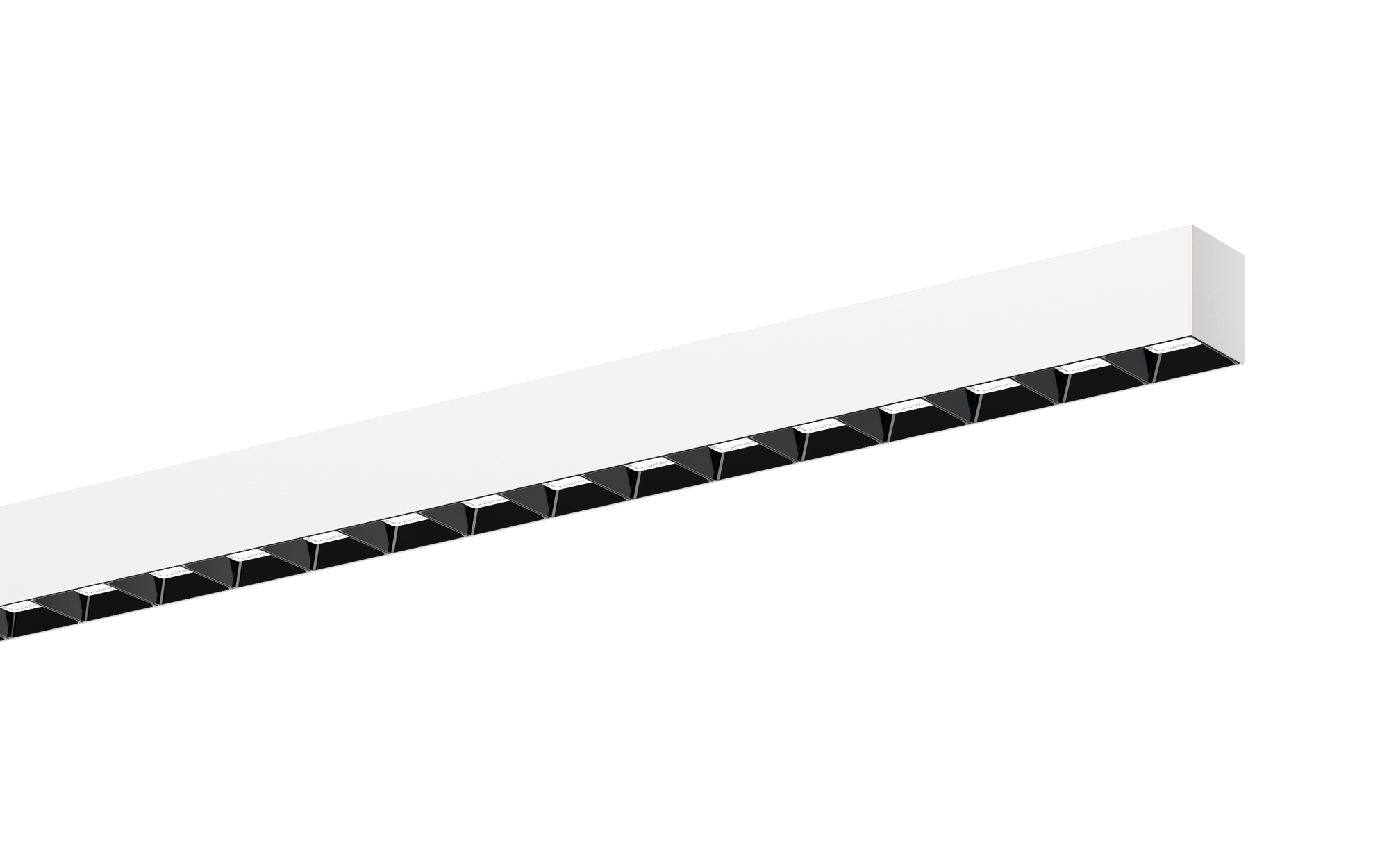

Silica 21 Shadow L, office luminaire, primary light control with darklight reflector, of PMMA, black, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: asymmetric, installation type: surface-mounted, LED, rated luminous flux: 10.800lm, luminous efficacy: 137lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI 2, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 79W, luminaire housing, of aluminium, traffic white (RAL 9016), length: 3.004mm, width: 53mm, height: 53mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data), packaging unit: 1 piece

Downloads

Key data

Product type office luminaire
Product name Silica 21 Shadow L
Order No. 51MX24DC3AWB

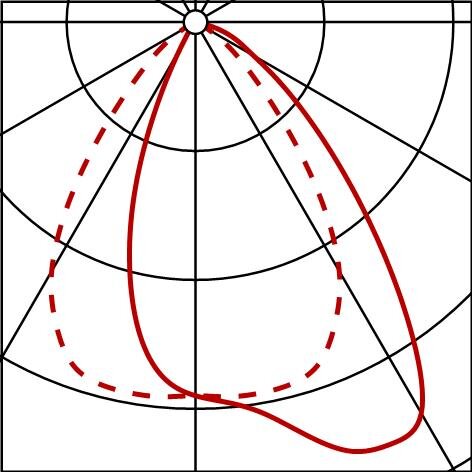

Lighting technology

Light control darklight reflector of PMMA, black
Beam angle wallwasher
Symmetry asymmetric distribution
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 10800lm
Luminous efficacy 137lm/W
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 79W

Operating device

Control DALI 2

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+35°C
Standard EN 50419, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing aluminium, traffic white (RAL 9016)

Mounting

Mounting method, mounting location surface-mounted, to the ceiling
Arrangement single arrangement

Electrical connection

Connection terminal, 3+2-pole, max. 2.5mm²
Nominal voltage 220..240V, 50/60Hz, AC

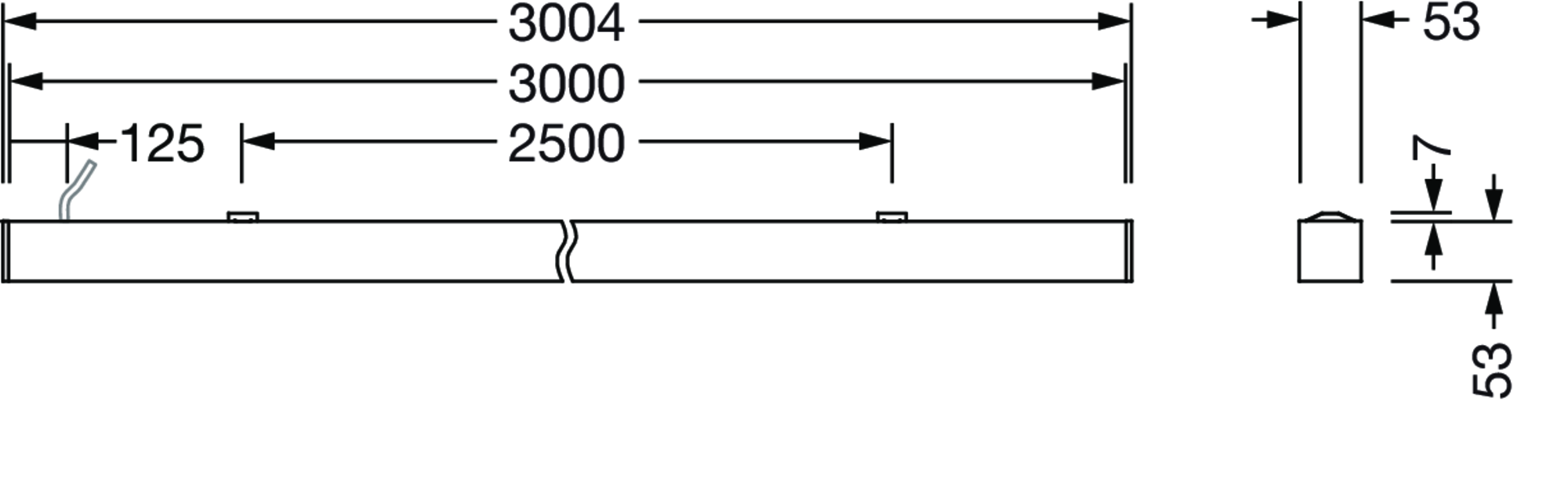

Dimensions, Weight

Length 3004mm
Width 53mm
Height 53mm
Weight 5.5kg

Service life

Rated service life 50000h (L85) at AT = 25°C, 70000h (L80) at AT = 25°C

Product type
office luminaire

Product name
Silica 21 Shadow L

Order No.
51MX24DC3AWB

Light control
darklight reflector of PMMA, black

Beam angle
wallwasher

Symmetry
asymmetric distribution

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
10800lm

Luminous efficacy
137lm/W

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
79W

Control
DALI 2

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+35°C

Standard
EN 50419, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)

Certification, designation
CE, ENEC, VDE

luminaire housing
aluminium, traffic white (RAL 9016)

Mounting method, mounting location
surface-mounted, to the ceiling

Arrangement
single arrangement

Connection
terminal, 3+2-pole, max. 2.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Length
3004mm

Width
53mm

Height
53mm

Weight
5.5kg

Rated service life
50000h (L85) at AT = 25°C, 70000h (L80) at AT = 25°C

Silica 21 Shadow L
office luminaire, traffic white (RAL 9016), DALI 2, 10800lm, 830, 3004x53mm, Connection: terminal
: LED 3000K / CRI >= 80
: 51MX24DC3AWB
