51MX52DA3ZM00891XX

: 51MX52DA3ZM00891XX

Article floorstanding luminaire
Product name Silica 21 Floor L
Lamp LED
Rated luminous flux 14320lm
Luminous efficacy 154lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 93.2W
Service life 50000h (L85) at AT = 25°C
Protection rating IP20
Weight 13.8kg

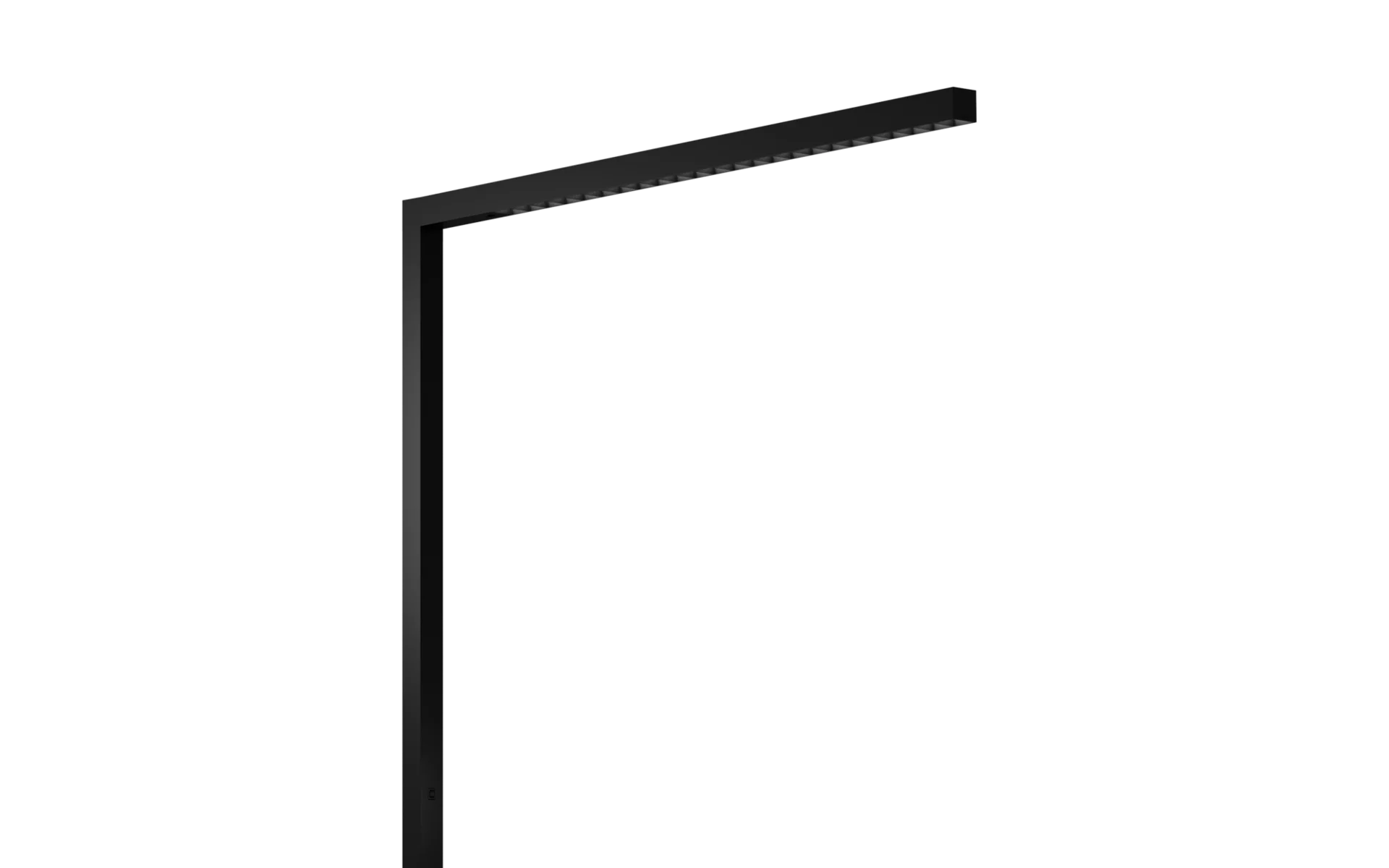

Silica 21 Floor L, floorstanding luminaire, primary light control with darklight reflector, of PMMA, of PMMA, CAT 2 (L= 3000cd/m²), light emission: indirect/direct distribution, primary light characteristic: symmetric, primary optical cover: cover panel, installation type: not mounted, LED, rated luminous flux: 14.320lm, luminous efficacy: 154lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI 2, daylight-dependent control, mains connection: 230V, AC, 50/60Hz, connection cable pre-assembled, cable length: 2,5m, luminaire head, of aluminium, powder-coated, jet black (RAL 9005), length: 1.454mm, width: 280mm, height: 2190mm, supporting column, angular, of aluminium, powder-coated, jet black (RAL 9005), baseplate, of steel, powder-coated, jet black (RAL 9005), sensor module PR3-S, local control - self-sufficient standalone sensors, equipment: master, direct and indirect component separately switchable, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece

Downloads

Key data

Product type floorstanding luminaire
Product name Silica 21 Floor L
Order No. 51MX52DA3ZM00891XX

Component 1

Lighting technology
Light control darklight reflector
Beam angle wide distribution
Symmetry symmetric
Light emission indirect/direct distribution, 70:30
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps
Lamps with LED
Rated luminous flux 14320lm
Luminous efficacy 154lm/W
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 93.2W
Supplement with ambient light and presence detector

Operating device
Control DALI 2, direct and indirect component separately switchable
Switching method daylight-dependent control

Component 2

Lighting technology
Cover cover panel
Beam angle wide distribution

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+35°C
Standard EN 50419
Certification, designation CE

Material, Colour

luminaire head aluminium, powder-coated, jet black (RAL 9005)
supporting column aluminium, powder-coated, jet black (RAL 9005), angular
Quantity 1 piece
baseplate steel, powder-coated, jet black (RAL 9005)
Quantity 1 piece
Cover cover panel

Mounting

Mounting method, mounting location not mounted

Electrical connection

Nominal voltage 230V, 50/60Hz, AC
Connection cable pre-assembled, L= 2.5m

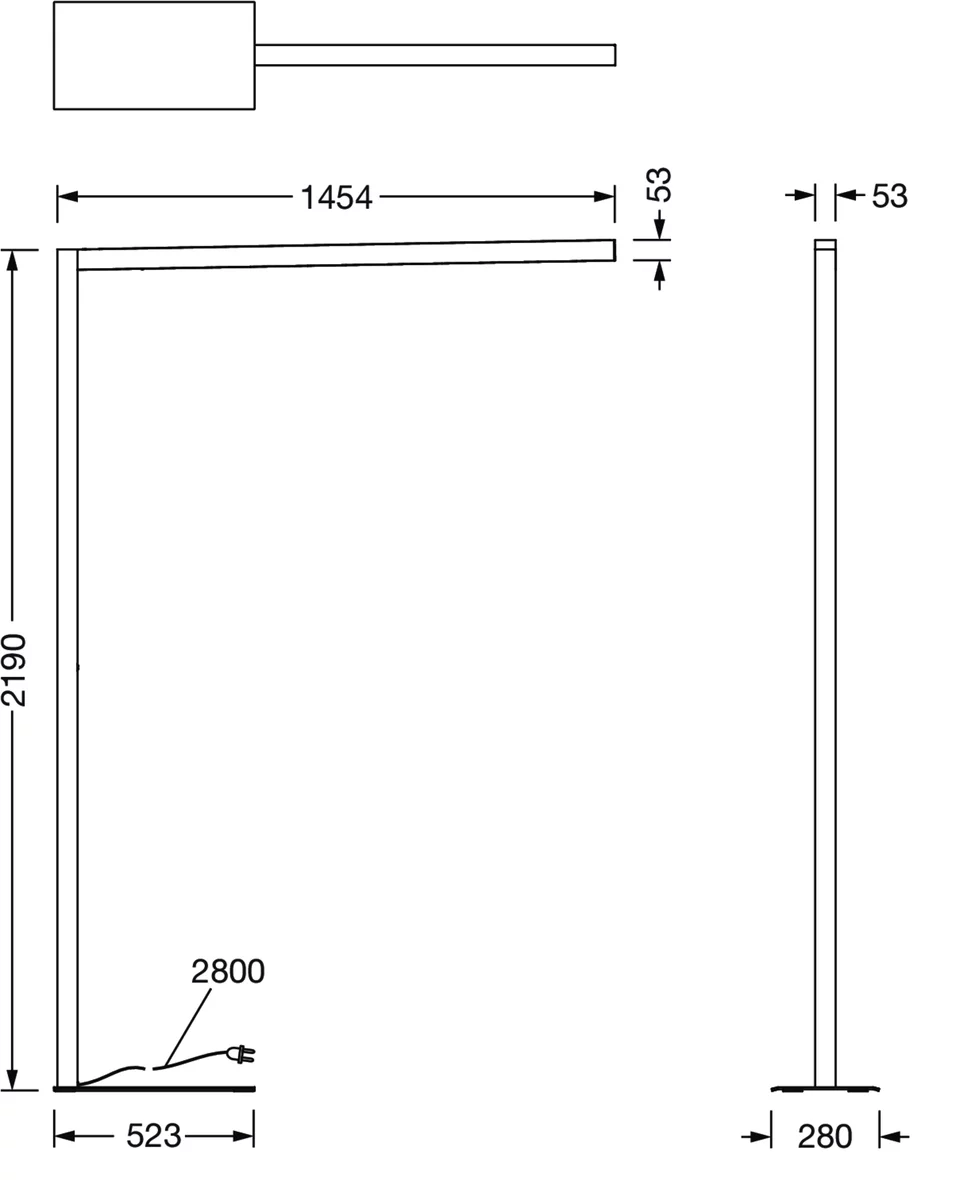

Dimensions, Weight

Length 1454mm
Width 280mm
Height 2190mm
Weight 13.8kg

Service life

Rated service life 50000h (L85) at AT = 25°C

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)
Detection angle 360°
Detection range tangential max. 4x4m
Detection range max. 2x 2m
Option detection range can be limited in stages using extendable lens covers (2x 180°)
Feature rectangular detection area

1x light sensor
Illuminance 20..800lx (directly at sensor)

1x push button
Connection IR receiver
Option ON/OFF, dimming, setpoint storage separately for direct and indirect component

Outputs

1x LED red/green
Feature for displaying initialization

Product type
floorstanding luminaire

Product name
Silica 21 Floor L

Order No.
51MX52DA3ZM00891XX

Lighting technology

Light control
darklight reflector

Beam angle
wide distribution

Symmetry
symmetric

Light emission
indirect/direct distribution, 70:30

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps

Lamps
with LED

Rated luminous flux
14320lm

Luminous efficacy
154lm/W

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
93.2W

Supplement
with ambient light and presence detector

Operating device

Control
DALI 2, direct and indirect component separately switchable

Switching method
daylight-dependent control

Lighting technology

Cover
cover panel

Beam angle
wide distribution

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+35°C

Standard
EN 50419

Certification, designation
CE

luminaire head
aluminium, powder-coated, jet black (RAL 9005)

supporting column
aluminium, powder-coated, jet black (RAL 9005), angular

Quantity
1 piece

baseplate
steel, powder-coated, jet black (RAL 9005)

Quantity
1 piece

Cover
cover panel

Mounting method, mounting location
not mounted

Nominal voltage
230V, 50/60Hz, AC

Connection cable
pre-assembled, L= 2.5m

Length
1454mm

Width
280mm

Height
2190mm

Weight
13.8kg

Rated service life
50000h (L85) at AT = 25°C

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection angle
360°

Detection range
tangential max. 4x4m

Detection range
max. 2x 2m

Option
detection range can be limited in stages using extendable lens covers (2x 180°)

Feature
rectangular detection area

1x light sensor

Illuminance
20..800lx (directly at sensor)

1x push button

Connection
IR receiver

Option
ON/OFF, dimming, setpoint storage separately for direct and indirect component

1x LED red/green

Feature
for displaying initialization

Sil21FLL
14320lm830,DA2,PIR-sens,bk

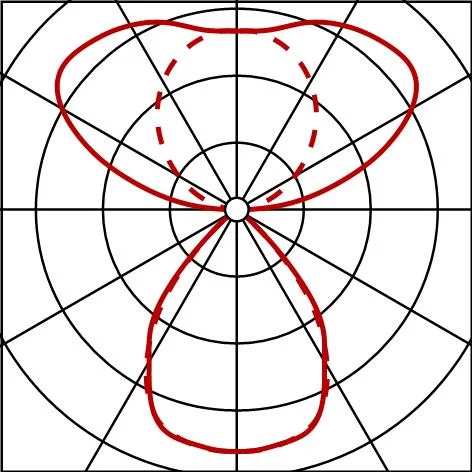

: LED 3000K / CRI >= 80, factory setting: direct and indirect light
: 51MX52DA3ZM00891XX

Sil21FLL
: LED 3000K / CRI >= 80, individual setting: only direct light
: 51MX52DA3ZM00891XX

Sil21FLL
: LED 3000K / CRI >= 80, individual setting: only indirect light
: 51MX52DA3ZM00891XX
