51MX6KDS34B
Article office luminaire
Product name Silica 21 Square
Lamp LED
Rated luminous flux 4600lm
Luminous efficacy 137lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 33.7W
Service life 50000h (L85/B50) at AT = 25°C, 70000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 4.5kg

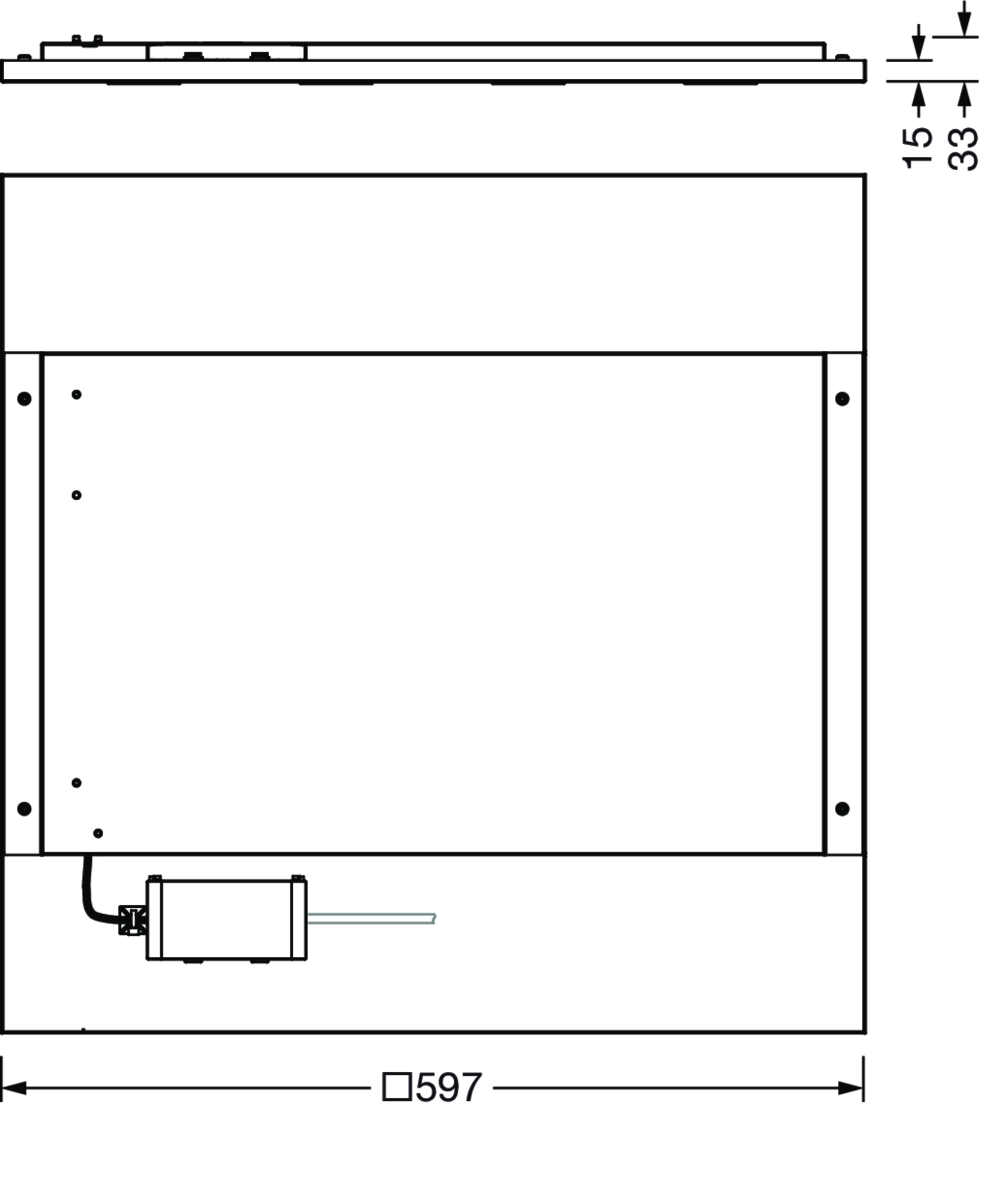

Silica 21 Square, office luminaire, primary light control with lens, of PMMA, primary anti-glare with reflector, of PC, black, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 4.600lm, luminous efficacy: 137lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI 2, with terminal, 5-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 33.7W, luminaire housing, of aluminium, matt jet black (RAL 9005), module: M600, length: 597mm, width: 597mm, height: 33mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, permissible operating ambient temperature: -20..+40°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data
Silica 21 Square
office luminaire, matt jet black (RAL 9005), DALI 2, 4600lm, 830, 597x597mm, for M600, Connection: terminal
Lamps: LED 3000K / CRI >= 80
Order No.: 51MX6KDS34B
