51MY52FA4CS

: 51MY52FA4CS

Article floorstanding luminaire
Product name Silica 31 Floor
Lamp LED
Rated luminous flux 10600lm
Luminous efficacy 141lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 75W
Service life 50000h (L80/B10) at AT = 25°C
Protection rating IP20
Weight 12.2kg

Silica 31 Floor, floorstanding luminaire, secondary optical cover: cover panel, of PMMA, light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: not mounted, LED, rated luminous flux: 10.600lm, luminous efficacy: 141lm/W, light colour: 840, colour temperature: 4000K, control gear: Touchdim, daylight-dependent control, with cable with plug, mains connection: 230V, AC, 50Hz, connection cable included, cable length: 2,5m, rated input power: 75W, luminaire head, of aluminium, metallic grey (RAL 9006), length: 1.203mm, width: 52mm, supporting column, angular, of aluminium, metallic grey (RAL 9006), baseplate, of steel, metallic grey (RAL 9006), local control - self-sufficient standalone sensors, direct and indirect component separately switchable, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, permissible operating ambient temperature: -20..+40°C, standard: EN 50419, packaging unit: 1 piece

Downloads

Key data

Product type floorstanding luminaire
Product name Silica 31 Floor
Order No. 51MY52FA4CS

Lighting technology

Beam angle wide distribution
Symmetry symmetric
Secondary cover cover panel

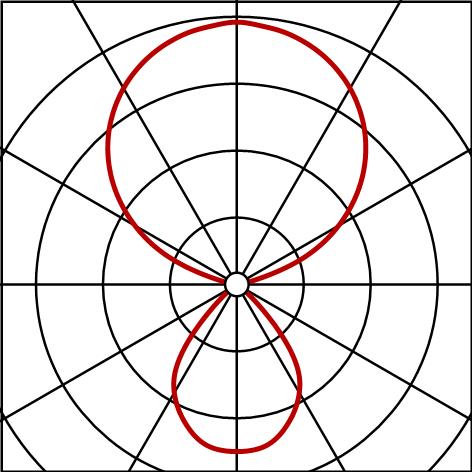

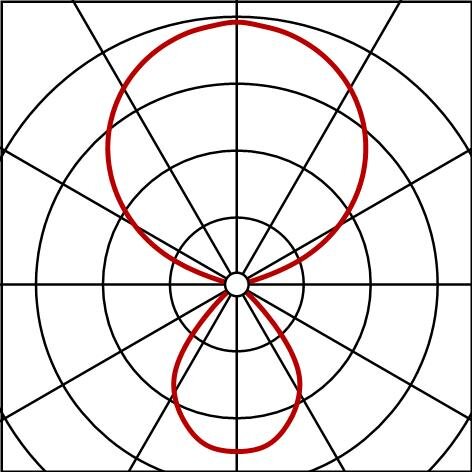

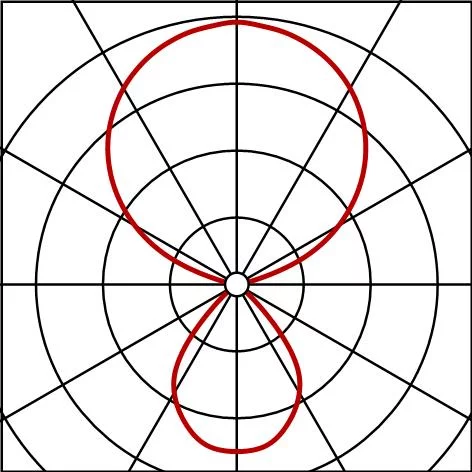

Light emission direct/indirect distribution, 76:24
UGR viewing direction along longitudinal luminaire axis ≤ 16
UGR viewing direction along lateral luminaire axis ≤ 16

Lamps

Lamps with LED
Rated luminous flux 10600lm
Luminous efficacy 141lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 75W
Supplement with ambient light and presence detector

Operating device

Control Touchdim, direct and indirect component separately switchable
Switching method daylight-dependent control

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) -20..+40°C
Standard EN 50419
Certification, designation CE, ENEC

Material, Colour

luminaire head aluminium, metallic grey (RAL 9006)
supporting column aluminium, metallic grey (RAL 9006), angular
Quantity 1 piece
baseplate steel, metallic grey (RAL 9006)
Quantity 1 piece
Cover cover panel of PMMA

Mounting

Mounting method, mounting location not mounted

Electrical connection

Connection cable with plug
Nominal voltage 230V, 50Hz, AC
Connection cable included, L= 2.5m

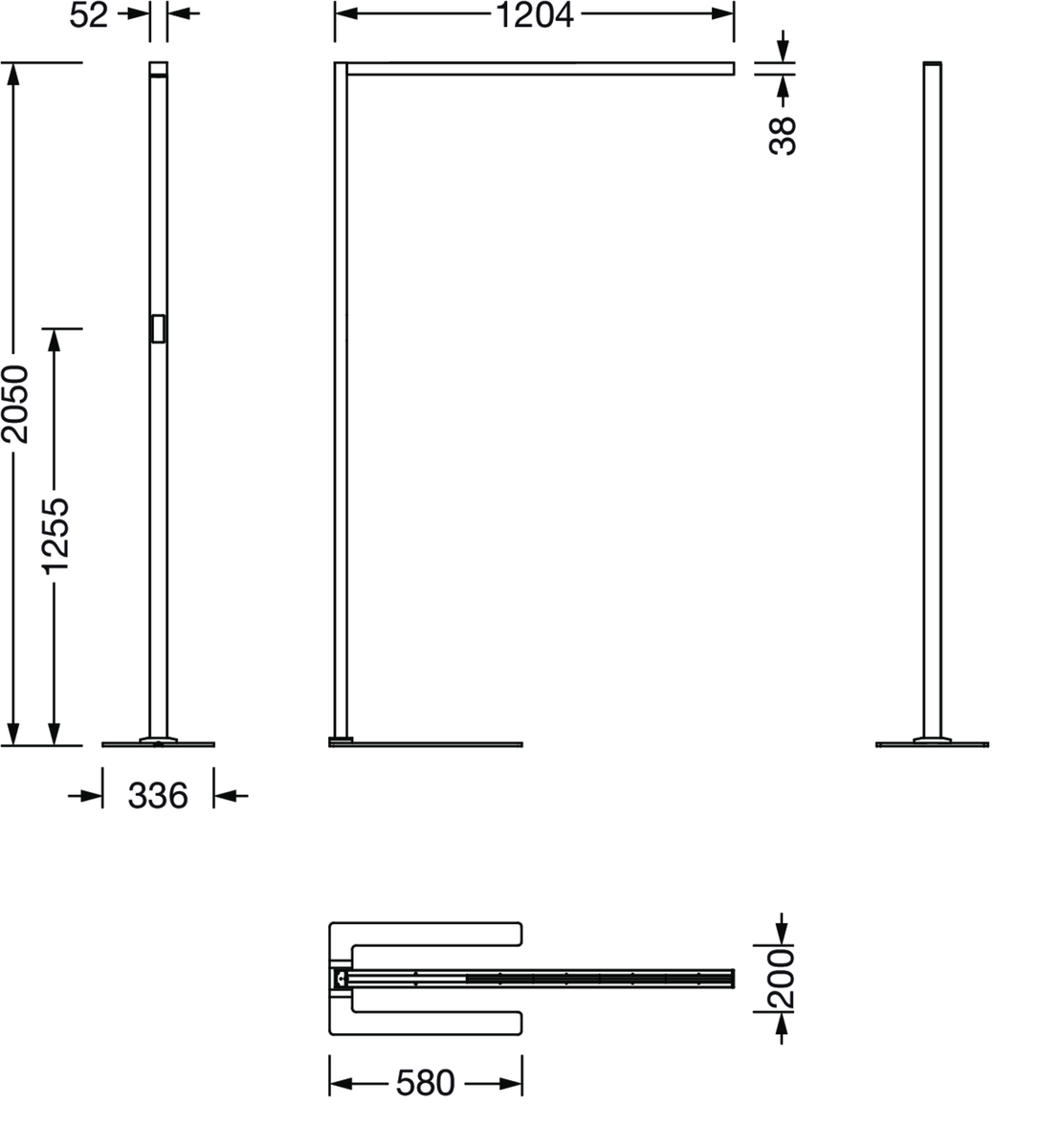

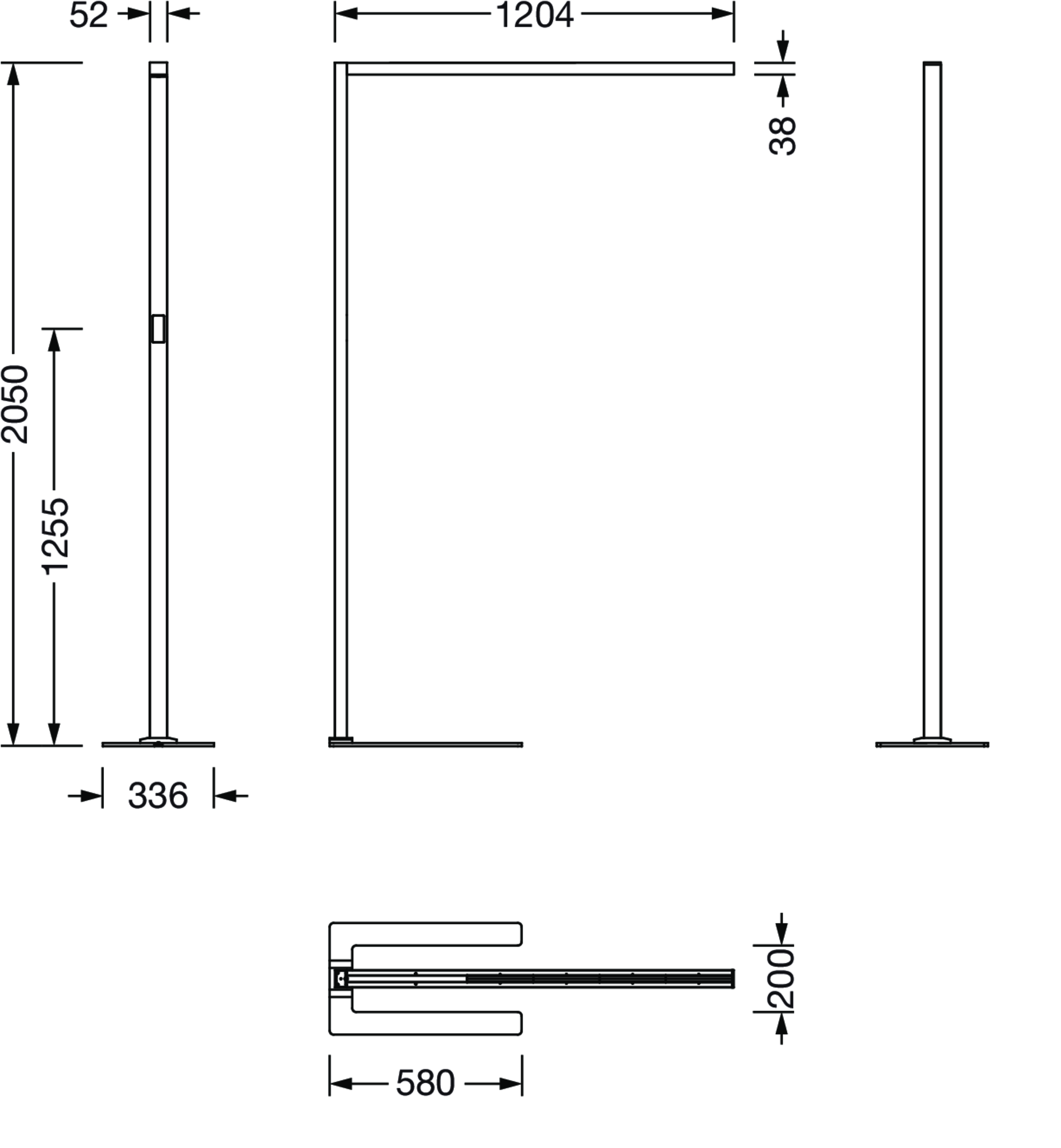

Dimensions, Weight

Length 1203mm
Width 52mm
Weight 12.2kg

Service life

Rated service life 50000h (L80/B10) at AT = 25°C

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)

Product type
floorstanding luminaire

Product name
Silica 31 Floor

Order No.
51MY52FA4CS

Beam angle
wide distribution

Symmetry
symmetric

Secondary cover
cover panel

Light emission
direct/indirect distribution, 76:24

UGR viewing direction along longitudinal luminaire axis
≤ 16

UGR viewing direction along lateral luminaire axis
≤ 16

Lamps
with LED

Rated luminous flux
10600lm

Luminous efficacy
141lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
75W

Supplement
with ambient light and presence detector

Control
Touchdim, direct and indirect component separately switchable

Switching method
daylight-dependent control

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
-20..+40°C

Standard
EN 50419

Certification, designation
CE, ENEC

luminaire head
aluminium, metallic grey (RAL 9006)

supporting column
aluminium, metallic grey (RAL 9006), angular

Quantity
1 piece

baseplate
steel, metallic grey (RAL 9006)

Quantity
1 piece

Cover
cover panel of PMMA

Mounting method, mounting location
not mounted

Connection
cable with plug

Nominal voltage
230V, 50Hz, AC

Connection cable
included, L= 2.5m

Length
1203mm

Width
52mm

Weight
12.2kg

Rated service life
50000h (L80/B10) at AT = 25°C

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Sil31Fl
10600lm840,Tdi,PIR-sens,sr
: LED 4000K / CRI >= 80
: 51MY52FA4CS
