: 51MY52GA4CW

Article desktop luminaire

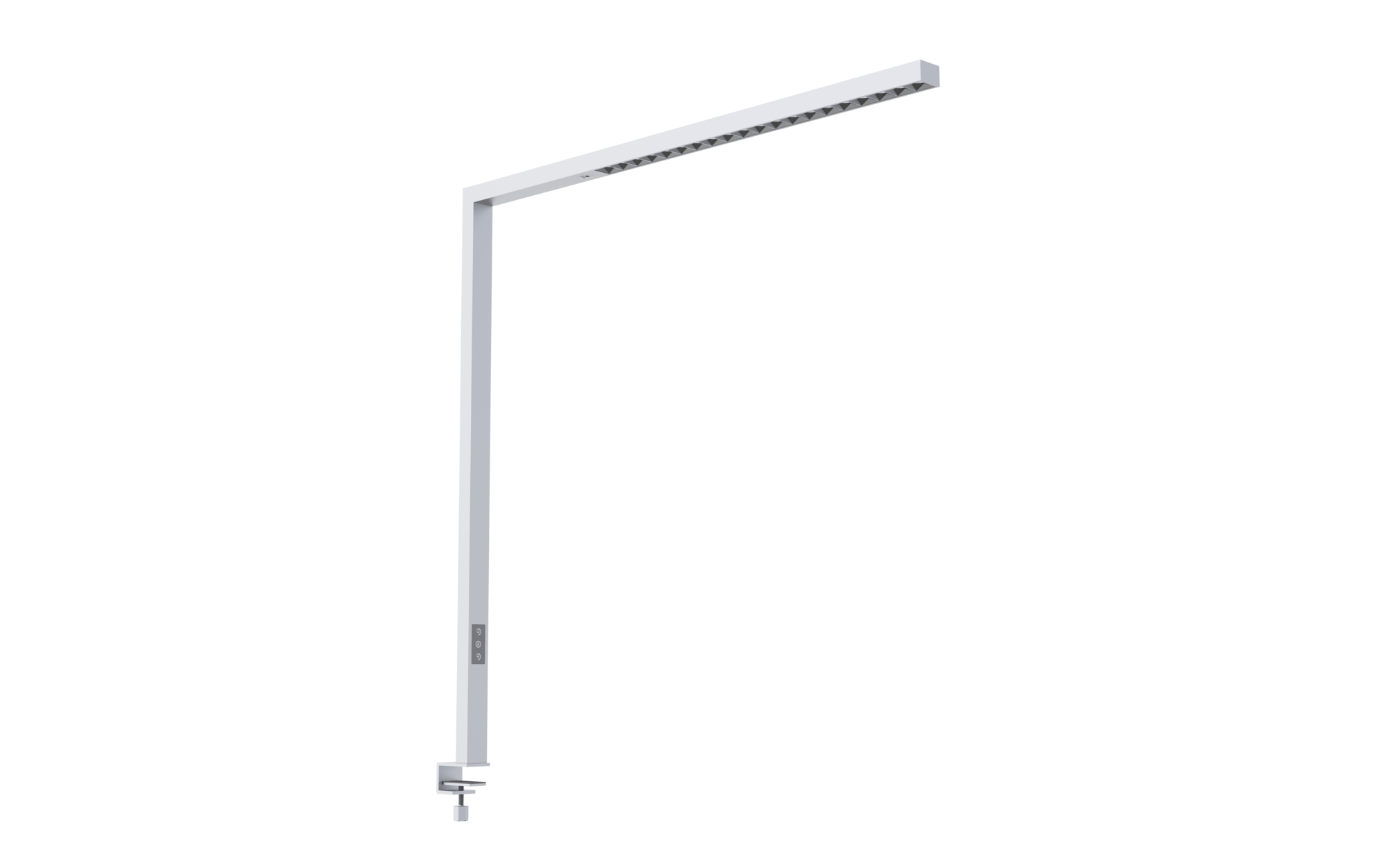

Product name Silica 31 Desk
Lamp LED
Rated luminous flux 10600lm
Luminous efficacy 141lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 75W
Service life 100000h (L80/B10) at AT = 25°C
Protection rating IP20
Weight 4.4kg

Silica 31 Desk, desktop luminaire, secondary optical cover: cover panel, of PMMA, light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: as desk luminaire, LED, rated luminous flux: 10.600lm, luminous efficacy: 141lm/W, light colour: 840, colour temperature: 4000K, control gear: Touchdim, daylight-dependent control, with cable with plug, mains connection: 230V, AC, 50Hz, connection cable included, cable length: 2,5m, rated input power: 75W, luminaire head, of aluminium, traffic white (RAL 9016), length: 1.203mm, width: 52mm, supporting column, angular, of aluminium, traffic white (RAL 9016), baseplate, of steel, traffic white (RAL 9016), local control - self-sufficient standalone sensors, direct and indirect component separately switchable, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, permissible operating ambient temperature: -20..+40°C, standard: EN 50419, packaging unit: 1 piece

Downloads


Key data

Product type desktop luminaire
Product name Silica 31 Desk
Order No. 51MY52GA4CW


Lighting technology

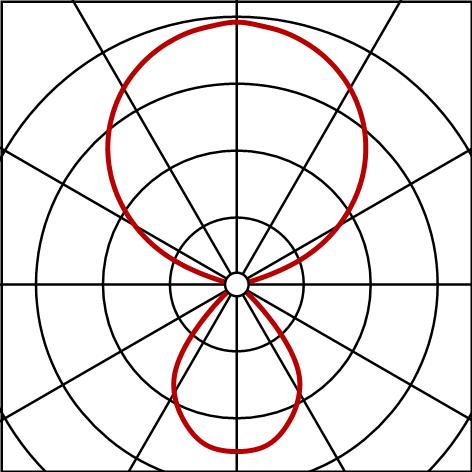

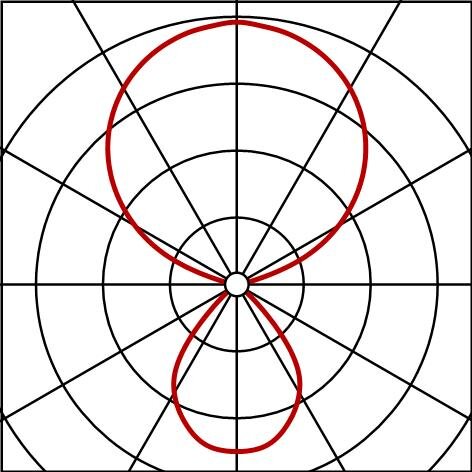

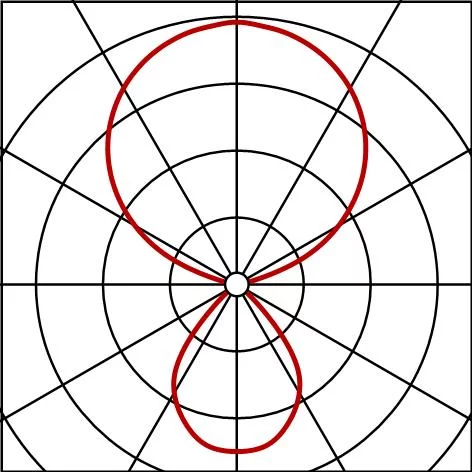

Beam angle wide distribution
Symmetry symmetric
Secondary cover cover panel
Light emission direct/indirect distribution, 76:24
UGR viewing direction along longitudinal luminaire axis ≤ 16
UGR viewing direction along lateral luminaire axis ≤ 16


Lamps

Lamps with LED
Rated luminous flux 10600lm
Luminous efficacy 141lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 75W
Supplement with ambient light and presence detector


Operating device

Control Touchdim, direct and indirect component separately switchable
Switching method daylight-dependent control


Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) -20..+40°C
Standard EN 50419
Certification, designation CE, ENEC


Material, Colour

luminaire head aluminium, traffic white (RAL 9016)
supporting column aluminium, traffic white (RAL 9016), angular
Quantity 1 piece
baseplate steel, traffic white (RAL 9016)
Quantity 1 piece
Cover cover panel of PMMA


Mounting

Mounting method, mounting location as desk luminaire


Electrical connection

Connection cable with plug
Nominal voltage 230V, 50Hz, AC
Connection cable included, L= 2.5m

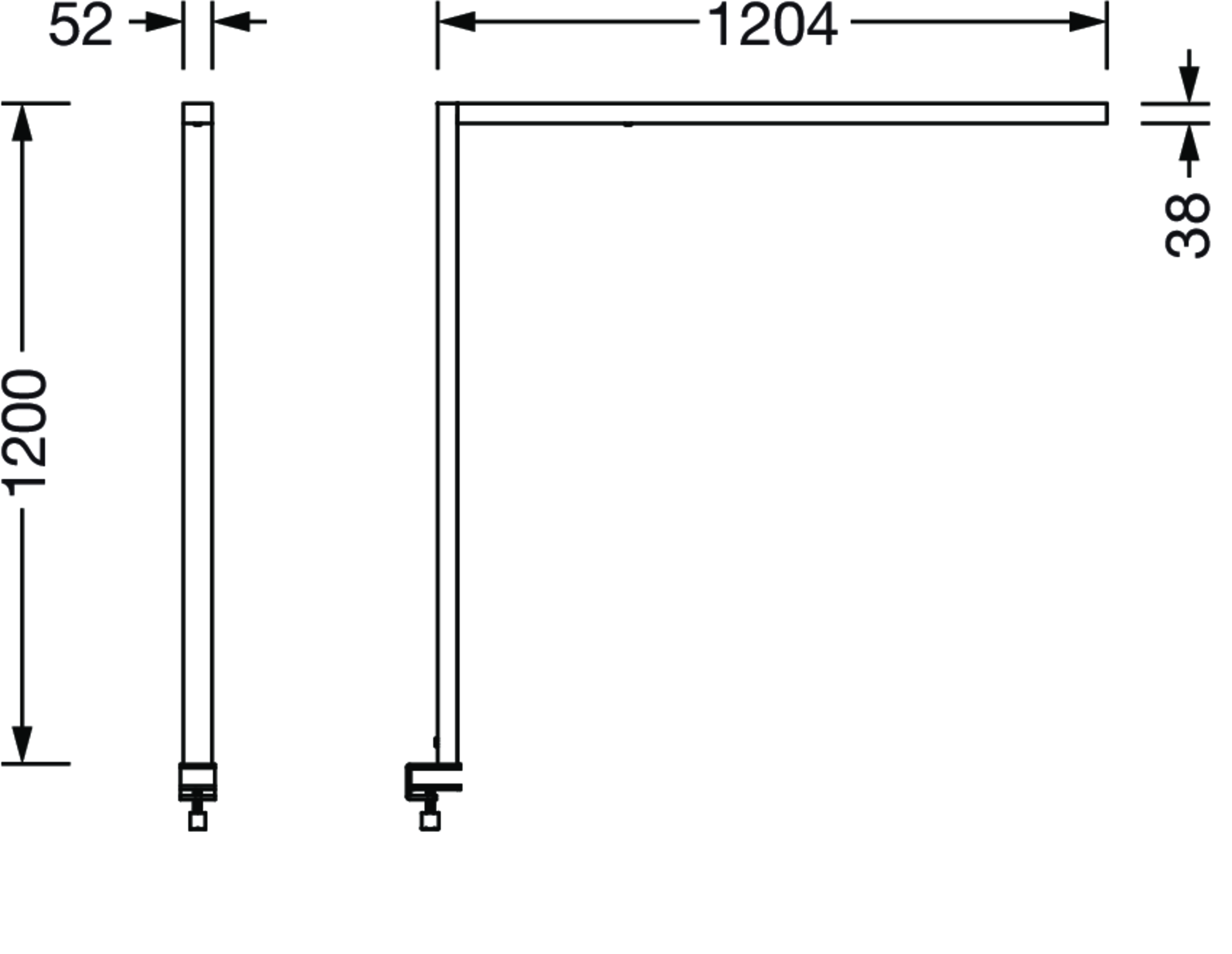

Dimensions, Weight

Length 1203mm
Width 52mm
Weight 4.4kg


Service life

Rated service life 100000h (L80/B10) at AT = 25°C


Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)

Product type
desktop luminaire

Product name
Silica 31 Desk

Order No.
51MY52GA4CW

Beam angle
wide distribution

Symmetry
symmetric

Secondary cover
cover panel

Light emission
direct/indirect distribution, 76:24

UGR viewing direction along longitudinal luminaire axis
≤ 16

UGR viewing direction along lateral luminaire axis
≤ 16

Lamps
with LED

Rated luminous flux
10600lm

Luminous efficacy
141lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
75W

Supplement
with ambient light and presence detector

Control
Touchdim, direct and indirect component separately switchable

Switching method
daylight-dependent control

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
-20..+40°C

Standard
EN 50419

Certification, designation
CE, ENEC

luminaire head
aluminium, traffic white (RAL 9016)

supporting column
aluminium, traffic white (RAL 9016), angular

Quantity
1 piece

baseplate
steel, traffic white (RAL 9016)

Quantity
1 piece

Cover
cover panel of PMMA

Mounting method, mounting location
as desk luminaire

Connection
cable with plug

Nominal voltage
230V, 50Hz, AC

Connection cable
included, L= 2.5m

Length
1203mm

Width
52mm

Weight
4.4kg

Rated service life
100000h (L80/B10) at AT = 25°C

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Sil31D
10600lm840,Tdi,PIR-sens,wh
: LED 4000K / CRI >= 80
: 51MY52GA4CW
