Article office luminaire
Product name Silica 31 Square
Lamp LED
Rated luminous flux 4580lm
Luminous efficacy 176lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 26W
Service life 70000h (L85/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 3.1kg

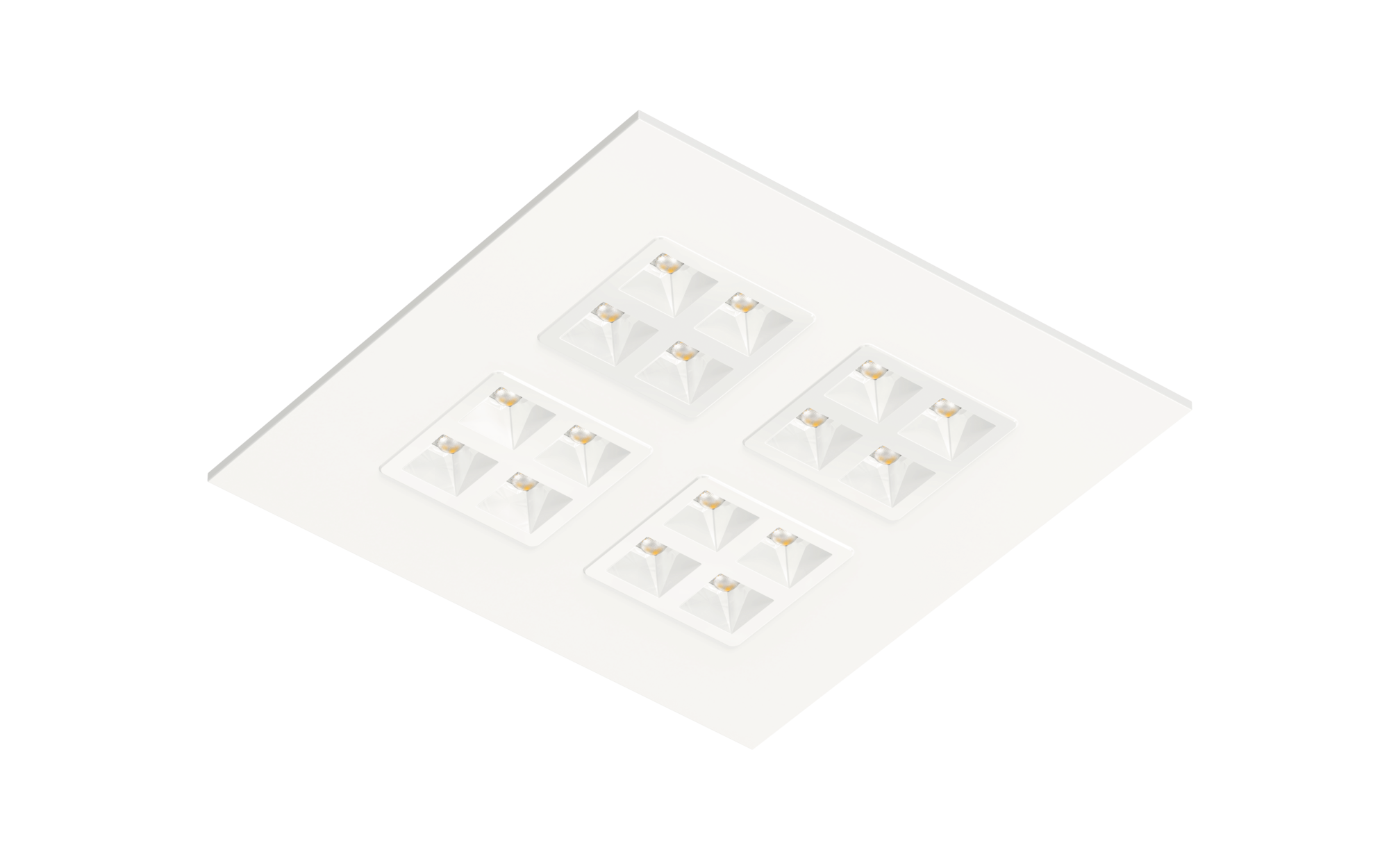

Silica 31 Square, office luminaire, primary light control with lens, of PMMA, primary anti-glare with reflector, of PC, white, light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 4.580lm, luminous efficacy: 176lm/W, light colour: 830, colour temperature: 3000K, control gear: ON/OFF Multilumen, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 26W, luminaire housing, of sheet steel, coated, traffic white (RAL 9016), module: M600, length: 595mm, width: 595mm, height: 43mm, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK03, permissible operating ambient temperature: -20..+35°C, standard: EN 50419, packaging unit: 1 piece

Downloads

Key data

Product type office luminaire
Product name Silica 31 Square
Order No. 51MY6NMS34WA

Lighting technology

Light control lens of PMMA
Glare reduction reflector of PC, white

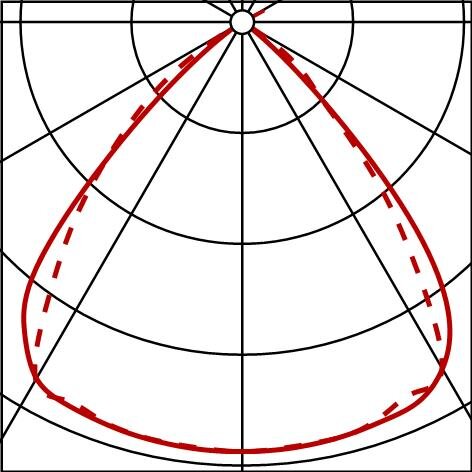

Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 4580lm
Luminous efficacy 176lm/W
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 26W

Operating device

Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -20..+35°C
Standard EN 50419
Certification, designation CE

Material, Colour

luminaire housing sheet steel, coated, traffic white (RAL 9016)

Mounting

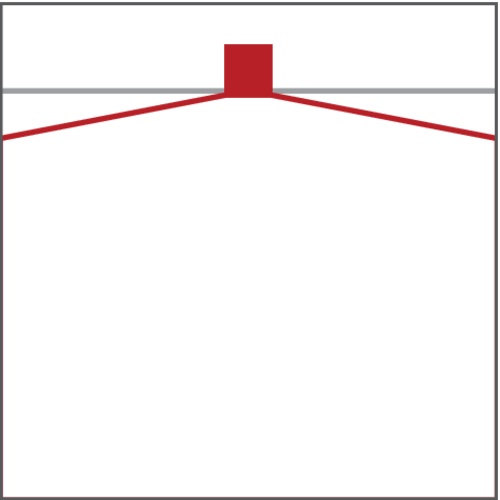

Mounting method, mounting location lay-in mounting, in the ceiling
Arrangement single arrangement

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

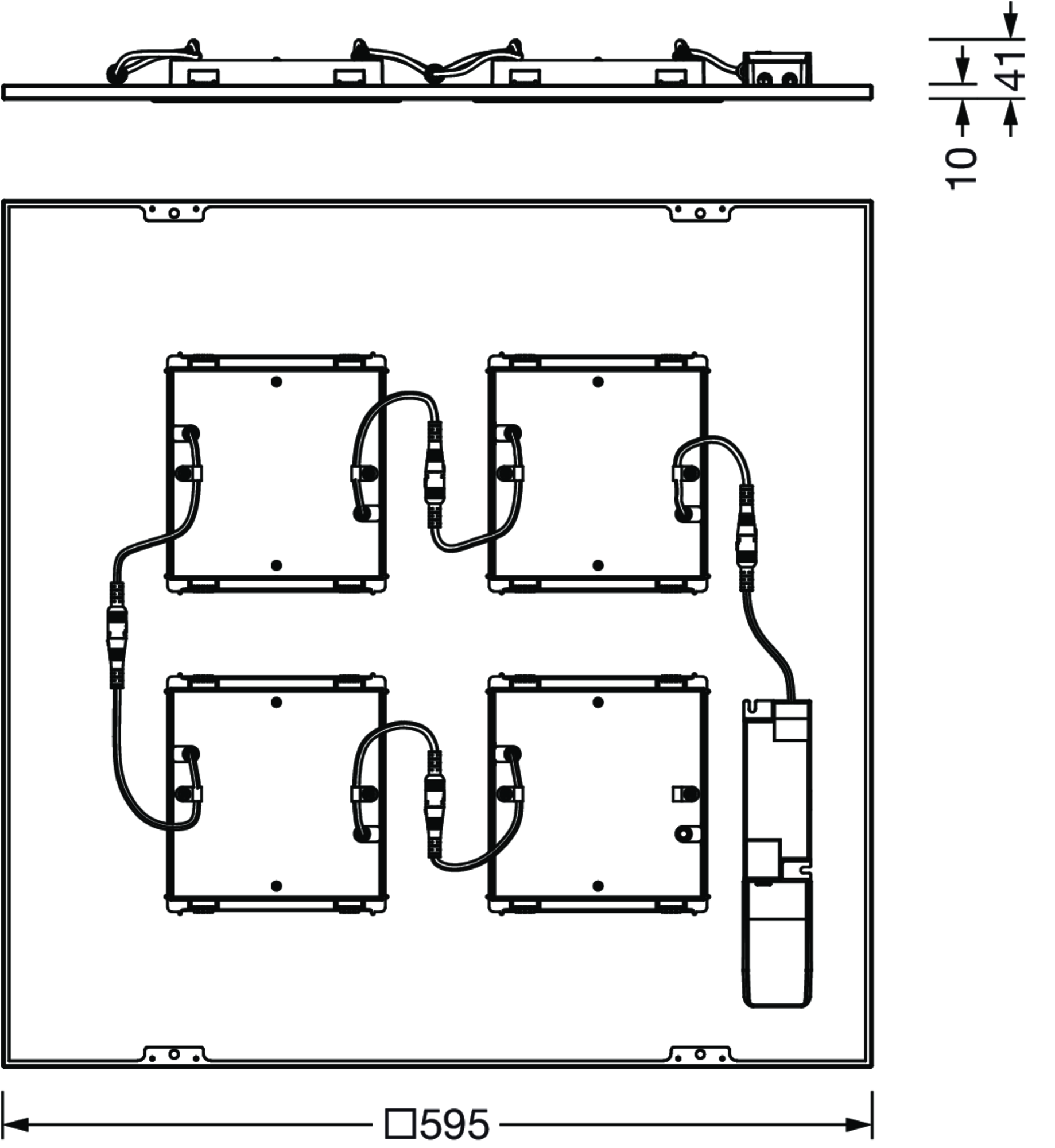

Length 595mm
Width 595mm
Height 43mm
Weight 3.1kg

Service life

Rated service life 70000h (L85/B50) at AT = 25°C

Product type
office luminaire

Product name
Silica 31 Square

Order No.
51MY6NMS34WA

Light control
lens of PMMA

Glare reduction
reflector of PC, white

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
4580lm

Luminous efficacy
176lm/W

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
26W

Control
ON/OFF Multilumen

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Impact resistance
IK03

Temperature range (operation)
-20..+35°C

Standard
EN 50419

Certification, designation
CE

luminaire housing
sheet steel, coated, traffic white (RAL 9016)

Mounting method, mounting location
lay-in mounting, in the ceiling

Arrangement
single arrangement

Connection
terminal, 3-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
595mm

Width
595mm

Height
43mm

Weight
3.1kg

Rated service life
70000h (L85/B50) at AT = 25°C

Silica 31 Square
office luminaire, traffic white (RAL 9016), ON/OFF Multilumen, 4580lm, 830, 595x595mm, for M600, Connection: terminal
: LED 3000K / CRI >= 80
: 51MY6NMS34WA
