51RE117P47A3

Order No.: 51RE117P47A3
Remember articleRemember article

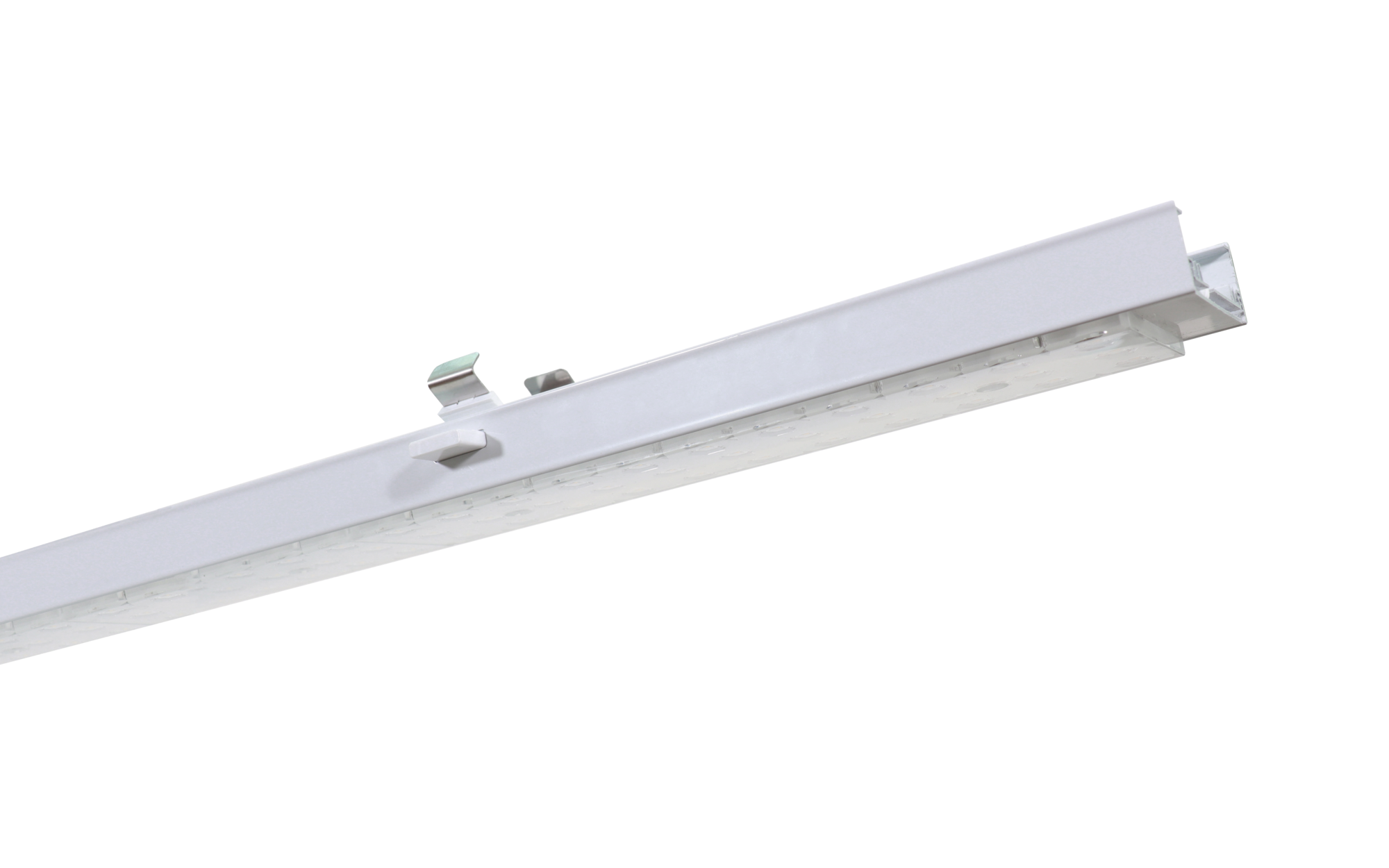

Article luminaire insert
Product name Refurbishment luminaire insert
Lamp LED
Rated luminous flux 7250lm
Luminous efficacy 165lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 44W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 1.4kg

Refurbishment luminaire insert, luminaire insert, of extruded aluminium section, coated, traffic white (RAL 9016), length: 1.530mm, width: 65mm, height: 54mm, LED rated luminous flux: 7.250lm, light colour: 840, SDCM (Standard Deviation of Colour Matching)MacAdam ≤ 3 SDCM (initial), control gear: ON/OFF, with cable with plug, mains connection: 220..240V, AC, 50/60Hz, rated input power: 44W, inclusive plug 59RP003, primary optical cover: cover, of PMMA, light emission: direct distribution, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, impact resistance: IK02, permissible ambient temperature for indoor applications: -20..+35°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type luminaire insert
Product name Refurbishment luminaire insert
Order No. 51RE117P47A3

Lighting technology

Cover cover

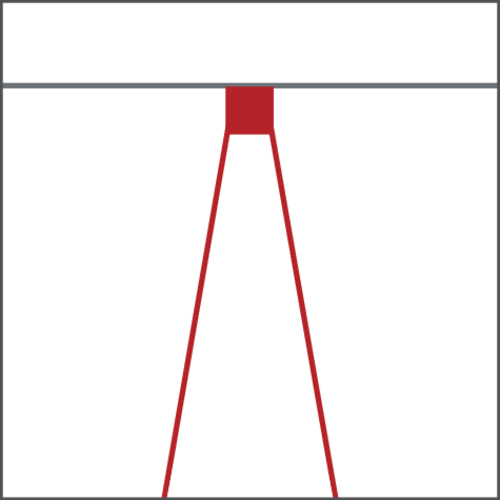

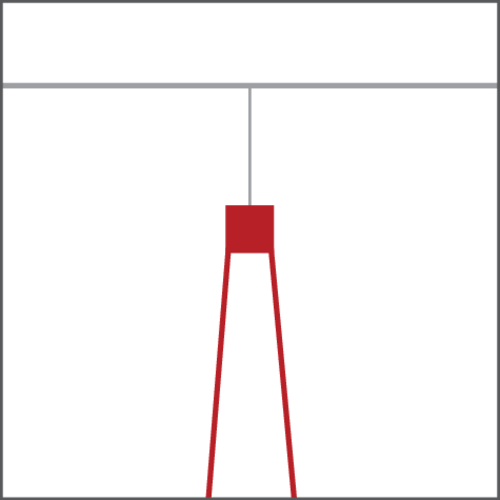

Beam angle narrow distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 7250lm
Luminous efficacy 165lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 44W
Supplement inclusive plug 59RP003

Operating device

Control ON/OFF

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Temperature range (operation) -20..+35°C
Certification, designation CE, UKCA

Material, Colour

refurbishment insert extruded aluminium section, coated, traffic white (RAL 9016)
Quantity 1 piece
Cover cover of PMMA

Mounting

Mounting method, mounting location slip-in mounting, to the trunking rail
Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection cable with plug
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

Length 1530mm
Width 65mm
Height 54mm
Weight 1.4kg

Service life

Rated service life 50000h (L85/B50) at AT = 25°C

Product type
luminaire insert

Product name
Refurbishment luminaire insert

Order No.
51RE117P47A3

Cover
cover

Beam angle
narrow distribution

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
7250lm

Luminous efficacy
165lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
44W

Supplement
inclusive plug 59RP003

Control
ON/OFF

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Temperature range (operation)
-20..+35°C

Certification, designation
CE, UKCA

refurbishment insert
extruded aluminium section, coated, traffic white (RAL 9016)

Quantity
1 piece

Cover
cover of PMMA

Mounting method, mounting location
slip-in mounting, to the trunking rail

Arrangement
single/continuous arrangement

Supplement
only suitable for use in indoor areas

Connection
cable with plug

Nominal voltage
220..240V, 50/60Hz, AC

Length
1530mm

Width
65mm

Height
54mm

Weight
1.4kg

Rated service life
50000h (L85/B50) at AT = 25°C
