51SF127FB2B

: 51SF127FB2B

Article directional spotlight

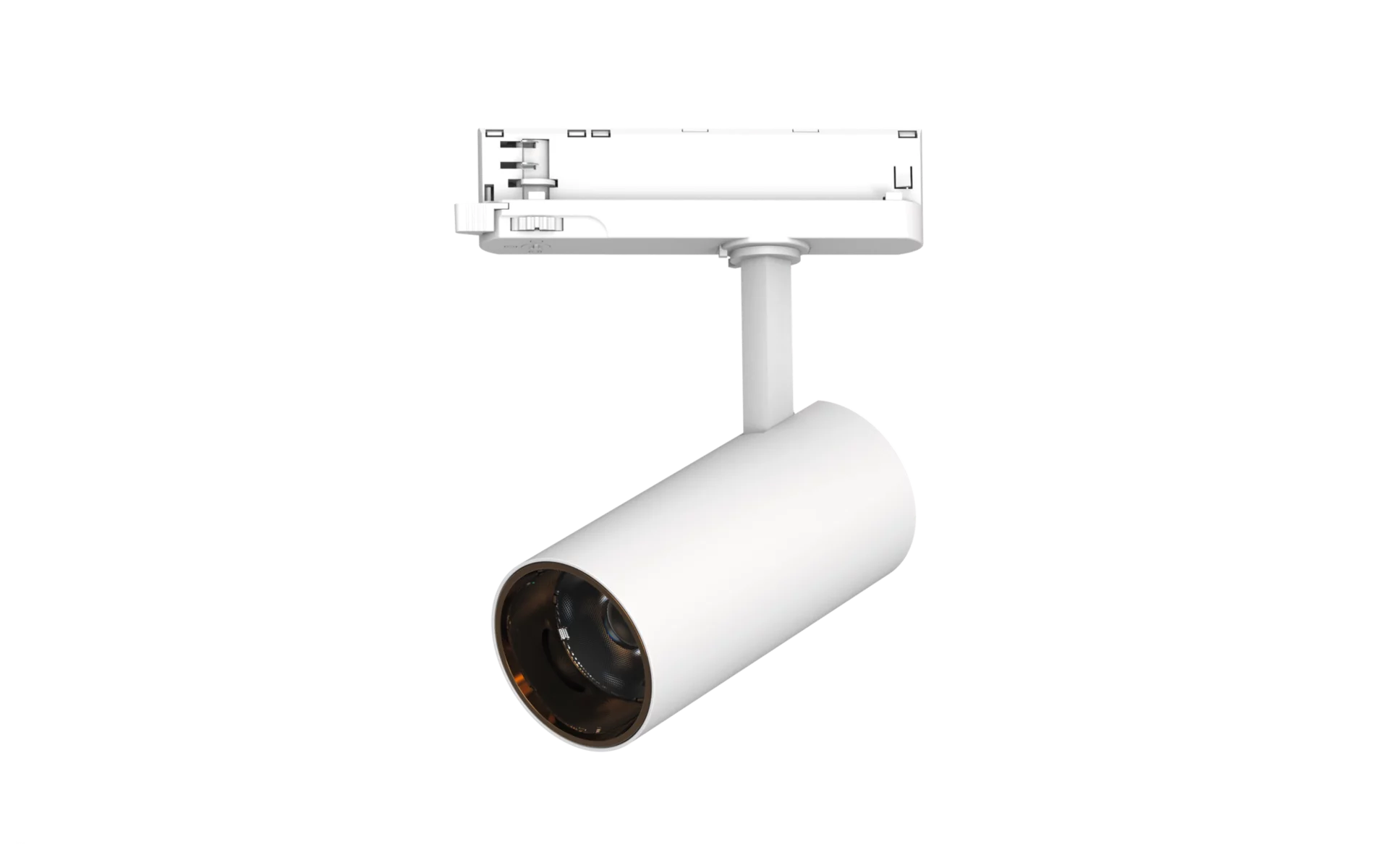

Product name Spot 31 Slim
Lamp LED
Rated luminous flux 2150lm
Luminous efficacy 126lm/W
Colour temperature 3000K
Colour rendering CRI > 90
Rated input power 17W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 0.8kg

Spot 31 Slim, directional spotlight, light control with reflector, of aluminium, UGR of luminaire ≤ 25 (X = 4H | Y = 8H | S = 0.25H | reflection values 70/50/20), beam angle: 16°, LED rated luminous flux: 2.150lm, light colour: 930, with 3-phase adapter, mains connection: 220..240V, AC, 50/60Hz, housing, of aluminium, traffic white (RAL 9016), diameter: 70mm, adapter, of plastic, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, packaging unit: 1 piece

Downloads

Key data

Product type directional spotlight
Product name Spot 31 Slim
Order No. 51SF127FB2B

Lighting technology

Light control reflector of aluminium

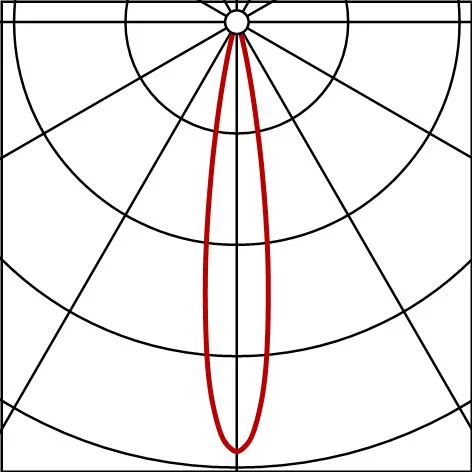

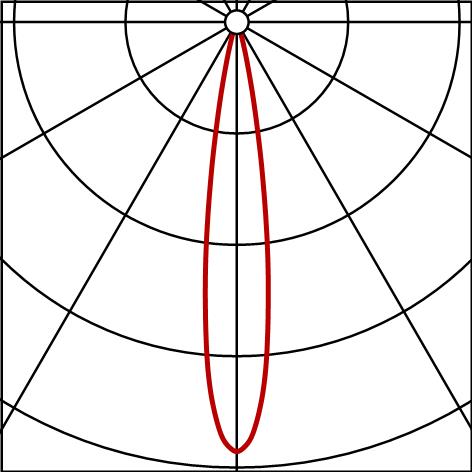

Beam angle 16°
Symmetry symmetric
UGR viewing direction along longitudinal luminaire axis ≤ 25
UGR viewing direction along lateral luminaire axis ≤ 25

Lamps

Lamps with LED
Rated luminous flux 2150lm
Luminous efficacy 126lm/W
Colour temperature 3000K
Colour rendering index CRI > 90
Light colour 930
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 17W

Operating device

Control ON/OFF

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Certification, designation CE

Material, Colour

housing aluminium, traffic white (RAL 9016)
adapter plastic

Electrical connection

Connection 3-phase adapter
Nominal voltage 220..240V, 50/60Hz, AC

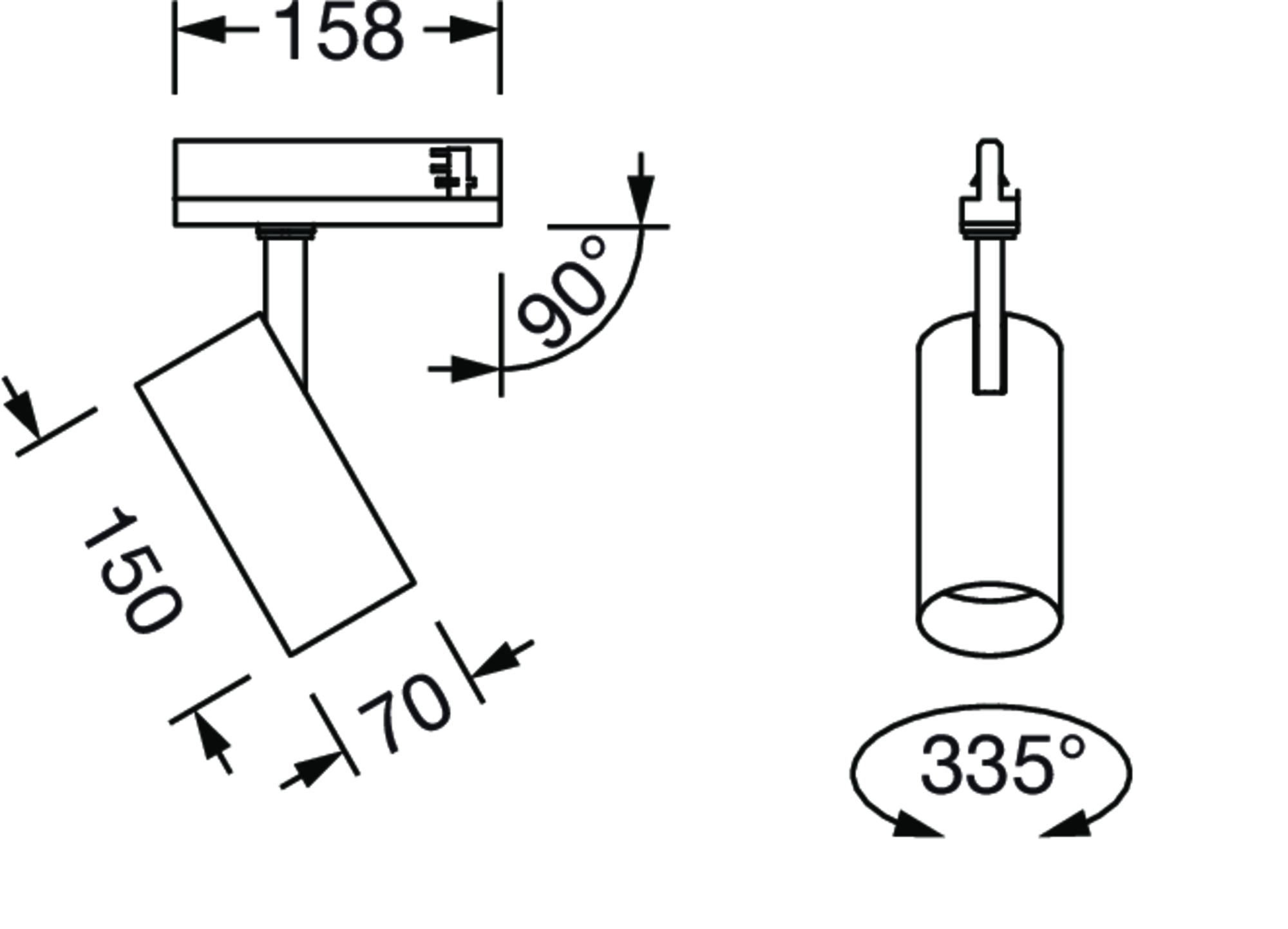

Dimensions, Weight

Diameter 70mm
Weight 0.8kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
directional spotlight

Product name
Spot 31 Slim

Order No.
51SF127FB2B

Light control
reflector of aluminium

Beam angle
16°

Symmetry
symmetric

UGR viewing direction along longitudinal luminaire axis
≤ 25

UGR viewing direction along lateral luminaire axis
≤ 25

Lamps
with LED

Rated luminous flux
2150lm

Luminous efficacy
126lm/W

Colour temperature
3000K

Colour rendering index
CRI > 90

Light colour
930

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
17W

Control
ON/OFF

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Certification, designation
CE

housing
aluminium, traffic white (RAL 9016)

adapter
plastic

Connection
3-phase adapter

Nominal voltage
220..240V, 50/60Hz, AC

Diameter
70mm

Weight
0.8kg

Rated service life
50000h (L80/B50) at AT = 25°C

Spot31Sl
16°,2150lm930,0/1,wh
: LED 3000K / CRI >= 90
: 51SF127FB2B
