53BM812DV4A5C23S

Article luminaire insert
Product name Modario 31
Lamp LED
Rated luminous flux 10860lm
Luminous efficacy 167lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 65W
Service life 70000h (L80) at AT = ta max, 70000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 2.0kg

Modario 31, luminaire insert, of sheet steel, coil coated, white, length: 1.495mm, width: 81mm, height: 82mm, 5x system unit, system units: 299mm, LED rated luminous flux: 10.860lm, light colour: 840, SDCM (Standard Deviation of Colour Matching)MacAdam ≤ 3 SDCM (initial), control gear: DALI 2, with plug, 6-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, rated input power: 65W, for emergency light function, through-wiring accessed according to module size, converter,control gear: single battery element, battery: LiFePO4, 9Ah, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP20, protection rating (LED compartment): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, impact resistance: IK03, permissible ambient temperature for indoor applications: +5..+35°C, standard: EN 60598-2-22EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data), corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, IP40 when using the optional accessory 5TP9018, The light source and the operating device comply with the requirements of the Ecodesign Regulation (EU) 2019/2020 and are replaceable in accordance with this regulation, packaging unit: 1 piece

show moreshow less

Downloads

Key data

Product type luminaire insert
Product name Modario 31
Order No. 53BM812DV4A5C23S

Component 1

Lighting technology
Cover cover, prismatic structure, frosted

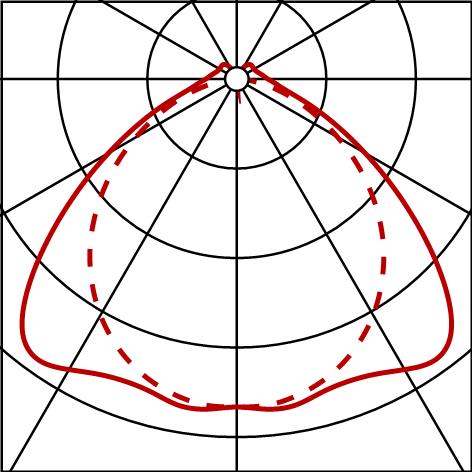

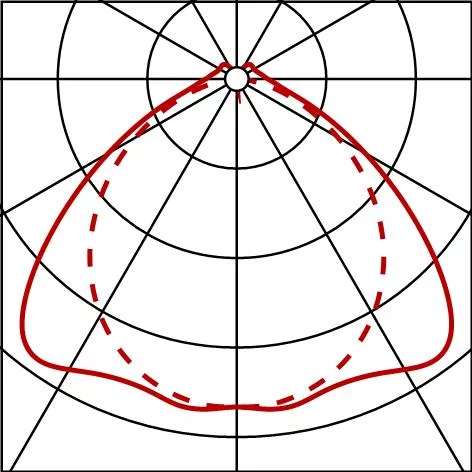

Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 28
UGR viewing direction along lateral luminaire axis ≤ 28

Lamps
Lamps with LED
Rated luminous flux 10860lm
Luminous efficacy 167lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 65W
Supplement for emergency light function

Operating device
Control DALI 2

Component 2

Lamps
Supplement with self-test function according to EN 60598-2-22, 2-rod battery

Operating device
Control gear single battery element
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment) IP50
Insulation class insulation class I (protective earthing)
Impact resistance IK03
Temperature range (operation) +5..+35°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, IP40 when using the optional accessory 5TP9018
Standard EN 60598-2-22, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)
Certification, designation CE, UKCA

Material, Colour

PS LED insert sheet steel, coil coated, white, 5x system unit, for tool-free mounting of luminaire in Modario trunking rail
Cover cover of PMMA

Mounting

Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 6-pole, with phase selection
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

System units 5x SE
Length 1495mm
Width 81mm
Height 82mm
Weight 2.0kg

Service life

Rated service life 70000h (L80) at AT = 25°C, 70000h (L80) at AT = ta max

Key data

Product type
luminaire insert

Product name
Modario 31

Order No.
53BM812DV4A5C23S

Component 1

Lighting technology

Cover
cover, prismatic structure, frosted

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 28

UGR viewing direction along lateral luminaire axis
≤ 28

Lamps

Lamps
with LED

Rated luminous flux
10860lm

Luminous efficacy
167lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
65W

Supplement
for emergency light function

Operating device

Control
DALI 2

Component 2

Lamps

Supplement
with self-test function according to EN 60598-2-22, 2-rod battery

Operating device

Control gear
single battery element

Battery
LiFePO4

Nominal operating time
3h

Certificates, Standards

Protection rating
IP20

Protection rating (lamp compartment)
IP50

Insulation class
insulation class I (protective earthing)

Impact resistance
IK03

Temperature range (operation)
+5..+35°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, IP40 when using the optional accessory 5TP9018

Standard
EN 60598-2-22, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)

Certification, designation
CE, UKCA

Material, Colour

PS LED insert
sheet steel, coil coated, white, 5x system unit, for tool-free mounting of luminaire in Modario trunking rail

Cover
cover of PMMA

Mounting

Arrangement
single/continuous arrangement

Supplement
only suitable for use in indoor areas

Electrical connection

Connection
plug, 6-pole, with phase selection

Nominal voltage
220..240V, 50/60Hz, AC

Dimensions, Weight

System units
5x SE

Length
1495mm

Width
81mm

Height
82mm

Weight
2.0kg

Service life

Rated service life
70000h (L80) at AT = 25°C, 70000h (L80) at AT = ta max
