56TL1LT

: 56TL1LT

Article rail insert
Product name Licross Trunking
Protection rating IP20
Weight 0.5kg

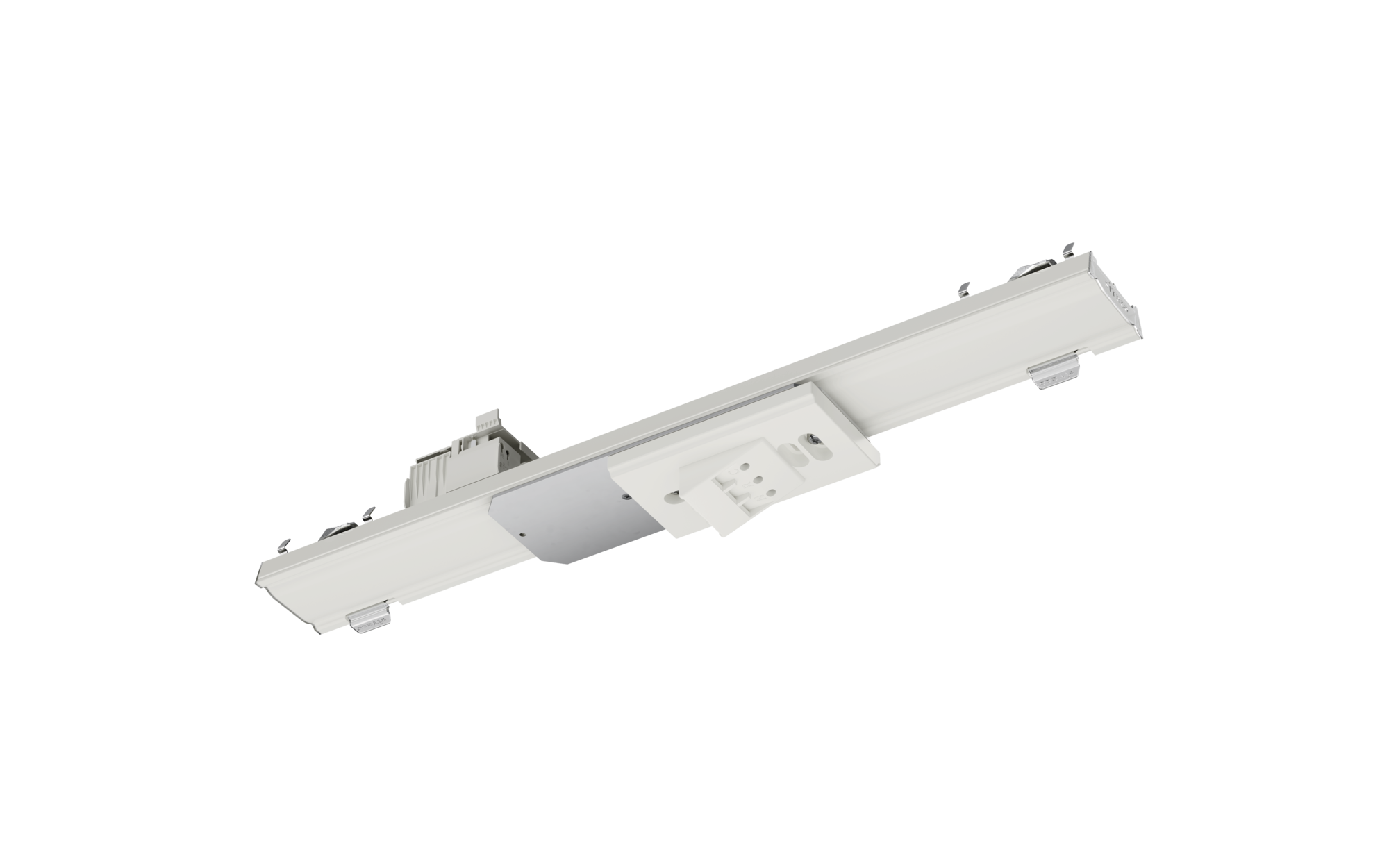

Licross Trunking, rail insert, with plug, 6-pole, with phase selection, mains connection: 230V, AC, 50Hz, adapter, of sheet steel, coil coated, white, for speaker TOA BS-1034EN, length: 500mm, width: 64mm, height: 102mm, lever catch, speaker adapter insert, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, packaging unit: 1 piece

Downloads

Key data

System family Licross
Product type rail insert
Product name Licross Trunking
Order No. 56TL1LT

Supplement

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Certification, designation CE, UKCA

Material, Colour

adapter sheet steel, coil coated, white, for speaker TOA BS-1034EN

Mounting

Mounting height object related (mounting location without light from other sources)
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 6-pole, with phase selection
Nominal voltage 230V, 50Hz, AC

Dimensions, Weight

Length 500mm
Width 64mm
Height 102mm
Weight 0.5kg

System family
Licross

Product type
rail insert

Product name
Licross Trunking

Order No.
56TL1LT

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Certification, designation
CE, UKCA

adapter
sheet steel, coil coated, white, for speaker TOA BS-1034EN

Mounting height
object related (mounting location without light from other sources)

Supplement
only suitable for use in indoor areas

Connection
plug, 6-pole, with phase selection

Nominal voltage
230V, 50Hz, AC

Length
500mm

Width
64mm

Height
102mm

Weight
0.5kg
