58DB00B013A

: 58DB00B013A

Article emergency light element
Product name Lunis, Apollon
Rated input power 3W
Protection rating IP20
Impact resistance IK02
Weight 0.5kg

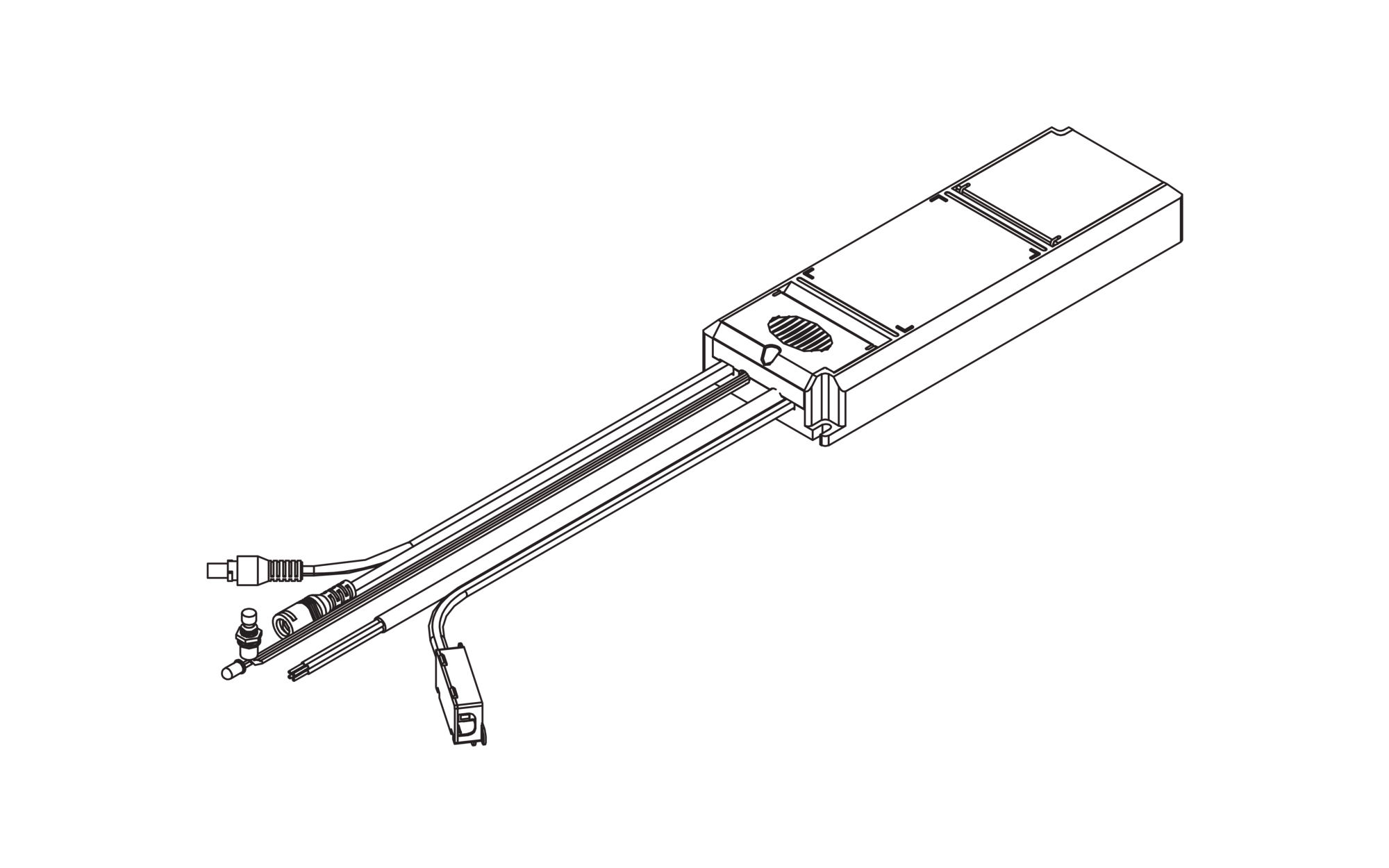

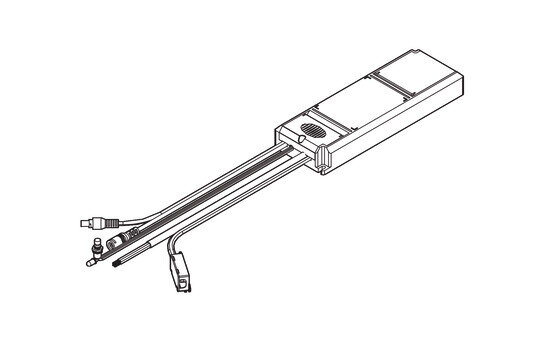

LunisApollon, emergency light element, EM-KIT 3h,with system connector: socket 2.1mm, rated input power: 3W, battery: LiFePO4, 2,2Ah, housing, of plastic, white, length: 212mm, width: 73mm, height: 28mm, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK02, permissible operating ambient temperature: 0..+50°C, packaging unit: 1 piece

Downloads

Key data

Product type emergency light element
Product name Lunis, Apollon
Order No. 58DB00B013A

Component 1

Lamps
Rated input power 3W

Component 2

Lamps
Supplement LED status display: green = system ok; red = failure

Operating device
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Impact resistance IK02
Temperature range (operation) 0..+50°C
Certification, designation CE

Material, Colour

housing plastic, white

Electrical connection

Connection system connector: socket 2.1mm

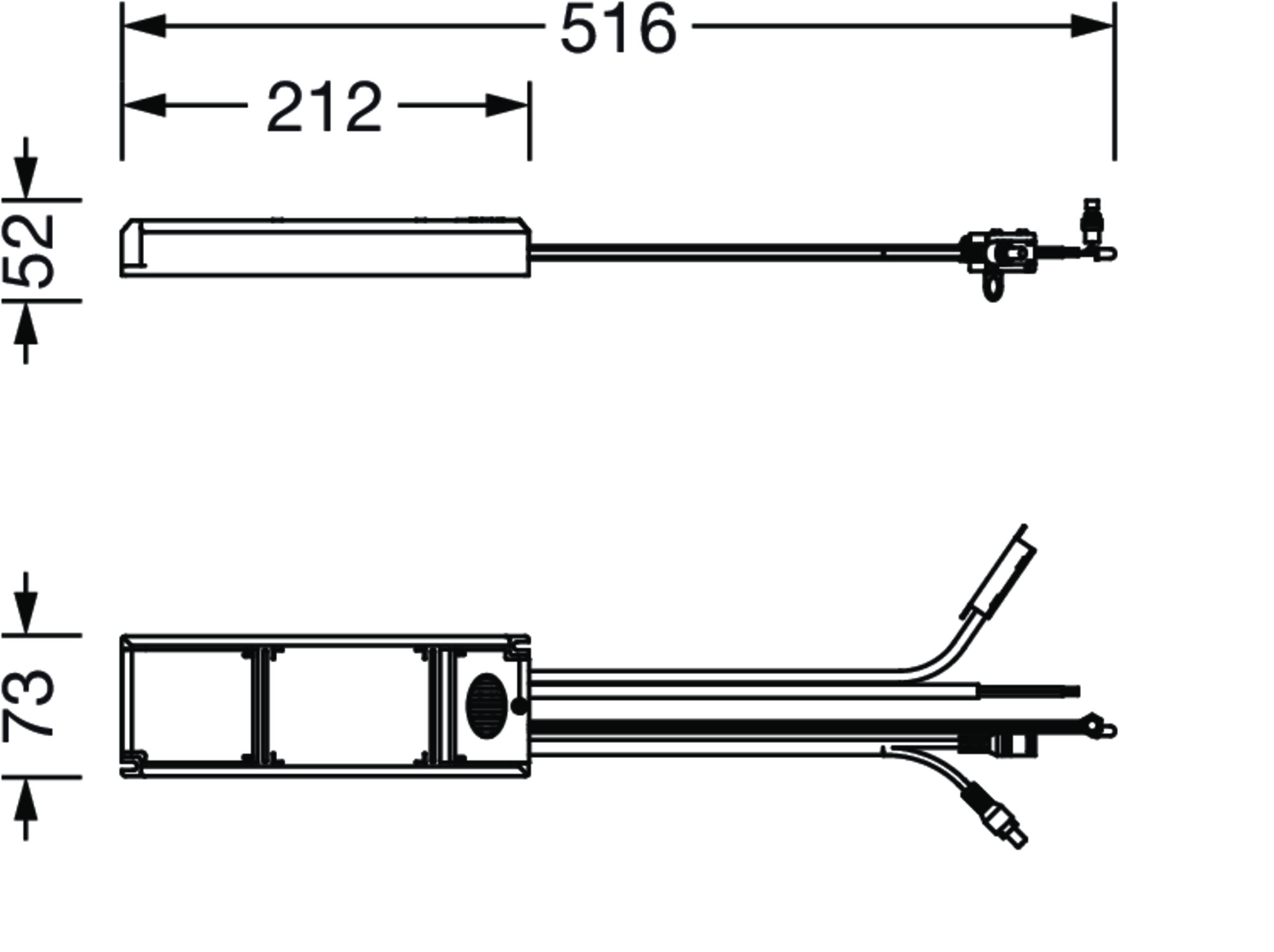

Dimensions, Weight

Length 212mm
Width 73mm
Height 28mm
Weight 0.5kg

Product type
emergency light element

Product name
Lunis, Apollon

Order No.
58DB00B013A

Lamps

Rated input power
3W

Lamps

Supplement
LED status display: green = system ok; red = failure

Operating device

Battery
LiFePO4

Nominal operating time
3h

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Impact resistance
IK02

Temperature range (operation)
0..+50°C

Certification, designation
CE

housing
plastic, white

Connection
system connector: socket 2.1mm

Length
212mm

Width
73mm

Height
28mm

Weight
0.5kg
