59MQ17005021

: 59MQ17005021

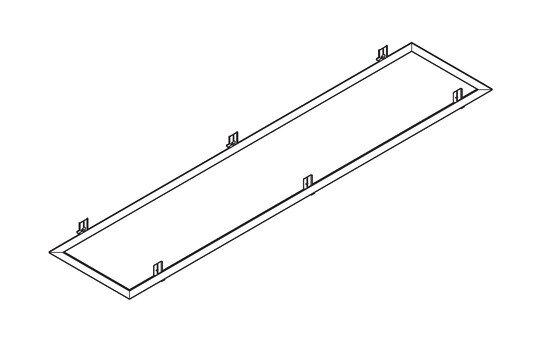

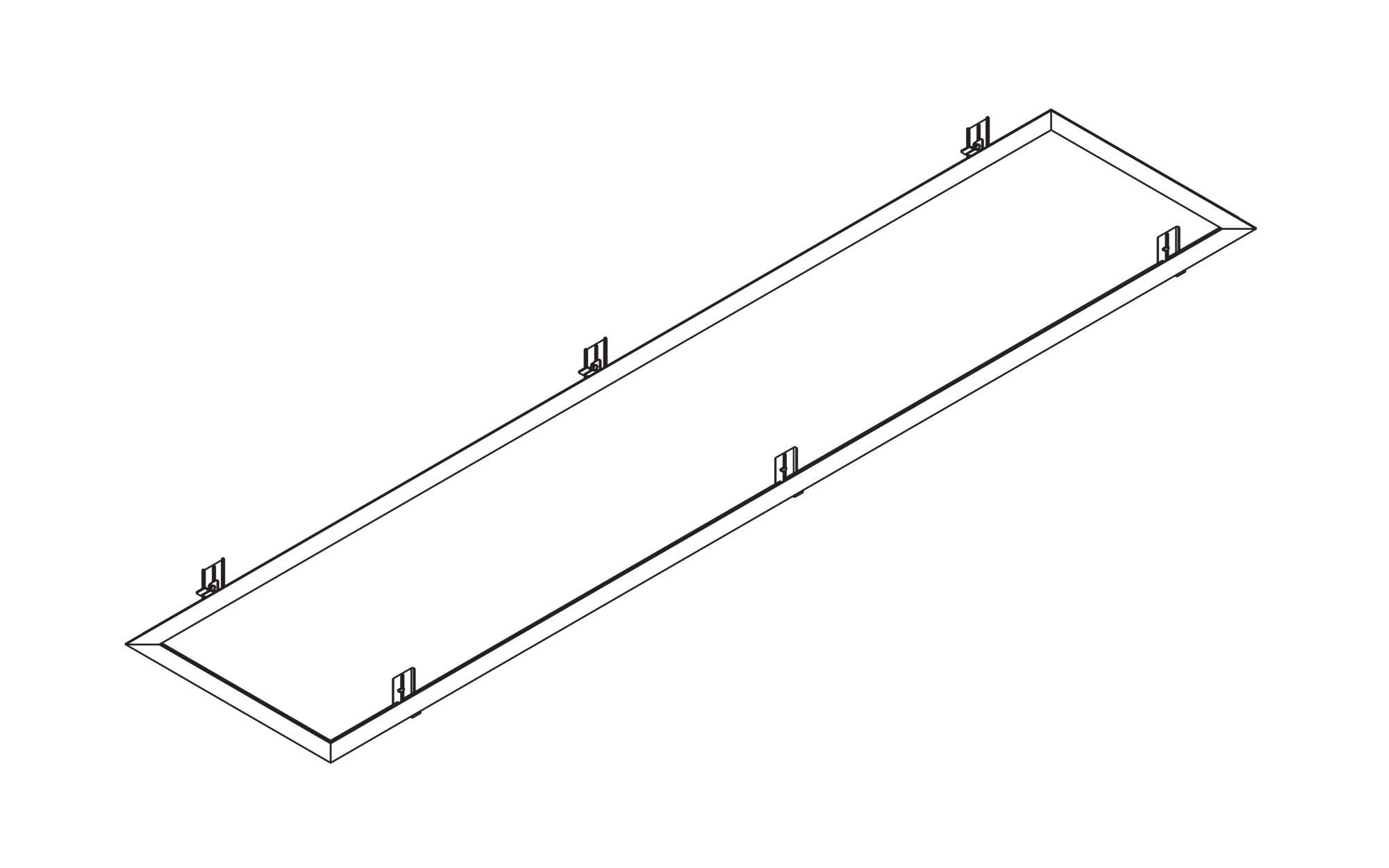

Article ceiling recessing frame
Product name Apollon
Weight 0.8kg

Apollon, ceiling recessing frame, installation type: recessed, mounting frame, of aluminium, traffic white (RAL 9016), length: 1.587mm, width: 349mm, height: 58mm, clamping range: 1..40mm, packaging unit: 1 piece

Downloads

Key data

Product type ceiling recessing frame
Product name Apollon
Order No. 59MQ17005021

Material, Colour

mounting frame aluminium, traffic white (RAL 9016)

Mounting

Mounting method, mounting location recessed, in the ceiling
Clamping range 1..40mm
Supplement for cut ceiling apertures

Dimensions, Weight

Length 1587mm
Width 349mm
Height 58mm
Weight 0.8kg
Supplement for luminaire Lx B= 1545 x 307mm

Product type
ceiling recessing frame

Product name
Apollon

Order No.
59MQ17005021

mounting frame
aluminium, traffic white (RAL 9016)

Mounting method, mounting location
recessed, in the ceiling

Clamping range
1..40mm

Supplement
for cut ceiling apertures

Length
1587mm

Width
349mm

Height
58mm

Weight
0.8kg

Supplement
for luminaire Lx B= 1545 x 307mm
