59MX2AW100SA

: 59MX2AW100SA

Article control unit
Product name Silica 21
Protection rating IP20
Weight 0.3kg

Silica 21controller, master, local control - self-sufficient standalone sensors, dimmable, installation arrangement: single/continuous arrangement, installation type: slip-in mounting, installation location: to the luminaire, of extruded aluminium section, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, packaging unit: 1 piece

Downloads

Key data

System family SITECO Connect 31 Wireless
Product type control unit
Product name Silica 21
Order No. 59MX2AW100SA

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE

Material, Colour

housing extruded aluminium section, anodised, metallic grey (RAL 9006), for luminaires with opal or prismatic cover

Mounting

Mounting method, mounting location slip-in mounting, to the luminaire
Arrangement single/continuous arrangement
Supplement for surface-mounted luminaires, for pendant luminaires

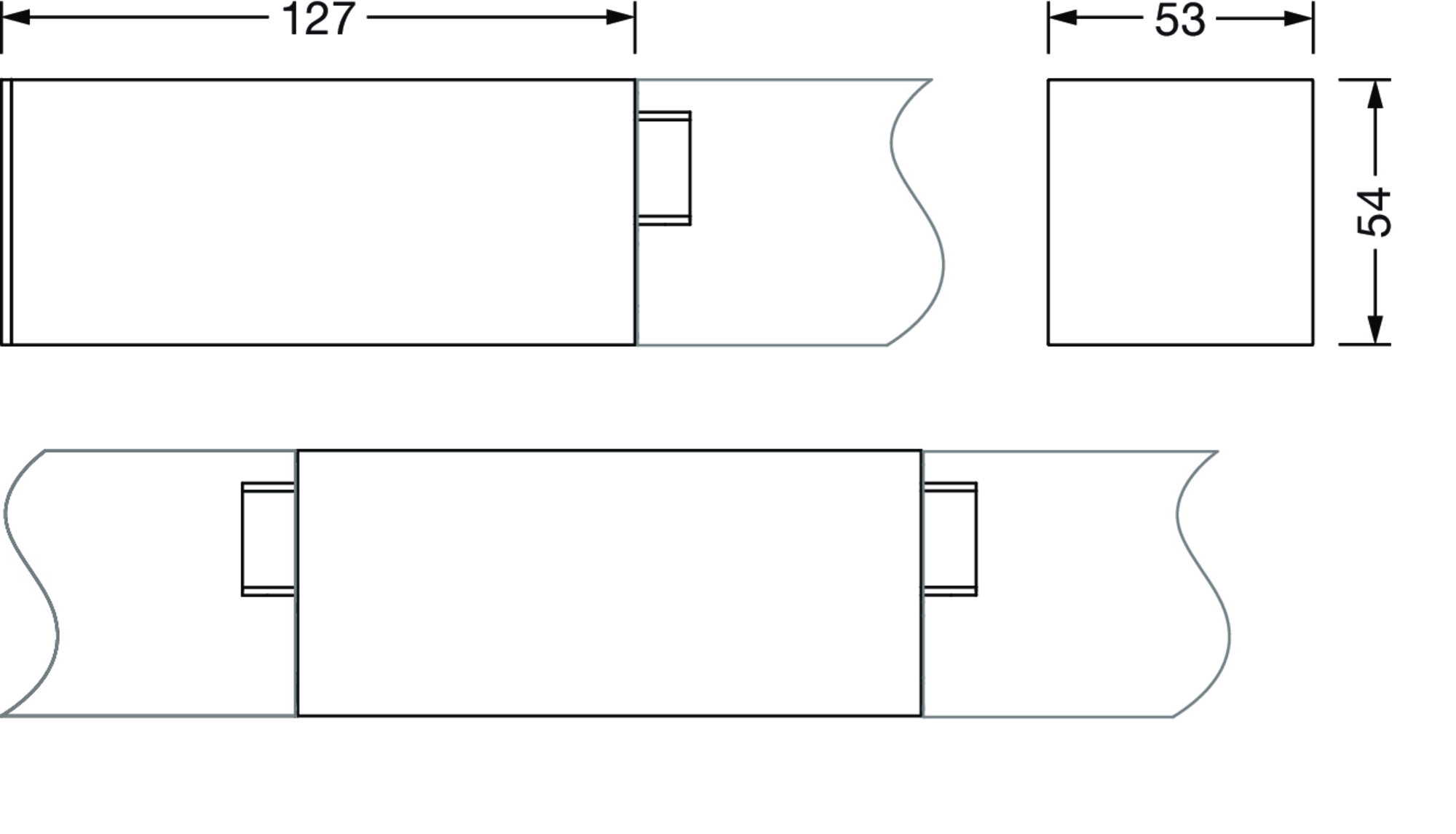

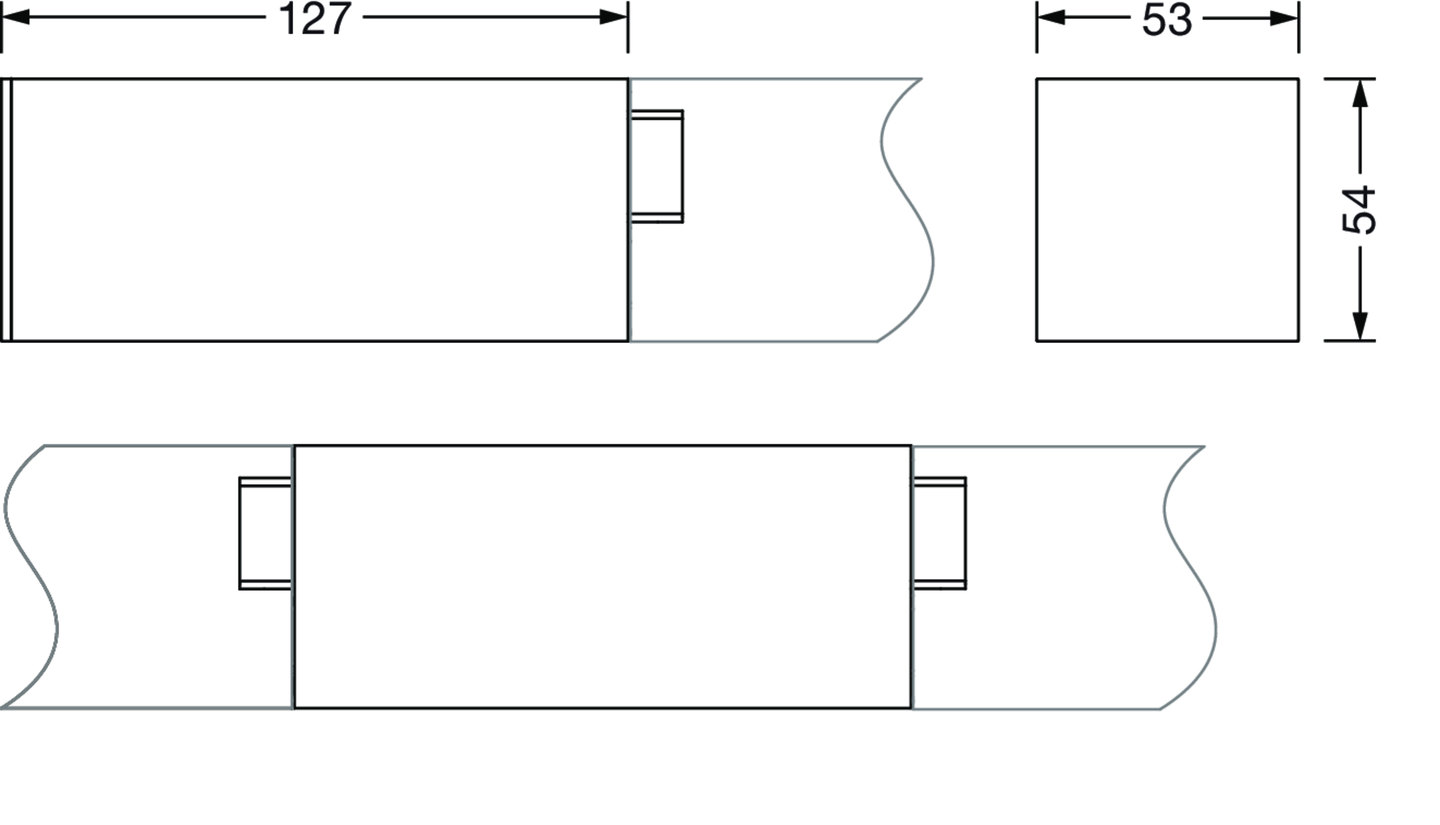

Dimensions, Weight

Length 127mm
Width 53mm
Height 54mm
Weight 0.3kg

System family
SITECO Connect 31 Wireless

Product type
control unit

Product name
Silica 21

Order No.
59MX2AW100SA

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE

housing
extruded aluminium section, anodised, metallic grey (RAL 9006), for luminaires with opal or prismatic cover

Mounting method, mounting location
slip-in mounting, to the luminaire

Arrangement
single/continuous arrangement

Supplement
for surface-mounted luminaires, for pendant luminaires

Length
127mm

Width
53mm

Height
54mm

Weight
0.3kg
