59MX2CW100WA

: 59MX2CW100WA

Article sensor
Product name Silica 21
Protection rating IP20
Weight 0.3kg

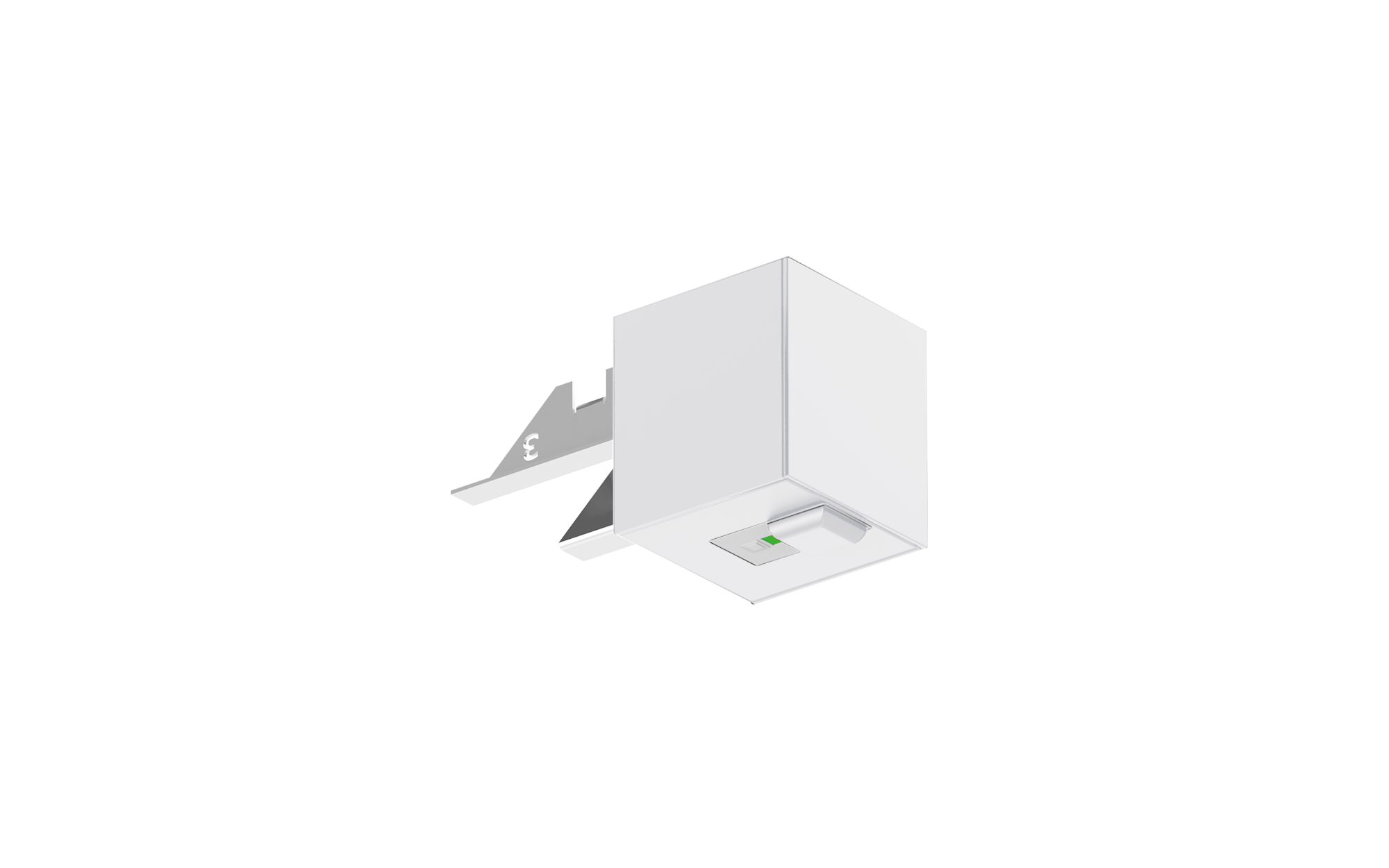

Silica 21sensor PS3, slave, local control - self-sufficient standalone sensors, dimmable, installation arrangement: single/continuous arrangement, installation type: slip-in mounting, installation location: to the Silica 21 luminaire, of extruded aluminium section, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, 1 x PIR movement sensor, 1 x light sensor, 1 x Bluetooth interface, packaging unit: 1 piece

Downloads

Key data

System family SITECO Connect 31 Wireless
Product type sensor
Product name Silica 21
Order No. 59MX2CW100WA

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE

Material, Colour

housing extruded aluminium section, anodised, traffic white (RAL 9016), for luminaires with opal or prismatic cover

Mounting

Mounting method, mounting location slip-in mounting, to the Silica 21 luminaire
Mounting height 2.5..5m
Arrangement single/continuous arrangement
Supplement for surface-mounted luminaires, for pendant luminaires

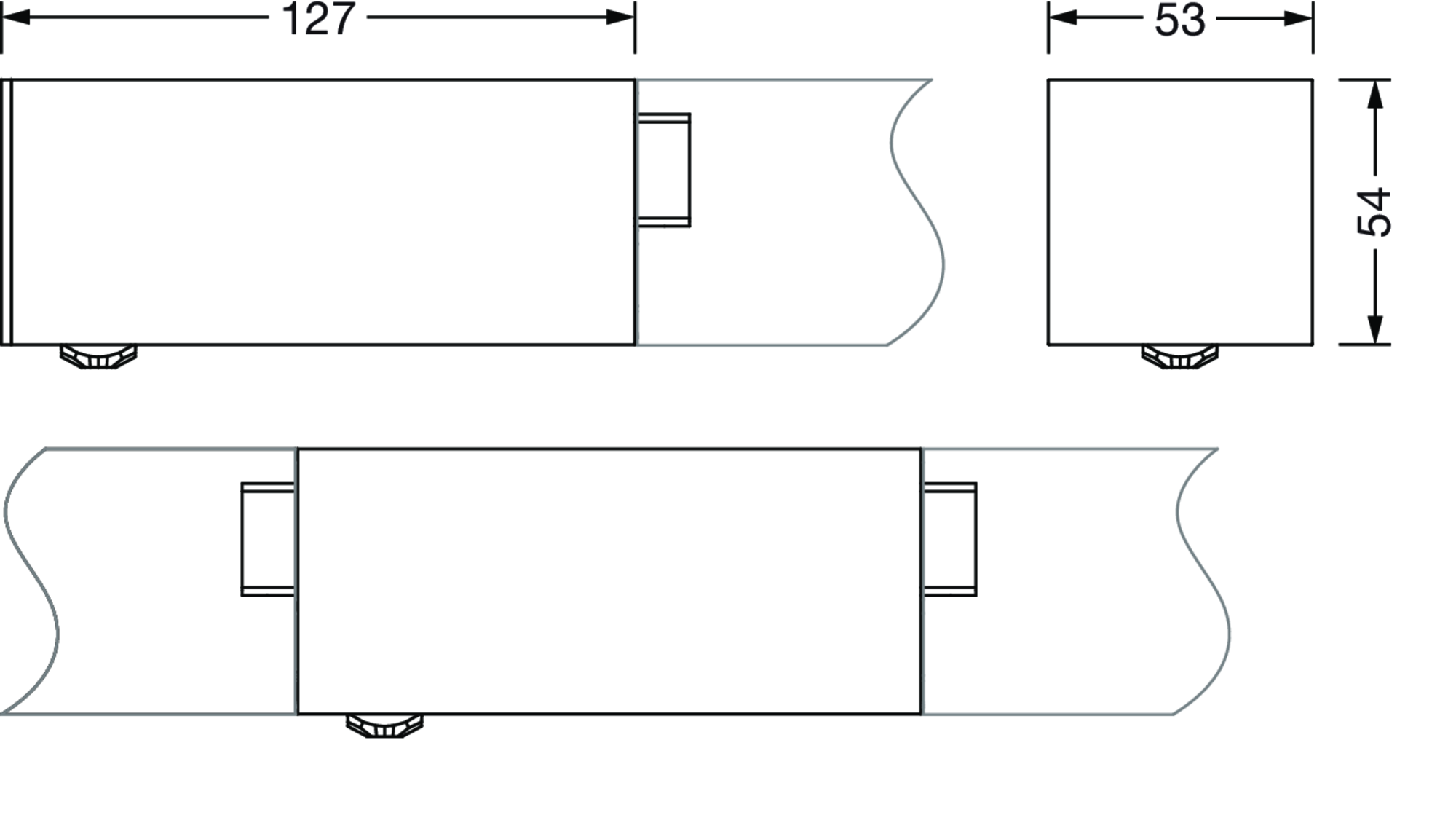

Dimensions, Weight

Length 127mm
Width 53mm
Height 54mm
Weight 0.3kg

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)
Detection range tangential max. 4x5m
Detection range max. 2x 2m
Feature square detection area

1x light sensor
Illuminance 2..1000lx

Outputs

1x Bluetooth interface
Feature operating frequency 2.4..2.483GHz, +4dBm

System family
SITECO Connect 31 Wireless

Product type
sensor

Product name
Silica 21

Order No.
59MX2CW100WA

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE

housing
extruded aluminium section, anodised, traffic white (RAL 9016), for luminaires with opal or prismatic cover

Mounting method, mounting location
slip-in mounting, to the Silica 21 luminaire

Mounting height
2.5..5m

Arrangement
single/continuous arrangement

Supplement
for surface-mounted luminaires, for pendant luminaires

Length
127mm

Width
53mm

Height
54mm

Weight
0.3kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection range
tangential max. 4x5m

Detection range
max. 2x 2m

Feature
square detection area

1x light sensor

Illuminance
2..1000lx

1x Bluetooth interface

Feature
operating frequency 2.4..2.483GHz, +4dBm
