59TP1CN0

: 59TP1CN0

Article junction box
Product name Licross
Protection rating for IP64 protection rating
Weight 1.4kg

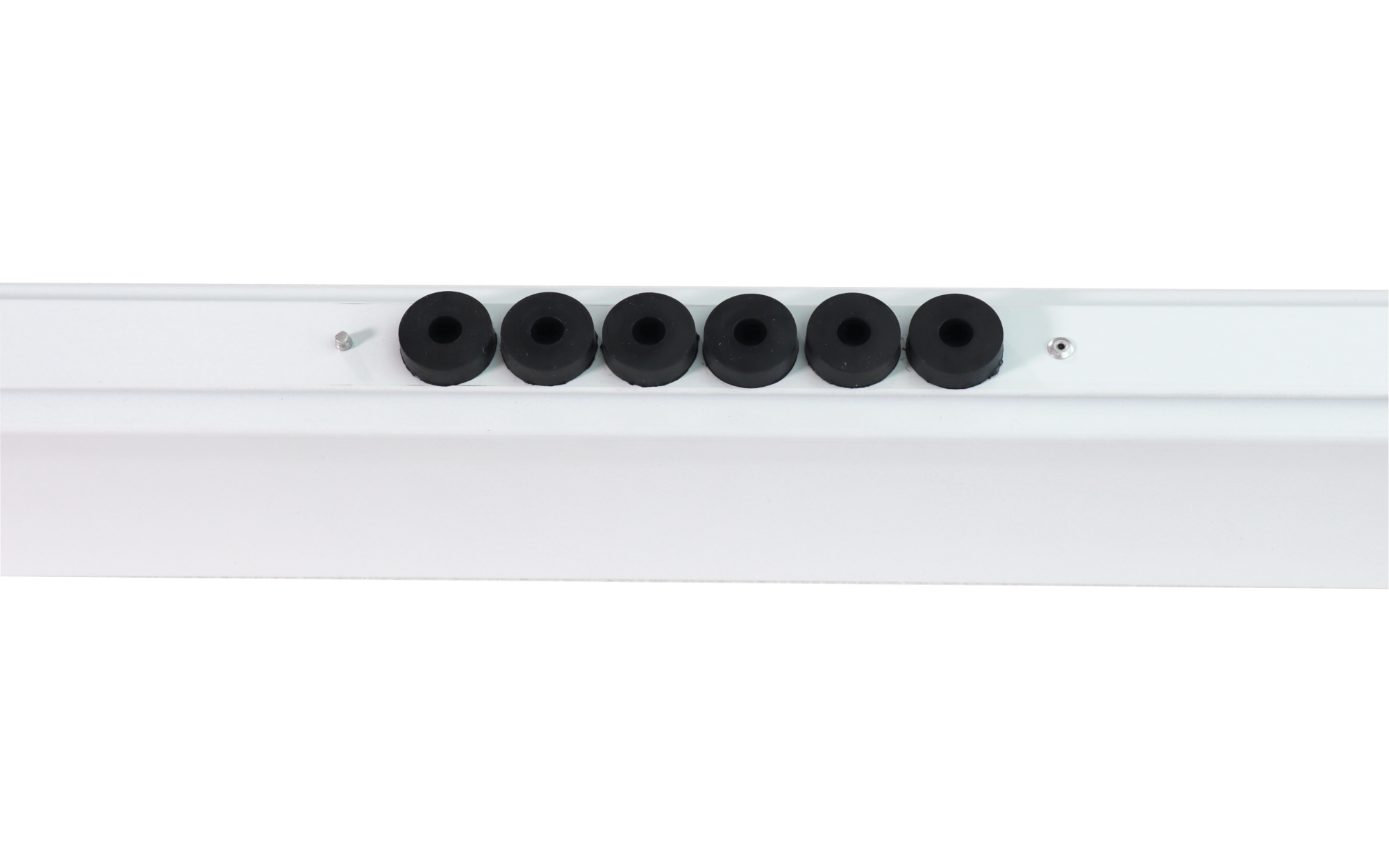

Licross connection compartment central, white; connection compartment central of sheet steel, galvanised, coated, with cable entry for six cables, Ø 8.5..13mm; 2x connector of steel, galvanised2x blank cover of PC/ABS, white; dimension: (LxWxH) = 650 x 64 x 67mm; for IP64 protection rating; insulation class: insulation class I (protective earthing); certification: CE, UKCA; packaging unit: 1 piece

Downloads

Key data

Product type junction box
Product name Licross
Order No. 59TP1CN0

Certificates, Standards

Protection rating for IP64 protection rating
Insulation class insulation class I (protective earthing)
Certification, designation CE, UKCA

Material, Colour

connection compartment central sheet steel, galvanised, coated, white
connector steel, galvanised, connector pre-assembled on trunking rail
Quantity 2 piece
blank cover PC/ABS, white
Quantity 2 piece

Dimensions, Weight

Length 650mm
Width 64mm
Height 67mm
Weight 1.4kg

Product type
junction box

Product name
Licross

Order No.
59TP1CN0

Protection rating
for IP64 protection rating

Insulation class
insulation class I (protective earthing)

Certification, designation
CE, UKCA

connection compartment central
sheet steel, galvanised, coated, white

connector
steel, galvanised, connector pre-assembled on trunking rail

Quantity
2 piece

blank cover
PC/ABS, white

Quantity
2 piece

Length
650mm

Width
64mm

Height
67mm

Weight
1.4kg
