5DTAXTSF42003

Order No.: 5DTAXTSF42003
Remember articleRemember article

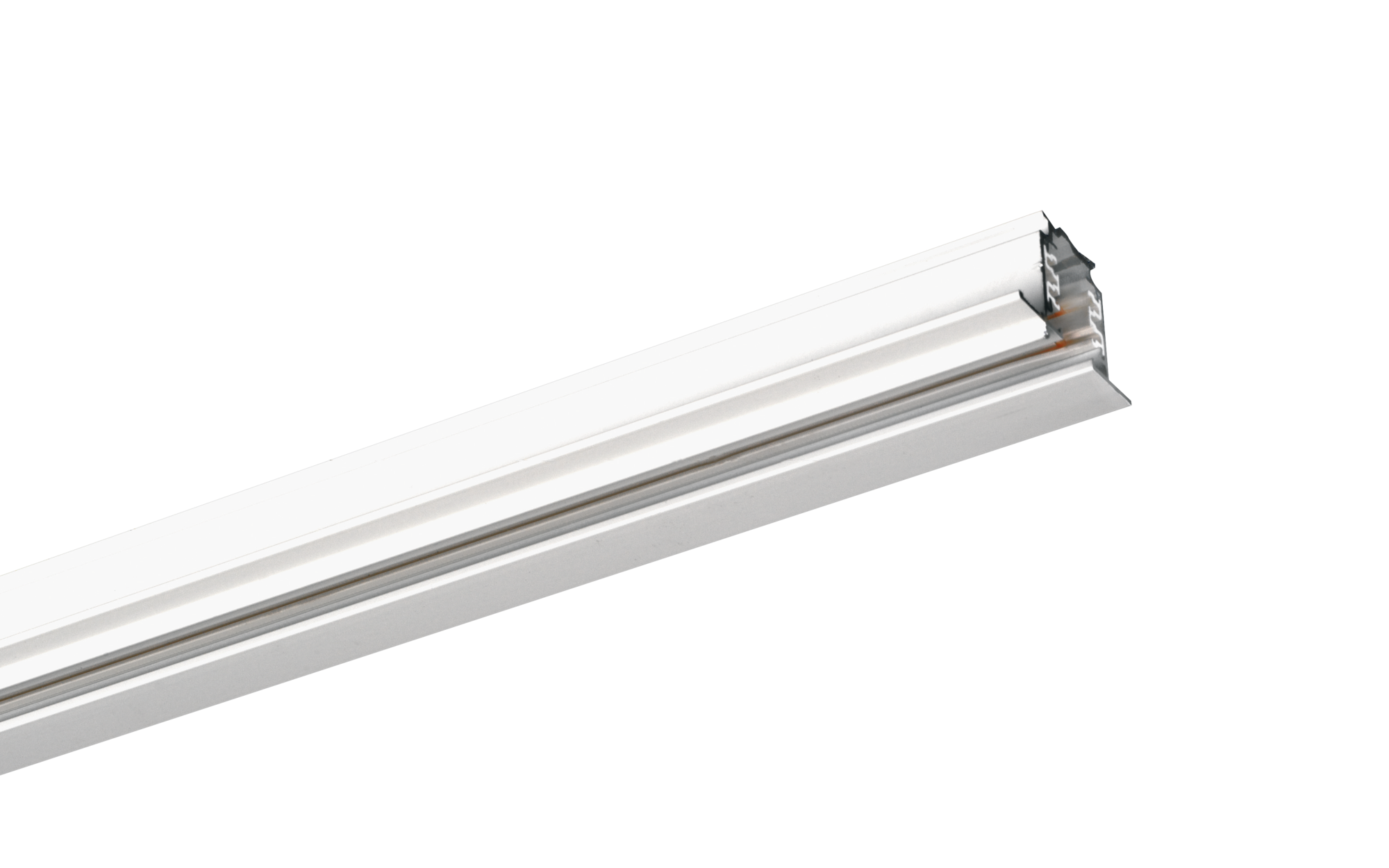

Article 3-phase track
Product name AX T
Protection rating IP20
Weight 1.9kg

AX T, 3-phase track, installation type: recessed, control gear: ON/OFF, mains connection: 220..240V/380..400V, AC, of extruded aluminium section, coated, white, can be cut to preference, length: 2.000mm, width: 32mm, height: 33mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type 3-phase track
Product name AX T
Order No. 5DTAXTSF42003

Lamps

Supplement max. 16A

Operating device

Control ON/OFF

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Certification, designation CE, ENEC

Mounting

Mounting method, mounting location recessed, in the ceiling

Electrical connection

Nominal voltage 220..240V/380..400V, AC

Dimensions, Weight

Length 2000mm
Width 32mm
Height 33mm
Weight 1.9kg

Product type
3-phase track

Product name
AX T

Order No.
5DTAXTSF42003

Supplement
max. 16A

Control
ON/OFF

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Certification, designation
CE, ENEC

Mounting method, mounting location
recessed, in the ceiling

Nominal voltage
220..240V/380..400V, AC

Length
2000mm

Width
32mm

Height
33mm

Weight
1.9kg
