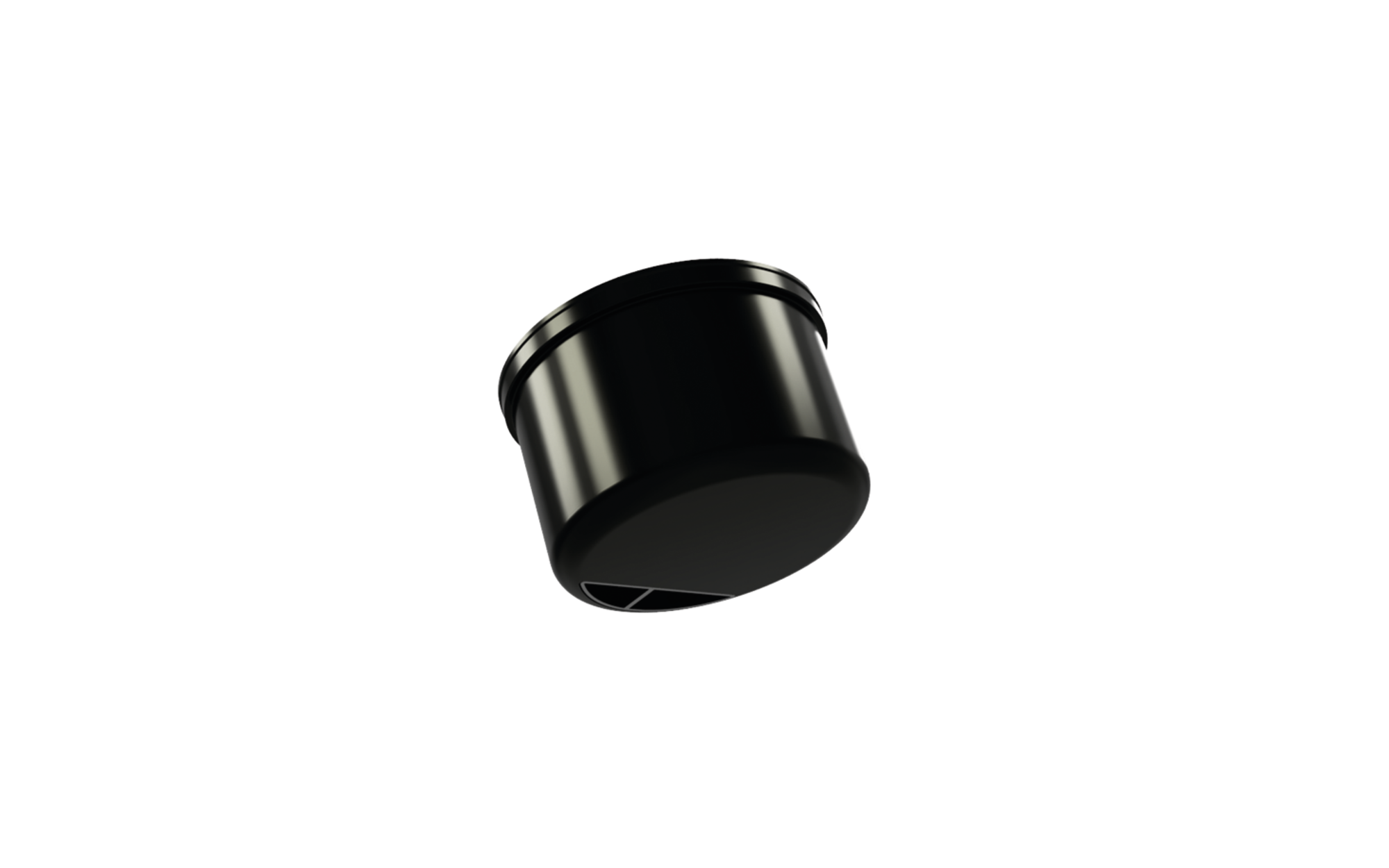

: 5EA44EE01

Article multi-sensor
Product name SITECO Connect Wireless
Protection rating IP65
Weight 0.1kg

SITECO Connect WirelessSmart Plug Cellular Air, multi-sensor, multi-sensor, communication: local mesh radio network, EGPRS, NB-IoT NB2, LTE Cat M1, 5G, 4G, 2G, 2.4GHz, D4i type A, control: remote setup and operation, local setting and operation with USB stick, local setting and operation with smartphone app, manual, by time, by timer, by weekday, by AstroDim calendar, by daylight, via API, with radio clock, optionally via radio push button, sensor technology: GALILEO, GLONASS, GNSS, GPS, inclination sensor, air quality sensor (VOC), nitrogen oxide sensor, humidity sensor, particulate matter sensor, temperature sensor, daylight sensor, sensor contains an inclination, particulate matter, temperature, humidity, nitrogen oxide and air quality (VOC) sensor, Smart Interface below, Usage fees for remote access via web application and mobile network (LTE CAT M1 / ​​NB IoT NB2 / EGPRS) are included in the scope of delivery, amounting to 60 credit points (= 60 months). This individually extendable term begins when the device's QR code is scanned into a system. The credit can then be used by other devices within the system, automatic adjustment of the DALI dimming curve, optionally adjustable manually, installation type: screw fastening, installation location: to the luminaire, of plastic, voltage: 24V, voltage type: DC, multi-sensor, protection rating (complete): IP65, certification: CE, packaging unit: 1 piece

Downloads


Key data

System family SITECO Connect 31 Wireless
Product type multi-sensor
Product name SITECO Connect Wireless
Order No. 5EA44EE01


Control


Certificates, Standards

Protection rating IP65
Temperature range (operation) -40..+70°C
Standard according to Zhaga book 18
Certification, designation CE


Material, Colour

housing plastic, transparent, colour-backed, dark grey


Mounting

Mounting method, mounting location screw fastening, to the luminaire
Mounting height 4..12m


Electrical connection

Nominal voltage 24V, DC


Dimensions, Weight

Diameter 82.5mm
Height 60mm
Weight 0.1kg

System family
SITECO Connect 31 Wireless

Product type
multi-sensor

Product name
SITECO Connect Wireless

Order No.
5EA44EE01

Protection rating
IP65

Temperature range (operation)
-40..+70°C

Standard
according to Zhaga book 18

Certification, designation
CE

housing
plastic, transparent, colour-backed, dark grey

Mounting method, mounting location
screw fastening, to the luminaire

Mounting height
4..12m

Nominal voltage
24V, DC

Diameter
82.5mm

Height
60mm

Weight
0.1kg
