5LS59000A

: 5LS59000A

Article rail insert
Product name Monsun 11 Extreme
Protection rating IP64
Weight 0.7kg

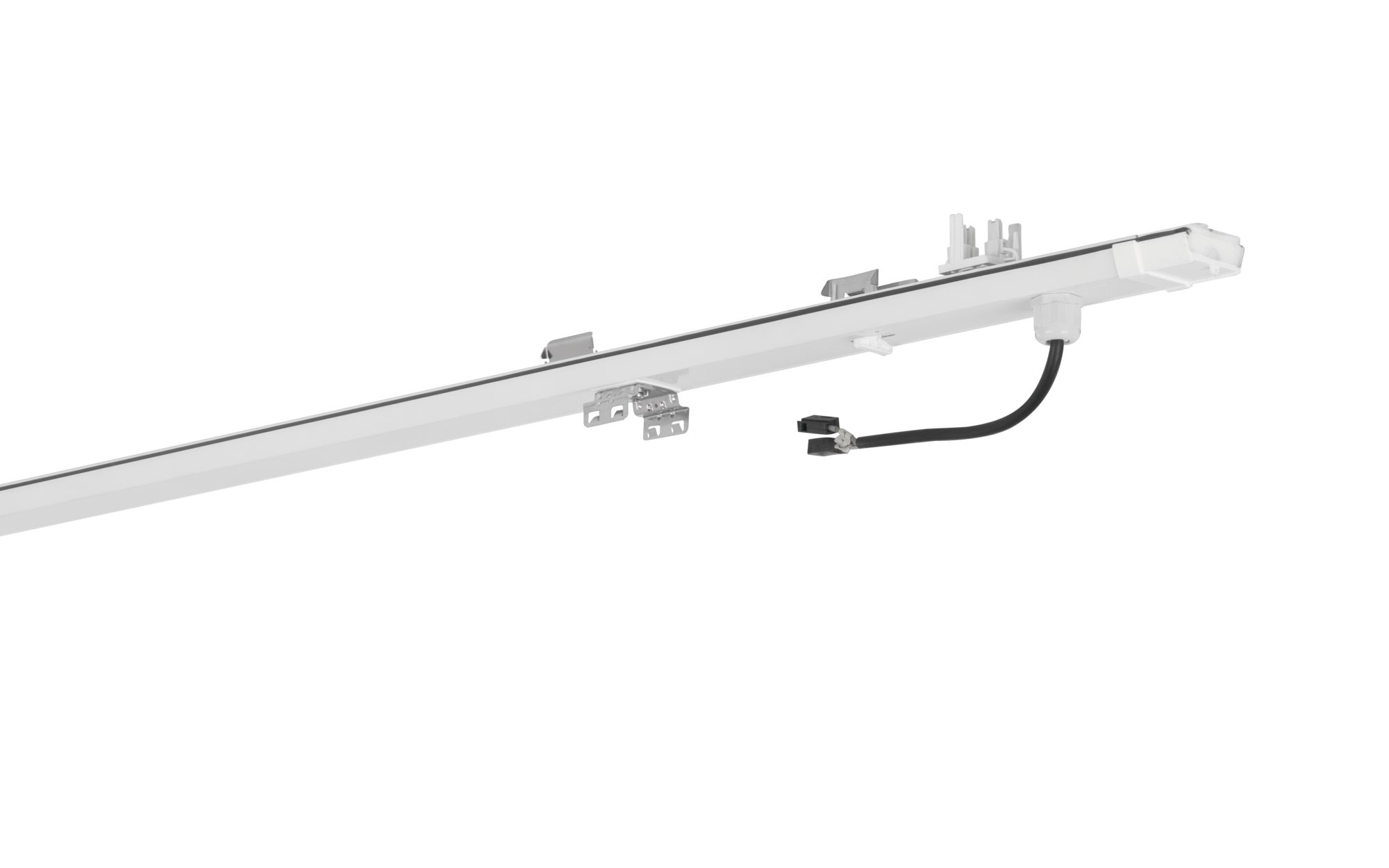

Monsun 11 Extreme, rail insert, luminaire mounting insert, with luminaire system connector: socket, 3-pole; for Modario trunking rail, 5 or 10-core, mains connection: 220..240V, AC/DC, 0/50..60Hz, end cap, of PC, white, length: 1.495mm, width: 48mm, luminaire mounting insert, of sheet steel, galvanised, coated, pure white, protection rating (complete): IP64, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, protection symbol: D, packaging unit: 1 piece

Downloads

Key data

Product type rail insert
Product name Monsun 11 Extreme
Order No. 5LS59000A

Supplement

Certificates, Standards

Protection rating IP64
Insulation class insulation class I (protective earthing)
Protection symbol D
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

end cap PC, white
luminaire mounting insert sheet steel, galvanised, coated, pure white

Electrical connection

Connection luminaire system connector: socket, 3-pole; for Modario trunking rail, 5 or 10-core
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

Dimensions, Weight

System units 5x SE
Length 1495mm
Width 48mm
Weight 0.7kg

Product type
rail insert

Product name
Monsun 11 Extreme

Order No.
5LS59000A

Protection rating
IP64

Insulation class
insulation class I (protective earthing)

Protection symbol
D

Certification, designation
CE, ENEC, VDE, UKCA

end cap
PC, white

luminaire mounting insert
sheet steel, galvanised, coated, pure white

Connection
luminaire system connector: socket, 3-pole; for Modario trunking rail, 5 or 10-core

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

System units
5x SE

Length
1495mm

Width
48mm

Weight
0.7kg
