5LZ904712A

: 5LZ904712A

Article control unit

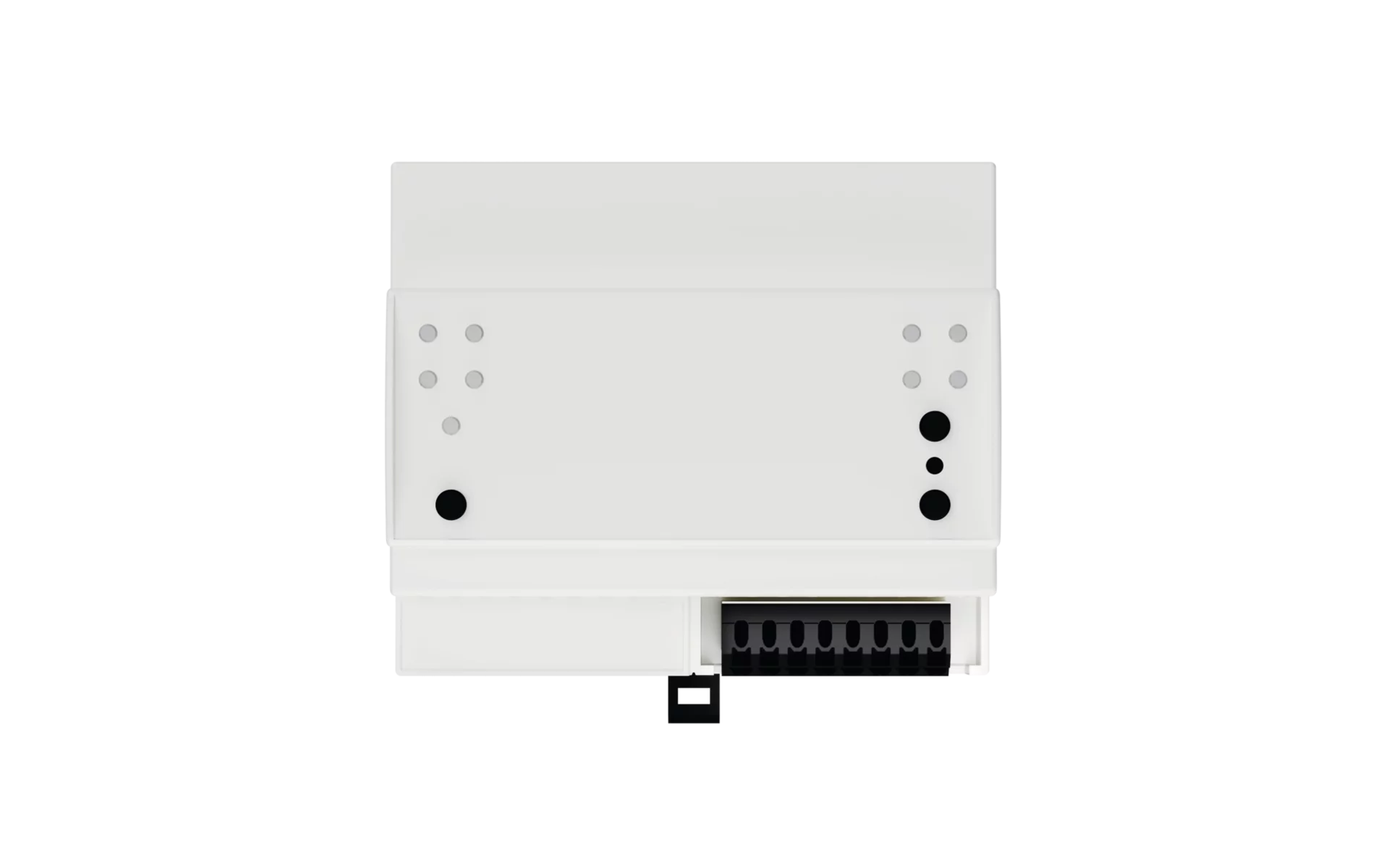

Product name SITECO Connect 21-O
Rated input power on request
Protection rating IP20
Weight 0.2kg

SITECO Connect 21-Ocontroller, master, central control - connection to lighting or building management, dimmable, installation type: recessed, installation location: in an electrical distributor, of plastic, part units: 6 part units, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, voltage: 100..240V, voltage type: AC, 1 x network connector Ethernet, 2 x DALI-2, packaging unit: 1 piece

Downloads

Key data

System family SITECO Connect 21
Product type control unit
Product name SITECO Connect 21-O
Order No. 5LZ904712A

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Temperature range (operation) 0..+40°C
Certification, designation CE

Material, Colour

housing plastic, grey, 6 part units

Mounting

Mounting method, mounting location recessed, in an electrical distributor
Supplement only suitable for use in indoor areas

Electrical connection

Connection terminal, 2-pole, max. 1.5mm²
Nominal voltage 100..240V, 50/60Hz, AC

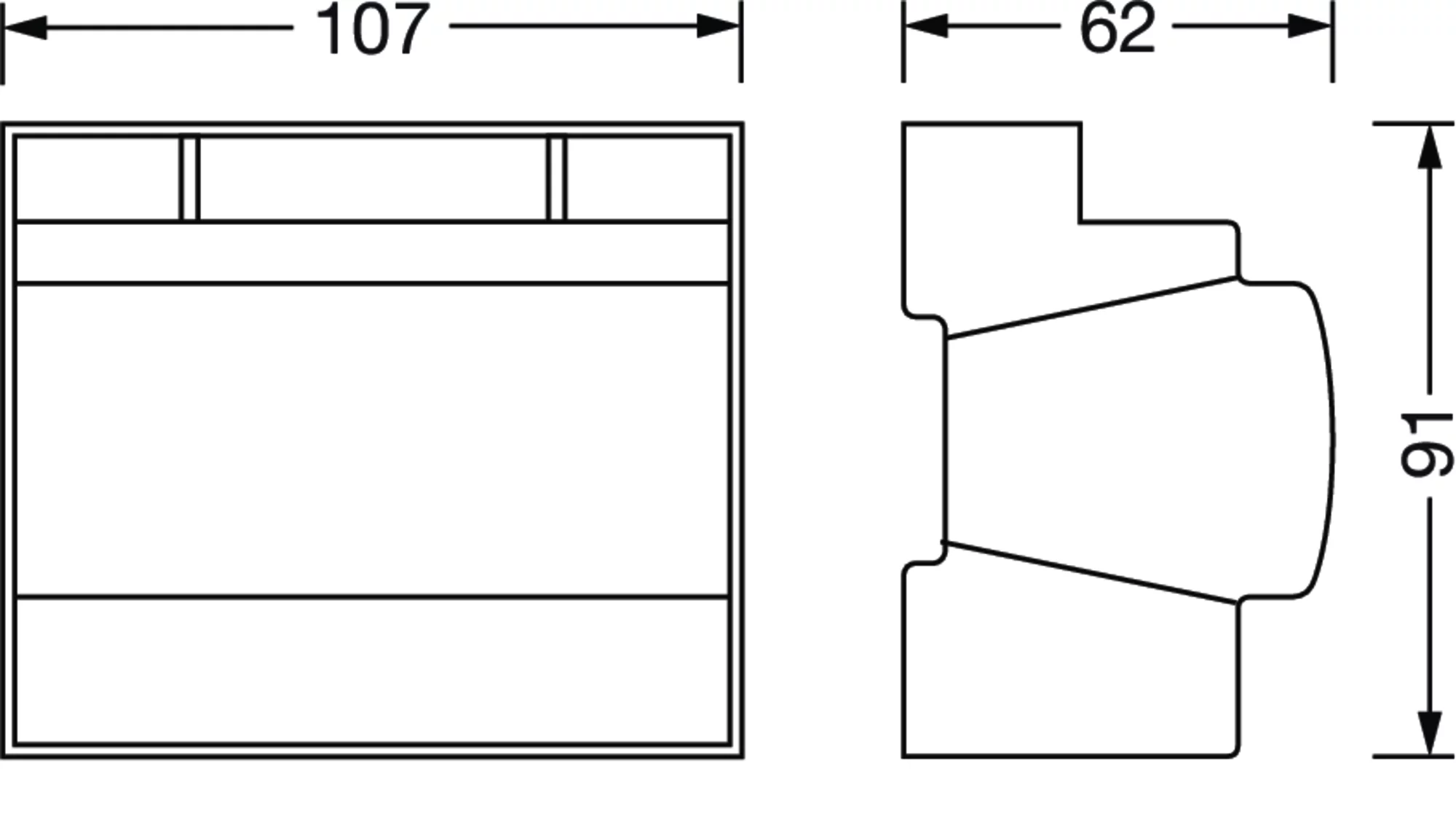

Dimensions, Weight

Length 91mm
Width 107mm
Height 62mm
Weight 0.2kg

Outputs

2x DALI-2
Connection plug-in terminal, 2-pole, max. 2.5mm²
Limiting max. 64x ECG DALI
System current DALI current 250mA per DALI line
Cable length max. 300m

System family
SITECO Connect 21

Product type
control unit

Product name
SITECO Connect 21-O

Order No.
5LZ904712A

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
0..+40°C

Certification, designation
CE

housing
plastic, grey, 6 part units

Mounting method, mounting location
recessed, in an electrical distributor

Supplement
only suitable for use in indoor areas

Connection
terminal, 2-pole, max. 1.5mm²

Nominal voltage
100..240V, 50/60Hz, AC

Length
91mm

Width
107mm

Height
62mm

Weight
0.2kg

2x DALI-2

Connection
plug-in terminal, 2-pole, max. 2.5mm²

Limiting
max. 64x ECG DALI

System current
DALI current 250mA per DALI line

Cable length
max. 300m
