5LZ910200A

: 5LZ910200A

Article sensor
Product name SITECO Connect 31 Gen.2
Protection rating IP20
Weight 0.1kg

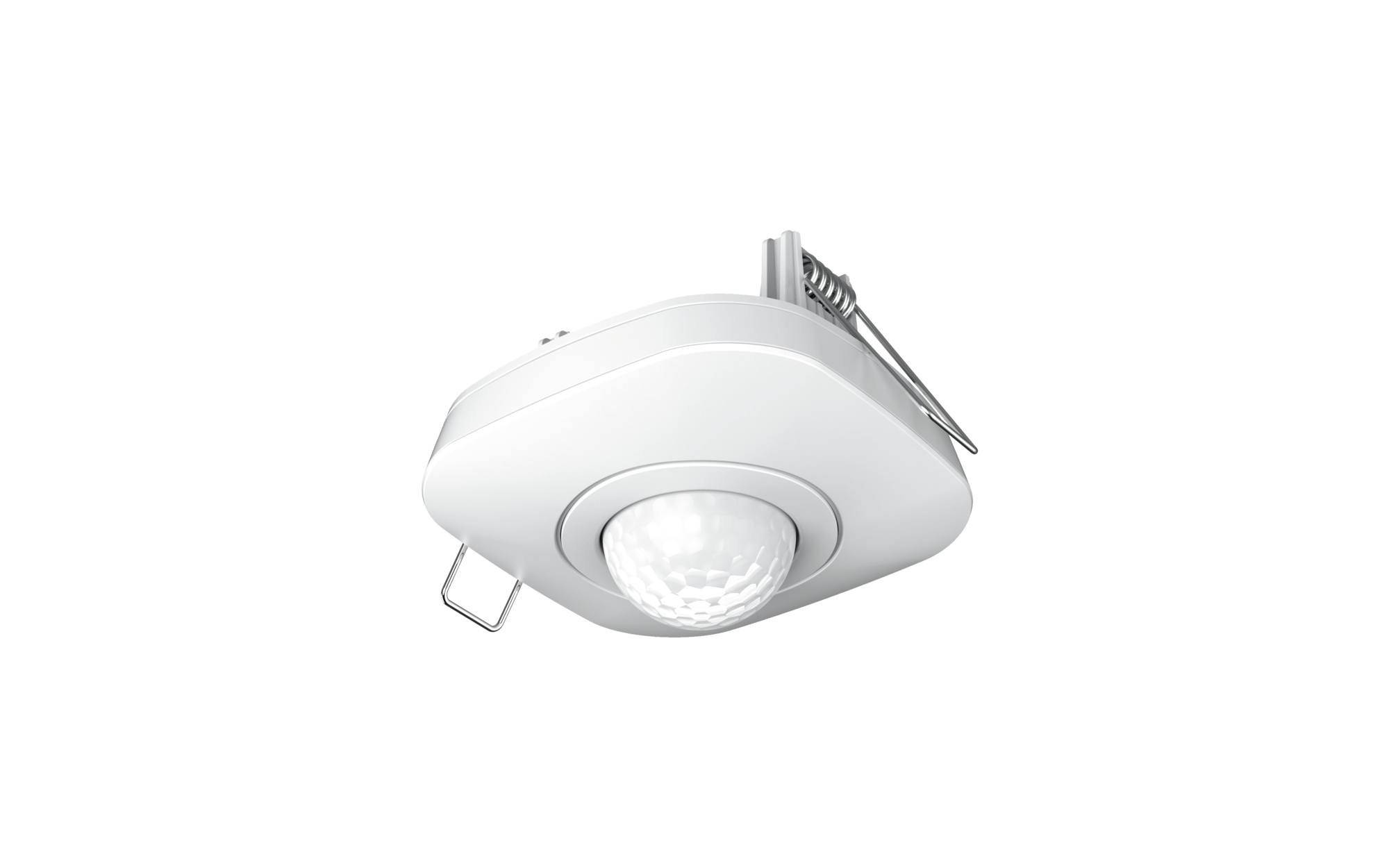

SITECO Connect 31 Gen.2sensor PC14, local control - self-sufficient standalone sensors, central control - connection to lighting or building management, dimmable, installation type: recessed, installation location: in the ceiling, of plastic, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, 1 x PIR movement sensor, 1 x light sensor, 1 x DALI-2, packaging unit: 1 piece

Downloads

Key data

System family SITECO Connect 31
Product type sensor
Product name SITECO Connect 31 Gen.2
Order No. 5LZ910200A

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Temperature range (operation) -10..+40°C
Certification, designation CE

Material, Colour

housing plastic, pure white (RAL 9010)

Mounting

Mounting method, mounting location recessed, in the ceiling
Mounting height 2..4m
Supplement only suitable for use in indoor areas

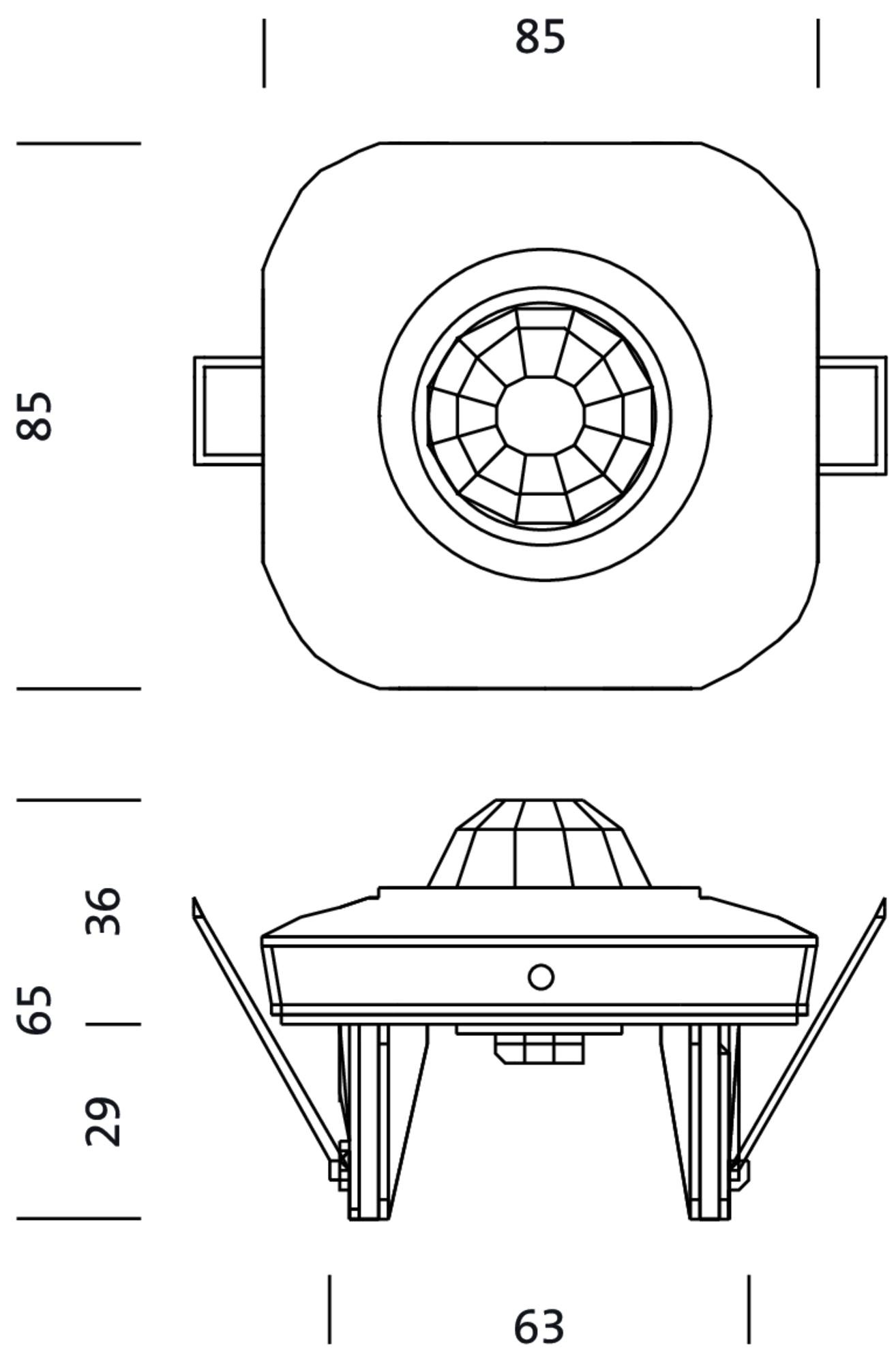

Dimensions, Weight

Length 86mm
Width 86mm
Height 63mm
Recess depth 30mm
Weight 0.1kg

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)
Detection angle 360°

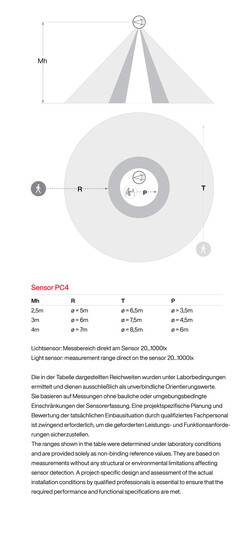

Detection range radial min. ø5m, max. ø7m; tangential min. ø6.5m, max. ø8.5m
Detection range min. ø3.5m, max. ø6.0m
Feature circular detection area

System family
SITECO Connect 31

Product type
sensor

Product name
SITECO Connect 31 Gen.2

Order No.
5LZ910200A

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-10..+40°C

Certification, designation
CE

housing
plastic, pure white (RAL 9010)

Mounting method, mounting location
recessed, in the ceiling

Mounting height
2..4m

Supplement
only suitable for use in indoor areas

Length
86mm

Width
86mm

Height
63mm

Recess depth
30mm

Weight
0.1kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection angle
360°

Detection range
radial min. ø5m, max. ø7m; tangential min. ø6.5m, max. ø8.5m

Detection range
min. ø3.5m, max. ø6.0m

Feature
circular detection area
