5LZ935100A

Order No.: 5LZ935100A
Remember articleRemember article

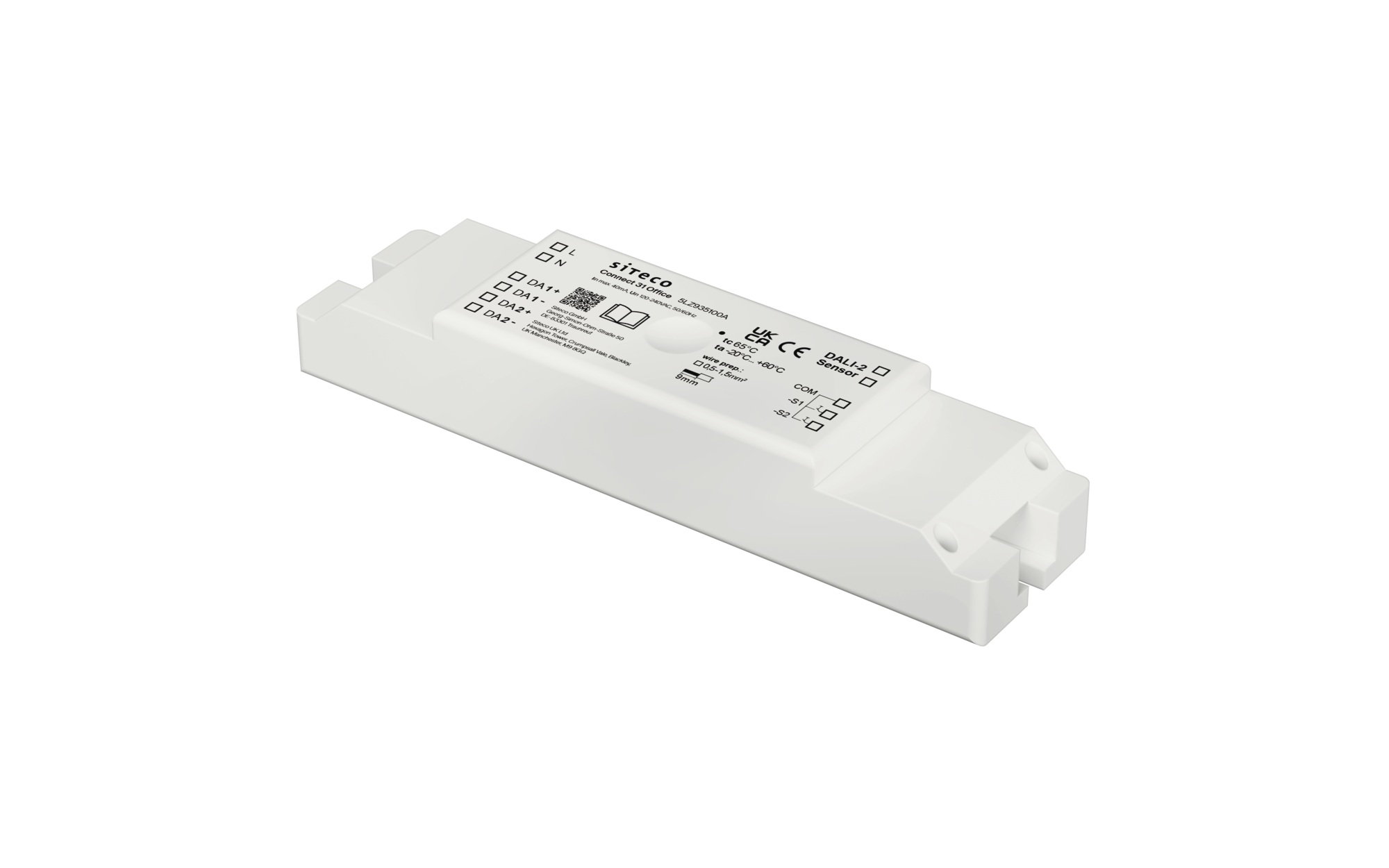

Article touchdim controller
Product name SITECO Connect 31 Office
Protection rating IP20
Weight 0.1kg

SITECO Connect 31 Office, touchdim controller, installation type: recessed, control gear: DALI, with terminal, 2-pole, max. 1.5mm², mains connection: 220..240V, AC, 50/60Hz, housing, of plastic, pure white (RAL 9010), length: 108mm, width: 30mm, height: 21mm, controller, local control - self-sufficient standalone sensors, equipment: master, dimmable, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, permissible operating ambient temperature: -20..+60°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect 31 Office
Product type touchdim controller
Product name SITECO Connect 31 Office
Order No. 5LZ935100A

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+60°C
Certification, designation CE

Material, Colour

housing plastic, pure white (RAL 9010)

Mounting

Mounting method, mounting location recessed, in the ceiling
Supplement only suitable for use in indoor areas

Electrical connection

Connection terminal, 2-pole, max. 1.5mm²
Nominal voltage 220..240V, 50/60Hz, AC

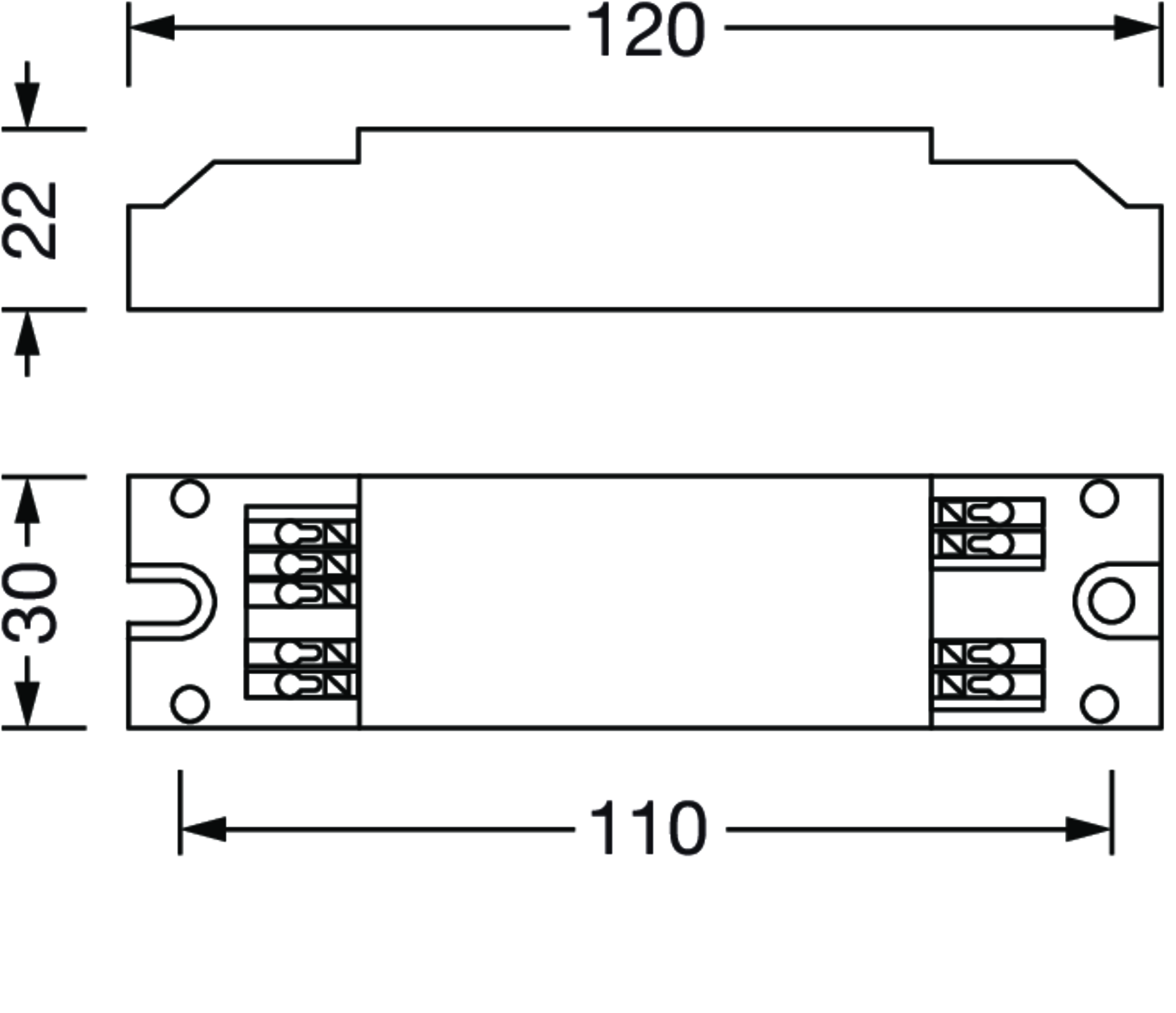

Dimensions, Weight

Length 108mm
Width 30mm
Height 21mm
Weight 0.1kg

Inputs

2x push button input
Connection screw terminal, 2-pole, max. 1.5mm²
Feature zero-potential

Outputs

2x DALI
Connection screw terminal, 2-pole, max. 1.5mm²
System current DALI current line 1 60mA, line 2 30mA
Feature two DALI lines, averaging with connected light sensors, connection of DALI2 certified sensors, DALI master function, broadcast addressing, max. 45 ECGs, DALI line 1, master function, broadcast addressing, max. 30 DALI ECGs, DALI line 2, master function, broadcast addressing, max. 15 DALI ECGs

System family
SITECO Connect 31 Office

Product type
touchdim controller

Product name
SITECO Connect 31 Office

Order No.
5LZ935100A

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+60°C

Certification, designation
CE

housing
plastic, pure white (RAL 9010)

Mounting method, mounting location
recessed, in the ceiling

Supplement
only suitable for use in indoor areas

Connection
terminal, 2-pole, max. 1.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Length
108mm

Width
30mm

Height
21mm

Weight
0.1kg

2x push button input

Connection
screw terminal, 2-pole, max. 1.5mm²

Feature
zero-potential

2x DALI

Connection
screw terminal, 2-pole, max. 1.5mm²

System current
DALI current line 1 60mA, line 2 30mA

Feature
two DALI lines, averaging with connected light sensors, connection of DALI2 certified sensors, DALI master function, broadcast addressing, max. 45 ECGs, DALI line 1, master function, broadcast addressing, max. 30 DALI ECGs, DALI line 2, master function, broadcast addressing, max. 15 DALI ECGs
