5LZ980100

Order No.: 5LZ980100
Remember articleRemember article

Article push button interface
Product name SITECO Connect Wireless
Protection rating IP20
Weight 0.1kg

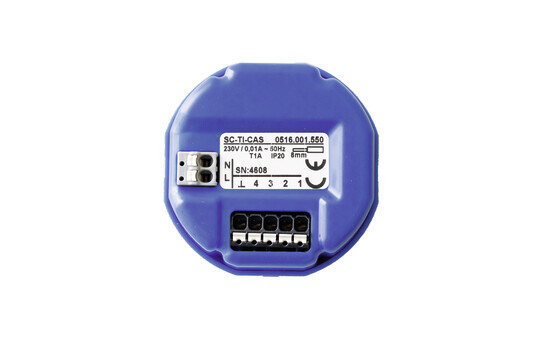

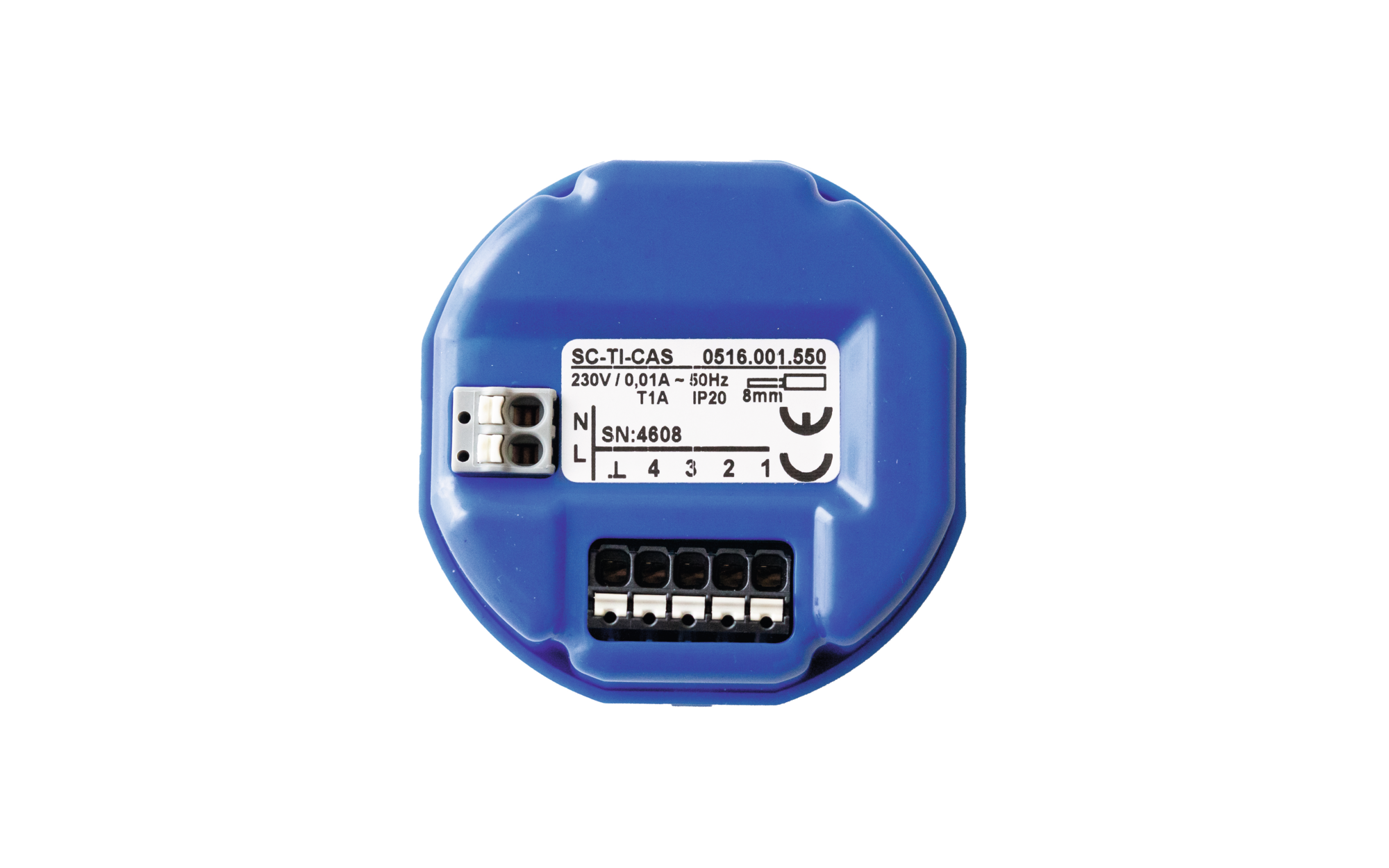

SITECO Connect Wirelesspush button interface, slave, local control - self-sufficient standalone sensors, dimmable, installation type: recessed, installation location: in the switch box, of plastic, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, voltage: 230V, 4 x push button input, 1 x Bluetooth interface, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect Wireless
Product type push button interface
Product name SITECO Connect Wireless
Order No. 5LZ980100

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Temperature range (operation) 0..+55°C
Certification, designation CE

Material, Colour

housing plastic, blue
housing plastic, blue

Mounting

Mounting method, mounting location recessed, in the switch box
Supplement only suitable for use in indoor areas

Electrical connection

Nominal voltage 230V, 50/60Hz

Dimensions, Weight

Weight 0.1kg

Inputs

4x push button input
Feature maximum of 4 potential-free push buttons can be connected

Outputs

1x Bluetooth interface
Feature wireless networking

System family
SITECO Connect Wireless

Product type
push button interface

Product name
SITECO Connect Wireless

Order No.
5LZ980100

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
0..+55°C

Certification, designation
CE

housing
plastic, blue

housing
plastic, blue

Mounting method, mounting location
recessed, in the switch box

Supplement
only suitable for use in indoor areas

Nominal voltage
230V, 50/60Hz

Weight
0.1kg

4x push button input

Feature
maximum of 4 potential-free push buttons can be connected

1x Bluetooth interface

Feature
wireless networking
