5LZ980200A

Order No.: 5LZ980200A
Remember articleRemember article

Article sensor
Product name SITECO Connect Wireless
Protection rating IP20
Weight 0.1kg

SITECO Connect Wirelessmulti-sensor, sensor, master, local control - self-sufficient standalone sensors, sensor technology: 1 PIR movement sensor, daylight sensor, dimmable, installation type: recessed, installation location: in the ceiling, of plastic, voltage: 230V, 1 x PIR movement sensor, 2 x light sensor, 1 x DALI, 1 x Bluetooth interface, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, UKCA, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect Wireless
Product type sensor
Product name SITECO Connect Wireless
Order No. 5LZ980200A

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Temperature range (operation) -5..+45°C
Certification, designation CE, UKCA

Material, Colour

housing plastic, white
housing plastic, white

Mounting

Mounting method, mounting location recessed, in the ceiling
Mounting height 2.5..5m
Supplement only suitable for use in indoor areas

Electrical connection

Nominal voltage 230V, 50/60Hz

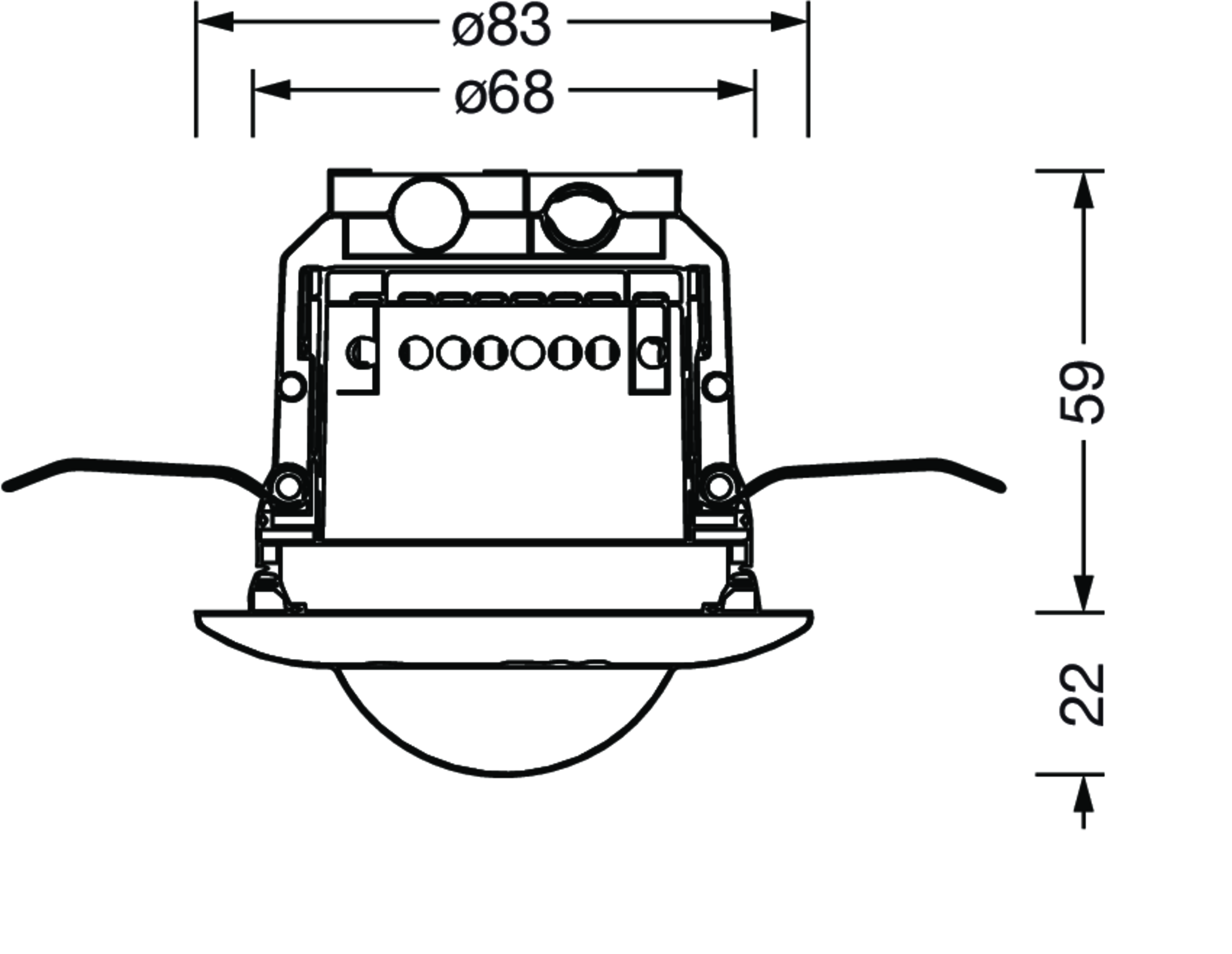

Dimensions, Weight

Height 86mm
Weight 0.1kg

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)
Detection angle 360°
Detection range radial max. ø6m; tangential max. ø10m
Detection range max. ø4m
Feature circular detection area

2x light sensor
Illuminance 10..4000lx (at sensor)

Outputs

1x DALI
System current max. 80mA
Feature DALI, master function, broadcast addressing, max. 40 DALI ECGs

1x Bluetooth interface
Feature wireless networking

System family
SITECO Connect Wireless

Product type
sensor

Product name
SITECO Connect Wireless

Order No.
5LZ980200A

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-5..+45°C

Certification, designation
CE, UKCA

housing
plastic, white

housing
plastic, white

Mounting method, mounting location
recessed, in the ceiling

Mounting height
2.5..5m

Supplement
only suitable for use in indoor areas

Nominal voltage
230V, 50/60Hz

Height
86mm

Weight
0.1kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection angle
360°

Detection range
radial max. ø6m; tangential max. ø10m

Detection range
max. ø4m

Feature
circular detection area

2x light sensor

Illuminance
10..4000lx (at sensor)

1x DALI

System current
max. 80mA

Feature
DALI, master function, broadcast addressing, max. 40 DALI ECGs

1x Bluetooth interface

Feature
wireless networking
