5MZ312D0TWB

Order No.: 5MZ312D0TWB
Remember articleRemember article

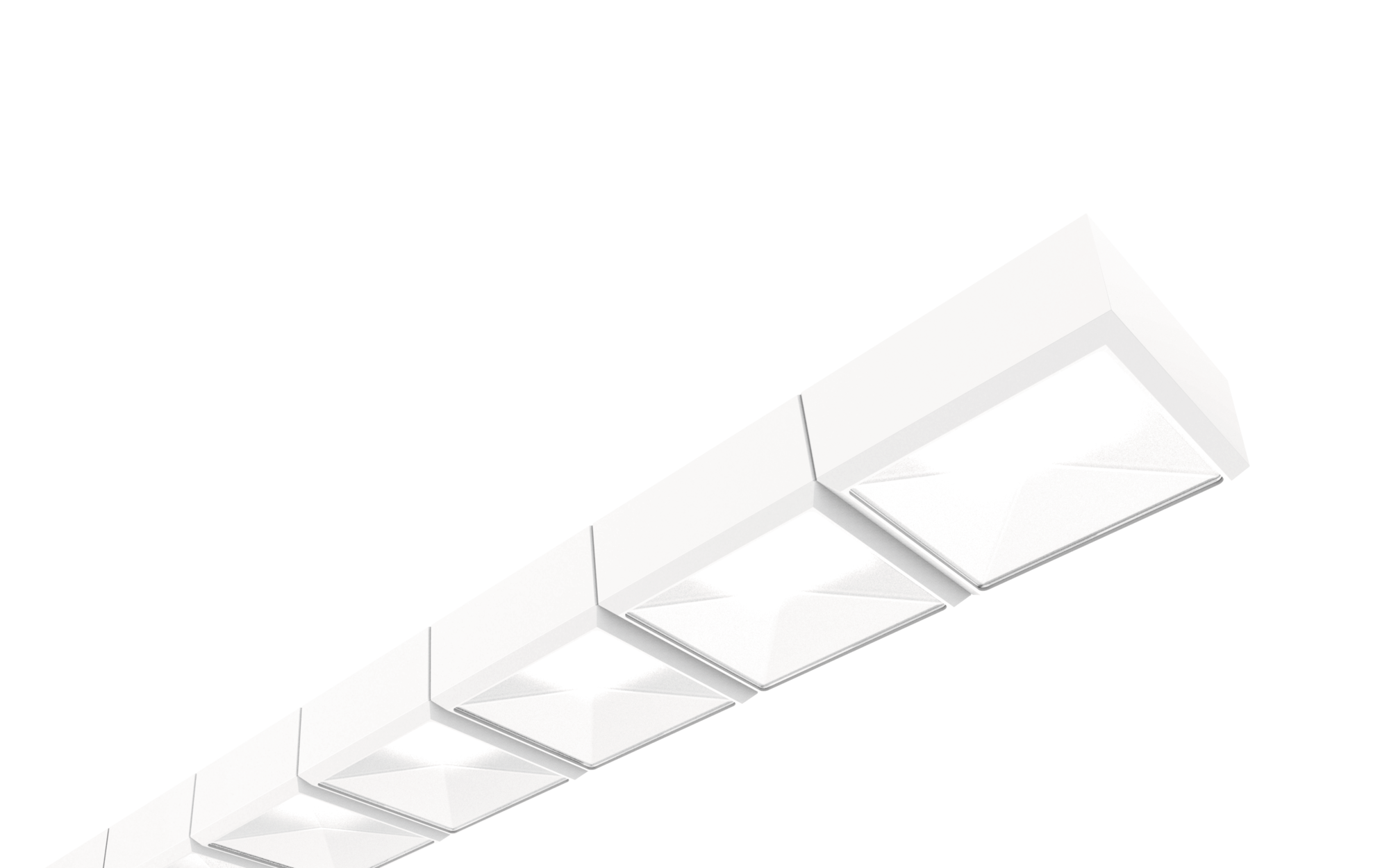

Article office luminaire
Product name Scriptus 11
Lamp LED
Rated luminous flux 11150lm
Luminous efficacy 116lm/W
Colour temperature 3000..6500K
Colour rendering CRI > 80
Rated input power 96W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Weight 6.6kg

Scriptus 11, office luminaire, primary optical cover: lenses, CAT 2 (L= 3000cd/m²), light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: suspended mounting, LED, rated luminous flux: 11.150lm, luminous efficacy: 116lm/W, light colour: 8tw, colour temperature: 3000..6500K, control gear: DALI DT8, with terminal, 5-pole, mains connection: 230V, AC, 50Hz, rated input power: 96W, LED, control gear: ECG DALI, housing, luminaire housing, of aluminium, traffic white (RAL 9016), length: 1.768mm, width: 114mm, height: 57mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, protection symbol: F, permissible operating ambient temperature: = +25°C, standard: EN 50419, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type office luminaire
Product name Scriptus 11
Order No. 5MZ312D0TWB

Component 1

Lighting technology
Cover lenses
Symmetry symmetric
Light emission direct/indirect distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps
Lamps with LED
Rated luminous flux 11150lm
Luminous efficacy 116lm/W
Colour temperature 3000..6500K
Colour rendering index CRI > 80
Light colour 8tw
Rated input power 96W

Operating device
Control gear ECG DALI
Control DALI DT8

Component 2

Lamps
Lamps with LED

Operating device
Control gear ECG DALI

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Protection symbol F
Temperature range (operation) ≤ +25°C
Standard EN 50419
Certification, designation CE

Material, Colour

housing aluminium, traffic white (RAL 9016)
luminaire housing aluminium, traffic white (RAL 9016)
Cover lenses

Mounting

Mounting method, mounting location suspended mounting, to wire
Arrangement single arrangement

Electrical connection

Connection terminal, 5-pole
Nominal voltage 230V, 230..240V, 50Hz, AC

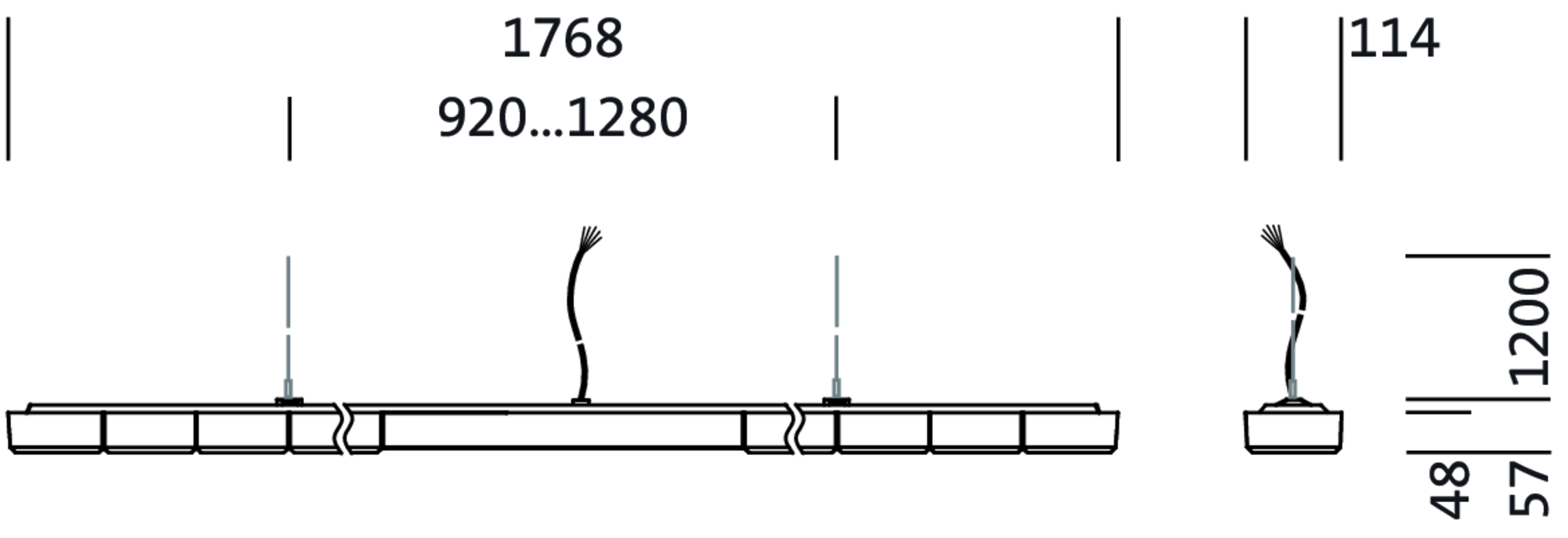

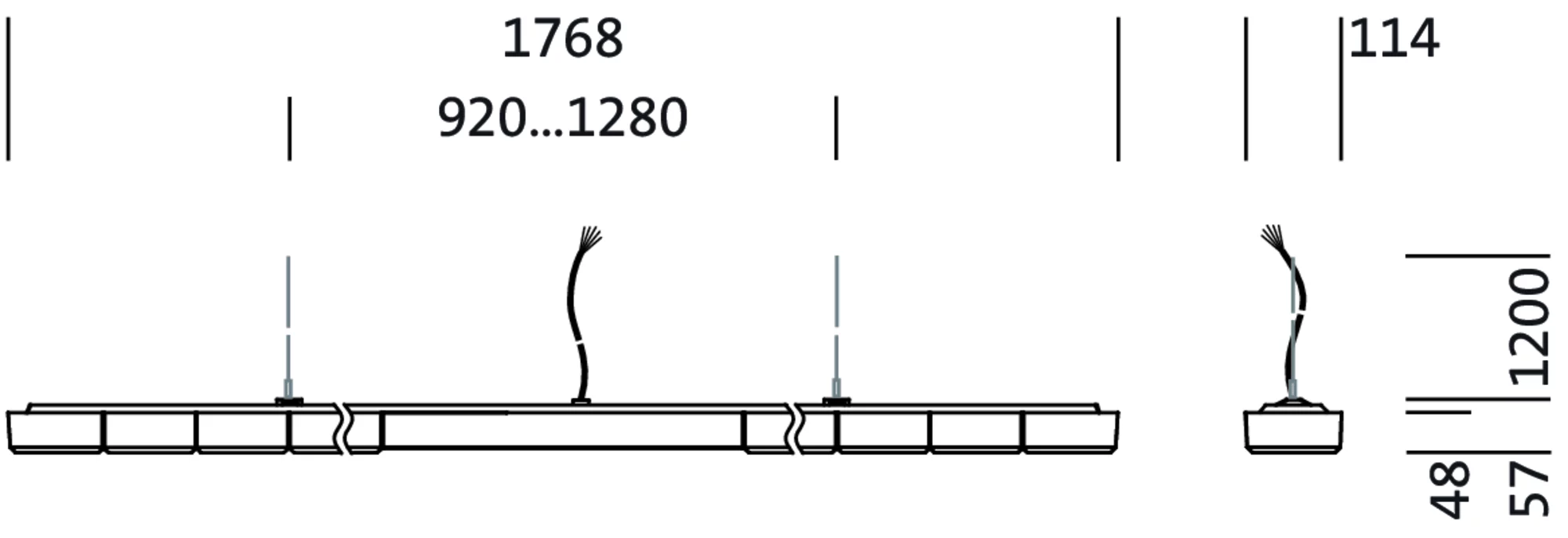

Dimensions, Weight

Length 1768mm
Width 114mm
Height 57mm
Weight 6.6kg

Service life

Rated service life 50000h (L85/B50) at AT = 25°C

Product type
office luminaire

Product name
Scriptus 11

Order No.
5MZ312D0TWB

Lighting technology

Cover
lenses

Symmetry
symmetric

Light emission
direct/indirect distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps

Lamps
with LED

Rated luminous flux
11150lm

Luminous efficacy
116lm/W

Colour temperature
3000..6500K

Colour rendering index
CRI > 80

Light colour
8tw

Rated input power
96W

Operating device

Control gear
ECG DALI

Control
DALI DT8

Lamps

Lamps
with LED

Operating device

Control gear
ECG DALI

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Protection symbol
F

Temperature range (operation)
≤ +25°C

Standard
EN 50419

Certification, designation
CE

housing
aluminium, traffic white (RAL 9016)

luminaire housing
aluminium, traffic white (RAL 9016)

Cover
lenses

Mounting method, mounting location
suspended mounting, to wire

Arrangement
single arrangement

Connection
terminal, 5-pole

Nominal voltage
230V, 230..240V, 50Hz, AC

Length
1768mm

Width
114mm

Height
57mm

Weight
6.6kg

Rated service life
50000h (L85/B50) at AT = 25°C

Photometric report / planning data

Scriptus 11
office luminaire, traffic white (RAL 9016), DALI DT8, 11150lm, 8tw, 1768x114mm, Connection: terminal

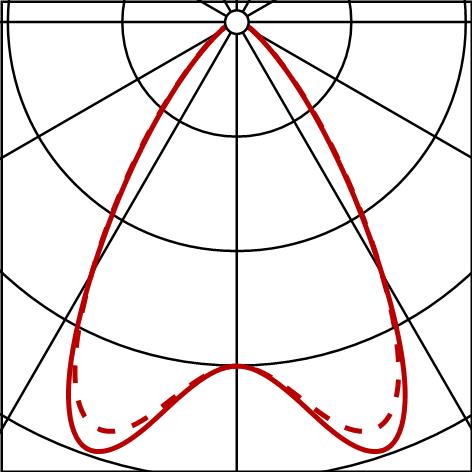

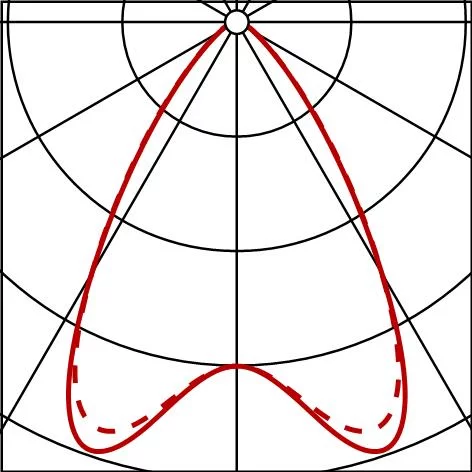

Lamps: LED 3000K / CRI >= 80, individual setting: only direct ratio, 6500K
Order No.: 5MZ312D0TWB

Photometric report (PDF)
Product versions/accessory

Scriptus 11
Lamps: LED 3000K / CRI >= 80, individual setting: only direct ratio, 3000K
Order No.: 5MZ312D0TWB

Photometric report (PDF)

Scriptus 11
Lamps: LED 3000K / CRI >= 80, individual setting: only indirect ratio, 3000K
Order No.: 5MZ312D0TWB

Photometric report (PDF)

Scriptus 11

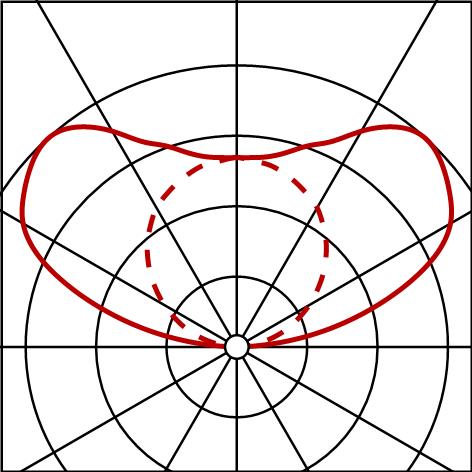

Lamps: LED 3000K / CRI >= 80, individual setting: only indirect ratio, 6500K
Order No.: 5MZ312D0TWB

Photometric report (PDF)

Scriptus 11
Lamps: LED, individual setting: colour temperature 3000K
Order No.: 5MZ312D0TWB

Relux (ROLF)
Dialux (ULD)

Scriptus 11
Lamps: LED, individual setting: colour temperature 6500K
Order No.: 5MZ312D0TWB

Relux (ROLF)
Dialux (ULD)
