Scriptus 11, direct/indirect distribution, DALI

: 5MZ313D04WA

Article office luminaire
Product name Scriptus 11
Lamp LED
Rated luminous flux 13330lm
Luminous efficacy 134lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 99W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Weight 8.1kg

Scriptus 11, office luminaire, primary optical cover: lenses, CAT 2 (L= 3000cd/m²), light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: suspended mounting, LED, rated luminous flux: 13.330lm, luminous efficacy: 134lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI, with terminal, 5-pole, mains connection: 230V, AC, 50Hz, rated input power: 99W, LED, control gear: ECG DALI, housing, luminaire housing, of aluminium, traffic white (RAL 9016), length: 2.648mm, width: 114mm, height: 57mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, protection symbol: F, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data), packaging unit: 1 piece

Downloads

Key data

Product type office luminaire
Product name Scriptus 11
Order No. 5MZ313D04WA

Component 1

Lighting technology
Cover lenses
Symmetry symmetric
Light emission direct/indirect distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps
Lamps with LED
Rated luminous flux 13330lm
Luminous efficacy 134lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
Rated input power 99W

Operating device
Control gear ECG DALI
Control DALI

Component 2

Lamps
Lamps with LED

Operating device
Control gear ECG DALI

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Protection symbol F
Temperature range (operation) 0..+35°C
Standard EN 50419, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)
Certification, designation CE, ENEC, VDE

Material, Colour

housing aluminium, traffic white (RAL 9016)
luminaire housing aluminium, traffic white (RAL 9016)
Cover lenses

Mounting

Mounting method, mounting location suspended mounting, to wire
Arrangement single arrangement

Electrical connection

Connection terminal, 5-pole
Nominal voltage 230V, 230..240V, 50Hz, AC

Dimensions, Weight

Length 2648mm
Width 114mm
Height 57mm
Weight 8.1kg

Service life

Rated service life 50000h (L85/B50) at AT = 25°C

Product type
office luminaire

Product name
Scriptus 11

Order No.
5MZ313D04WA

Lighting technology

Cover
lenses

Symmetry
symmetric

Light emission
direct/indirect distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps

Lamps
with LED

Rated luminous flux
13330lm

Luminous efficacy
134lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

Rated input power
99W

Operating device

Control gear
ECG DALI

Control
DALI

Lamps

Lamps
with LED

Operating device

Control gear
ECG DALI

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Protection symbol
F

Temperature range (operation)
0..+35°C

Standard
EN 50419, EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)

Certification, designation
CE, ENEC, VDE

housing
aluminium, traffic white (RAL 9016)

luminaire housing
aluminium, traffic white (RAL 9016)

Cover
lenses

Mounting method, mounting location
suspended mounting, to wire

Arrangement
single arrangement

Connection
terminal, 5-pole

Nominal voltage
230V, 230..240V, 50Hz, AC

Length
2648mm

Width
114mm

Height
57mm

Weight
8.1kg

Rated service life
50000h (L85/B50) at AT = 25°C

Scriptus 11
office luminaire, traffic white (RAL 9016), DALI, 13330lm, 840, 2648x114mm, Connection: terminal

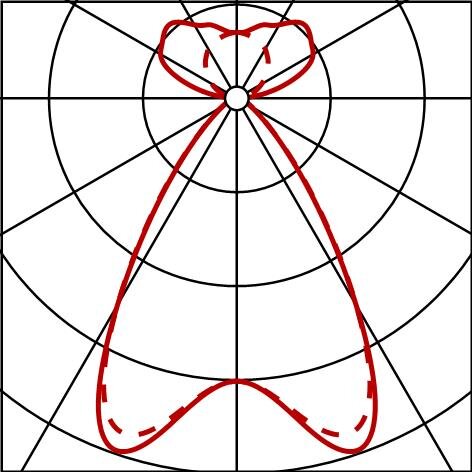

: LED 4000K / CRI >= 80, factory setting: direct and indirect light
: 5MZ313D04WA

Scriptus 11
: LED 4000K / CRI >= 80, individual setting: only indirect light
: 5MZ313D04WA

Scriptus 11
: LED 4000K / CRI >= 80, individual setting: only direct light
: 5MZ313D04WA

Scriptus 11
: LED
: 5MZ313D04WA
