SITECO Mirrortec Indoor, symmetric narrow distribution, square, 1200x1200, with pendant suspension

: 5NW13991QC

Article secondary reflector
Product name SITECO Mirrortec Indoor
Weight 17.6kg

secondary reflector, for SITECO Mirrortec Indoor, ball-and-socket joint pendant suspension, housing, square, of aluminium, coated, metallic grey (RAL 9006), fresnel reflector 100, of PMMA, aluminized, highly specular, light point resolution, fresnel structure, length: 1.200 mm, width: 1.200 mm

Downloads

Key data

Product type secondary reflector
Product name SITECO Mirrortec Indoor
Order No. 5NW13991QC

Light control

Glare reduction

Beam angle

Symmetry

Material, Colour

ball-and-socket joint pendant suspension aluminium, coated, metallic grey (RAL 9006), square
housing aluminium, coated, metallic grey (RAL 9006), square

Mounting

Mounting method, mounting location suspended mounting, to the ceiling, to the wall
Arrangement single arrangement

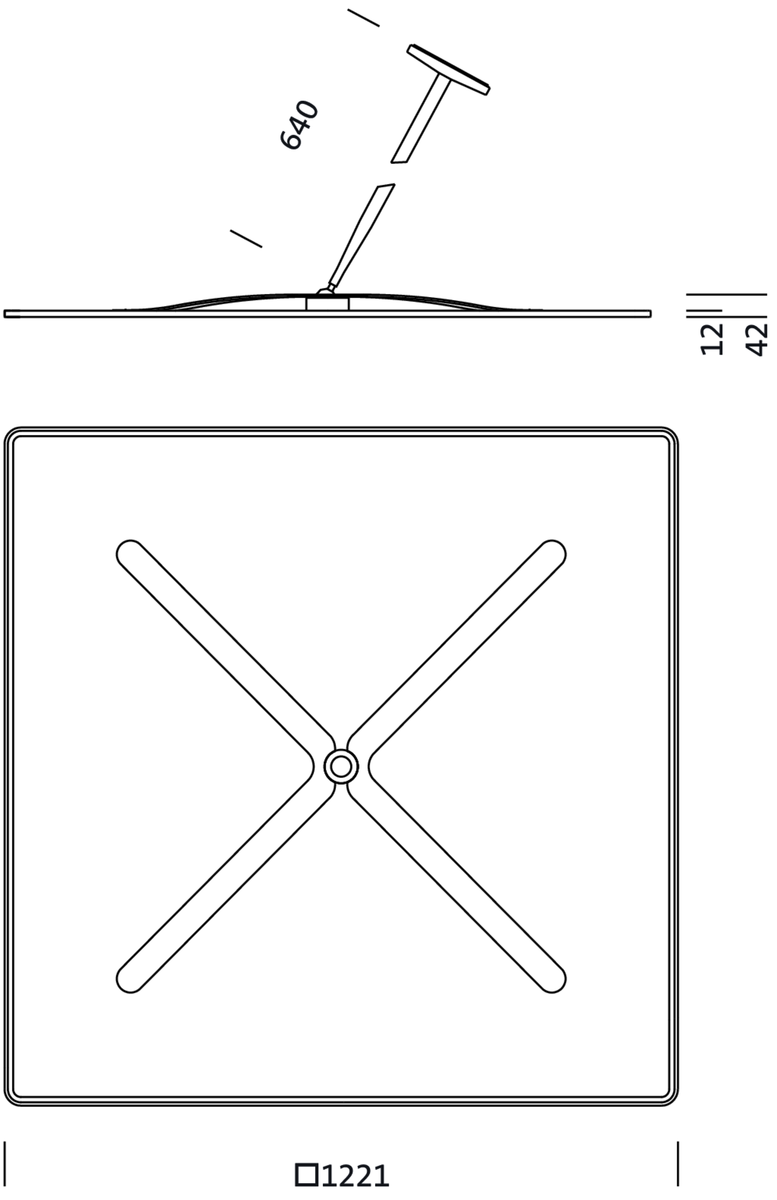

Dimensions, Weight

Length 1200mm
Width 1200mm
Weight 17.6kg

Product type
secondary reflector

Product name
SITECO Mirrortec Indoor

Order No.
5NW13991QC

ball-and-socket joint pendant suspension
aluminium, coated, metallic grey (RAL 9006), square

housing
aluminium, coated, metallic grey (RAL 9006), square

Mounting method, mounting location
suspended mounting, to the ceiling, to the wall

Arrangement
single arrangement

Length
1200mm

Width
1200mm

Weight
17.6kg
