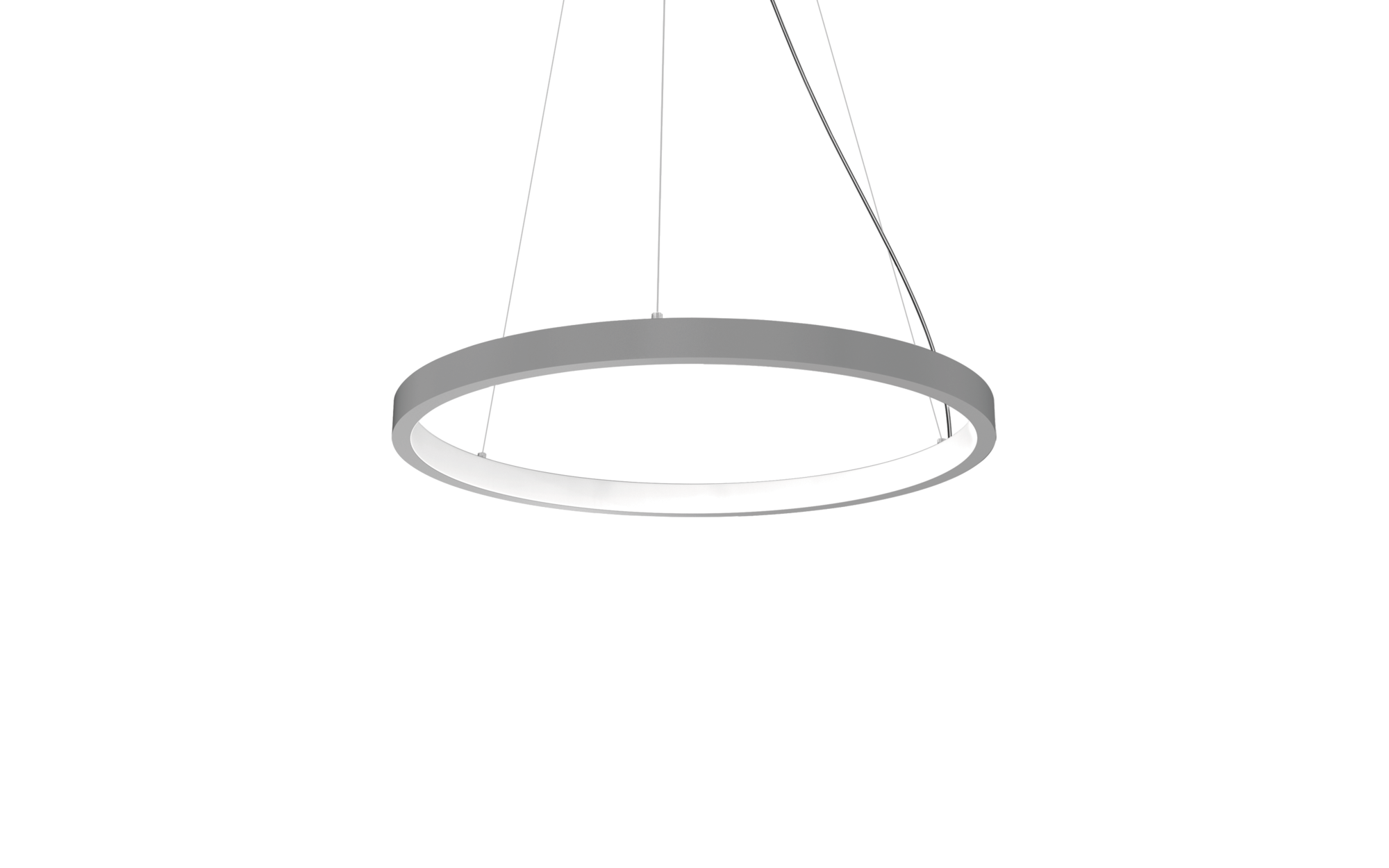

Silica 21 Ring-I, inner ring side luminous, DALI 2, metallic grey (RAL 9006)

: 5PJBI2D3204A

Article suspended luminaire
Product name Silica 21 Ring-I
Lamp LED
Rated luminous flux 5040lm
Luminous efficacy 63lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 80W
Service life 50000h (L80/B50) at AT = 25°C
Impact resistance IK02
Weight 2.6kg

Silica 21 Ring-I, suspended luminaire, of PMMA, frosted, light emission: inner ring side luminous distribution, primary light characteristic: symmetric, installation type: suspended mounting, LED, rated luminous flux: 5.040lm, luminous efficacy: 63lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with terminal, 5-pole, mains connection: 230V, AC/DC, 0/50..60Hz, rated input power: 80W, housing, of extruded aluminium section, metallic grey (RAL 9006), diameter: 805mm, ceiling canopy, metallic grey (RAL 9006), protection rating (lamp compartment): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, permissible operating ambient temperature: 0..+35°C, packaging unit: 1 piece

Downloads

Key data

Product type suspended luminaire
Product name Silica 21 Ring-I
Order No. 5PJBI2D3204A

Lighting technology

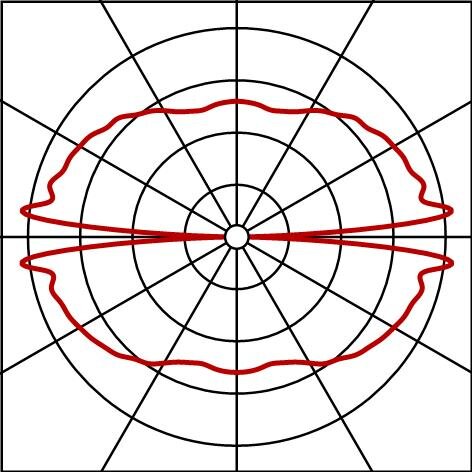

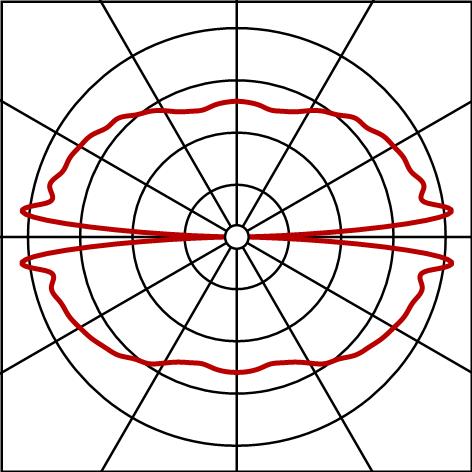

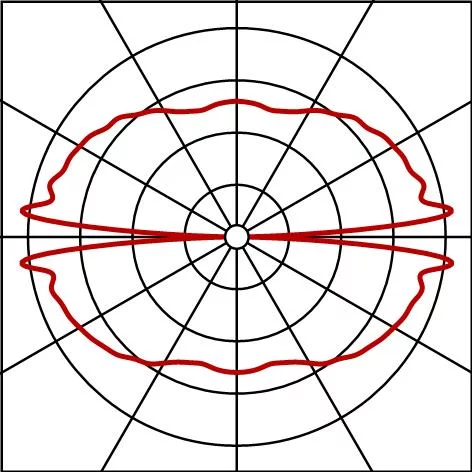

Beam angle wide distribution
Symmetry symmetric
Light emission inner ring side luminous

Lamps

Lamps with LED
Rated luminous flux 5040lm
Luminous efficacy 63lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 80W

Operating device

Control DALI 2

Certificates, Standards

Protection rating (lamp compartment) IP40
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Temperature range (operation) 0..+35°C
Certification, designation CE

Material, Colour

housing extruded aluminium section, metallic grey (RAL 9006)
ceiling canopy metallic grey (RAL 9006)

Mounting

Mounting method, mounting location suspended mounting
Recommended suspension height up to 4.0m
Arrangement single arrangement

Electrical connection

Connection terminal, 5-pole
Nominal voltage 230V, 0/50..60Hz, AC/DC

Dimensions, Weight

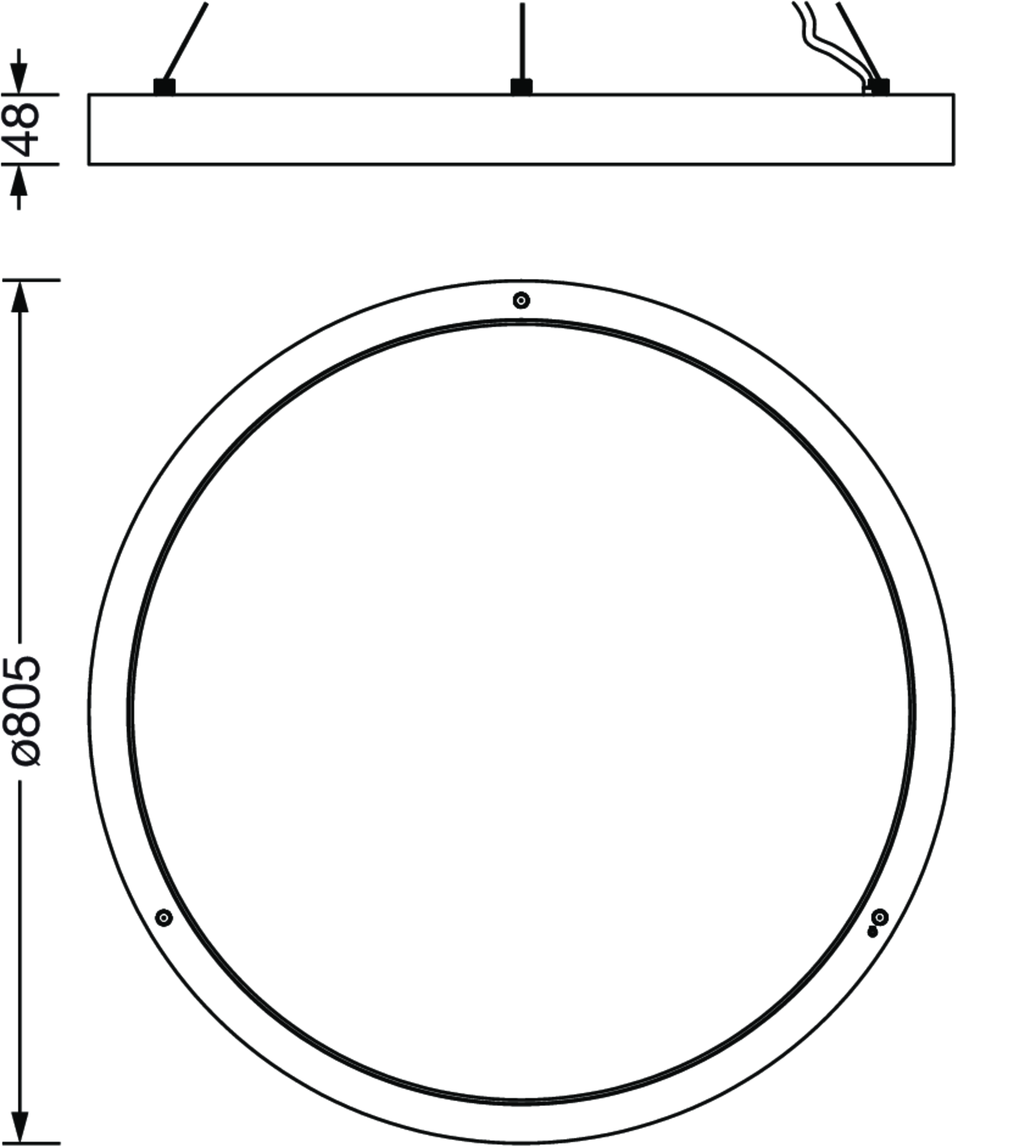

Diameter 805mm
Weight 2.6kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
suspended luminaire

Product name
Silica 21 Ring-I

Order No.
5PJBI2D3204A

Beam angle
wide distribution

Symmetry
symmetric

Light emission
inner ring side luminous

Lamps
with LED

Rated luminous flux
5040lm

Luminous efficacy
63lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
80W

Control
DALI 2

Protection rating (lamp compartment)
IP40

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Temperature range (operation)
0..+35°C

Certification, designation
CE

housing
extruded aluminium section, metallic grey (RAL 9006)

ceiling canopy
metallic grey (RAL 9006)

Mounting method, mounting location
suspended mounting

Recommended suspension height
up to 4.0m

Arrangement
single arrangement

Connection
terminal, 5-pole

Nominal voltage
230V, 0/50..60Hz, AC/DC

Diameter
805mm

Weight
2.6kg

Rated service life
50000h (L80/B50) at AT = 25°C

Sil21Ring-I
5040lm840,DA2,805,sr
: LED 4000K / CRI >= 80
: 5PJBI2D3204A
