5PJBI4D1104A

: 5PJBI4D1104A

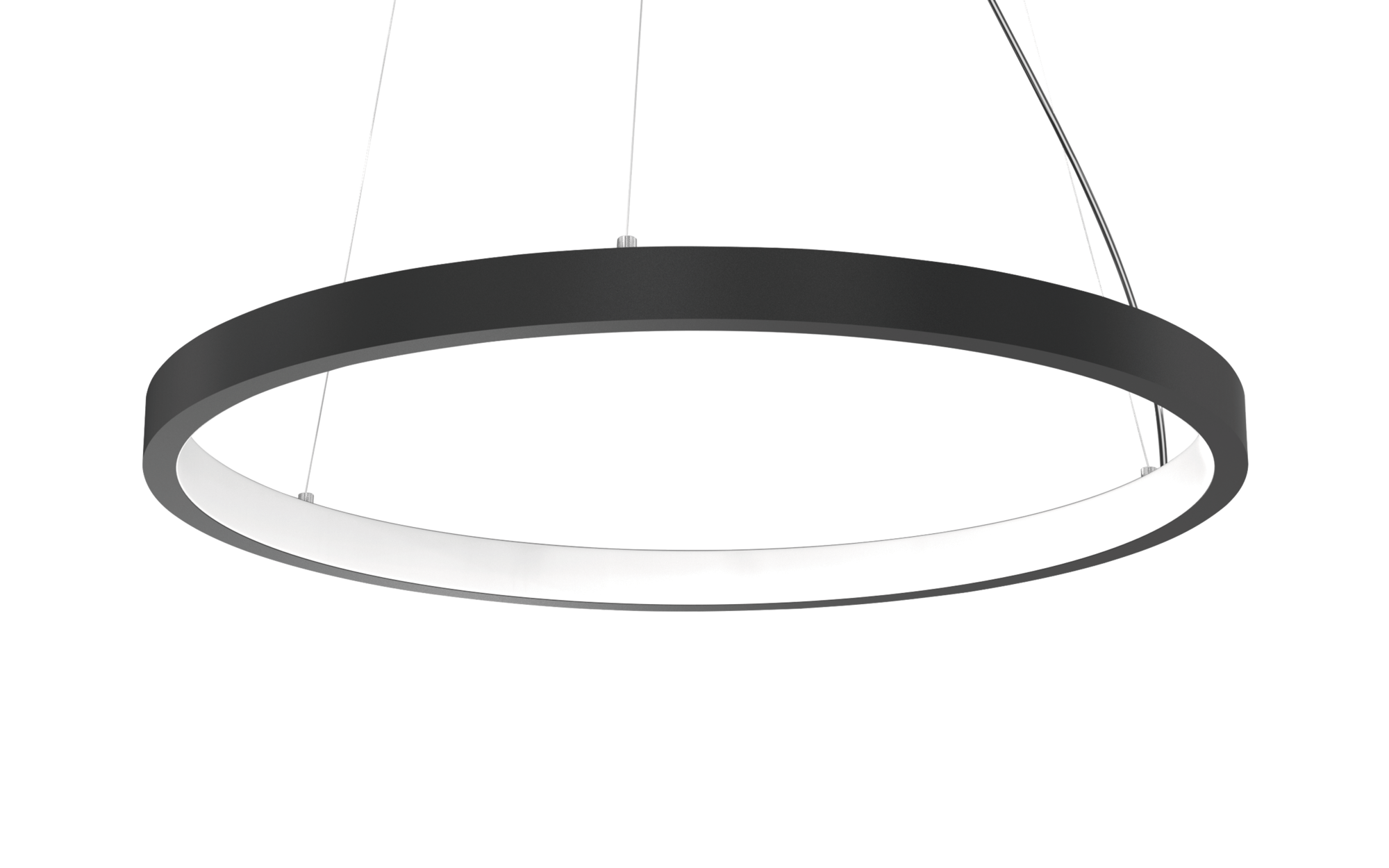

Article suspended luminaire
Product name Silica 21 Ring-I
Lamp LED
Rated luminous flux 8460lm
Luminous efficacy 61lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 140W
Service life 50000h (L80/B50) at AT = 25°C
Impact resistance IK02
Weight 3.8kg

Silica 21 Ring-I, suspended luminaire, of PMMA, frosted, light emission: inner ring side luminous distribution, primary light characteristic: symmetric, installation type: suspended mounting, LED, rated luminous flux: 8.460lm, luminous efficacy: 61lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI 2, with terminal, 5-pole, mains connection: 230V, AC/DC, 0/50..60Hz, rated input power: 140W, housing, of extruded aluminium section, jet black (RAL 9005), diameter: 1.470mm, ceiling canopy, jet black (RAL 9005), protection rating (lamp compartment): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, permissible operating ambient temperature: 0..+35°C, packaging unit: 1 piece

Downloads

Key data

Product type suspended luminaire
Product name Silica 21 Ring-I
Order No. 5PJBI4D1104A

Lighting technology

Beam angle wide distribution
Symmetry symmetric
Light emission inner ring side luminous

Lamps

Lamps with LED
Rated luminous flux 8460lm
Luminous efficacy 61lm/W
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 140W

Operating device

Control DALI 2

Certificates, Standards

Protection rating (lamp compartment) IP40
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Temperature range (operation) 0..+35°C
Certification, designation CE

Material, Colour

housing extruded aluminium section, jet black (RAL 9005)
ceiling canopy jet black (RAL 9005)

Mounting

Mounting method, mounting location suspended mounting
Recommended suspension height up to 4.0m
Arrangement single arrangement

Electrical connection

Connection terminal, 5-pole
Nominal voltage 230V, 0/50..60Hz, AC/DC

Dimensions, Weight

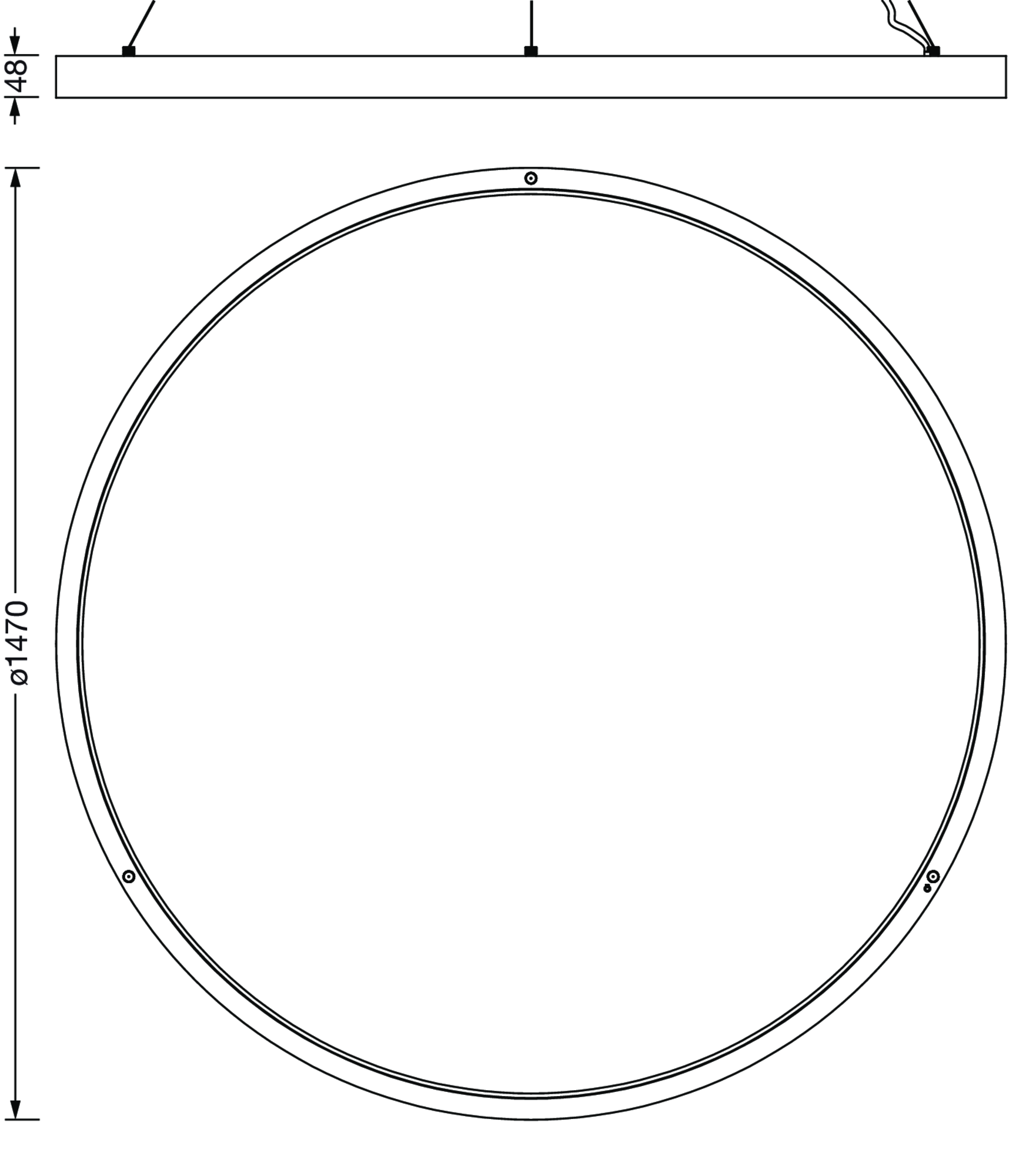

Diameter 1470mm
Weight 3.8kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
suspended luminaire

Product name
Silica 21 Ring-I

Order No.
5PJBI4D1104A

Beam angle
wide distribution

Symmetry
symmetric

Light emission
inner ring side luminous

Lamps
with LED

Rated luminous flux
8460lm

Luminous efficacy
61lm/W

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
140W

Control
DALI 2

Protection rating (lamp compartment)
IP40

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Temperature range (operation)
0..+35°C

Certification, designation
CE

housing
extruded aluminium section, jet black (RAL 9005)

ceiling canopy
jet black (RAL 9005)

Mounting method, mounting location
suspended mounting

Recommended suspension height
up to 4.0m

Arrangement
single arrangement

Connection
terminal, 5-pole

Nominal voltage
230V, 0/50..60Hz, AC/DC

Diameter
1470mm

Weight
3.8kg

Rated service life
50000h (L80/B50) at AT = 25°C

Sil21Ring-I
8460lm830,DA2,1470,bk

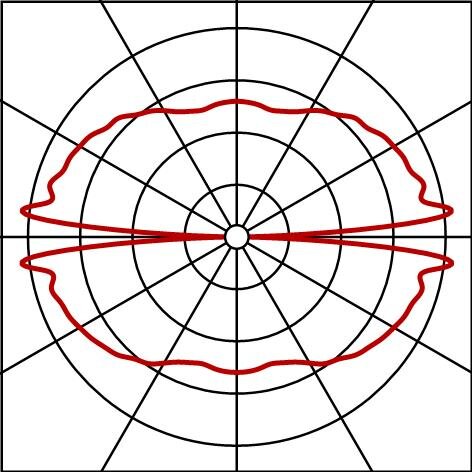

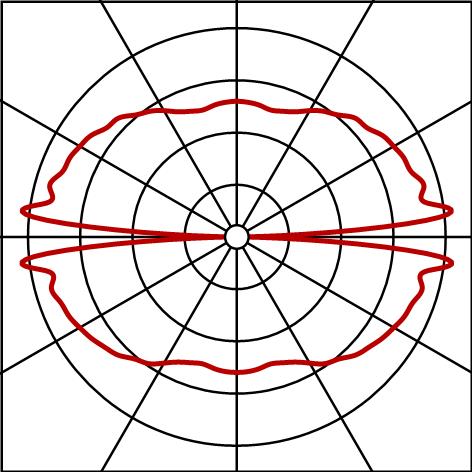

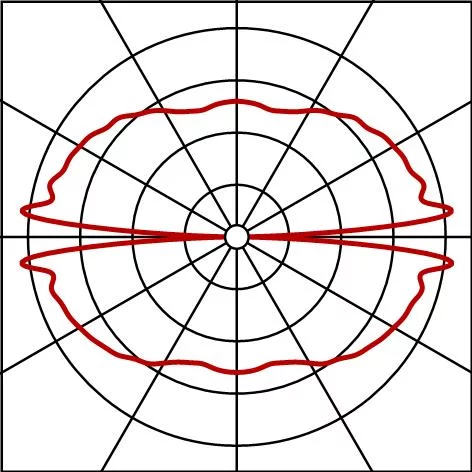

: LED 3000K / CRI >= 80
