5PJDN11EB1G30B

: 5PJDN11EB1G30B

Article wall and ceiling luminaire
Product name Rondel 31
Lamp LED
Rated luminous flux 3000lm
Luminous efficacy 121lm/W
Colour temperature 3000/4000K
Colour rendering CRI > 80
Rated input power 24W
Service life 50000h (L80/B10) at AT = 25°C
Protection rating IP40
Impact resistance IK02
Weight 1.0kg

Rondel 31, wall and ceiling luminaire, primary optical cover: enclosure, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 3.000lm, luminous efficacy: 121lm/W, light colour: 830/840, colour temperature: 3000/4000K, control gear: DALI 2, Multilumen, with terminal, 3+2-pole, max. 2.5mm², mains connection: 230V, AC, 50/60Hz, rated input power: 24W, luminaire housing, round, of steel, white, diameter: 360mm, height: 95mm, protection rating (complete): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, permissible operating ambient temperature: -20..+25°C, standard: EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data), packaging unit: 1 piece

Downloads

Key data

Product type wall and ceiling luminaire
Product name Rondel 31
Order No. 5PJDN11EB1G30B

Lighting technology

Cover enclosure

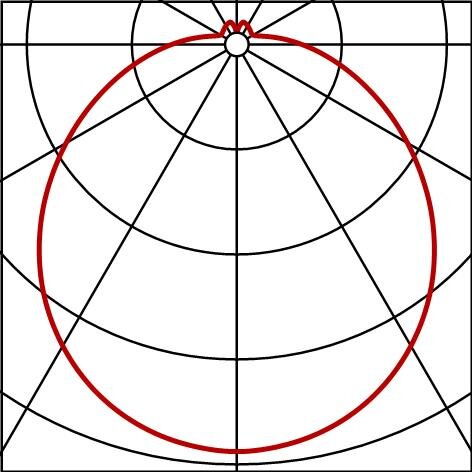

Beam angle 120°
Symmetry symmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 3000lm
Luminous efficacy 121lm/W
Colour temperature 3000/4000K
Colour rendering index CRI > 80
Light colour 830/840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 24W

Operating device

Control DALI 2, Multilumen

Certificates, Standards

Protection rating IP40
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Temperature range (operation) -20..+25°C
Standard EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)
Certification, designation CE

Material, Colour

luminaire housing steel, white, round
Cover enclosure of PMMA

Mounting

Mounting method, mounting location surface-mounted, to the ceiling, to the wall
Arrangement single arrangement

Electrical connection

Connection terminal, 3+2-pole, max. 2.5mm²
Nominal voltage 230V, 50/60Hz, AC

Dimensions, Weight

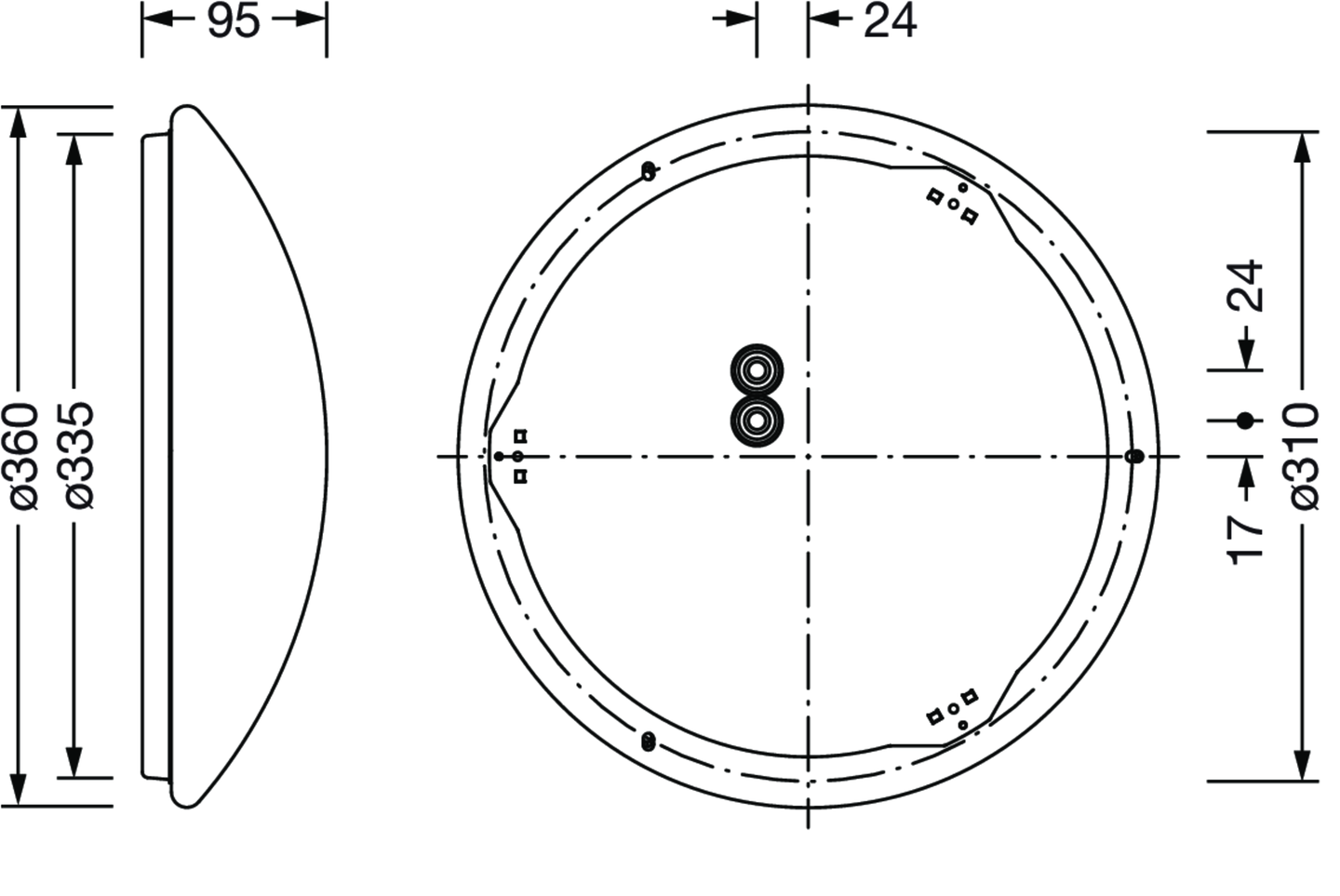

Diameter 360mm
Height 95mm
Weight 1.0kg

Service life

Rated service life 50000h (L80/B10) at AT = 25°C

Product type
wall and ceiling luminaire

Product name
Rondel 31

Order No.
5PJDN11EB1G30B

Cover
enclosure

Beam angle
120°

Symmetry
symmetric distribution

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
3000lm

Luminous efficacy
121lm/W

Colour temperature
3000/4000K

Colour rendering index
CRI > 80

Light colour
830/840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
24W

Control
DALI 2, Multilumen

Protection rating
IP40

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Temperature range (operation)
-20..+25°C

Standard
EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)

Certification, designation
CE

luminaire housing
steel, white, round

Cover
enclosure of PMMA

Mounting method, mounting location
surface-mounted, to the ceiling, to the wall

Arrangement
single arrangement

Connection
terminal, 3+2-pole, max. 2.5mm²

Nominal voltage
230V, 50/60Hz, AC

Diameter
360mm

Height
95mm

Weight
1.0kg

Rated service life
50000h (L80/B10) at AT = 25°C

RON31
3000lm830/840,DA2ML,PMMA,wh

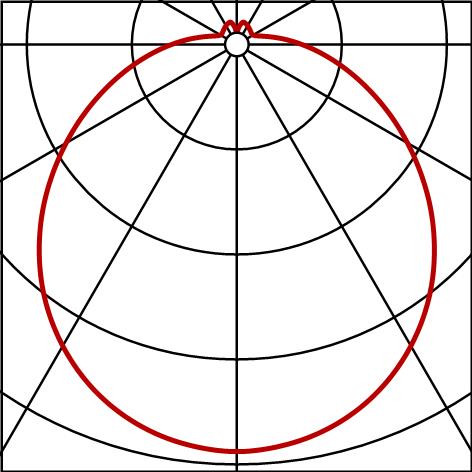

: LED 4000K / CRI >= 80, factory setting: colour temperature 4000K
: 5PJDN11EB1G30B

RON31
: LED 3000K / CRI >= 80, individual setting: colour temperature 3000K
: 5PJDN11EB1G30B
