5TR10100Q

: 5TR10100Q

Article trunking components group (TS)
Product name Modario
Protection rating for IP20/IP40 protection rating
Weight 1.9kg

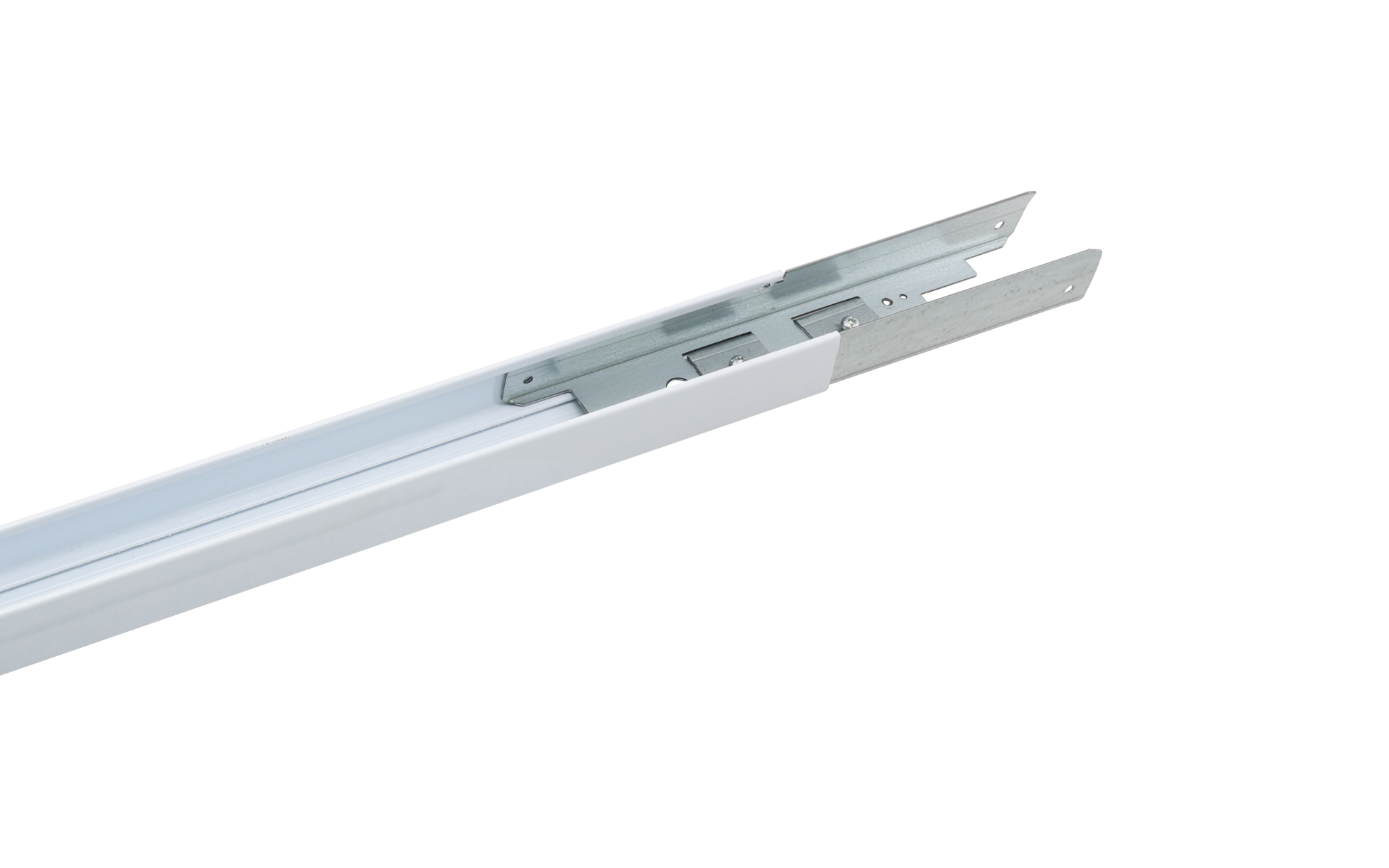

Modario, trunking rail, of sheet steel, coated, pure white, 1-length, length: 1.495 mm, width: 58 mm, height: 43mm, protection rating (complete): for IP20/IP40 protection rating, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, standard: EN 60598, packaging unit: 1 piece

Downloads

Key data

Product type trunking components group (TS)
Product name Modario
Order No. 5TR10100Q

Certificates, Standards

Protection rating for IP20/IP40 protection rating
Insulation class insulation class I (protective earthing)
Standard EN 60598
Certification, designation CE, ENEC, VDE

Material, Colour

trunking rail sheet steel, coated, pure white, 1-length, with pre-assembled trunking rail connectors

Mounting

Mounting method, mounting location suspended mounting, surface-mounted, to the ceiling
Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

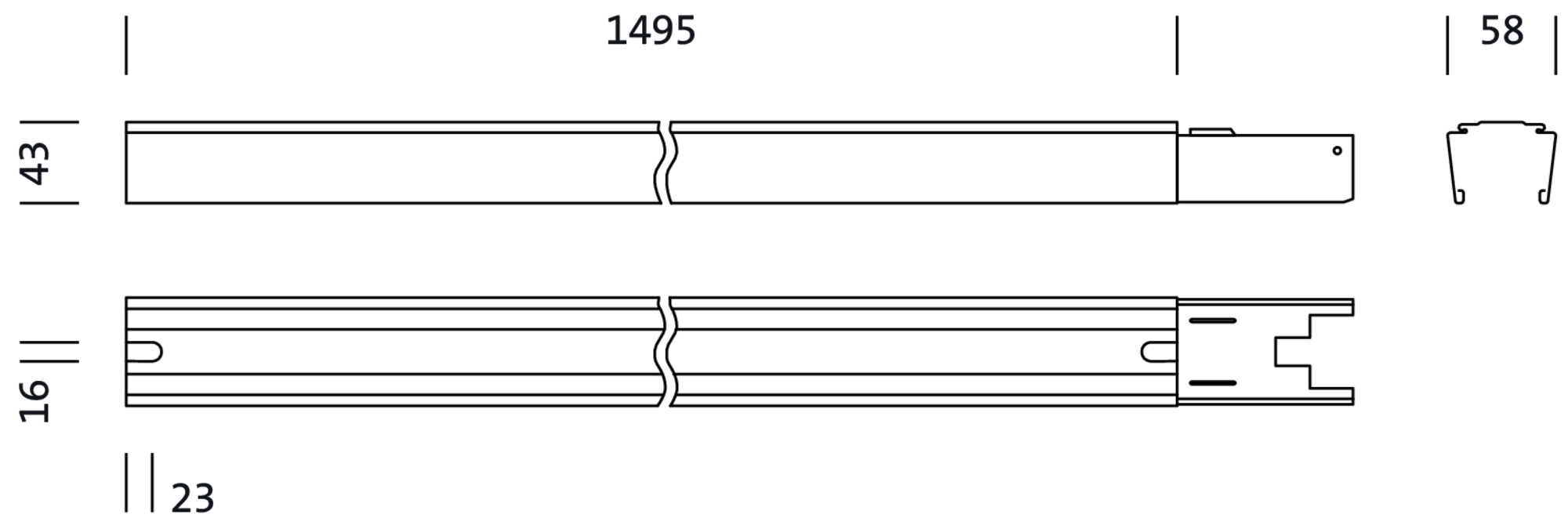

Dimensions, Weight

System units 5x SE
Length 1495mm
Width 58mm
Height 43mm
Mounting distance max. 3.5m
Weight 1.9kg

Product type
trunking components group (TS)

Product name
Modario

Order No.
5TR10100Q

Protection rating
for IP20/IP40 protection rating

Insulation class
insulation class I (protective earthing)

Standard
EN 60598

Certification, designation
CE, ENEC, VDE

trunking rail
sheet steel, coated, pure white, 1-length, with pre-assembled trunking rail connectors

Mounting method, mounting location
suspended mounting, surface-mounted, to the ceiling

Arrangement
single/continuous arrangement

Supplement
only suitable for use in indoor areas

System units
5x SE

Length
1495mm

Width
58mm

Height
43mm

Mounting distance
max. 3.5m

Weight
1.9kg
