5TR305FCSA

: 5TR305FCSA

Article base module

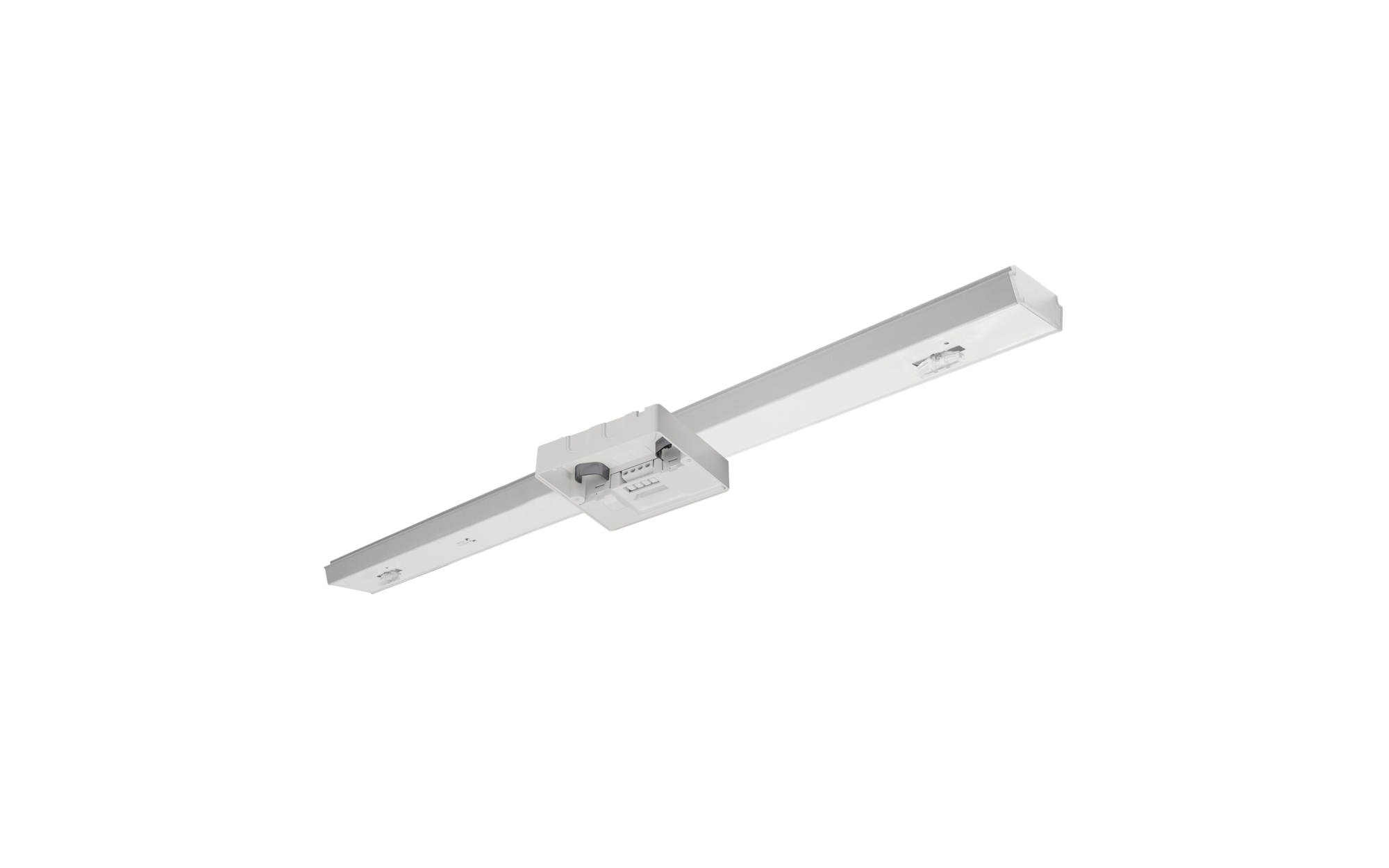

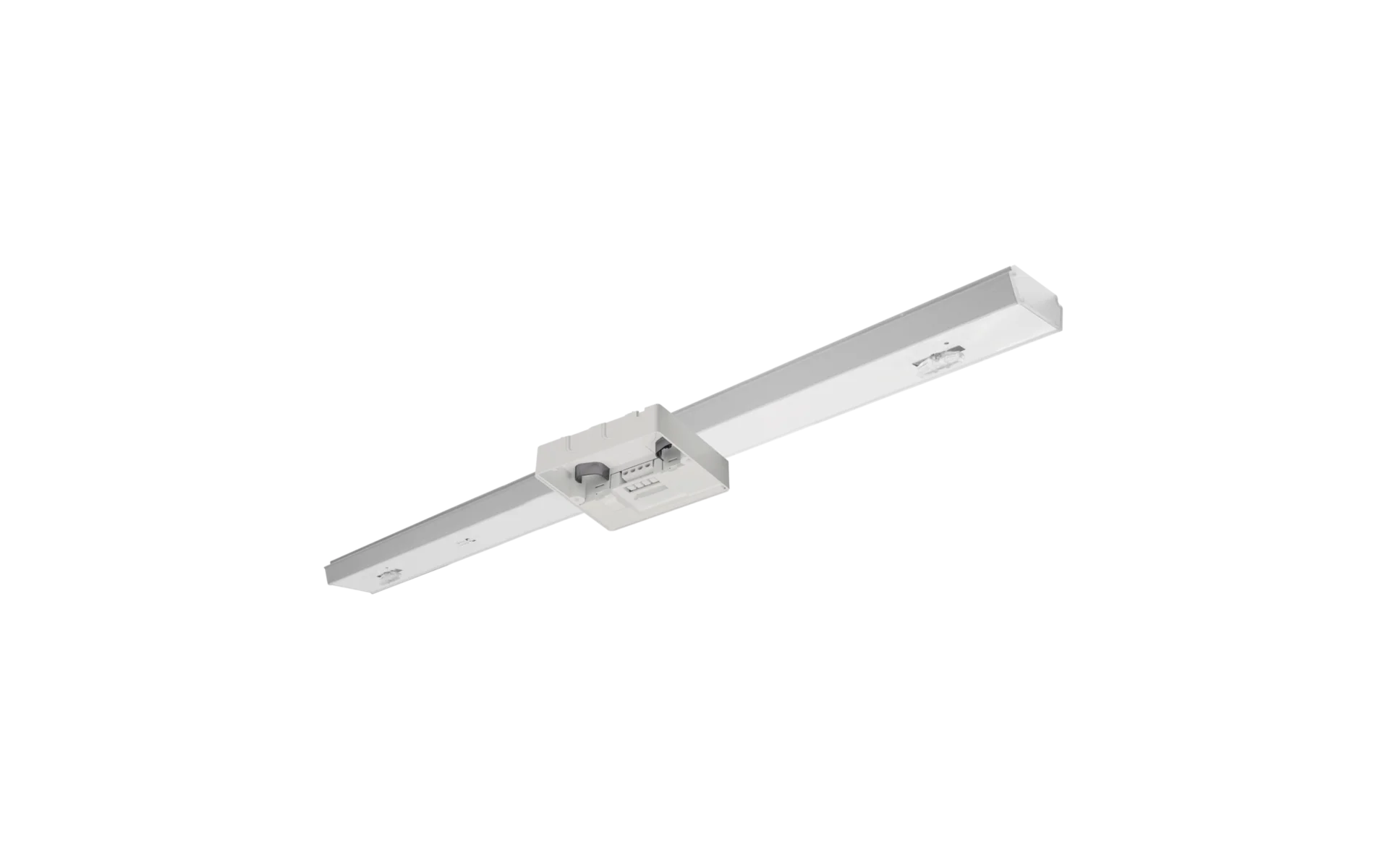

Product name Modario 31 Interface
Protection rating IP20
Weight 0.4kg

Modario 31 InterfaceInterface S, slave, local control - self-sufficient standalone sensors, central control - connection to lighting or building management, dimmable, installation type: slip-in mounting, installation location: to the Modario trunking rail, of sheet steel, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, VDE, 1 x DALI-2, packaging unit: 1 piece

Downloads

Key data

System family SITECO Connect 11, SITECO Connect 21
Product type base module
Product name Modario 31 Interface
Order No. 5TR305FCSA

Lamps

Supplement internal wiring halogen-free

Operating device

Control DALI, DALI 2, dimmable

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) -20..+50°C
Certification, designation CE, VDE

Material, Colour

trunking rail adapter set sheet steel, coil coated, white

Mounting

Mounting method, mounting location slip-in mounting, to the Modario trunking rail
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 5-pole, with phase selection

Dimensions, Weight

Length 597mm
Width 96mm
Height 97mm
Weight 0.4kg

Outputs

DALI-2
Feature DALI, slave function, DALI current max. 6mA

System family
SITECO Connect 11, SITECO Connect 21

Product type
base module

Product name
Modario 31 Interface

Order No.
5TR305FCSA

Supplement
internal wiring halogen-free

Control
DALI, DALI 2, dimmable

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
-20..+50°C

Certification, designation
CE, VDE

trunking rail adapter set
sheet steel, coil coated, white

Mounting method, mounting location
slip-in mounting, to the Modario trunking rail

Supplement
only suitable for use in indoor areas

Connection
plug, 5-pole, with phase selection

Length
597mm

Width
96mm

Height
97mm

Weight
0.4kg

DALI-2

Feature
DALI, slave function, DALI current max. 6mA
